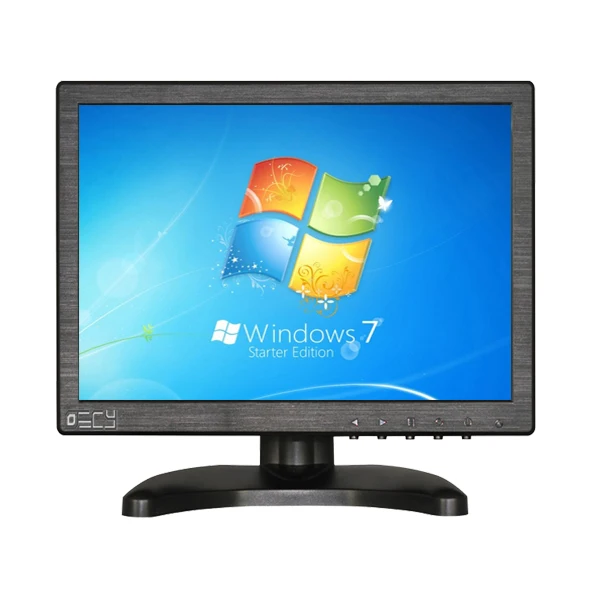

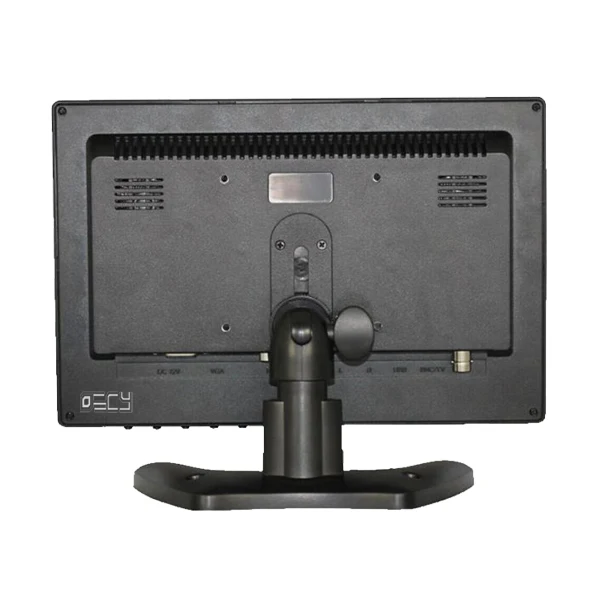

10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel
10.1 inch tft-lcd monitor with new IPS panel

10.1 inch tft-lcd monitor with new IPS panel

Delivery:
FOB
Quantity:
  • Products Status:Stock
  • Application:Desktop
  • Response Time:8ms
  • Brightness:400cd/m
  • Contrast Ratio:600:1
  • Resolution:1280 x 800
  • Widescreen:Yes
  • Panel Type:IPS
  • Place of Origin:CN;GUA
  • Screen Size:10.1"
  • Interface Type:VGA/USB/BNC/AV
  • Pixel Pitch:Standard
  • Brand Name:OSCY
  • Key Feature1:support 1080p
  • Key Feature2:IPS LCD panel
  • Key Feature3:LED Backlight
  • Display Type:16:10 Ratio 10.1 inch Active Matrix TFT LCD
  • Aspect Ratio::600:1
  • Active Display Area:217(W) X 135(H) mm
  • Monitor dimension:245mm x 166mm x 35mm
  • Input Video Format:VGA/HD/RCA/BNC/USB READER
  • OSD Languages:8 Languages
  • Power Supply:DC12V 1A

10.1 inch tft-lcd monitor with new IPS panel

Products Discribe

oscy tft-lcd monitor

Main Features:

1. High brightness New IPS panel
Advantage:High view angle, short response time, quick reflecting, low comsuption, long using life, high brightness ,1280*800plx


2. Dynamic color
LED backlight, turely display and remarkable


3. Low comsuption and environmental protection
10.1 TFT-LCD monitor stand by the international standard with low comsuption

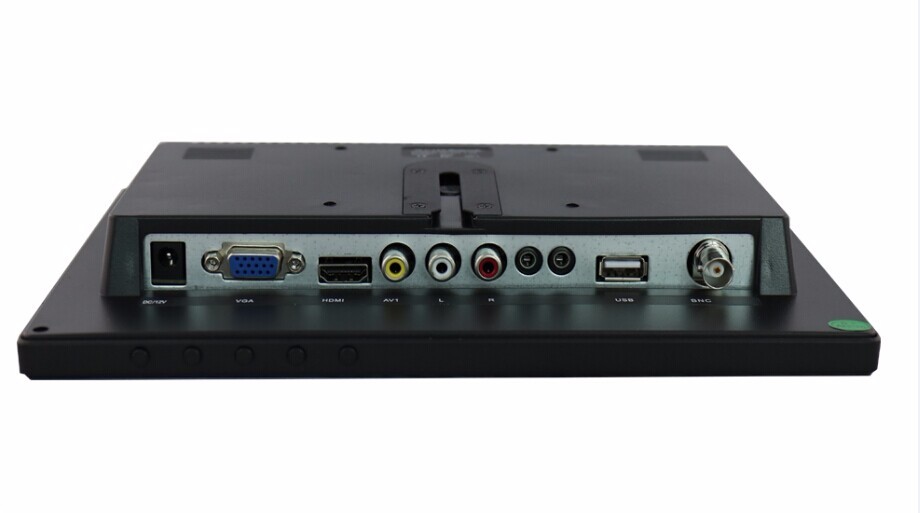

4. Multi-function input , space saving and lowest cost

HD/VGA/BNC/AV/USB Input (1080p optional)



5. Lighting allowed and more convenient to outdoor activity

Outdoor photograph and games are available, and special for aerial aircraft enthusiasts





Specification:

Name

10.1 Inch Muilt-function Monitor

Model

OHM-1010

Backlight

LED Backlight

LCD Panel

IPS panel

Display Type

16:10 Ratio 10.1″Active Matrix TFT LCD

Active Display Area

217(W) X 135(H) mm

Monitor dimension

245mm x 166mm x 35mm

Brightness

400 cd/m2

Native Resolution

1280*800

Contrast Ratio Typically

600:1

Viewing Angle

Full Viewing Angle

Input Video Format

VGA/HD/RCA/BNC/USB READER

Colors

16.7 million

Backlight Lamp life Hrs

50,000

Sychronization Range

30-80 KHz horizontal, 55-75 Hz Vertical

OSD Languages

8 Languages

Power Supply

DC12V  1A

Power Consumption

<20 W Typ

Temperature Range

Operating:0℃-50℃, Storage:-20℃-80℃

Humidity Non Condensing

Operating:10%-90%, Storage 5%-90%

10.1 inch tft-lcd monitor10.1 inch lcd monitor

 oscy tft-lcd monitor



FAQ

10.1 inch tft-lcd monitor

--------------------------------------------------------------------------------------

1. Q:Why should I choose OSCAN?

 A: OSCAN  is professional LCD Touch Monitor manufacturer with professional production  and QC teams, we have skilled workers and advanced facility and offer the latest cuttingedge technology POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated  products. We have CE,FCC,ISO9001 ,EMC and RoHS ect certification. We pride ourselves on not just earning your business, but earning your trust.



2.Q: How is the warranty and after-sales service?

 A:We have one year guarantee, during the time, once you have any quality problem, we will repair for free . As to the after-sell service, you can contact us anytime



3.Q: May I get a sample?

  A:Of course. We can provide the sample to you when you send the products details.





Packaging & Shipping

10.1 inch lcd monitor

Touch Screen Monitor wrapped with kraft boxes.

Accessories

1pcs LCD Monitor



1pcs Stand Shelf



1pcs VGA Cable



1pcs Instruction Manual



1pcs AC/DC Power



Some Screw for Fixing the Shelf

Shipping

oscy tft-lcd monitor
 We delivery by lowest cost transportation, custom way is Air Express. If your quantity is enough we can use sea shipping . We always put you in the first place in our mind.



Our Services

10.1 inch tft-lcd monitor

Payment Term:

T/T or westunion

Delivery Day:

sample: 5-7 working days after payment confirmed

20-50pcs:7-10 days

>100pcs: 10-15 days



Contact us  Serve for you 24 hours !

                                    Home page

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

10.1 inch lcd monitor

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

We pride ourselves on not just earning your business, but earning your trust.

OSCAN is yourright choice.
