- Products Status:Stock
- Application:Desktop
- Screen Size:10"
- Response Time:8ms
- Brightness:300cd/m
- Interface Type:D-SUB
- Contrast Ratio:500:1
- Widescreen:Yes
- Panel Type:TFT
- Place of Origin:CN;GUA
- Interface Type:AV/BNC/USB/
- Resolution:800*600
- Pixel Pitch:5
- Brand Name:OSCY
- Key Feature1:4:3 ratio display
- Key Feature2:Metal case
- Key Feature3:VGA+HD+AV+BNC+USB reader
- resolution:800*600
- backlight:LED backlight
- contrast:500:1
- OSD Languages:8 Languages
- power supply:DC12V
- Usage:CCTV Camera,moniting
- color:black
10"LCD CCTV Monitor with HD input,metal case Open frame monitor
800*600/1024*768 Resolution, Metal case
Interface:
VGA+BNV+AV
VGA+BNC+AV+HD+USB Reader
VGA+USB Touch ( Touch screen Optional)
Model: OCCTV-1000
Meatures:
1) Industrial LCD Panel, Specially designed for monitoring
2) 800*600 resolution
3) Less 12 seconds speed response time, with quick picture screen
4) 16.7 M, 8 colors,Delicately screen
5) Can support multi-signal input and output
6) Standard Power supply, Low comsuption and environmental protection
Specification:
| Product name | 10inch metal case HD Monitor |
| Display type | 4:3 Ratio TFT LCD |
| Back Light | Dual tubes LED Back light |
| Color | Black |
| Active display Area | 196 (w) * 148 (H) mm |
| Native Resolution | 800*600 |
| Frequency | 60-75HZ |
| Response Time | 12ms |
| Brightness | 300cd/m2 |
| Contrast | 500:1 |
| color system | PAL/NTSC |
| Viewing Angle | 160/160 |
| Backlight Lamp life | 50000 hours |
| Operation System | Windows 2000 SP4/XP SP2/Vista 32bits/Win7 /LINUX/WINDOUW8 |
| Monitor Size | 241*192*35mm |
| Monitor interface | VGA/HD/AV/BNC/USB Reader |
| Power Input | 12V DC 2A |
| G/W | 3kg |
Front

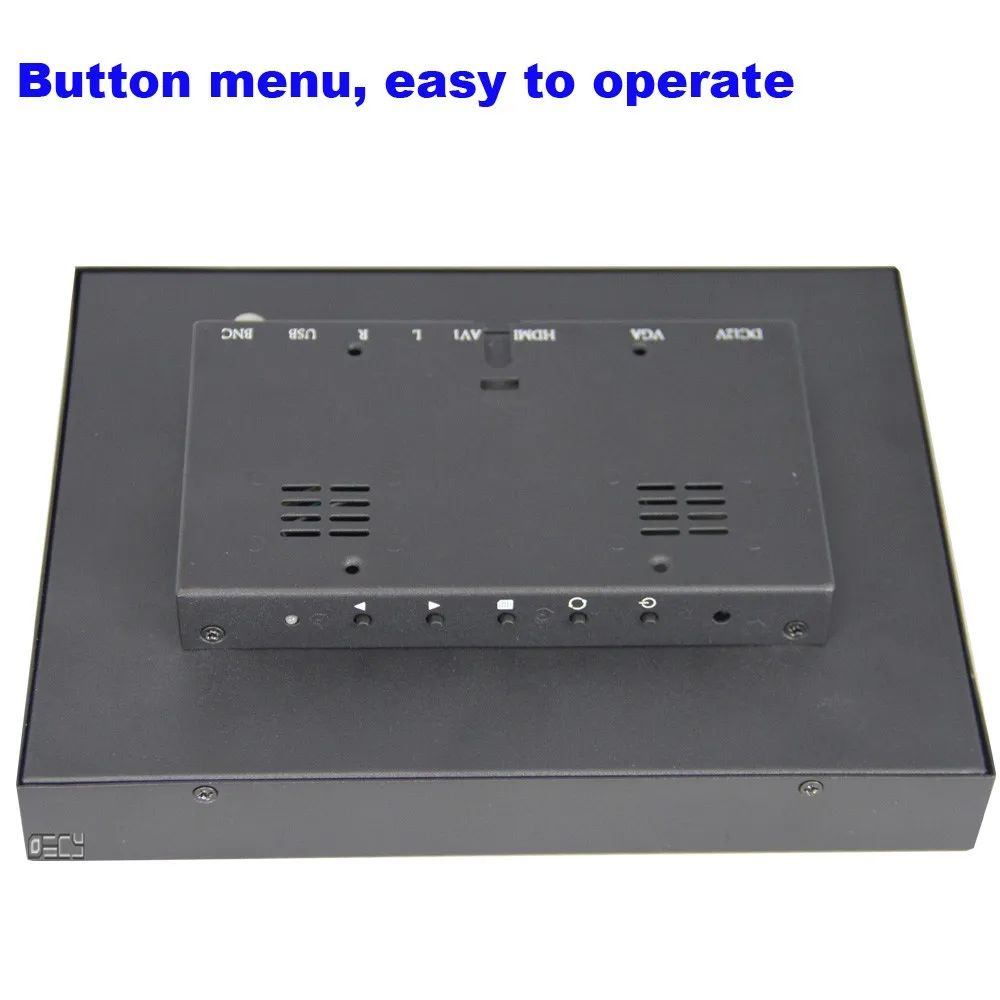

Back
Side view
Open frame optional:
Size: 10inch Lcd Monitor: 36*27*9cm for one Case
39*36*54cm for one Carton (10pcs In One Carton)
