- Place of Origin:CN;GUA
- Brand Name:OSCY
- Model Number:OVM-1210
- Key Feature1:MITSUBISHI panel
- Key Feature2:500:1
- Key Feature3:800 * 600 resolution
- brigtness:300cd/m2
- application:POS or computer
- input port:VGA+BNC
- Optional:AV/TV/HD
- model:OVM-1210
- Viewing Angle:Viewing Angle
- Contrast Ratio Typically:400:1
12 Inch LCD Monitor for POS/Car/CCTV Use
BNC+VGA Input ( AV/USB/BNC Optional)
Panel size | 12.1 inch TFT-LCD |
Visual size | 245*185mm |
Standard Resolution | 800*600 (1024*768 optional) |
Scale | 4*3 |
Number of Colors | 16.2M |
Brightness | LED panel:300cd/m2 |
Response time | 8ms |
View angle | Horizontal:160° |
Vertical:130° |
Contrase ratio | 400:1 |
Video input format | (analog) RGB |
Connector | VGA (D-sub), HD |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V AC |
(DC 12V) |
Operation Environment | Workable Temperature:-10 to 60°C |
Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%; |
storage relative humidity:10% to 90% |
Net weight | 3.0 Kgs/pcs |
Gross weight | 3.5 Kgs/pcs |
Power consumption | Max 18W |

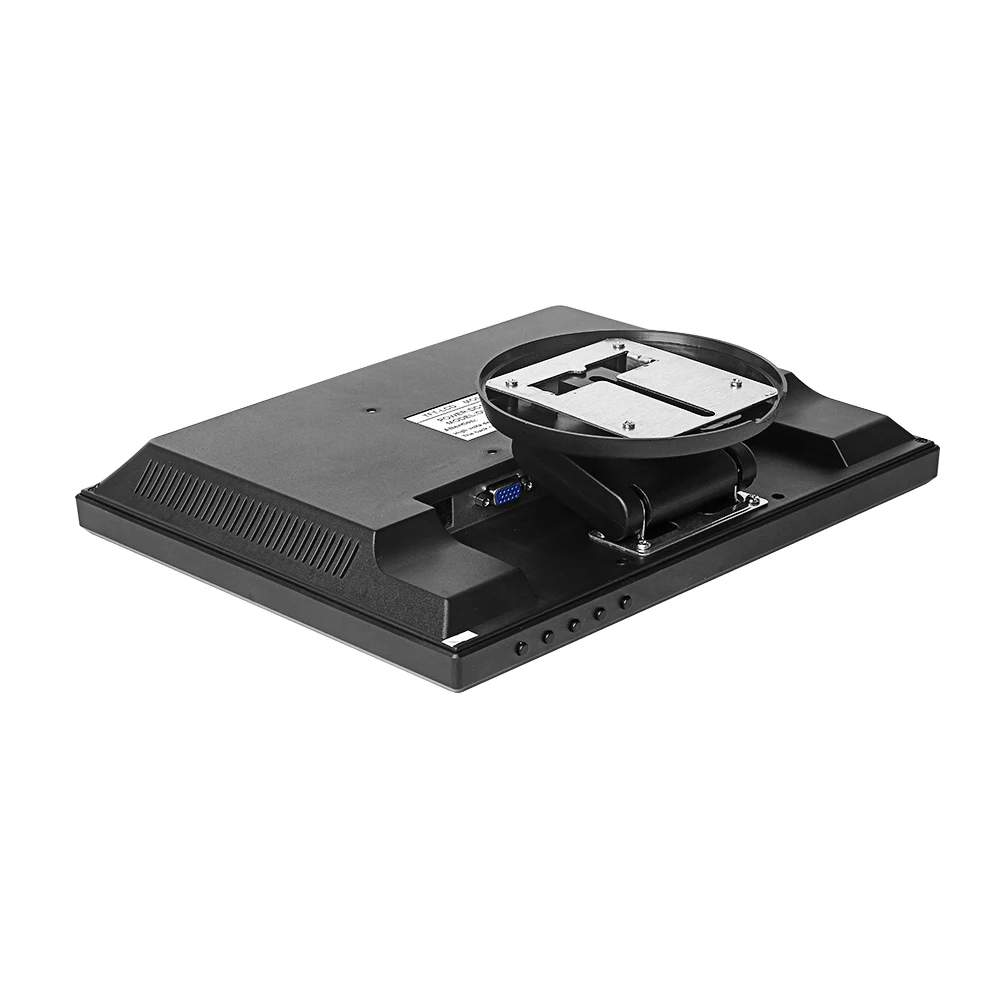

Setup (optional) | 1) provide wall brackets for wall-mounting, |
VESA 75mm |
2) provide base to support the monitor |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock, Languages,function,Install,reset |
each minit box size | 333*135*295MM |
package size | 15PCS in a carton |
color | white/black |
Features | simple, speedy,flexible ,artistic appearance and low radiation |
Warranty | 1 year |

Applicable Field |
Public Places: | Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, |
Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Financial Organizations | Banks, negotiable securities, funds, insurance companies, pawnshops |
Business Organizations | Supermarket, large-scale shopping malls, 4S Shop, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy |
Non-profit Organizations | Telecommunications, post offices, hospital, schools; |
Real Estate Property | Apartments, villas, offices, commercial buildings, model rooms, property brokers |
