- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:ABS+PC
- Colour Depth:32 Bit
- Interface Type:COM, PS/2, usb
- Max Paper Size:200mm
- Optical Resolution:4mil
- Scan Speed:1500times/sec
- Brand Name:Metrologic
- Place of Origin:Guangdong, China
- Warranty(Year):1-Year
- After-sales Service:Return and Replacement, Repair, Call Center and on-line Technical Support
- Light source:Visible Laser Diode
- Wave length:650nm
- Scan mode:20-line scanning
- Scan speed:1500times/sec
- Scan distance:0-200mm
- Scan direction:5 scan direction
- Min resolution:0.10mm(pcs0.9)
- Interface:USB,RS232,PS2
- Material:ABS+PC
- Color:black/white
POS Laser scanner use replaceable cables for PowerLink users
Main features :
1. Use replaceable cables for PowerLink users 2. Fixed on the wall or check counter 3. Customize the depth-of-field according to different circumstance 4. Edit the barcode data to meet the requirements of the users 5. Multiple beeper tones

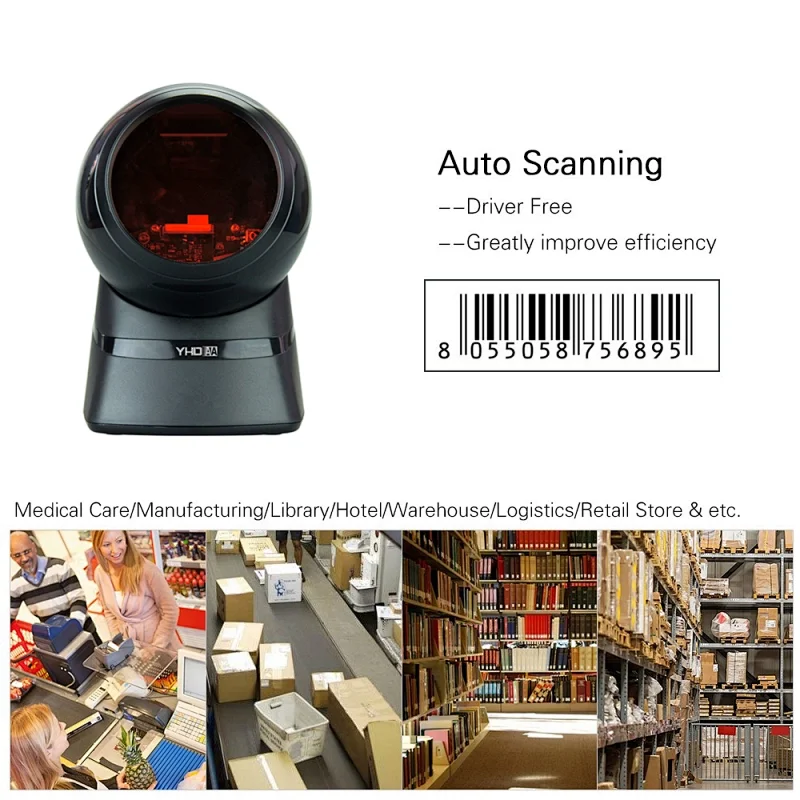

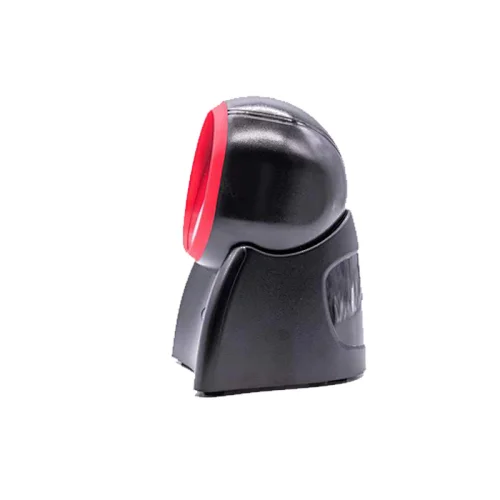

The MS7120, the all-time, best-selling hands-free omnidirectional barcode scanner presents an innovative, elegant and affordable solution to convenience retail applications where counter space is at a premium.

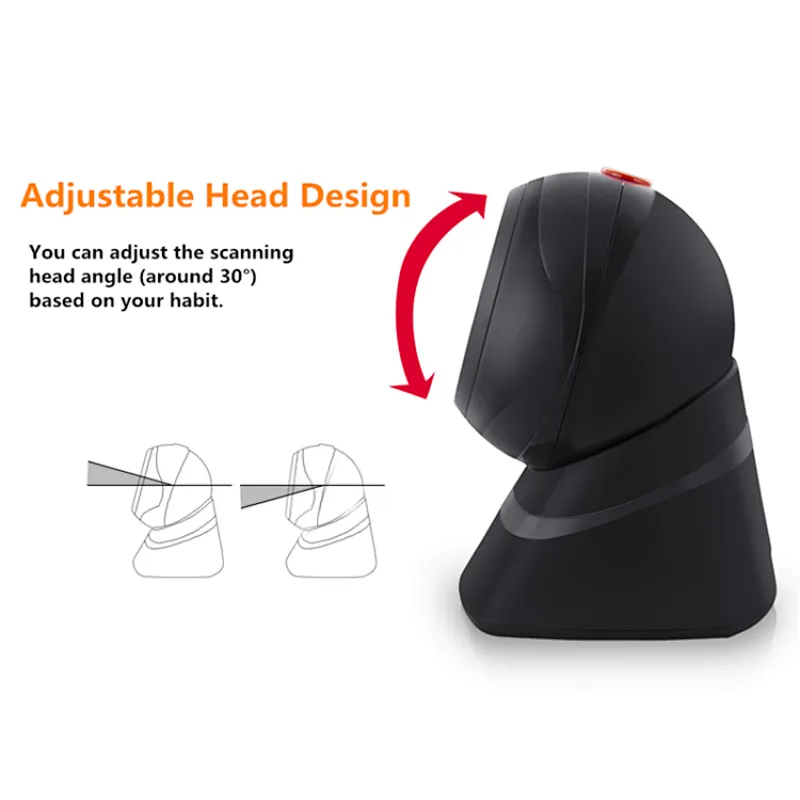

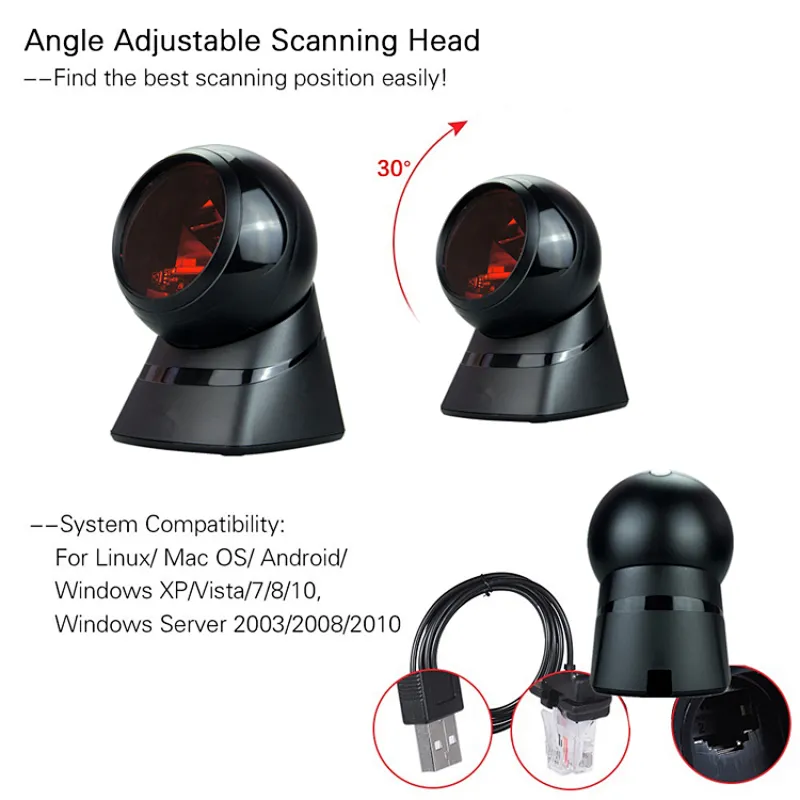

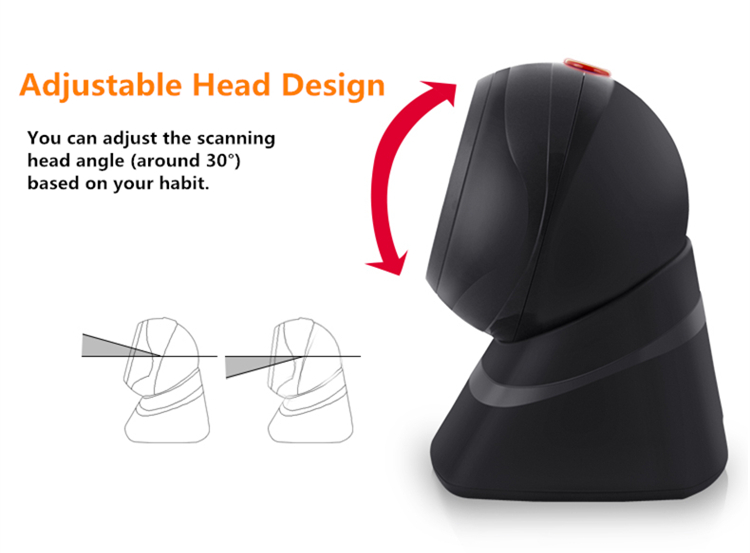

Recipient of multiple design honors, MS7120s award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.
Technical Parameters | |
Light source | Visible Laser Diode |
Wave length | 650nm |
Scan mode | 20-line scanning |
Scan speed | 1500times/sec |
Scan distance | 0-200mm |
Scan window | 128mm @ 200mm |
Scan direction | 5 scan direction |
Min resolution | 0.10mm(pcs0.9) |
Decoding capability | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Postal Code, etc. |
Interface | USB,RS232,PS2 |
Print contrast | 30% |
Error rate | 1/5 million |
Indicator | Two color LED (green & red) |
Beeper Operation | Programmable tone & volum |
Physical parameter | L*W*H: 60mm*128mm*154mm;Weight:300g |
Material | ABS+PC |
Cable | 2 meters long |
Electrical parameter | Voltage: 5V; Electric current: 200mA; Power: 1.0 Watts |
Laser safety | CDRH Class IIa: IEC 60825-1: Class I |
EMC | CE & FCC DOC compliance |
Environmental parameter | Operating temperature: -20°C-45°C Storage temperature: -20°C-60°C Humidity: relative humidity 5%-95%(non-condensing)Light level: sunlight 4.000lux Max |
Shock resistance | Designed to withstand 2 meters drop on concrete surface |
Technical parameters are subject to be changed without notice! | |
