- Warranty(Year):1-year
- Certification:ce
- Certification:RoHS
- Certification:Sgs
- Color:Black
- Display Ratio:4:3
- Series:For Business
- After-sales Service:Onsite Training and Inspection
- After-sales Service:Free spare parts
- After-sales Service:Return and Replacement
- After-sales Service:Repair
- Products Status:New
- Application:Desktop
- Response Time:5ms
- Brightness:350cd/m
- Contrast Ratio:450:1
- Widescreen:No
- Place of Origin:CN;GUA
- Brand Name:OEM
- Certification:ISO-9001
- Interface Type:VGA/AV/BNC/USB
- Panel Type:LCD panel
- Warranty:12 Months
- Type:CCTV monitors
- Color:black
- Max Resolution:1024*768 optional
- Power consuption:1.5W
- Interface:VGA/HD/AV/RCA/USB input
- Case material:metal case
- Power input:DC 12V
- Certisficate:CE/ROHS
- Pixel Pitch:Standard
portable Optional 1024*768 hd-sdi cctv test monitor
Optional 1024*768 hd-sdi cctv test monitor
Main Feature:
1.High Brightness,800*600 resolution (1024*768 optional)
2.VGA/HD/AV/BNC/USB input(BNC input is very important)
3.Metal case, more stable
Specification:
LCD Panel size | 10’’lcd CCTV monitor | ||
Item No | OCCTV-1000 | ||
Panel specification | Panel type | 10”LCD Panel | |
Display dimension(mm) | 245(W)*200(H) | ||
Display ratio | 4:3 | ||
Backlight type | CCFL | ||
Physical Resolution | 800*600 | ||
Display color | 16.7M | ||
Brightness | 350cd/m2 | ||
Contrast | 450:1 | ||
View Angle | 150°/140° | ||
Response time | 5ms | ||
Operating life | 60,000hours | ||
Function | Colour system | PAL/NTSC/SECAM | |
Menu language | Simplified-Chinese,Traditional-Chinese,English,etc | ||
Operating mode | Remote control | ||
I/O interface | D-15 RGB input(VGA) | 1 | |
HD input | 1 | ||
BNC input | 1 | ||
RCA input | 1 | ||
USB reader | 1 | ||
Power | Power input | DC12V/2A | |
Power consumption | ≤18W | ||
Standby power | ≤3W | ||
Work Environment | Operating temperature | 0°C—50°C | |
Storage temperature | -20°C-60°C | ||
Operating humidity | 10%-90% | ||
Storage humidity | 10%-90% | ||
Related Terms | Installation way | Hanging / Desktop,etc | |
product dimension | 238.4*216*35(mm) | ||
Case colour | Black | ||
Case material | Metal | ||
Certificate | ISO9001,3C etc | ||
Net Weight | 2.5KG | ||
CCTV monitor Display ( Custom size is 10 inch)
8inch /12inch /10inch CCTV Monitors
FAQ:
--------------------------------------------------------------------------------------
1. Q:Why should I choose OSCAN?
A: OSCAN is professional LCD Touch Monitor manufacturer with professional production and QC teams, we have skilled workers and advanced facility and offer the latest cuttingedge technology POS Systems, POS monitors, POS periperals,ect. We expot to American, Germany, Japan,
Australia, UK , Turkey etc.We have CE,FCC,ISO9001 ,EMC and RoHS ect certification. We
pride ourselves on not just earning your business, but earning your trust.
2.Q: How is the warranty and after-sales service?
A:We have one year guarantee, during the time, once you have any quality problem, we will repair for free . As to the after-sell service, first you can get technology support in our webpage, you can
download driver for free, get some solution;second we provide online technology support.
3.Q: May I get a sample?
A:Of course. We can provide the sample to you when you send the products details.

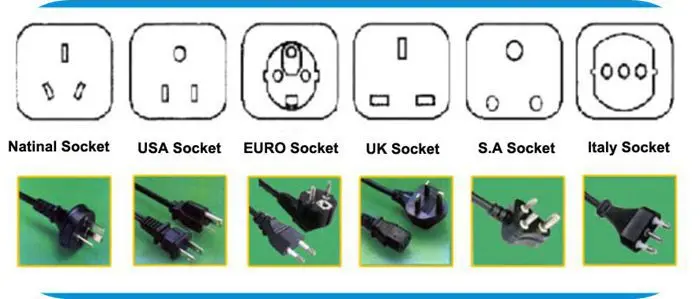

Pls chose Socket types: Custom types are International Socket, UK Socket, US Socket,
EURO Socket, Italy Socket, South Africa Socket, Switzerland Socket. ect.
Socket Types in diffrent Country:
SHENZHEN OSCAN TECHNOLOGYCO.,LTD is a high tech ompany with R & D, production,management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the
retated products.According to the requirements from customers, we have sucessfullydesigned a variety of unique solutions to the supermarket, restaurant, retail and
other related places.
We are holding " Integrity,Innovation,Win together" as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.
We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.
Office Address:Room 1102, Jiahui Business Center, No. 8-11, Xinwei Village, Shuidou, Donghuan 2nd Road, Longhua New District,shenzhen,China
Packing Details:
Shipping
We delivery by lowest cost transportation, custom way is Air Express. If your quantity is enough we can use sea shipping . We always put you in the first place in our mind.
Payment Term:
T/T or westunion
Delivery Day:
sample: 5-7 working days after payment confirmed
20-50pcs:7-10 days
>100pcs: 10-15 days
