- Products Status:Stock
- Type:Barcode Scanner
- Colour Depth:32 Bit
- Interface Type:COM
- Interface Type:PS/2
- Interface Type:USB
- Place of Origin:CN;GUA
- Scan Element Type:ABS+PC
- Max Paper Size:200mm
- Optical Resolution:4mil
- Scan Speed:120 Line/sec
- Brand Name:OSCY
- Light source:650 Visible Laser
- width of scan:5-30 cm
- Scan mode:single line scanning
- Scan speed:120 line /sec
- depth of scan:2-40 cm
- weight:0.28 kg
- voltage:5V
- Interface:USB,RS232,PS2
- Material:ABS+PC
- Color:black/white

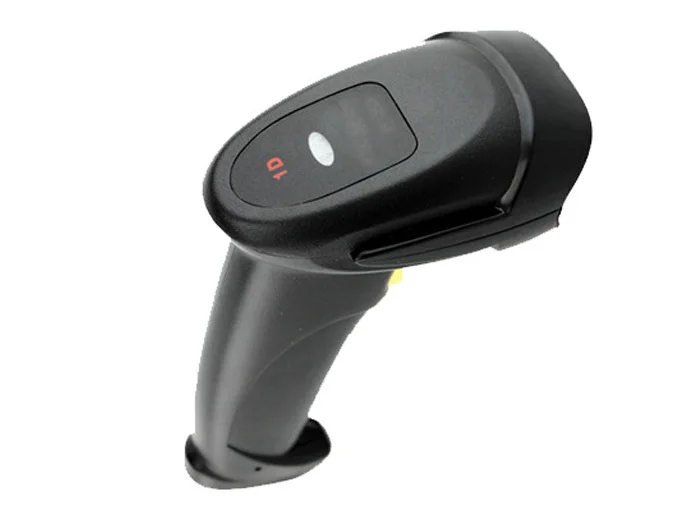

1D Laser Barcode Scanner
(Widely using for supermarket, retail store, fast food store and ect )
Matures:
1. Simple installation, Keyboard Wedge, Serial, Wand Emulation tc.
2. Superior keyboard wedge interface- NOVELL compatible-auto Caps Lock detection ensures that the data always appears on the computer just the way it is encoded in the barcode. 3. Simple programming from your keyboard or scan barcodes.
4. Over 180 configurable options. 5. Auto detection of the type of computer (PC,XT,AT,PS/2, and XWindow terminals with a PC compatible keyboard interface). 6. Can be used with or without the keyboard.
7. Supports over twenty different keyboard country layouts.
8. Map barcode data to any key on the keyboard.
9. Supports editing, operations include (Insert, Stripping, Filtering,Convert Case). 10. Programmable preamble, postamlbe,and termination strings.
11. READ/NO-READ indicators( buzzer and LED).
12. Superior reading performance utilizing advanced decoding algorithms.
13. Extended ASCII support for Code 128 barcodes.
14. Low power consumption.
Specification:
technical parameter | ||
Light source | 650 (visible laser) | |
scan model | single line Bi-directional | |
scan speed | 120 line/sec | |
resolution | 4mil | |
width of scan | 5-30cm | |
depth of scan | 2-40cm | |
Corner | ±30° | |
Elevation | ±65° | |
Deflection | ±55° | |
decode capacity | UPC/EAN,UPC/EAN(include complement code), Code128,UCC/EAN12,Code39,Code 39Full ASCII,Code128Full ASCII,Codabar,Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,china post code,etc | |
interface | RS232,PS2,USB | |
print contrast | 20% minimum | |
bit error rate | 1/5 million | |
Prompt | buzzer indicator | |
scan model | handheld / auto-sense | |
physical parameter | ||
size | L×W×H: 165mm×63mm×87mm | |
weight | 0.28kg | |
material | ABS+PC | |
cable standard | straight: 2.0m | |
electrical parameter | ||
voltage | 5V | |
working current | 85mA | |
standby current | 36mA | |
laser security | accord with national level2 laser security standards | |
EMC | CE & FCC DOC compliance (Electro Magnetic Compatibility) | |
environment parameter | ||
working temperature | 0℃-45℃ | |
storage temperature | -20℃-60℃ | |
humidity | relative humidity 5%-95% (non-condensing ) | |
environment Luminance | Max.5,000 Lux ( flsorescence) | |
anti-knock | 1.5m fall to cement | |
Relevant certification | The FCC , CE, ROHS | |
