- Warranty(Year):1-year
- Certification:RoHS
- Certification:ISO 9001:2000
- Certification:ce
- Color:Black
- Package:Yes
- Series:Virtual Reality Ready
- Aspect Ratio:16:10
- After-sales Service:Call Center and on-line Technical Support
- After-sales Service:Free spare parts
- After-sales Service:Return and Replacement
- After-sales Service:Repair
- After-sales Service:Others
- Products Status:New
- Type:Capacitive
- Interface Type:D-SUB
- Interface Type:USB
- Place of Origin:CN;GUA
- Brand Name:OSCAN
- Products Status:Stock
- Key Feature2:IPS panel
- Key Feature3:600:1
- brightness:1280*800
- backlight:LED backlight
- interface port:VGA+HD+AV+BNC+USB reader
- OSD Languages:8 Languages
- power supply:DC12V
- Viewing Angle:full viewing angle
- Pixel Pitch:5
10.1 Inch 1280*800 USB TFT LCD Touch Screen Monitor
1280*800 Resolution
(with holder and without holder)
Model: OHM-1010
Meatures:
1.High brightness New IPS panel
Advantage:High view angle, short response time, quick reflecting, low comsuption, long using life, high brightness ,1280*800plx
2. Dynamic color
LED backlight, turely display and remarkable
3. Low comsuption and environmental protection
10.1 TFT-LCD monitor stand by the international standard with low comsuption
4. Multi-function input , space saving and lowest cost
HD/VGA/BNC/AV/USB Input (1080p optional)
5. Lighting allowed and more convenient to outdoor activity
Outdoor photograph and games are available, and special for aerial aircraft enthusiasts
Specification:
Name | 10.1 Inch Mult-function Monitor |
Model | OHM-1010 |
Backlight | LED Backlight |
LCD Panel | IPS panel |
Display Type | 16:10 Ratio 9.7″Active Matrix TFT LCD |
Active Display Area | 217 (W) X 135 (H) mm |
Monitor dimension | 245mm x 166mm x 35mm |
Brightness | 400 cd/m2 |
Native Resolution | 1280*800 |
Contrast Ratio Typically | 600:1 |
Viewing Angle | Full viewing angle |
Input Video Format | VGA/HD/RCA/BNC/USB READER |
Colors | 16.7 million |
Backlight Lamp life Hrs | 50,000 |
Sychronization Range | 30-80 KHz horizontal, 55-75 Hz Vertical |
OSD Languages | 8 Languages |
Power Supply | DC12V |
Power Consumption | <20 W Typ |
Temperature Range | Operating:0℃-50℃, Storage:-20℃-80℃ |
Humidity Non Condensing | Operating:10%-90%, Storage 5%-90% |

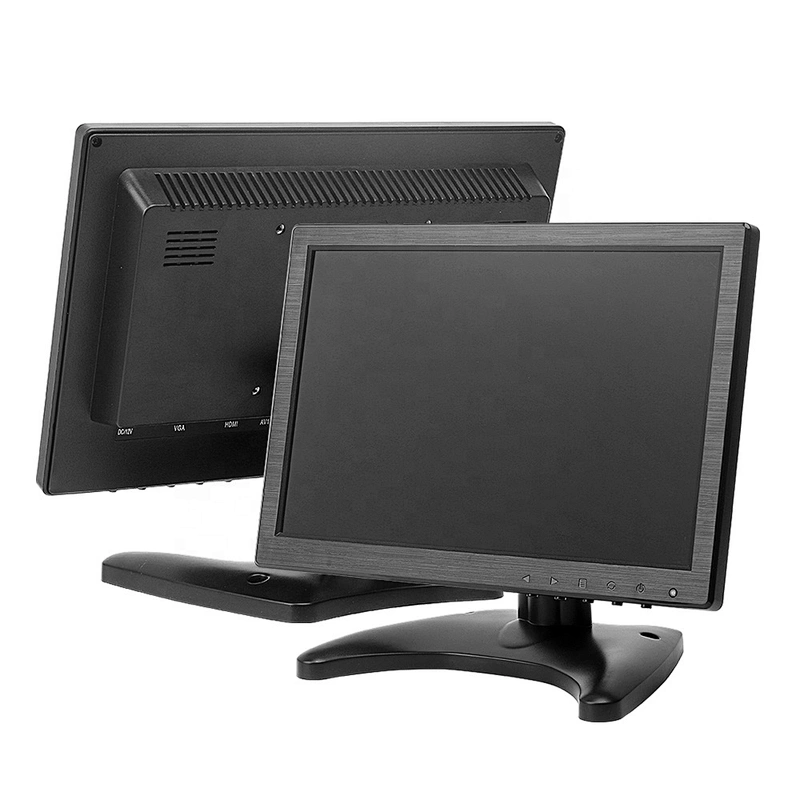

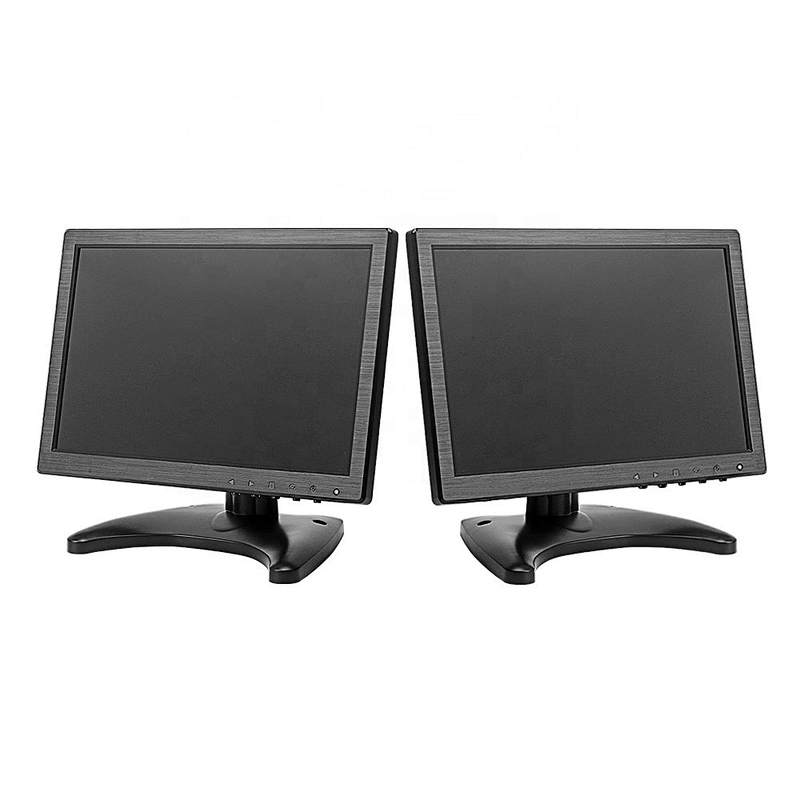

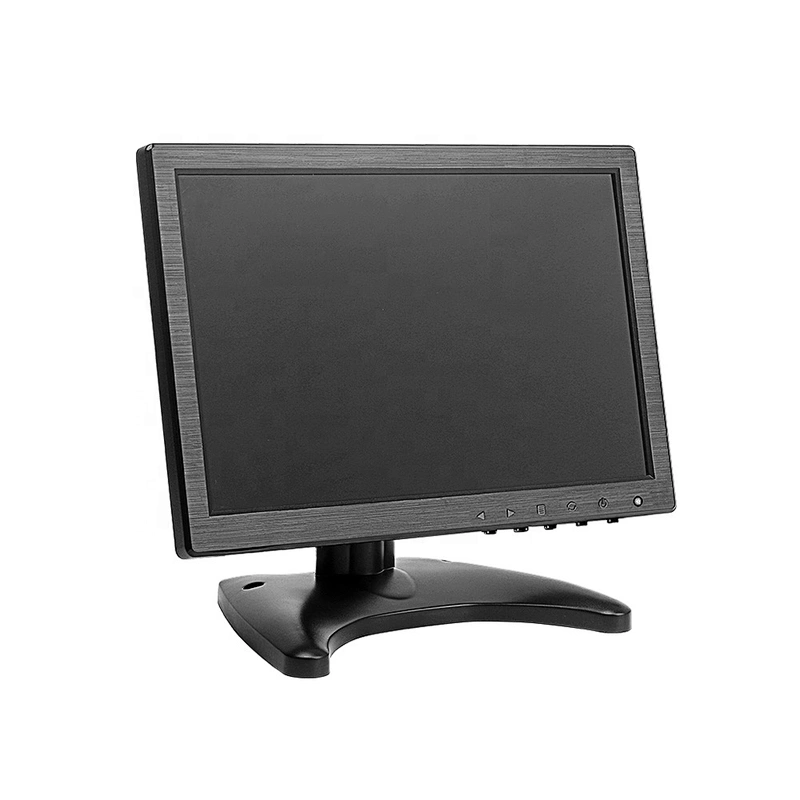

Front

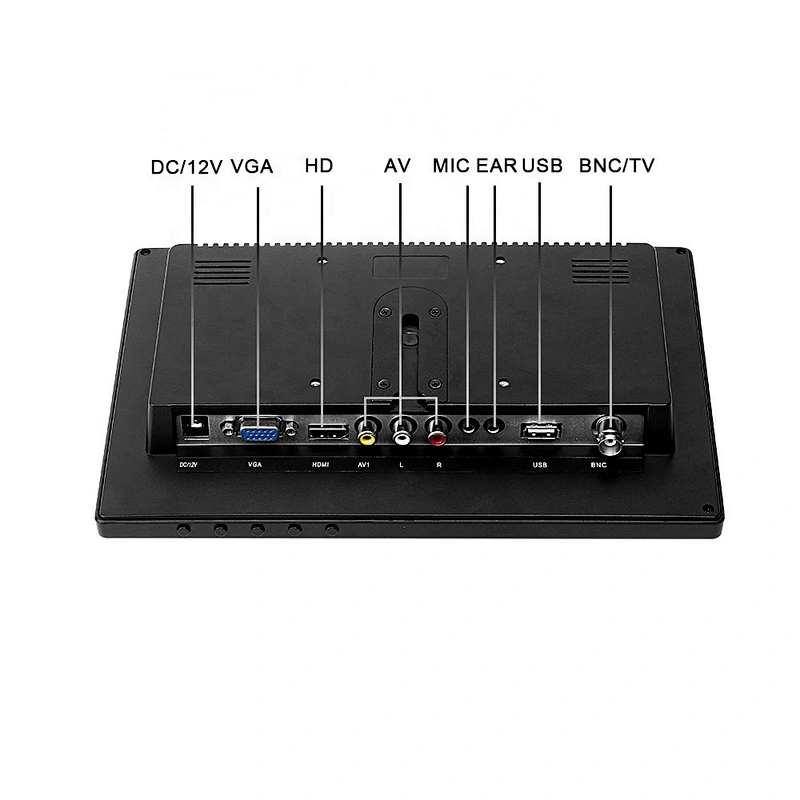

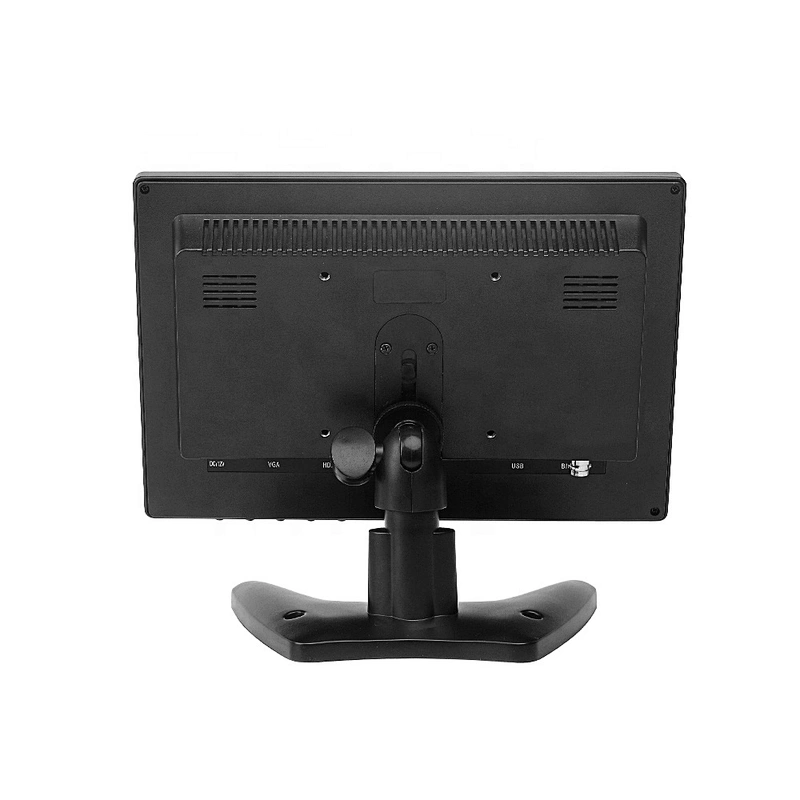

Back

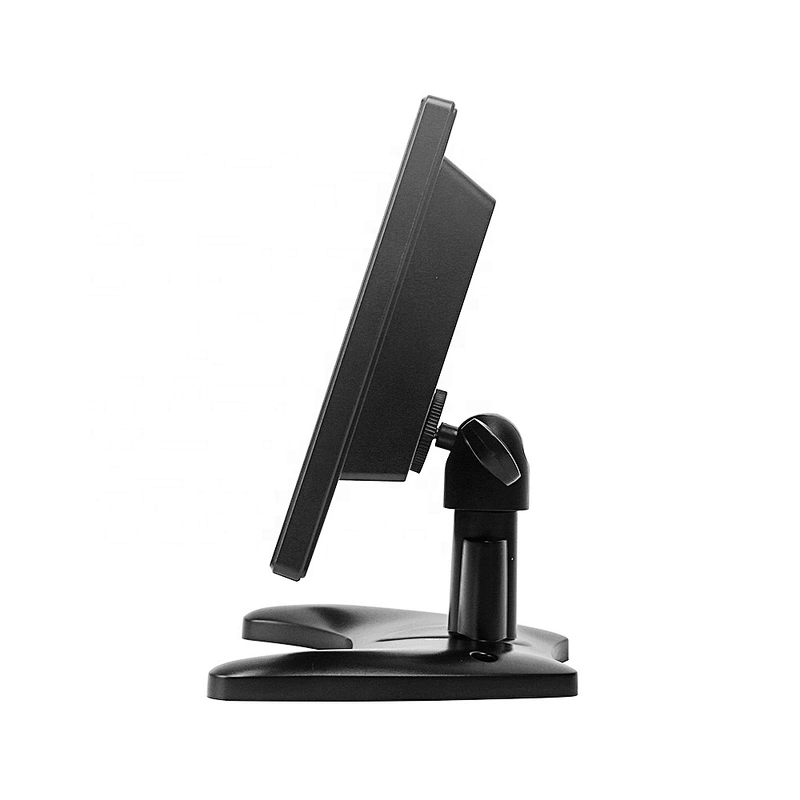

Side view

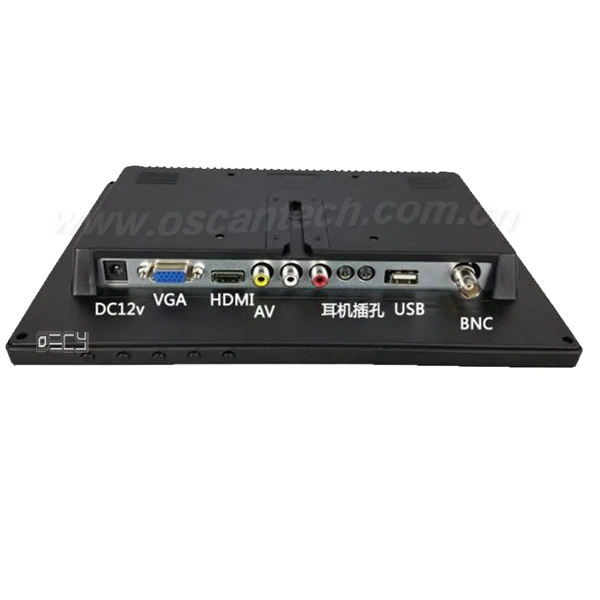

VGA+HD+AV+BNC(USB Reader Optional)
Touch screen optional

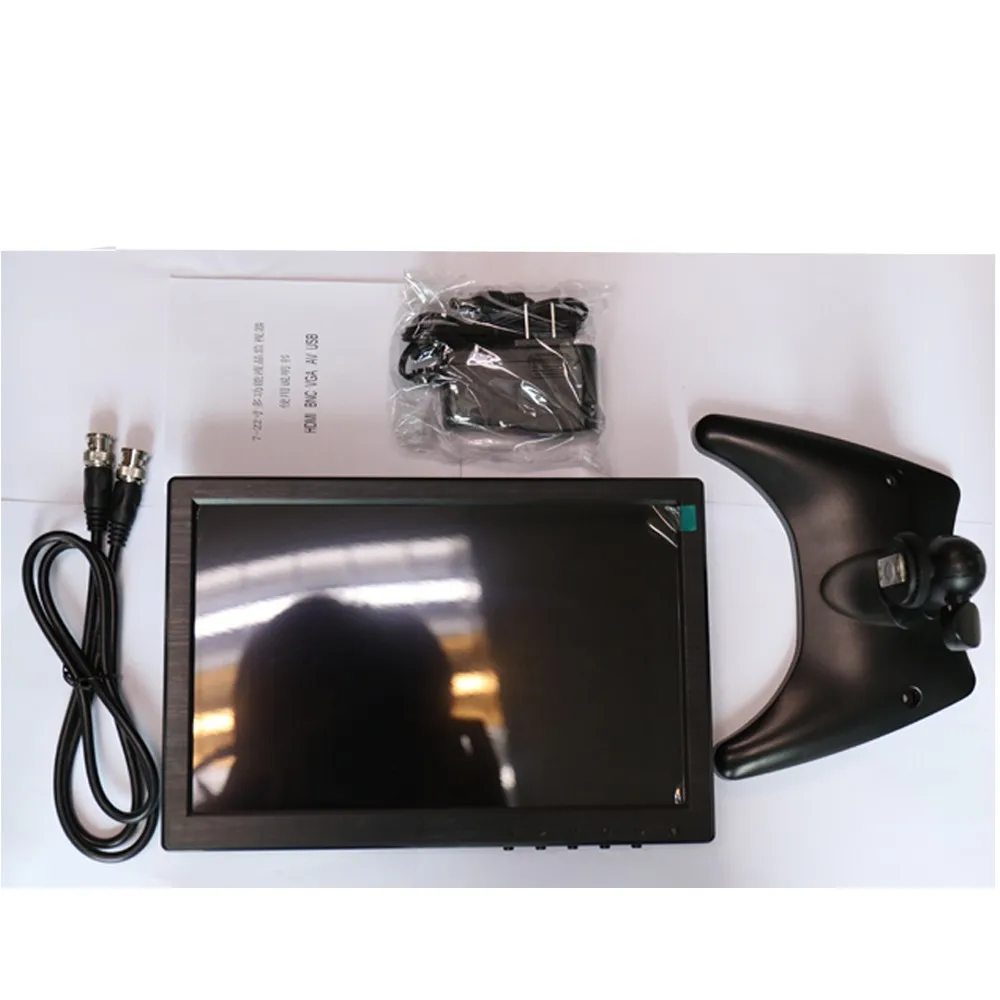

Package:
