- Products Status:Stock
- Screen Size:15"
- Type:Resistive
- Interface Type:D-SUB
- Interface Type:DVI
- Interface Type:Serial
- Interface Type:USB
- Resolution:1024 X 768
- Place of Origin:CN;GUA
- Interface Type:HD+AV+TV+USB reader optional
- Brand Name:OSCY
- Key Feature1:1024*768 resolution
- Key Feature2:4:3 ratio display
- Key Feature3:black or white color
- brigtness:300cd/m2
- touch type:4 wire or 5 wire resistive touch
- input port:VGA
- Optional:HD/AV/TV
- model:OTM-1501
- Touch Screen:Capacitive Touch Optional)
- Contrast Ratio Typically:500:1

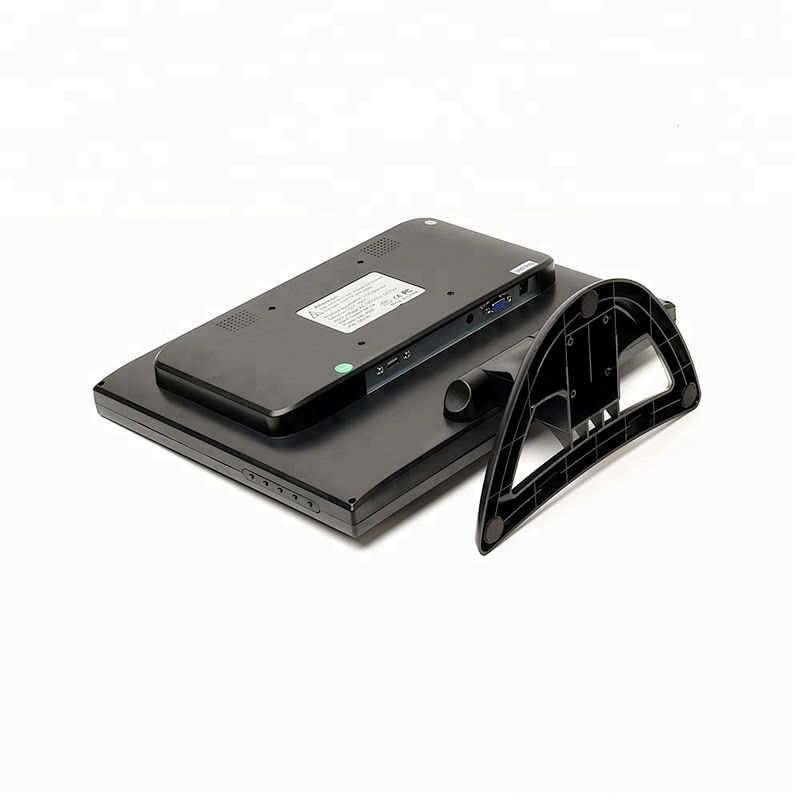

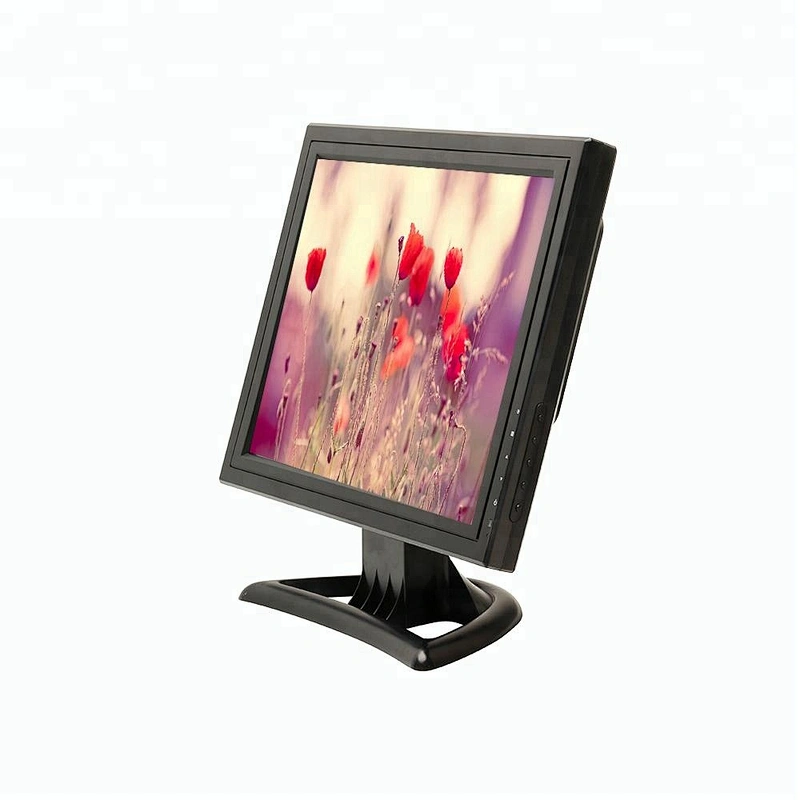

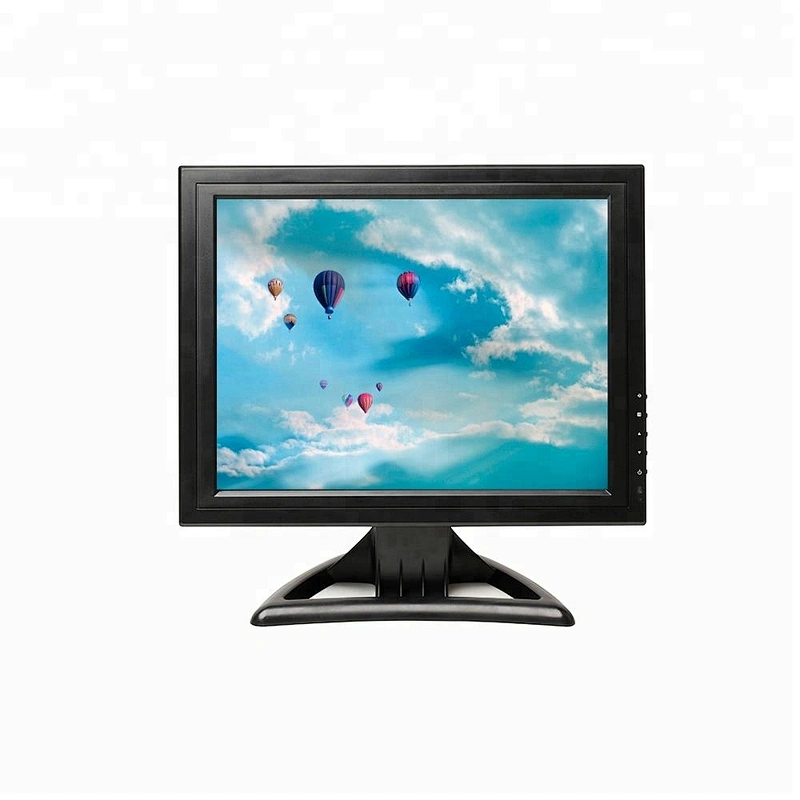

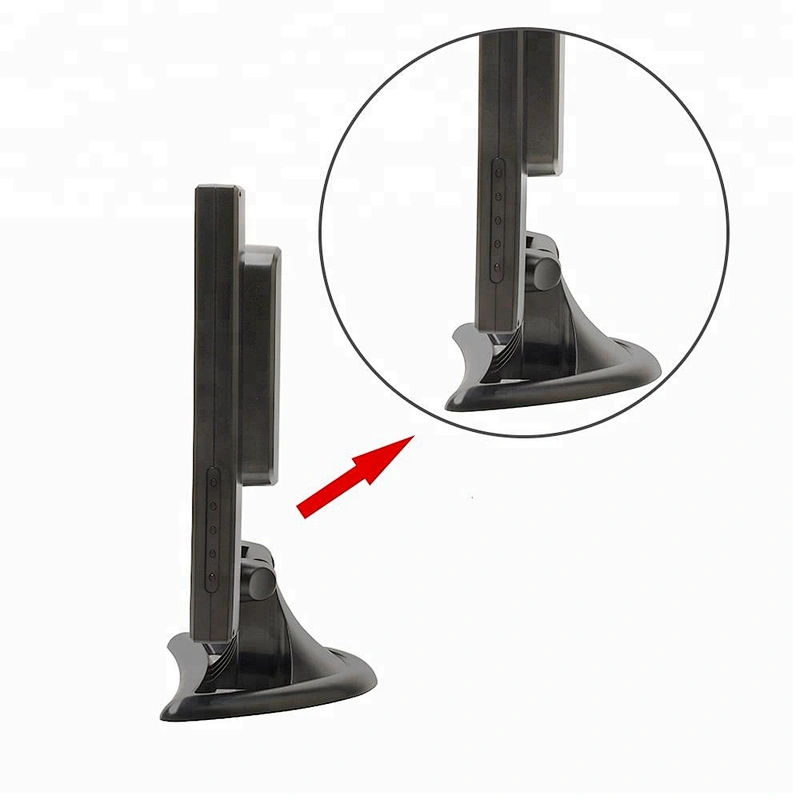

10 point 15 inch pos touch screen monitor with cheap price
Product Model: OTM-1501 (button in the side of monitor)
OTM-1500 (button on the front of monitor)
Main feature:
1. SHARP fully new panel
2. Standard with 4 wire resistive touch (5 wire is optional)
3. Standard with VGA input ( HD/TV is optional)
4. USB touch interface (RS232 touch is optional)
5. Different applications
6. Standard with 100*100mm VESA mounts,can be installed on the metal stand or wall
Specification:
Key Specification | ||
System Parameters | LCD panel: | SHARP |
Working Voltage: | DC 11V-15V | |
Working Temperature: | -10~60° | |
Screen size: | 15 inches (4:3 diagonal) | |
Resolutions: | 1024(H)×768(V) pixel | |
Dot pitch: | 0.107(H) ×0.372(V)mm | |
TV Receive System: | PAL/ NTSC/SECAM wide application range | |
Brightness: | 250cd/m2 | |
Contrast: | 500:1 | |
Power consumption: | ≤ 30W | |
Scanning Frequency: | 60-75Hz | |
Color: | 16.7M | |
Product functions | Full Function Touch Panel for PC | |
VESA metal Stand Optional | ||
VGA Port( HD+AV+TV Optional) | ||
The Highest Resolution is to 1024×768 | ||
Operated System is WIN9X,2000,ME,CE/UNIX Support WIN9X,2K,XP,CE,UNIX | ||
Touch function | Touch Type: | 4-wire 5 wire resistive optional |
Touch Interface: | USB or Serial COM(RS232) | |
Touch Response Time: | 8ms | |
Touch Sensitivity: | Fixed | |
Touch Pen Hitting Life: | >= 1milions times | |
Accessories | 1pcs LCD Monitor | |
1pcs Stand Shelf | ||
1pcs VGA Cable | ||
1pcs Instruction Manual | ||
1pcs AC/DC Power | ||
Some Screw for Fixing the Shelf | ||
Interface: VGA+USB Touch ( HD+VGA+BNC Optional)
With Card reader Optional :
Button:
Port: VGA+USB Standard HD+AV+BNC(TV) Optional
USB/RS232 Touch
Optional: HD+AV+TV
Related products:

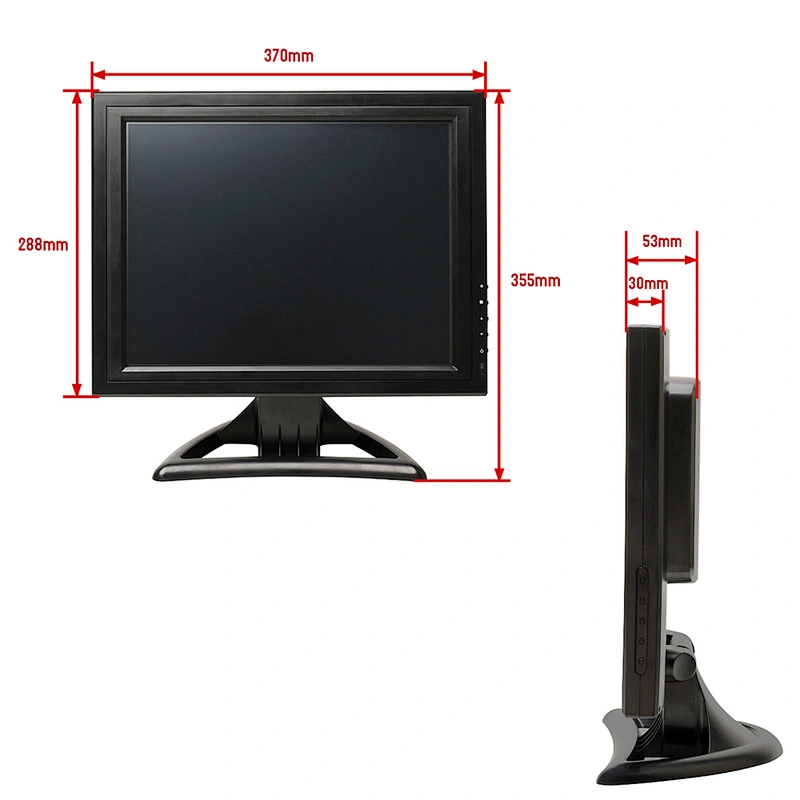

One pcs Touchscreen Monitor Size: 43*17*41 cm
One Carton size(2 pcs): 45*36*45 cm
