- Place of Origin:Guangdong, China
- Brand Name:OSCY
- After-sales Service Provided:Video technical support, Free spare parts, Online support
- Warranty:1 Year
- Operation System:window os
- CPU:J1900
- Touch Screen Type:Capacitive Screen
- Hard Disk Capacity:64G SSD
- Function:SDK
- CPU optional:i3/i5/i7
- Memory:4GB ( 8GB/16GB is optional)
- Hard disk:64G SSD (128G SSD is optional )
- Application:cashier device
- Color:black case and sliver frame
- Battery:build-in battery on the motherboard
- Card Reader:Optional MSR

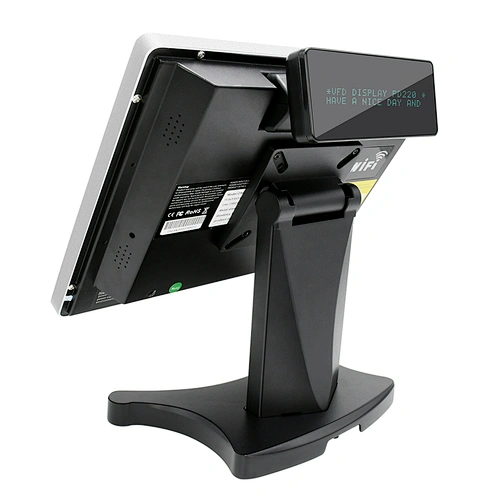

- Customer display:VFD Customer Display optional
- OS:Linux and POS ready optional
- Camera:without
Product Description

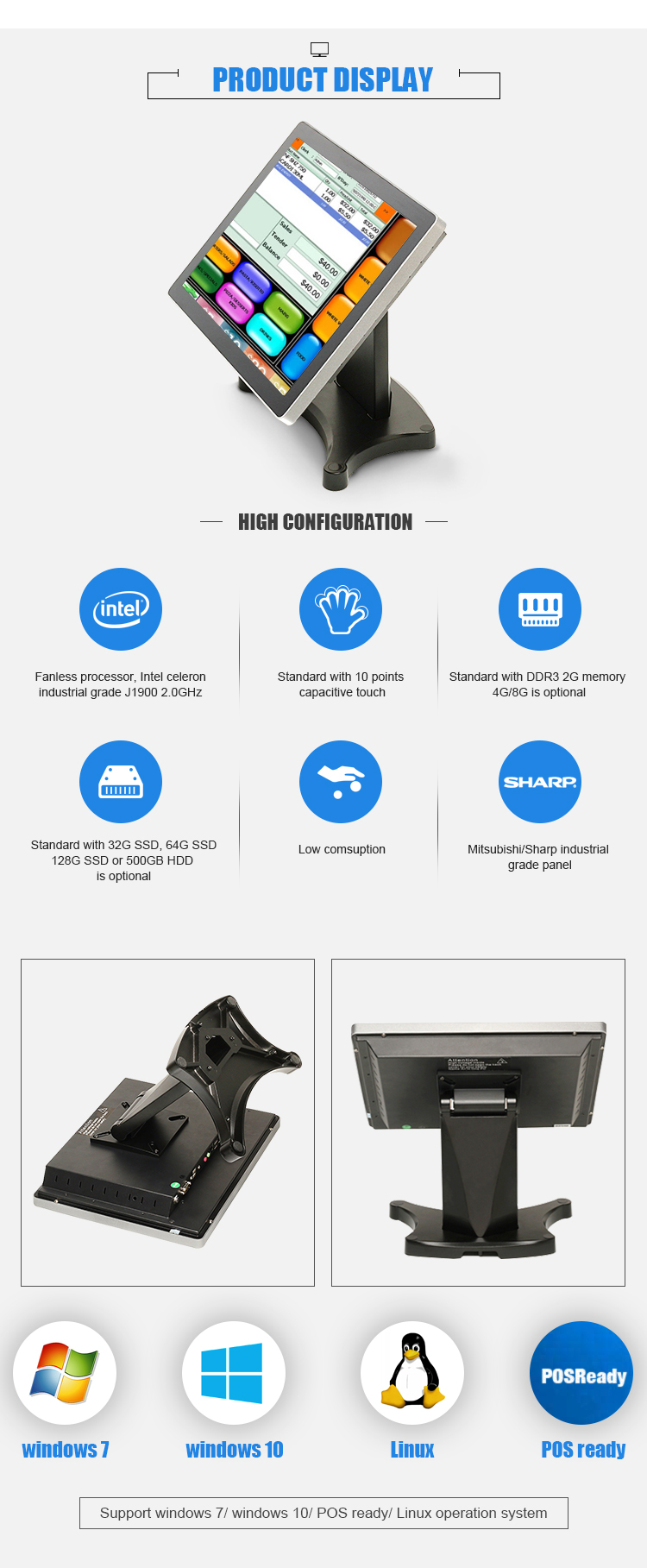

Product Description1.Fanless dual core processor (® ®J1800/J1900/i3/i5, 2.41GHz)
2.Standard with Capacitive touch/5 wire resistive touch ( EEIT touch controller)
3. Fully new Mitsubishi Panel
4.Standard with 2G memory, 4G/8G is optional
5.Standard with 32G SSD, 64G/128G SSD or 500GB HDD is optional
6. Low comsuption
7. Long using life
8. Standard with 6* USB ports and 2* COM ports

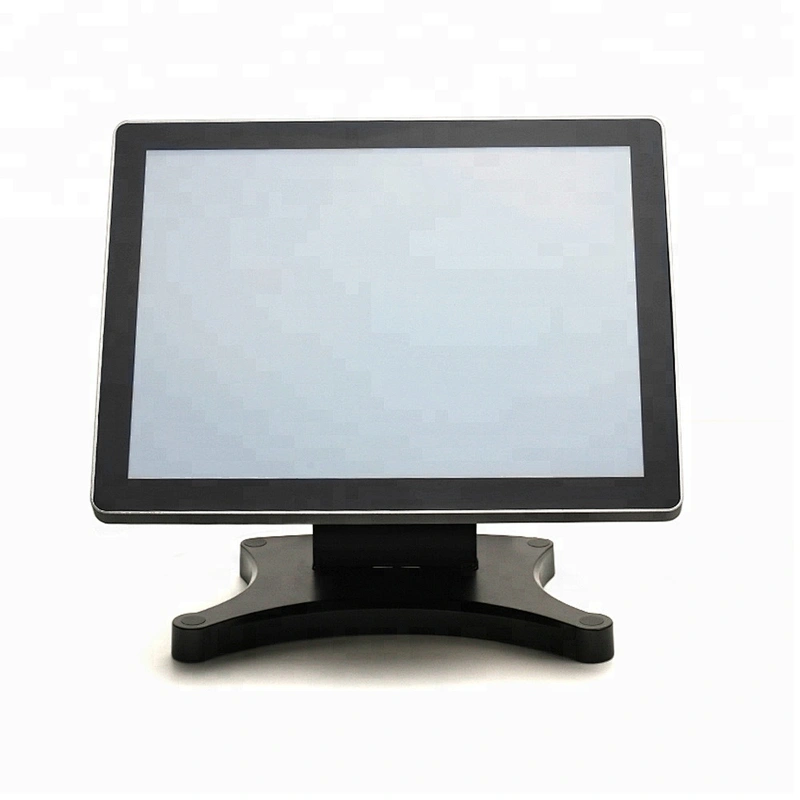

Model Name | AIO-1500 |
Display Type | 15"Touch screen POS |
Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) |
Resolution | 1024*768 |
Main board | Baytrial mother board |
CPU | ®J1900, Four core, clock speed 2G HZ,TDP 10W (Core I3/ Core I5 can offer) |
Memory | 2GB ( 4GB,8GB optional) |
Hard disk | 32G SSD (64G SSD or 500GB is optional) |
Touch Panel | Capacitive touch / 5 wire resistive touch |
LCD panel size | 15 inch BRAND NEW TFT LCD |
Interface | 1*power button+2*COM ports+1*HD+6*USB(5X2.0, 1X3.0)+1*VGA+1*DC input+1*LAN |
Brightness | 350cd/m2-450cd/m2(TYP.) |
Temperature | Storage: -20~75℃ ; Operating: 0~60℃ |
BIOS | AMI UEFI BIOS |
Voltage | 12V DC 5A |
Operation System | Win7/win8/win10/Linux |

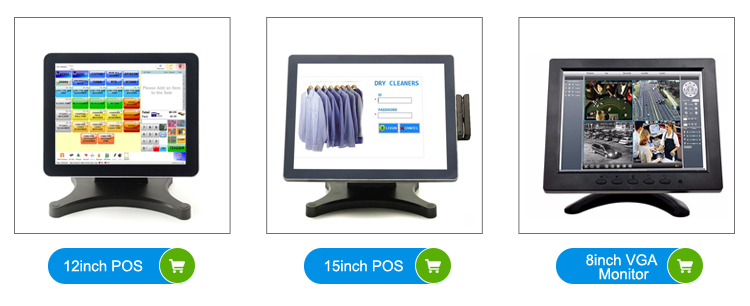

Related Products
Related Products
Our Company
Our CompanySHENZHEN OSCAN ELECTRONICS.,LTDis a high tech company with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
