- Products Status:Stock
- Application:Desktop
- Screen Size:15"
- Response Time:8ms
- Brightness:300cd/m
- Contrast Ratio:600:1
- Resolution:1024 X 768
- Widescreen:No
- Place of Origin:CN;GUA
- Interface Type:/VGA/HD/AV/TV/USB
- Panel Type:AU
- Brand Name:OSCY
- Key Feature1:15"1024*768 Open Frame Lcd Monitor With Metal Case
- Key Feature2:Industrial grade AU panel
- Key Feature3:VGA+USB(HD/AV/BNC/USB reader is optional)
- Backlight:LED Backlight
- Speaker:Optional
- VESA mount:75*75mm and 100*100mm
- Warranty:1 Year
- Power:DC12V 3.3A
- Monitor Size:343*266*50mm
- Active Display Area:306*229mm
Main Features:
1. AU/Samsung fully new panel
2. Standard with 4 wire resistive touch (5 wire is optional)
3. Standard with VGA input ( HD/AV/TV is optional)
4. USB touch interface (RS232 touch is optional)
5. Different applications
6. Standard with 100*100mm VESA mounts，can be istalled on the metal stand or wall
High brightness 15inch TFT LCD industrial HD VGA CCTV test Monitor | ||||||||
System Parameters | LCD Panel | AU Panel | ||||||
Power | DC12V 3.3A | |||||||
Screen size | 15inch (4:3 diagonal) | |||||||
Resolution | 1024*768 | |||||||
TV Receive System | PAL/NTSC/SECAM Wide application range | |||||||
Brightness | 250cd/m2 | |||||||
Contrast | 500:1 | |||||||
Frequency | 60-75Hz | |||||||
Color | 16.7M | |||||||
Product functions | Full Function Touch Panel for PC | |||||||
VESA metal Stand Optional | ||||||||
The Highest Resolution is to 1024*768 | ||||||||
Operated System is WIN9X,2000,ME,CE/UNIX Support WIN9X,2X,XP,CE,UNIX | ||||||||
VGA Port (HD/AV/TV is optional) | ||||||||
Accessories | 1pcs LCD Monitor | |||||||
1pcs Stand Shelf | ||||||||
1pcs VGA Cable | ||||||||
1pcs Instryction Manual | ||||||||
1pcs AC/DC Power | ||||||||
Some Screw for Fixing the Shelf | ||||||||
Product Description

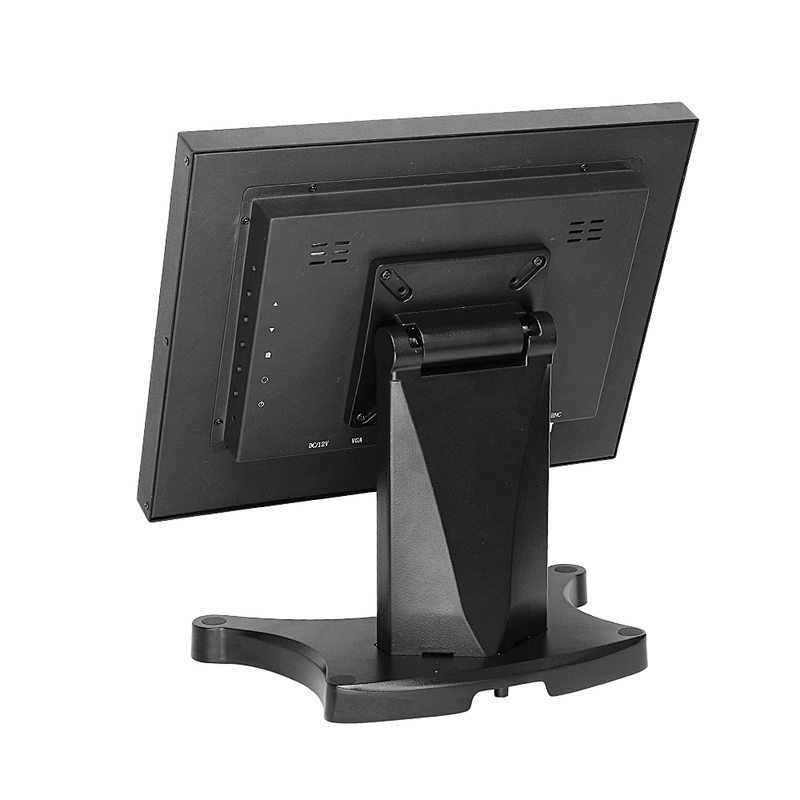

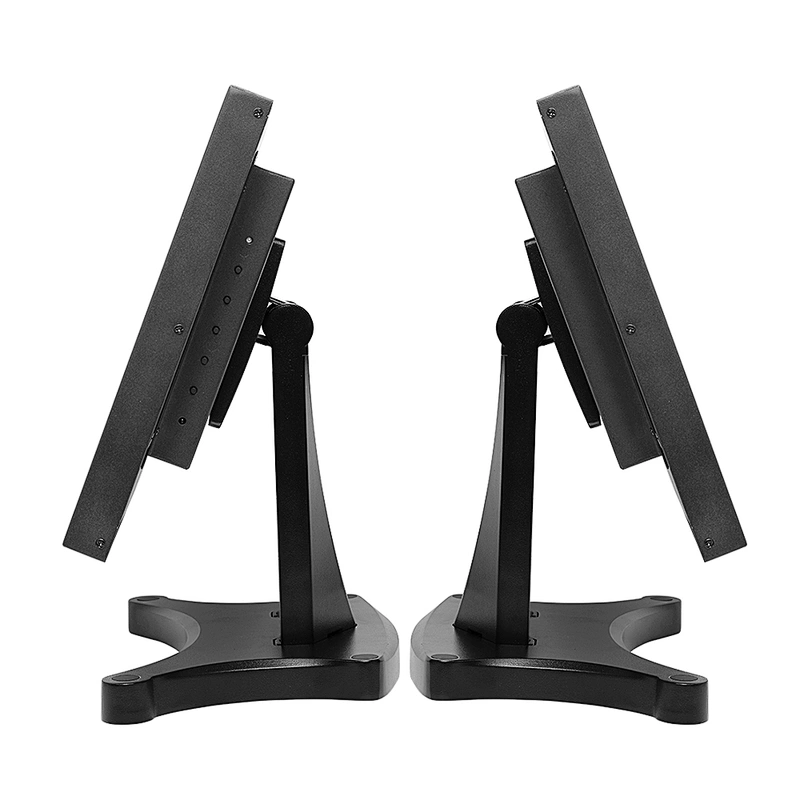

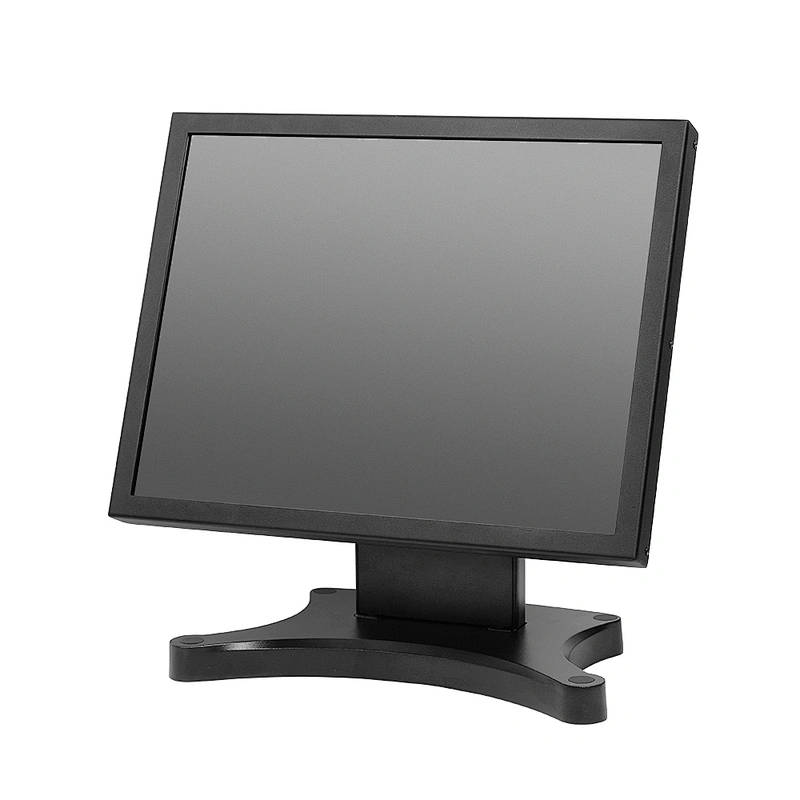

15inch Metal Case Monitor front and side picture

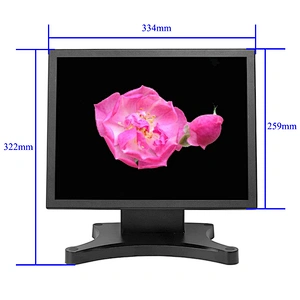

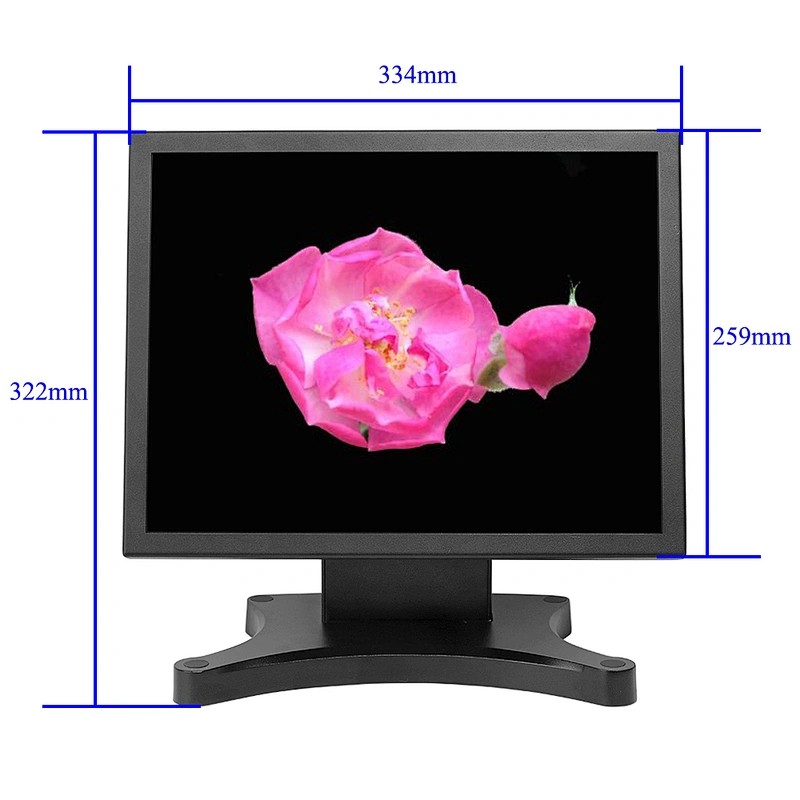

15inch Metal Case Monitor With Full metal stand size pictures

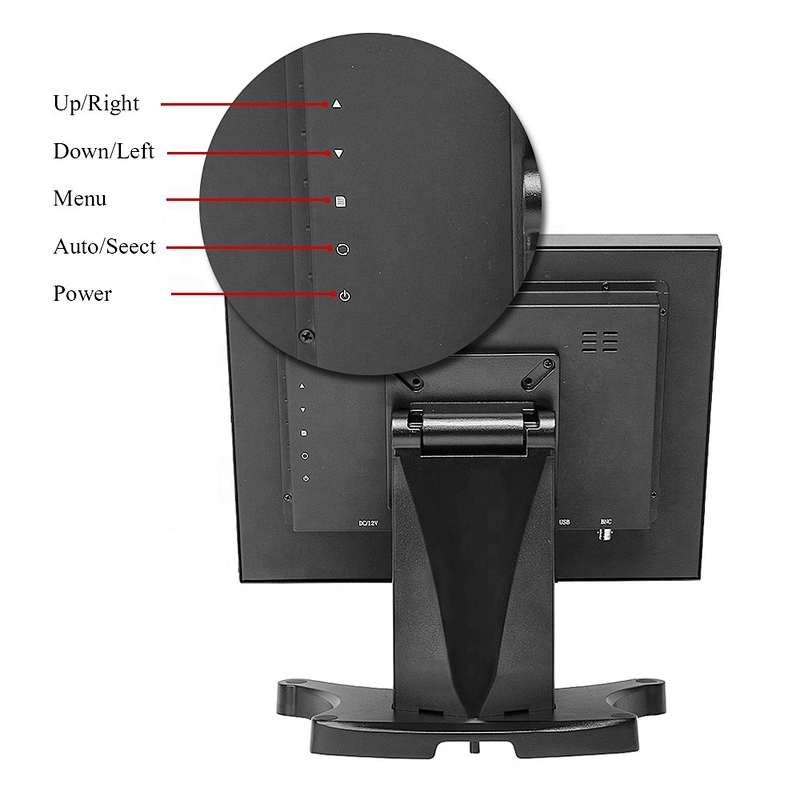

15inch Metal Case Monitor Back button

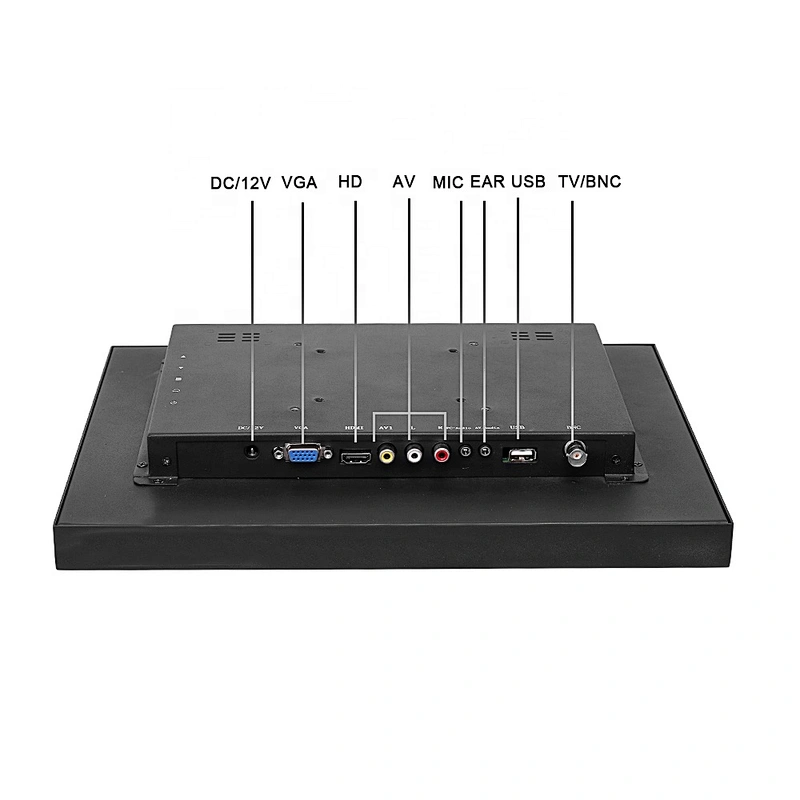

Full interface : HD/VGA/AV/BNC/USB
Open frame Monitor
Packing & Delivery
Certifications
