15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor
15inch DC 12V LCD monitor open frame monitor

15inch DC 12V LCD monitor open frame monitor

Delivery:
FOB
Quantity:
  • Products Status:Stock
  • Screen Size:15"
  • Type:Resistive
  • Interface Type:D-SUB
  • Interface Type:DVI
  • Interface Type:Serial
  • Interface Type:USB
  • Resolution:1024 X 768
  • Place of Origin:CN;GUA
  • Interface Type:HD+AV+TV
  • Brand Name:OSCY
  • Key Feature1:1024*768
  • Key Feature2:4:3
  • Key Feature3:black
  • brigtness:300cd/m2
  • touch type:4 wire or 5 wire resistive touch
  • input port:VGA
  • Optional:HD/AV/TV
  • model:OTM1501
  • Viewing Angle:Viewing Angle
  • Contrast Ratio Typically:500:1

15 inch LCD Resistive Touchscreen Monitor, Computer TV Monitor, POS terminal

Product Model: OTM-1501 (button in the side of monitor)

OTM-1500 (button on the front of monitor)

3_01



Product Description



Main feature:

1. SHARP fully new panel

2. Standard with 4 wire resistive touch (5 wire is optional)

3. Standard with VGA input ( HD/TV is optional)

4. USB touch interface (RS232 touch is optional)

5. Different applications

6. Standard with 100*100mm VESA mounts,can be installed on the metal stand or wall

Specification:

 Key Specification











System Parameters

LCD panel:

SHARP

Working Voltage:

DC 11V-15V

Working Temperature:

-10~60°

Screen size:

15 inches (4:3 diagonal)

Resolutions:

1024(H)×768(V) pixel

Dot pitch:

0.107(H) ×0.372(V)mm

TV Receive System:

PAL/ NTSC/SECAM wide

application range

Brightness:

250cd/m2

Contrast:

500:1

Power consumption:

≤ 30W

Scanning Frequency:

60-75Hz

Color:

16.7M





Product functions

Full Function Touch Panel for PC

VESA metal Stand Optional

VGA Port( HD+AV+TV Optional)

The Highest Resolution is to 1024×768

Operated System is WIN9X,2000,ME,CE/UNIX Support WIN9X,2K,XP,CE,UNIX





Touch function

Touch Type:

4-wire 5 wire resistive optional

Touch Interface:

USB or Serial COM(RS232)

Touch Response Time:

8ms

Touch Sensitivity:

Fixed

Touch Pen Hitting Life:

>= 1milions times







Accessories

1pcs LCD Monitor

1pcs Stand Shelf

1pcs VGA Cable

1pcs Instruction Manual

1pcs AC/DC Power

Some Screw for Fixing the Shelf





3_03







Interface: VGA+USB Touch  ( HD+VGA+BNC Optional)

15

With Card reader  Optional :

15

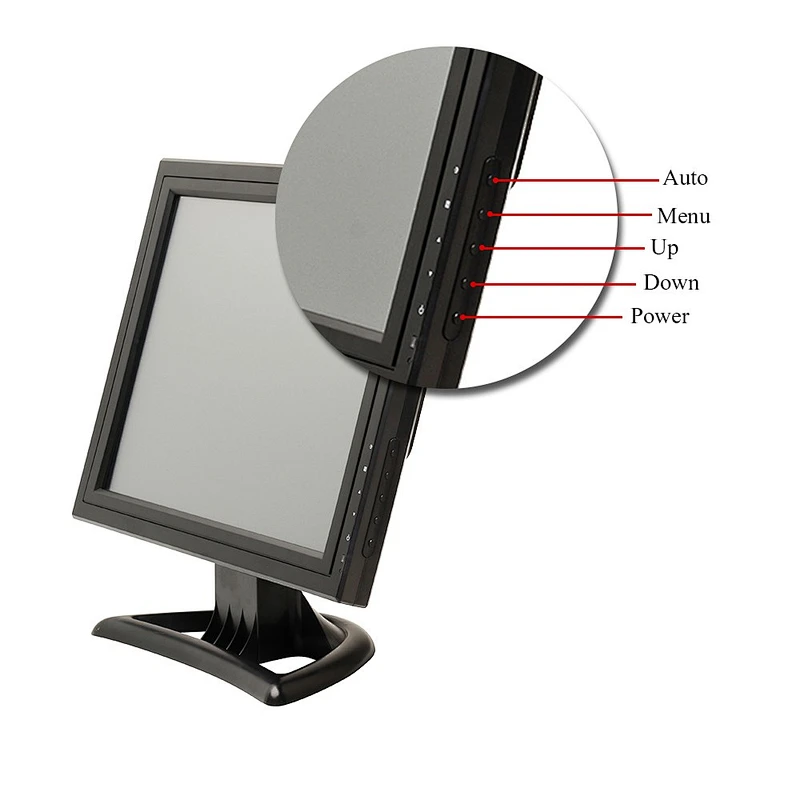

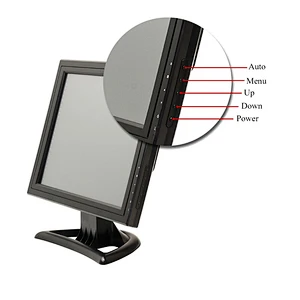

Button:

15

Port: VGA+USB Standard       HD+AV+BNC(TV)  Optional

USB/RS232 Touch

15inch touch screen monitor with half metal stand 6

Optional: HD+AV+TV

HDMI All interface.jpg







Company Information

 SHENZHEN OSCAN TECHNOLOGYCO.,LTD



is a high tech Company with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated  products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.



We are holding"Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.

-1_09

Our Services

.jpg

Packaging & Shipping

One pcs Touchscreen Monitor Size: 43*17*41 cm

One Carton size(2 pcs): 45*36*45 cm

3_08



FAQ

Why choosing us?

   We are holding" Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.

What' s your company goal?

    We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.

     Your satisfaction is our ultimate goal.



How we control quality?

   Each part of products is strictly inspected according to quality system cercification before production.
