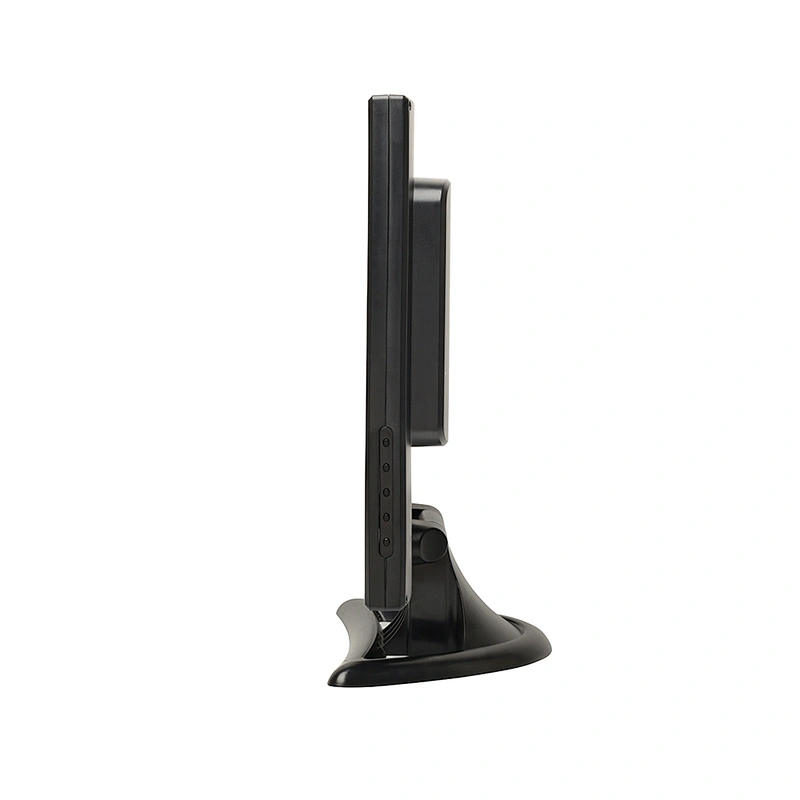

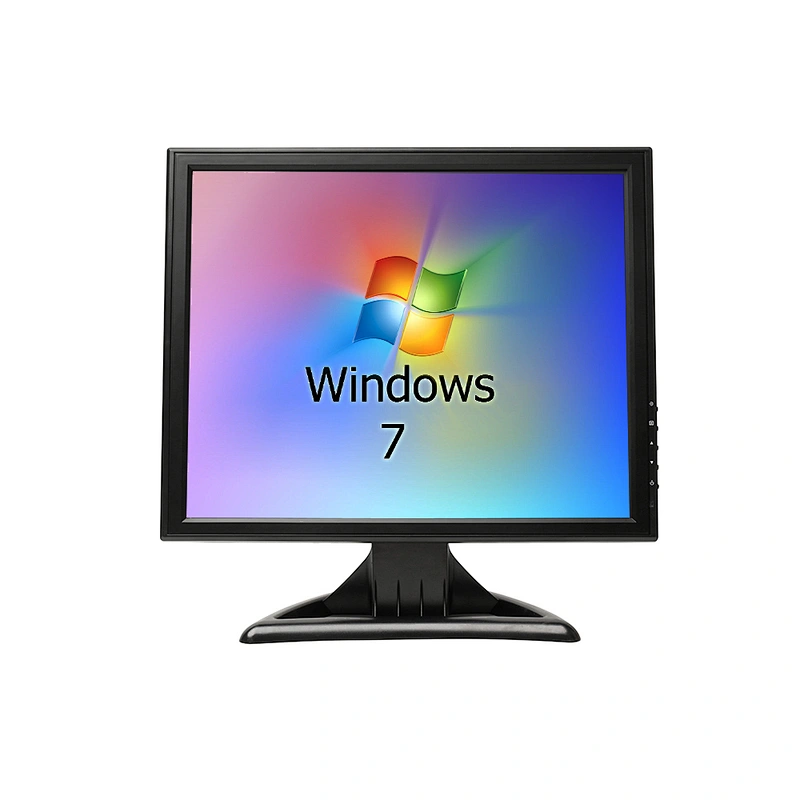

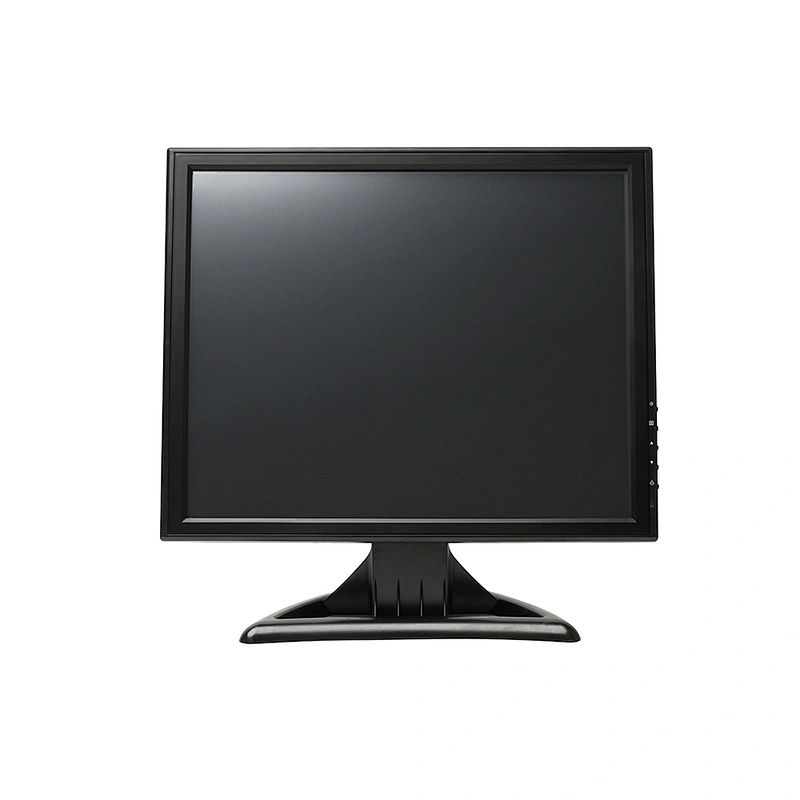

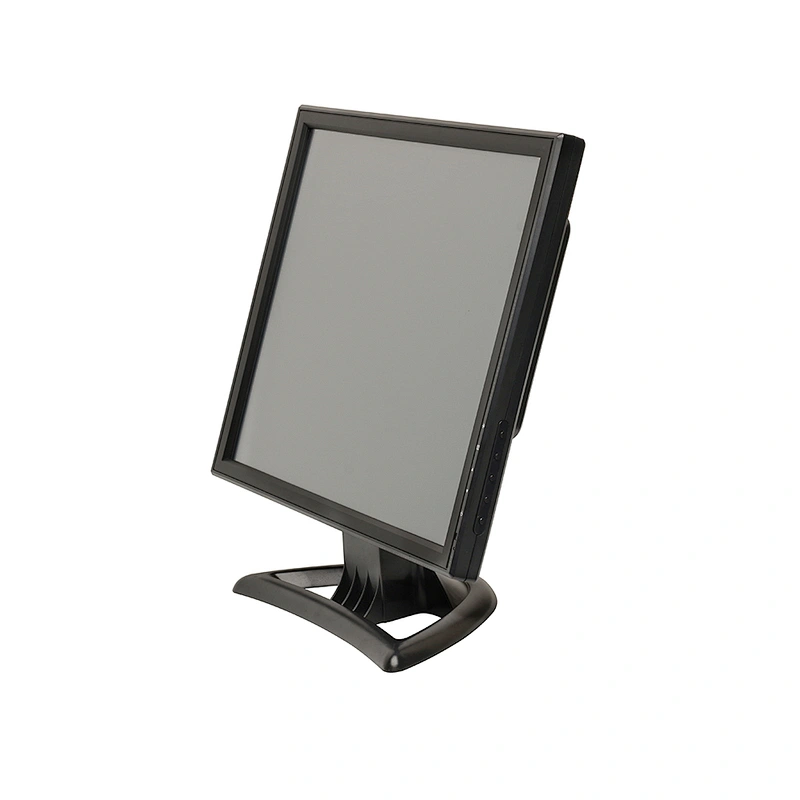

17" POS LCD Touch monitor OTM-1701 Screen 5 Wire HD/VGA

Quantity:

Model: OTM-1701

High brightness, high resolution

Product Description

Main feature:

1.AU/Innolux fully new panel

2. Standard with 4 wire resistive touch (5 wire is optional)

3. Standard with VGA input ( HD/AV/TV is optional)

4. USB touch interface (RS232 touch is optional)

5. Different applications

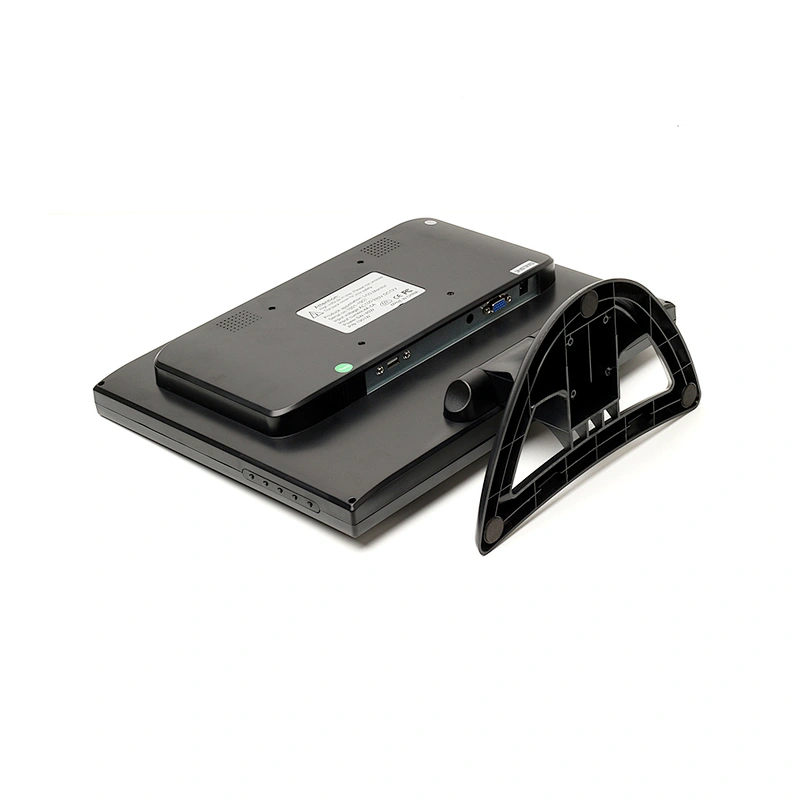

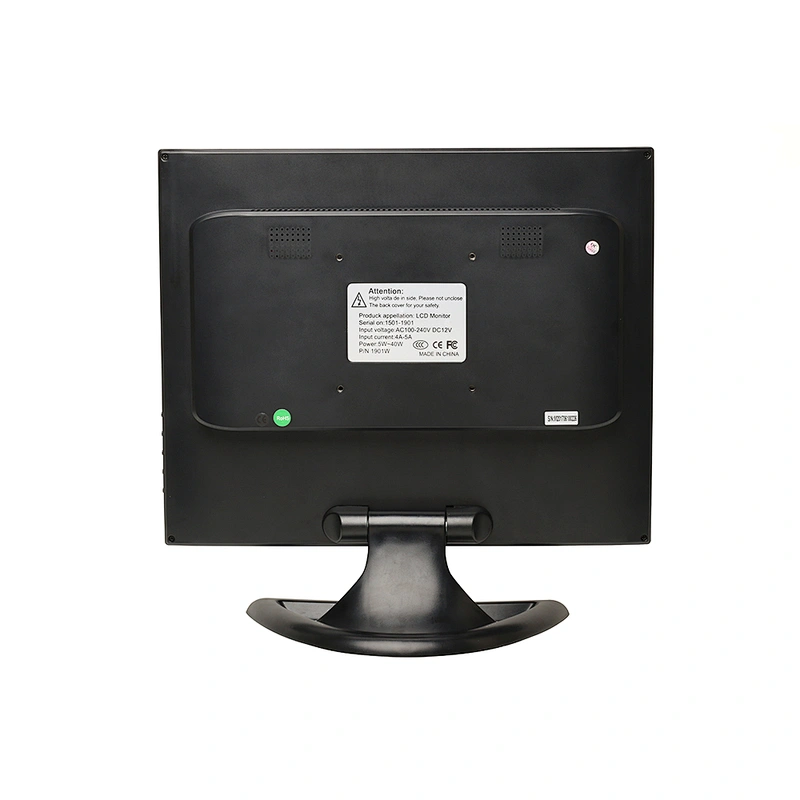

6. Standard with 100*100mm VESA mounts,can be installed on the metal stand or wall

Specification:

Key Specification
System Parameters	LCD panel:	AU/Innolux
	Working Voltage:	DC 11V-15V
	Working Temperature:	-10~60°
	Screen size:	17 inches (4:3 diagonal)
	Resolutions:	1280(H)×1024(V) pixel
	Dot pitch:	0.285(H) ×0.285(V)mm
	TV Receive System:	PAL/ NTSC/SECAM wide application range
	Brightness:	250cd/m2
	Contrast:	800:1
	Power consumption:	≤ 30W
	Scanning Frequency:	60-75Hz
	Color:	16.7M
Product functions	Full Function Touch Panel for PC
	VESA metal Stand Optional
	VGA Port( HD+AV+TV Optional)
	The Highest Resolution is to 1024×768
	Operated System is WIN9X,2000,ME,CE/UNIX Support WIN9X,2K,XP,CE,UNIX
Touch function	Touch Type:	4-wire 5 wire resistive optional
	Touch Interface:	USB or Serial COM(RS232)
	Touch Response Time:	8ms
	Touch Sensitivity:	Fixed
	Touch Pen Hitting Life:	>= 1milions times
Accessories	1pcs LCD Monitor
	1pcs Stand Shelf
	1pcs VGA Cable
	1pcs Instruction Manual
	1pcs AC/DC Power
	Some Screw for Fixing the Shelf
