- Products Status:Stock
- Screen Size:17"
- Type:Capacitive
- Interface Type:D-SUB
- Interface Type:Serial
- Interface Type:USB
- Resolution:1280 x 1024
- Place of Origin:CN;GUA
- Interface Type:TV/HD/AV/BNC
- Brand Name:OEM
- Product name:17"Capacitive touch TFT LCD Monitor
- Brightness:250cd/m2
- Resolution:1280*1024
- Touch points:Multi Point Touch
- Interface:USB/VGA/HD/BNC/AV/TV
- Keywords:Capacitive Touch Game Table
- Size:17"
- Response Time:5ms
- Aspect Ratio:4:3
- Color:Black
Product Description

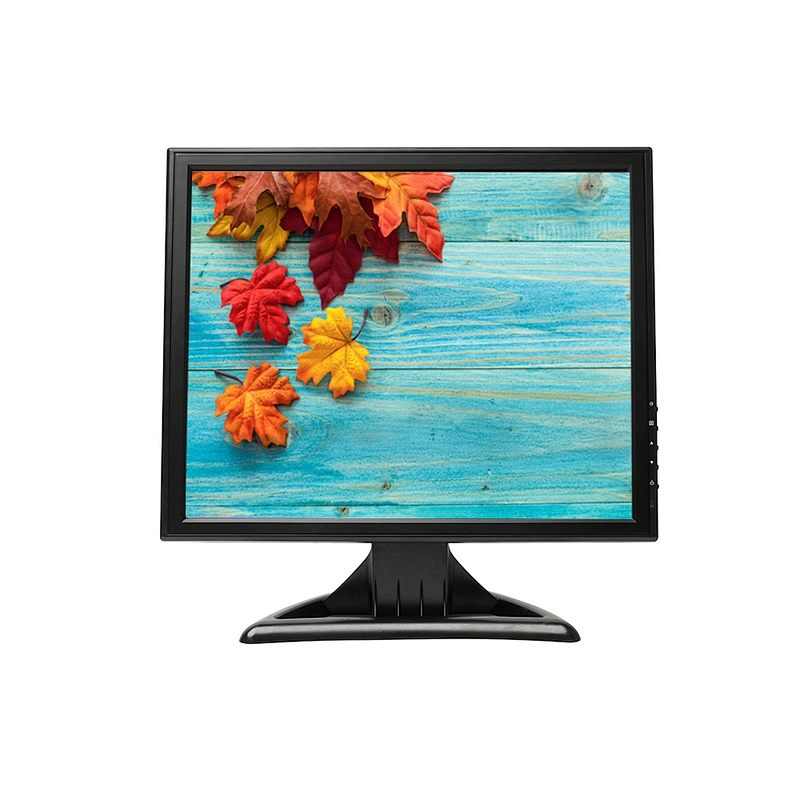

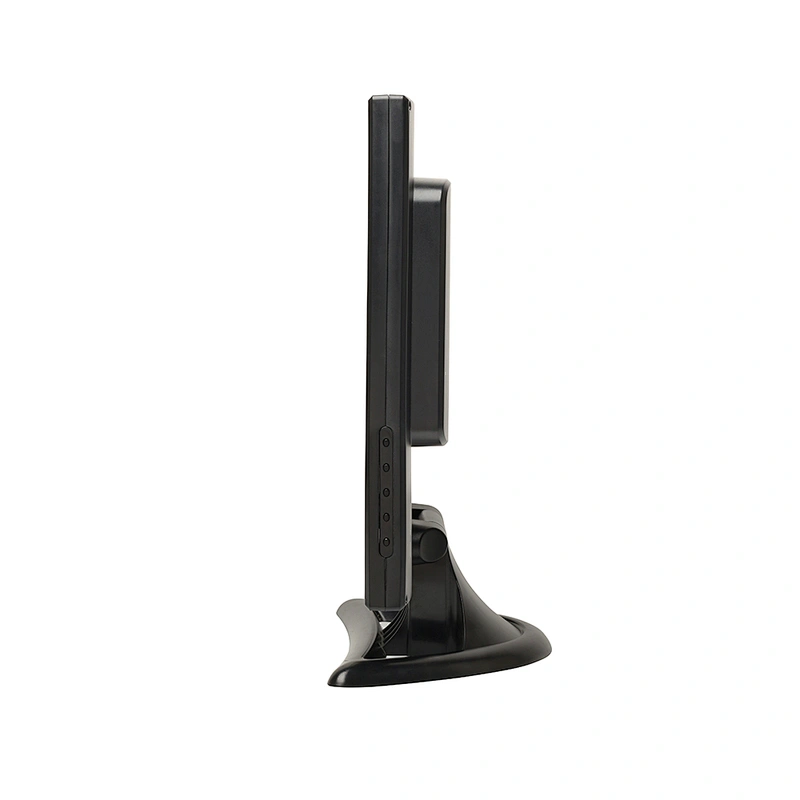

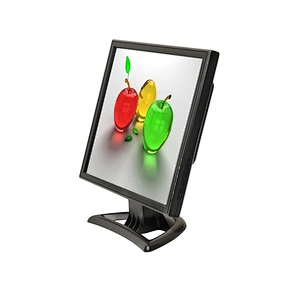

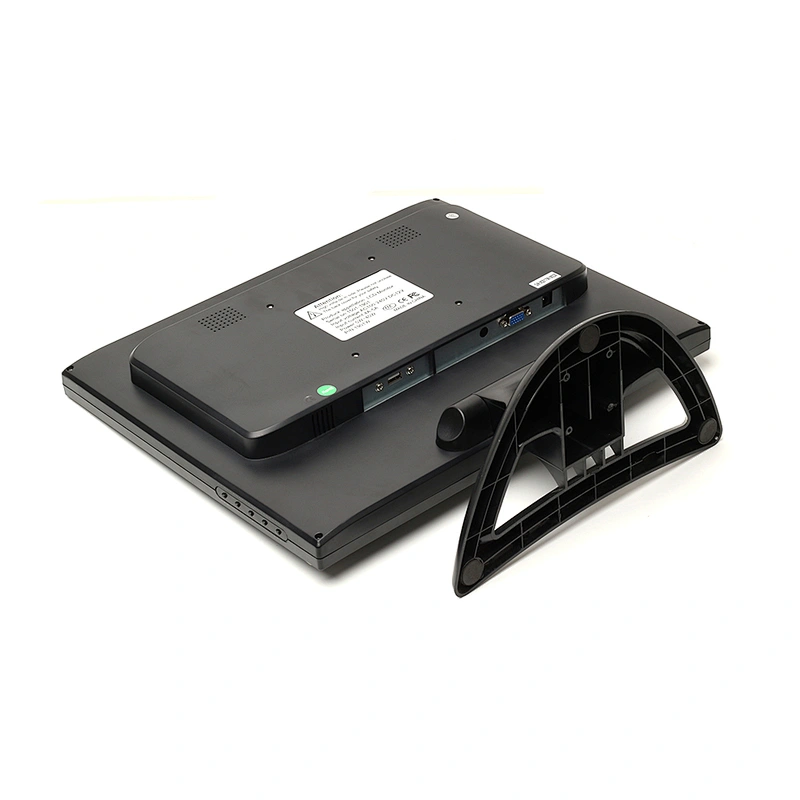

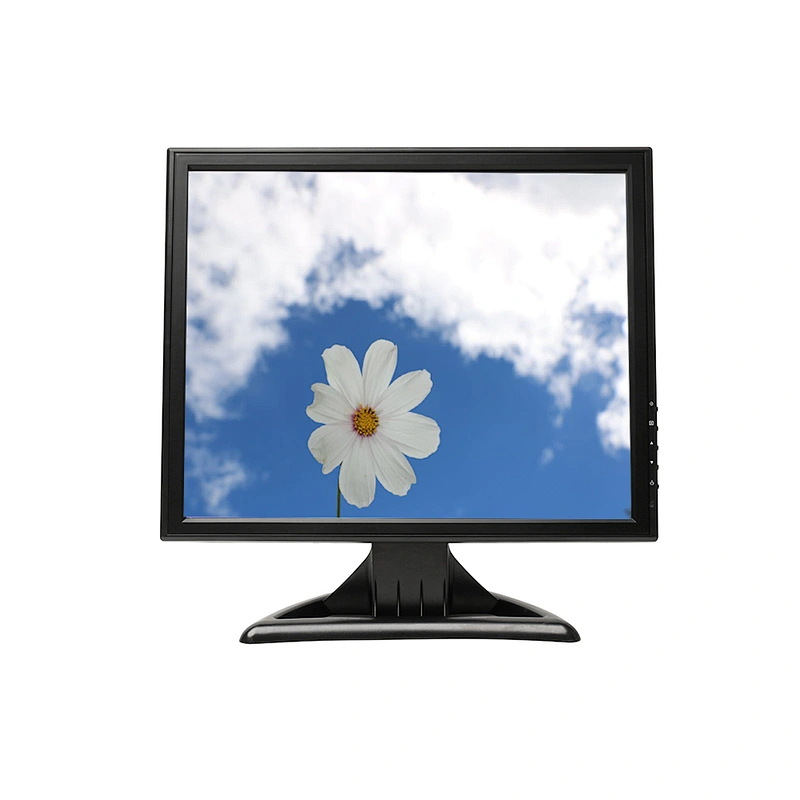

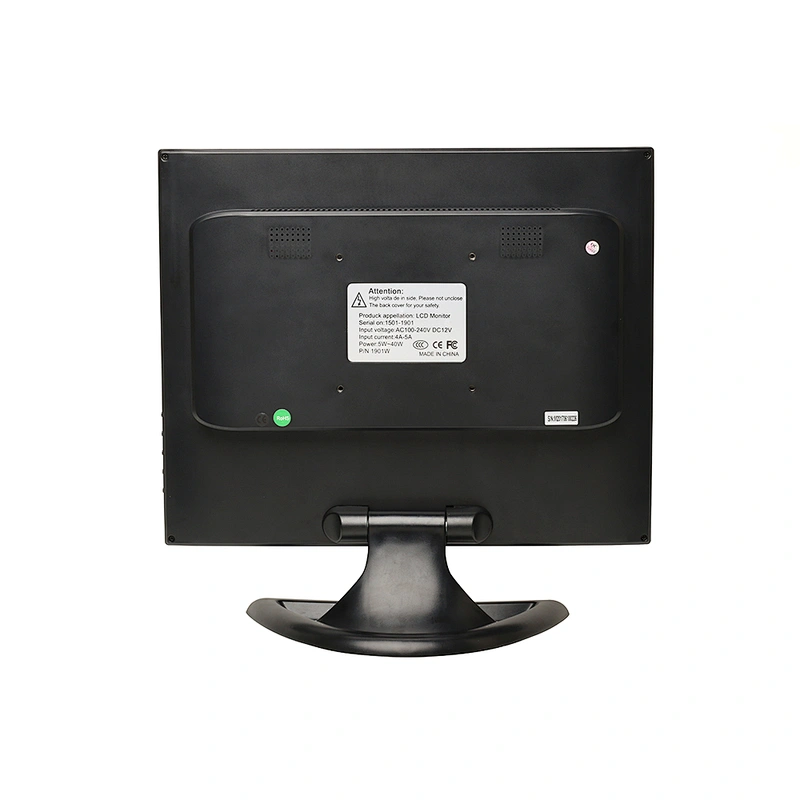

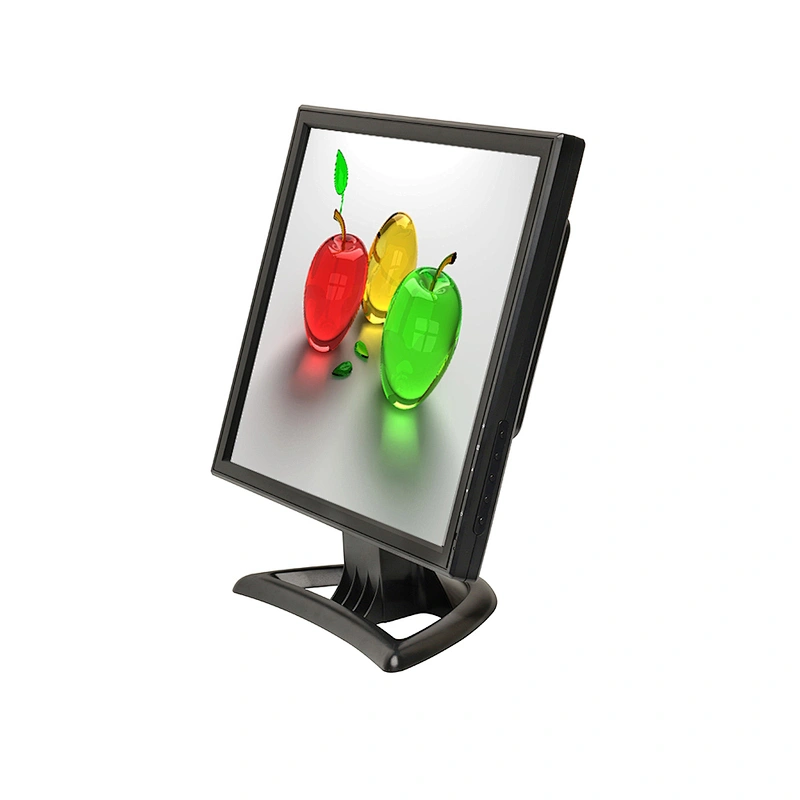

17'' VGA Touch Screen computer monitor 17 inch TFT LCD PC Monitor | ||||||||
Panel size | 17 inch TFT-LCD Touch Screen Monitor | |||||||
Display area | 304*228mm | |||||||
Standard Resolution | 1280*1024 | |||||||
Number of Colors | 16.2M | |||||||
Brightness | 300cd/m2 | |||||||
Response time | 5ms | |||||||
View angle | Horizontal:160° | |||||||
Vertical:140° | ||||||||
Contrase ratio | 500:1 | |||||||
Video input format | (analog) RGB | |||||||
Connector | VGA for video signal | |||||||
USB (or RS232) for touch | ||||||||
Frequency | 30~80KHz/60~75Hz | |||||||
Power supply | External Power Supply:100 to 240V (DC 12V) | |||||||
Touch model | 4-wire resistive touch | |||||||
Optional | (5-wire resistive touch,capacitive touch optional) | |||||||
17” TFT LCD Monitor (Innolux Panel )
Color: Black
Aspect Ratio: 4:3
Pixel Pitch: 0.264mm
Standard Resolution:1280 x 1024@60Hz
Brightness: >250cd/m2
VGA input
Response Time: 5ms
View Angle: 160°/150°(H/V)
H-frequency: 30-80KHz
V-frequency: 50-75Hz
Dimension(WxDxH): 436 x 138 x 431 mm
