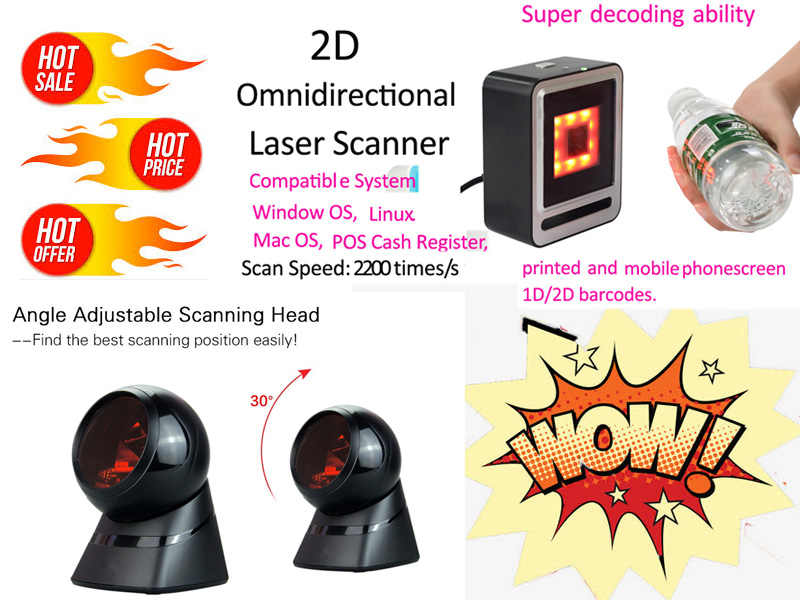

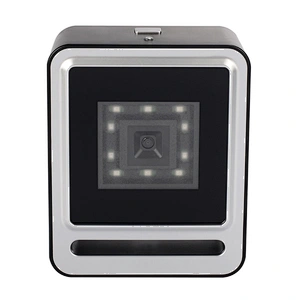

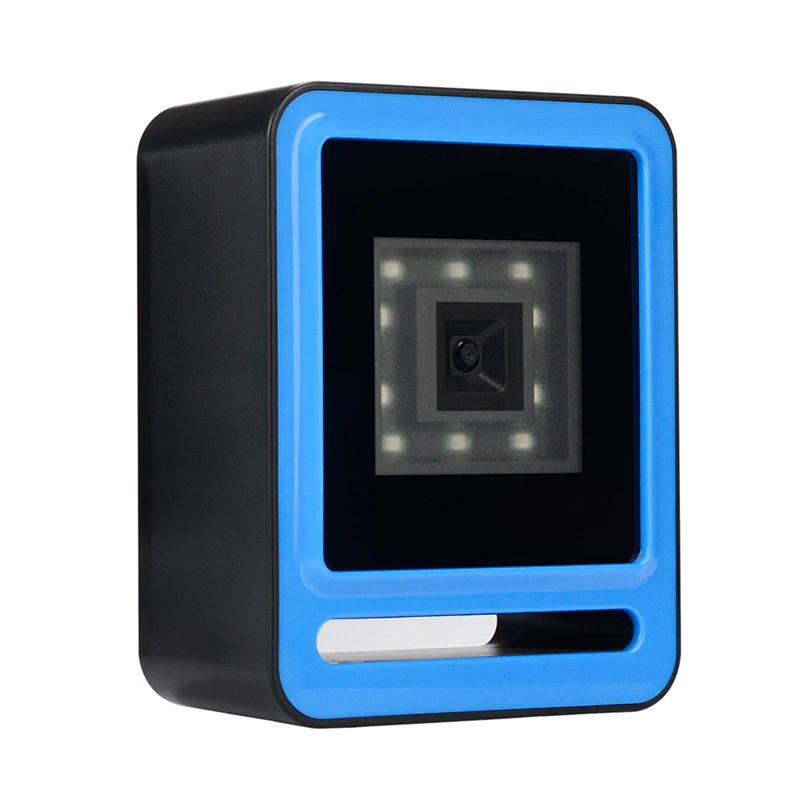

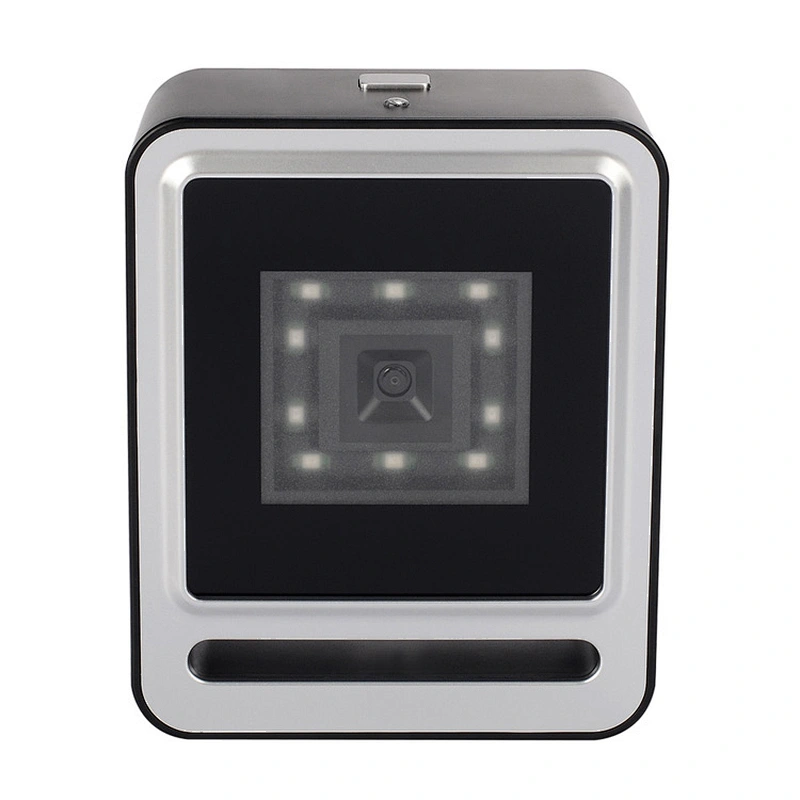

2D Hot Sale High Speed Omnidirectional USB/RS232 optional Barcode Scanner

2D Hot Sale High Speed Omnidirectional USB/RS232 optional Barcode Scanner

Minimum order quantity: 1 piece

Quantity:

Product Description

Products Status:Stock
Type:Barcode Scanner
Scan Element Type:CCD
Colour Depth:32 Bit
Interface Type:usb, COM
Optical Resolution:4mil
Scan Speed:300scans/sec
Brand Name:OSCAN
Place of Origin:Guangdong, China
Warranty(Year):10-Year
After-sales Service:Others, Free spare parts, Call Center and on-line Technical Support
Software development kit (SDK):NO
scan model:20-line scanning
scan speed:2200times/sec
Error rate:≤1/2,000,000
Drop test:1.5m
Electromagnetic compatibility:EN55022,EN55024
Optical safety certification:IEC42471,IEC60950
Working current:390mA(Max.),220mA(Typical)
Lighting source:red LED supplement
Optical resolution:640*480 ,120 fps
Certification:ce, RoHS, Sgs

Product Description

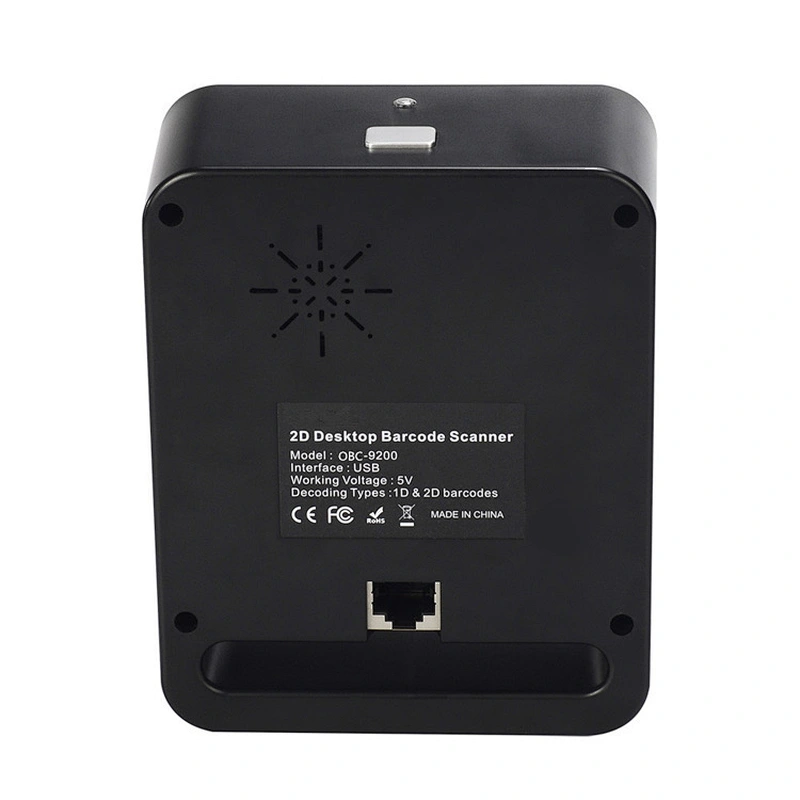

Product Specification: OBC-9200 2D Desktop Barcode Scanner		Tomato&Potato
Scanner parameters:
Optical resolution	640*480 ,120 fps
Light source	red LED supplement
scan model	20-line scanning
scan speed	2200 times/s
Scanning angle	rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees

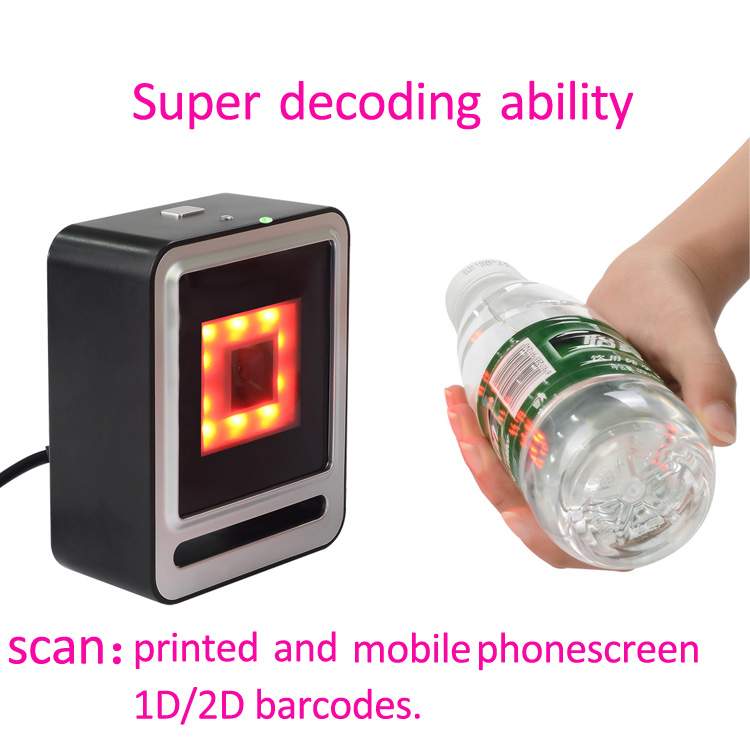

Sweeping barcode type	paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast	20%
Resolution	_{4 mil}
Error rate	≤1/2,000,000
Interface type	USB:HID Keyboard(default mode), USB virtual serial port
IP level	up to IP54 standard
Trigger Mode	Handheld,Continuous,Auto-Induction
Prompt mode	Buzzer, LED
Decoding capability	1D：Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412
Decoding capability		2D：QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
Depth of field	13mil UPC (20-120mm) 5mil Code128 (20-60mm) 10mil Code128 (20-100mm) 20mil QR (20-140mm）
Electrical parameters
Electric voltage	5V DC
Working current	390mA(Max.),220mA(Typical)
Optical safety certification	IEC42471、IEC60950
Electromagnetic compatibility	EN55022、EN55024
Mechanical parameters
Size	110mm53mm120mm
Cable length	2m
Weight	300g
Enviromental parameter
Working temperature	-20℃～60℃
Storage temperature	-40℃～85℃
Working humidity	5%～95%
Drop test	1.5m

Features

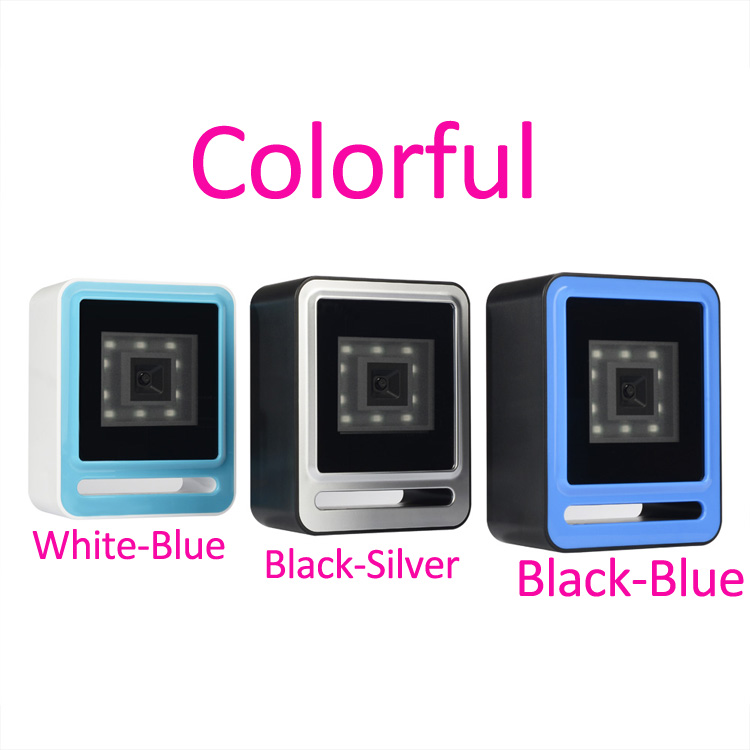

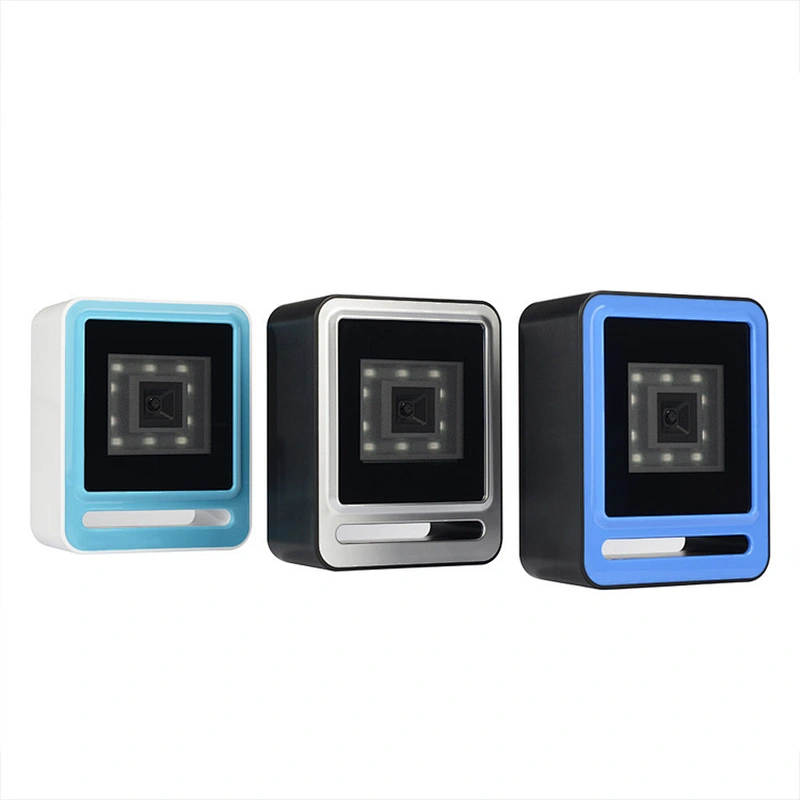

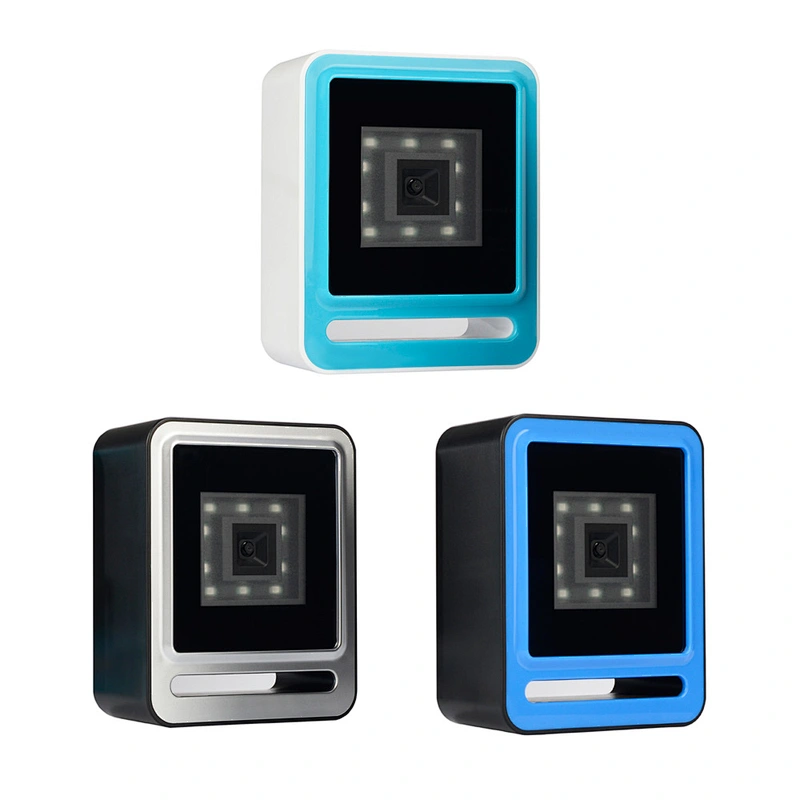

1.Color: Black-Silver/ Black-Blue/ White-Blue.

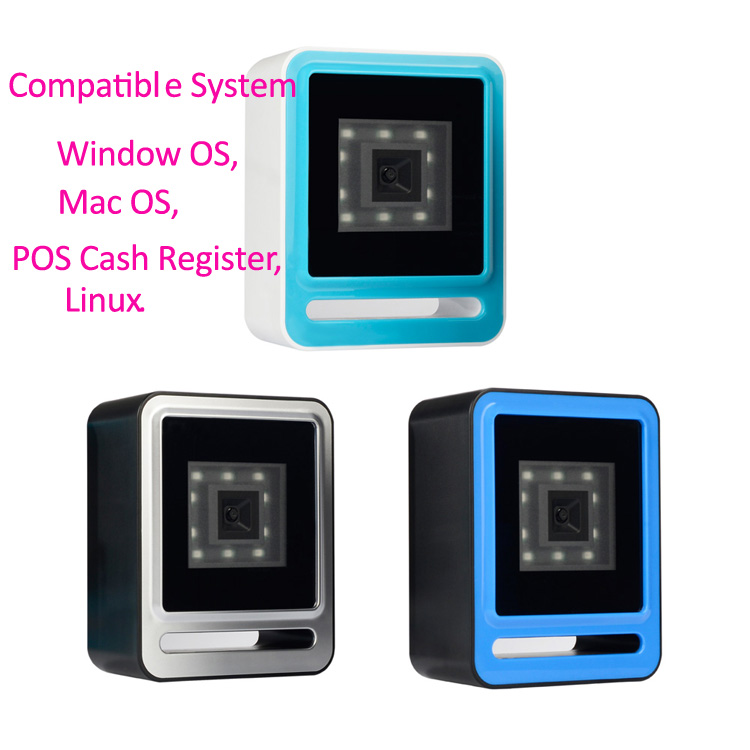

2.Compatible System- Windows, Mac OS , POS Cash Register, Linux.

3.Plug and play , no need for any driver or software . Easy installation with USB cable.

4.Auto sense, when the scanner reaches the barcode , it will automatically decoding the carcode.

5.Application fields:Supermarket, Retail . Warehouse, Logistic, Library, medical etc.

Welcome to know more

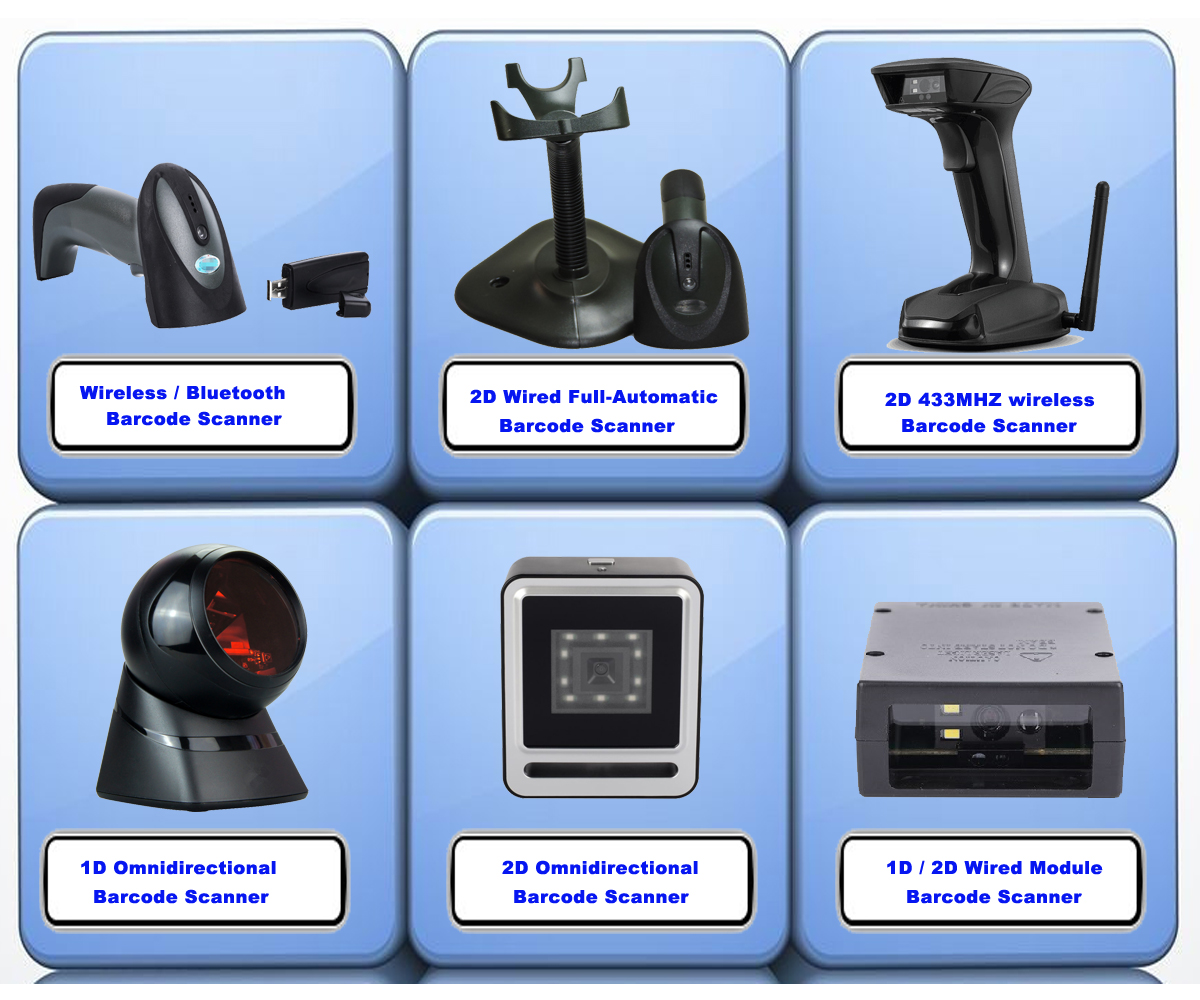

Related Products

Packing&Shipping

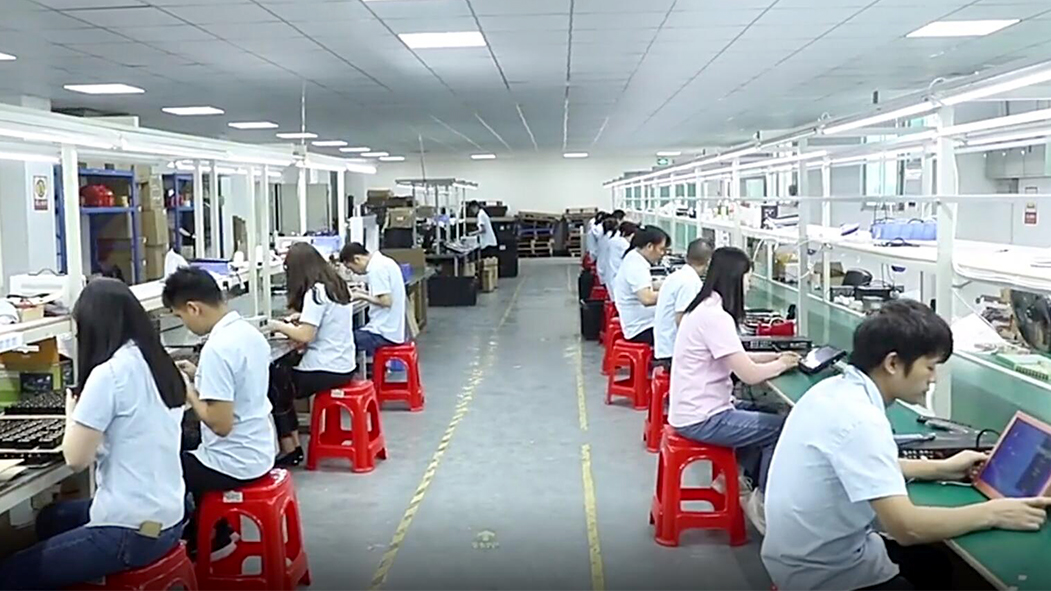

Company Introduction

Our Cerifications

Payment

FAQ

Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.

Q2. Can you make OEM/ODM/OBM?

A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/Bluetooth/ Ibutton...etc)

Q3. What about minimum order quantity?

A: MOQ=1, since we have all materials in stock.

Q4. Can i test the sample,and how about the lead time?

A: Sure. You can buy the sample to test.

Sample with faster lead time 1-3 days . The bulk production only need 5-7 days according to quantity and color request.

Q5. What’s your payment terms?

A: Bank transfer, Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .

Q6. How long is the warranty period?

A: 1-2 Years

Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment .

2. we also accept the inspection by the third part you appointed.

3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.

Q8.How do you make our business long-term and good

relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
