- Products Status:Stock
- Screen Size:17"
- Type:Resistive
- Interface Type:D-SUB
- Interface Type:DVI
- Interface Type:Serial
- Interface Type:USB
- Resolution:1280 x 1024
- Interface Type:HD+AV+TV
- Brand Name:OEM/ODM
- Place of Origin:CN;GUA
- resolution:1280*1024
- ratio display:4:3
- color:black
- brigtness:250cd/m2
- touch type:4 wire or 5 wire resistive touch
- input port:VGA
- Optional:HD/AV/TV
- model:OTM-1701
- Viewing Angle:Viewing Angle
- Contrast Ratio Typically:800:1
7"8"10"10.4"12"15"17"19"22"15 inch capacitive/resistive touch screen monitor
Model: OTM-1701
High brightness, high resolution
Main feature:
1.AU/Innolux fully new panel
2. Standard with 4 wire resistive touch (5 wire is optional)
3. Standard with VGA input ( HD/AV/TV is optional)
4. USB touch interface (RS232 touch is optional)
5. Different applications
6. Standard with 100*100mm VESA mounts,can be installed on the metal stand or wall
Specification:
Key Specification | ||
System Parameters | LCD panel: | AU/Innolux |
Working Voltage: | DC 11V-15V | |
Working Temperature: | -10~60° | |
Screen size: | 17 inches (4:3 diagonal) | |
Resolutions: | 1280(H)×1024(V) pixel | |
Dot pitch: | 0.285(H) ×0.285(V)mm | |
TV Receive System: | PAL/ NTSC/SECAM wide application range | |
Brightness: | 250cd/m2 | |
Contrast: | 800:1 | |
Power consumption: | ≤ 30W | |
Scanning Frequency: | 60-75Hz | |
Color: | 16.7M | |
Product functions | Full Function Touch Panel for PC | |
VESA metal Stand Optional | ||
VGA Port( HD+AV+TV Optional) | ||
The Highest Resolution is to 1024×768 | ||
Operated System is WIN9X,2000,ME,CE/UNIX Support WIN9X,2K,XP,CE,UNIX | ||
Touch function | Touch Type: | 4-wire 5 wire resistive optional |
Touch Interface: | USB or Serial COM(RS232) | |
Touch Response Time: | 8ms | |
Touch Sensitivity: | Fixed | |
Touch Pen Hitting Life: | >= 1milions times | |
Accessories | 1pcs LCD Monitor | |
1pcs Stand Shelf | ||
1pcs VGA Cable | ||
1pcs Instruction Manual | ||
1pcs AC/DC Power | ||
Some Screw for Fixing the Shelf | ||

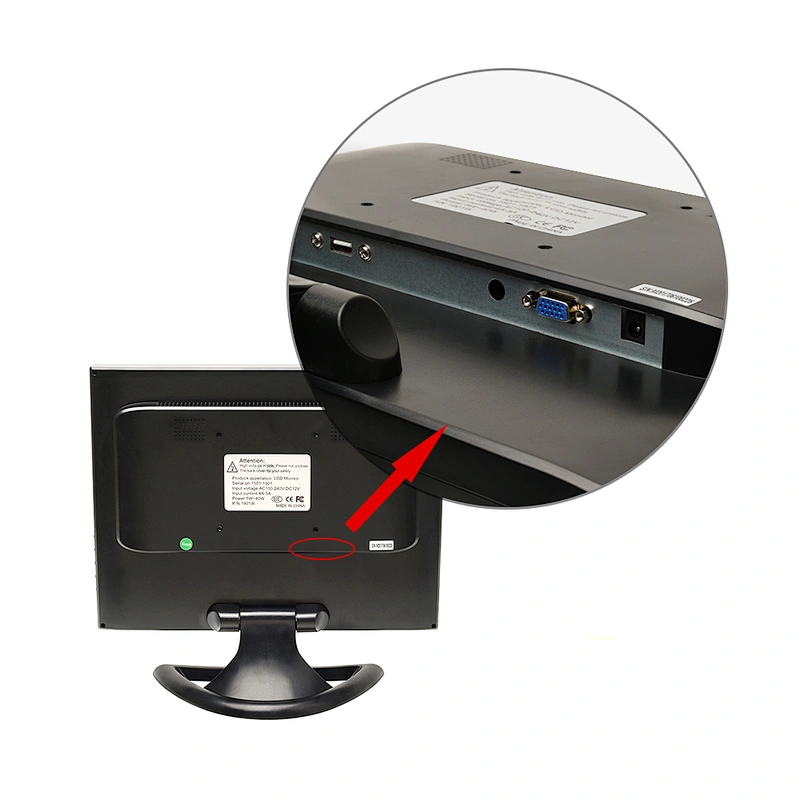

Interface:
*VGA+USB Touch
*VGA+HD+AV+TV+USB Touch
Metal stand Optional
Monitor Accessories
