7" VGA touchscreen monitor 7 inch monitor with touch screen

Price:
USD 1.00-75.00 / pieces
Delivery:
FOB
Minimum order quantity:
5 pieces
Supply Ability:
1000 pieces / Week
Country of Origin:
shenzhen/HK
Quantity:
  • Products Status:Stock
  • Type:Resistive
  • Interface Type:Serial
  • Interface Type:USB
  • Place of Origin:CN;GUA
  • Screen Size:7''
  • Interface Type:vga
  • Resolution:800*480
  • Brand Name:oem/odm/oscan
  • Model name:7 inch 4 wire resistive touch screen monitor
  • Resolution:800*480
  • Brightness:350cd/m
  • Materials:Plastic
  • Color:Black
  • panel:led new panel
  • Touch:4 wire resistive touch
  • Package:5pcs a carton
  • Display:16:9
  • Monitor Dimensions:179.5x 120.6x 30.5(mm)

7"VGA touchscreen monitor       7 inch monitor with touch screen

Product Description


Specification

Name

 7″Digital TFT LED VGA Touch Monitor

Model

  OTM-7000

Case/Bezel Color

 Black

Case material

 Plastic

Display Type

 16:9 Ratio 7″Active Matrix TFT LCD

Native Resolution

 800X480@ 60-75Hz,support 1920x1200 75hz

Brightness

 350cd/m2

Contrast Ratio Typically

 500:1

Backlight

 LED

Viewing Angle Horizontal (left/right)

 174° (89°/85°)

(From Centre, CR>=5) Vertical (up/down)

 174° (89°/85°)

Active Display Area

 153.6(W ) X 90(H ) mm

Sychronization Range

 30-80 KHz horizontal, 55-75 Hz Vertical

Pixel Pitch

 0.05(W)x 0.15(H )mm

Pixel Response Time Rise + Fall (Typically)

 10ms

Plug and Play

 VESA DDC 1/2B

On Screen Display (OSD)

 Support 8 languages (English,Chinese,Franch,Polish,Spanish,Korean,

Italian,Japanese)

Colors

 16.7 million

Backlight Lamp life Hrs to 1/2 brightness

 50,000

Input Video Format

 Analog RGB, CVBS NTSC/PAL (AUTO)

Interface

 VGA/2AV input, DC jack, earphone jack

Touch type

 4 Wires resistive touch

Touch screen Interface

 USB(RS232 COM optional)

Touch Response Time Serial/USB

 10.4ms

Touch Sensitivity

 Fixed

Touch Pen Hitting Life

 >= 1milions times

Speaker

 1 x Speaker At Rear(2xspeakers at front optional)

Power Supply

 12V ACDC adapter (9V-28V supported), <10 W Consumption

Operate System

DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX /  Mac,etc.

Monitor Dimensions

 179.5x 120.6x 30.5(mm)

Weight

 1kg

Temperature Range

 Operating:0°C-50°C, Storage:-20°C-80°C

Relative Humidity Non Condensing

 Operating:10%-90%, Storage 5%-90%

Installation

 Bracket for desktop, wall mount via VESA

Agency Approvals

 FCC, CE, ROHS,KCC

Warranty

 1 year warranty

Typical Applications

 Entertainment/Casino Systems

 Outdoor and indoor Kiosks

 Transport and Ticket

 Television station

 Education

 Exhibition

 Advertisement

 Hotel/Hospitality/pos display

 Car PC

 Industry equipment

 Banking/Checking

 Customised Solutions



More picture

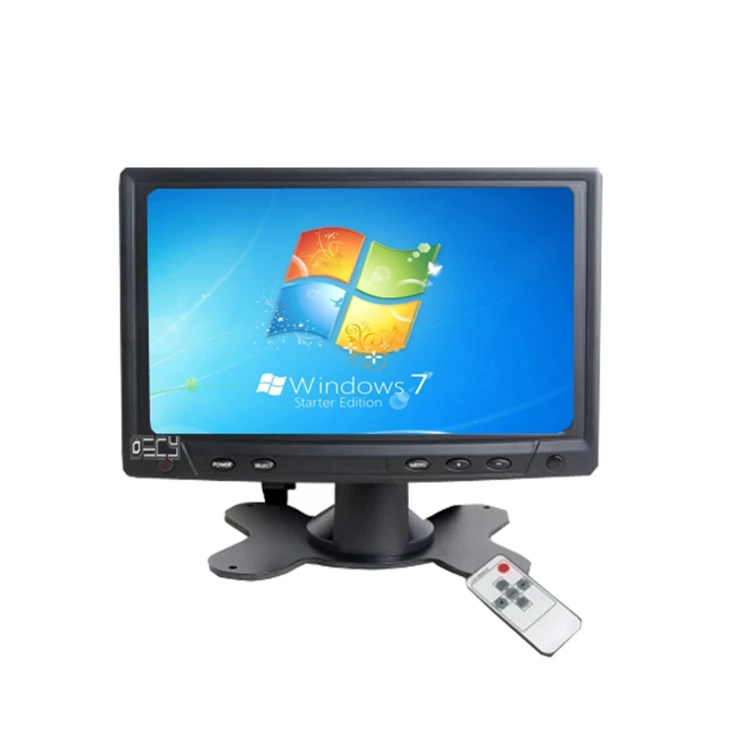

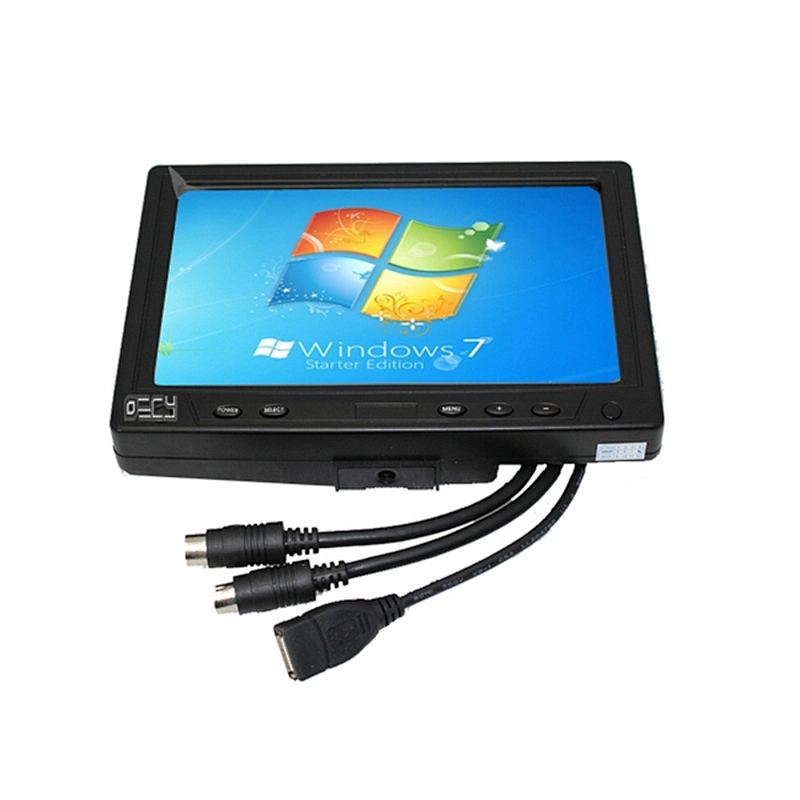

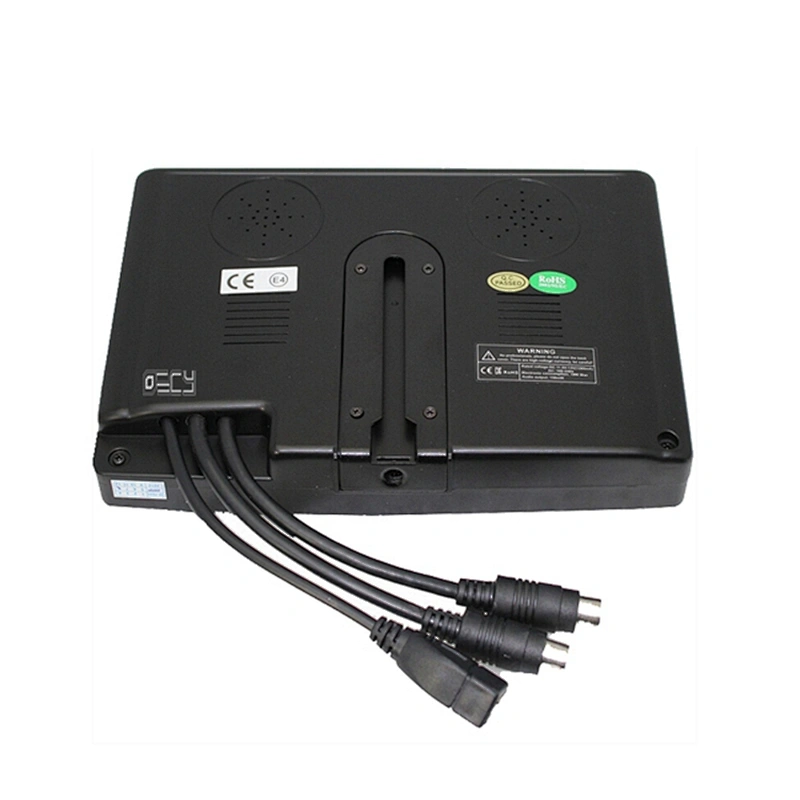

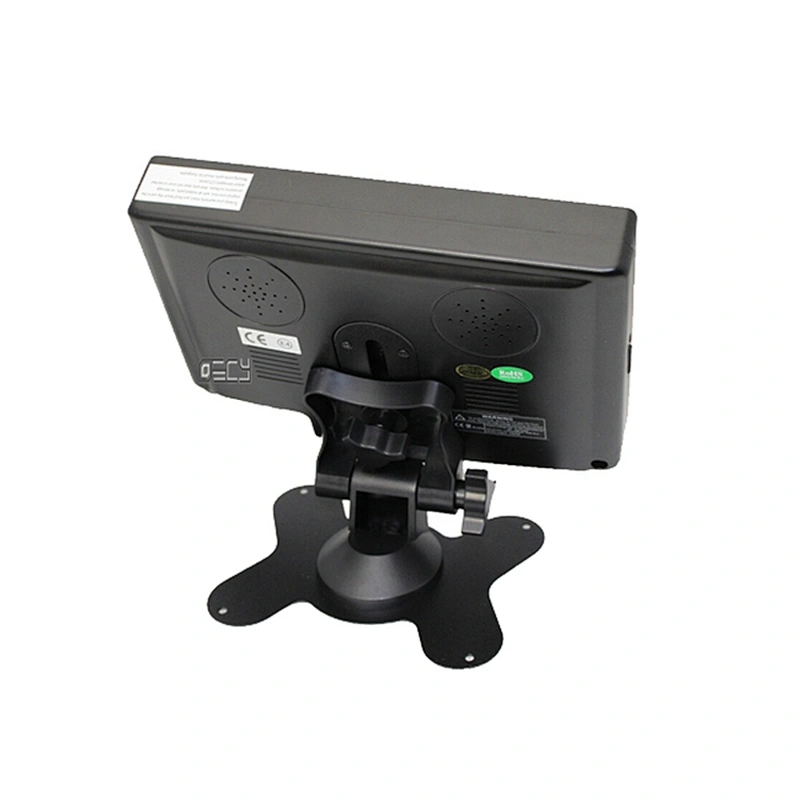

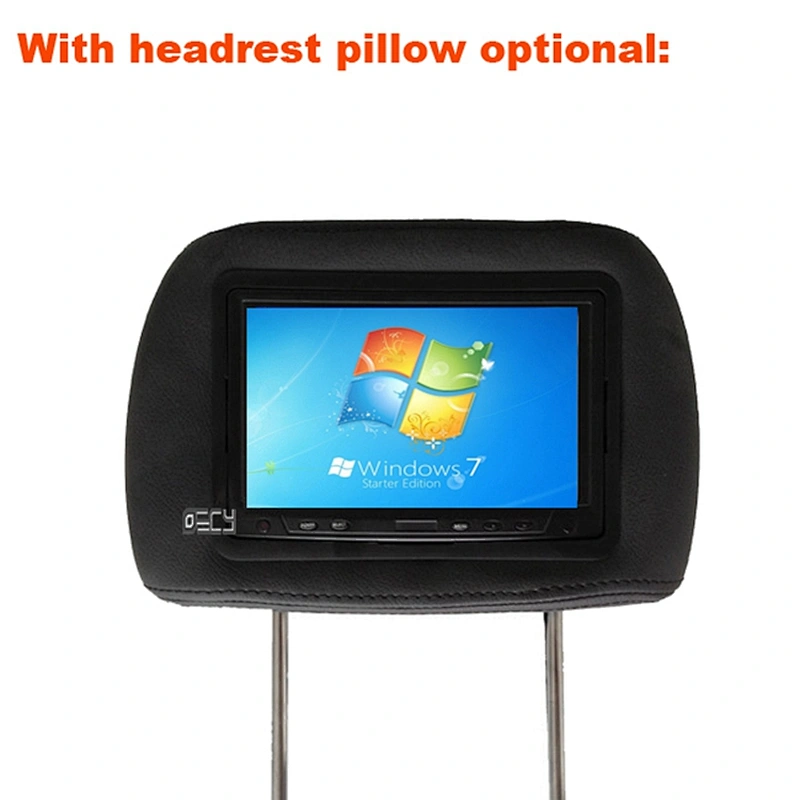

More picture for reference.jpgOTM7000.jpgOTM7000-1.jpgOTM7000-3.jpgOTM7000-4.jpgOTM7000-2.jpg
