- Products Status:Stock
- Application:Desktop
- Response Time:8ms
- Brightness:400cd/m
- Contrast Ratio:500:1
- Resolution:1024 X 768
- Widescreen:No
- Panel Type:IPS
- Place of Origin:CN;GUA
- Screen Size:8"
- Interface Type:HD, RCA/VGA/BNC/USB
- Pixel Pitch:0.001
- Brand Name:OEM/ODM
- Item:touch screen panel vga LCD mini computer monitor
- Panel Type:IPS
- Brightness:400cd/m
- Backlight:LED backlight
- ratio display:4:3
- Power supply:DC 12v
- Warranty:12 Months
- Color:Black
- Inputs:Audio
- Interface:HD/RCA/VGA/BNC/USB

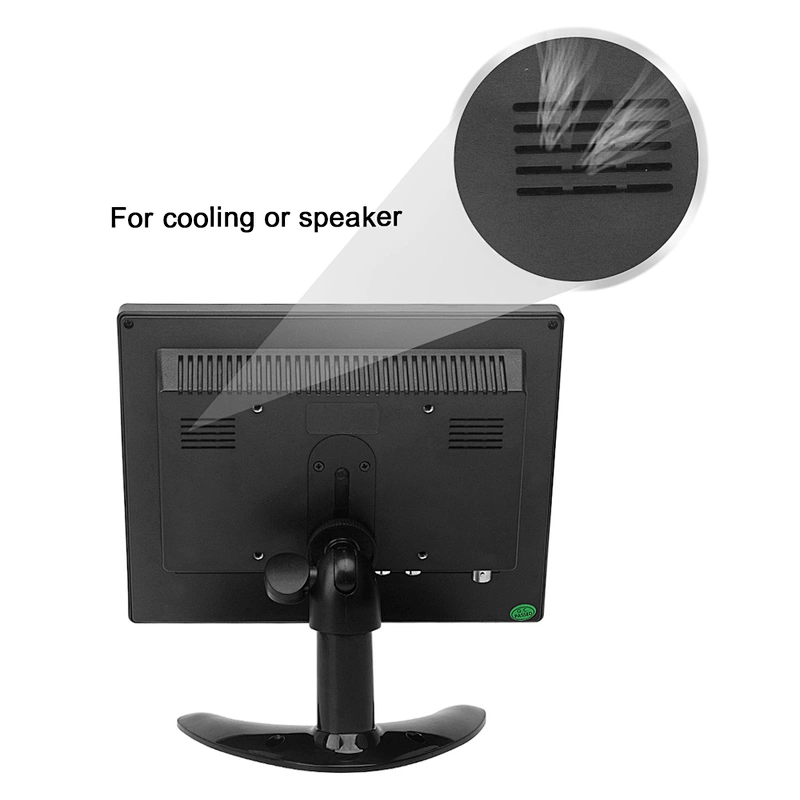

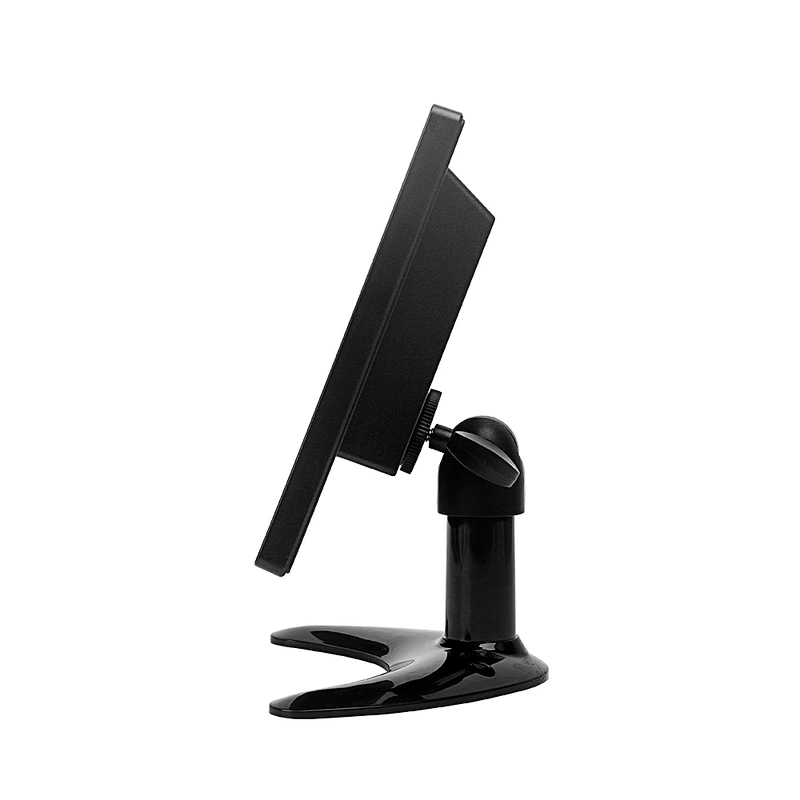

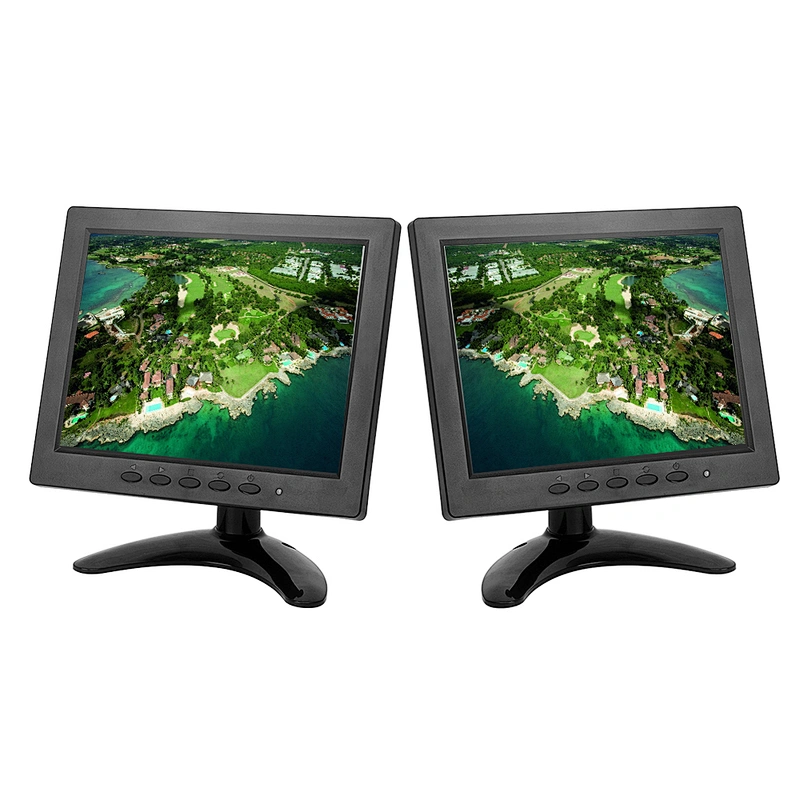

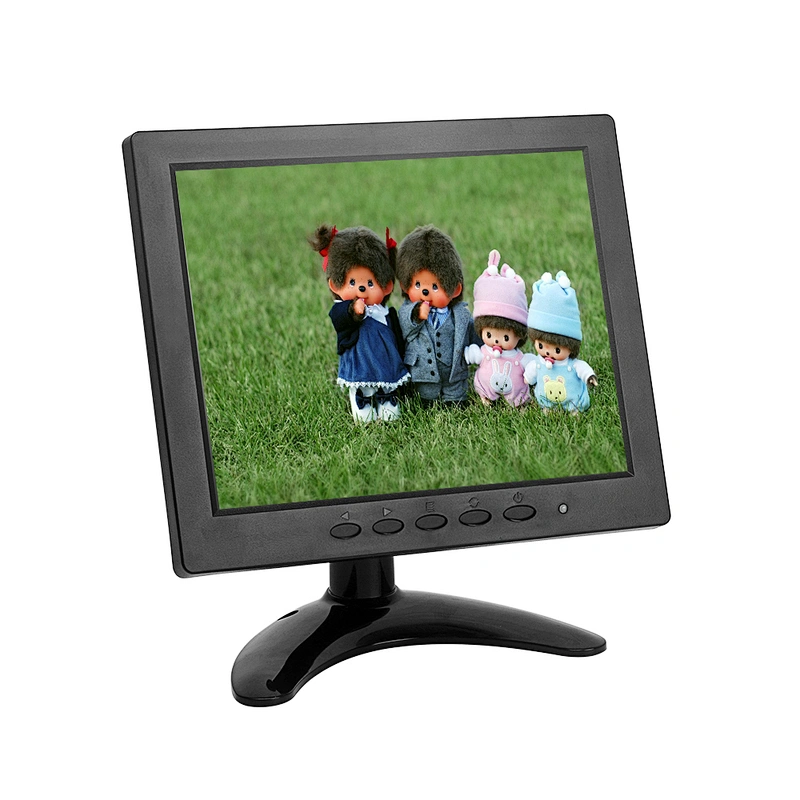

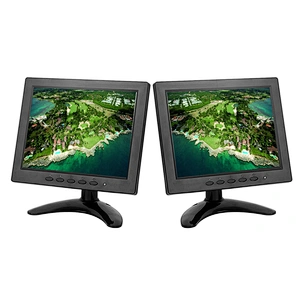

8inch small 4 wire resistive touch screen panel vga LCD mini computer monitor
Panel size | 8 inch TFT-LCD |

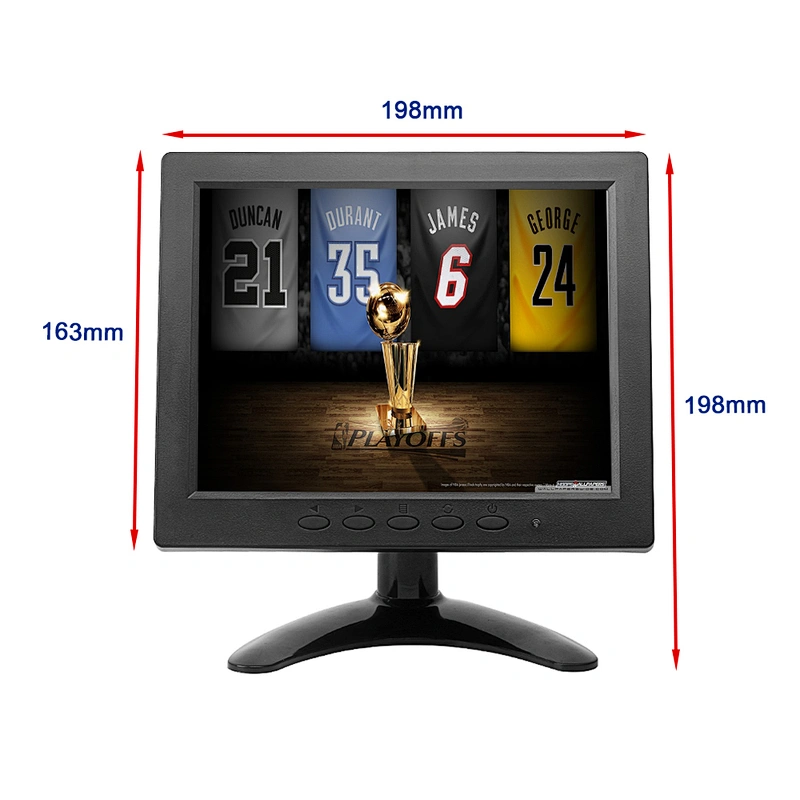

Visual size | 161*120mm |
Standard Resolution | 800*600 |
Scale | 4*3 |
Number of Colors | 16.7M |
Brightness | LED panel:300cd/m2 |
Response time | 8ms |
View angle | Horizontal:160° |
Vertical:130° | |
Contrase ratio | 500/1 |
Video input format | (analog) RGB |
Connector | VGA (D-sub) |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V AC |
(DC 12V) | |
Net weight | 1.5 Kgs/pcs |
Gross weight | 2.0 Kgs/pcs |
Setup (optional) | 1) provide wall brackets for wall-mounting, |
VESA 75mm | |
2) provide base to support the monitor | |

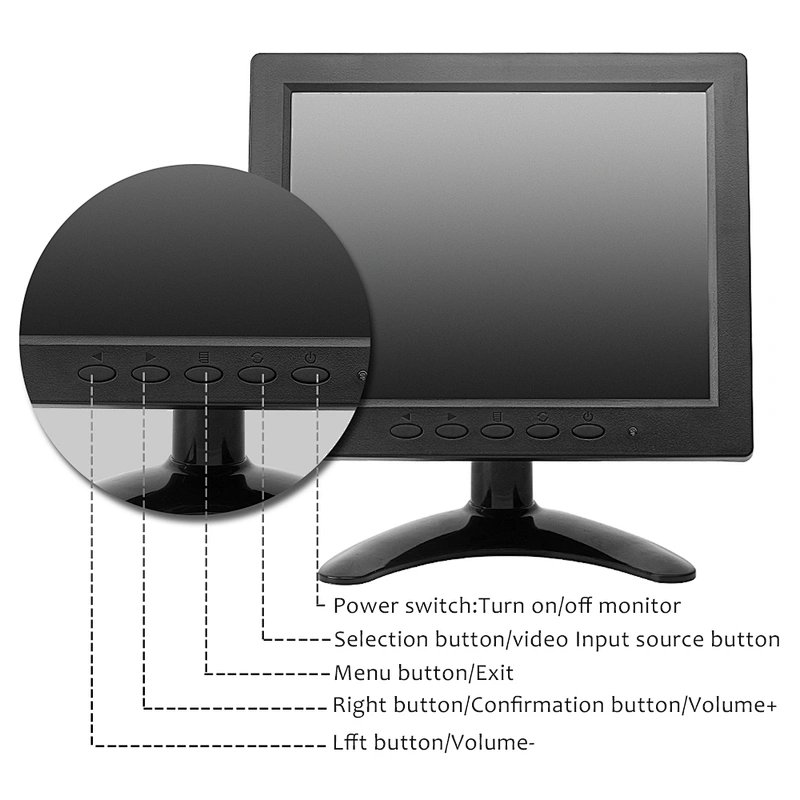

OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock, Languages,function,Install,reset | |
each minit box size | 191*161*38MM |
package size | 10PCS in a carton |
Warranty | 1 year |
SHENZHEN OSCAN TECHNOLOGYCO.,LTD is a high tech ompany with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
1. Q:Why should I choose OSCAN?
A:10 Years Professional Experience
OSCAN manufacturer with professional production and QC teams,
we have skilled workers and advanced facility and offer the latest
cuttingedge technology POS Terminal, Touch screen Monitor, POS peripherals,
CCTV/VGA/HD Monitor and the retated products. We have CE,FCC,ISO9001 ,
EMC and RoHS ect certification. We pride ourselves on not just earning your business,
but earning your trust.
2.Q: How is the warranty and after-sales service?
A:We have one year guarantee, during the time, once you have any quality problem,
we will repair for free . As to the after-sell service, you can contact us anytime
3.Q: May I get a sample?
A:Of course. We can provide the sample to you when you send the products details.
1.Size :such as 15inch , 17inch , 10inch ......
2.Touch pannel: 5 wire resistive.
3.Socket types: Custom types are International Socket, UK Socket, US Socket,
EURO Socket, Italy Socket, South Africa Socket, Switzerland Socket. ect.
4.Stand types: Full Metal stand
