- Products Status:Stock
- Type:Resistive
- Place of Origin:CN;GUA
- Screen Size:10.1"
- Interface Type:VGA/USB(HD, AV, BNC is optional)
- Resolution:800*600(1024*768 is optional)
- Brand Name:OEM/ODM
- Application:Desktop
- Product name:10.1 inch lcd touch screen monitor
- Brightness:400cd/m2
- Option input:VGA/USB(HD, AV, BNC is optional)
- Ratio display:16:10
- Contrast Ratio:600:1
- Power supply:12V DC
- Certificates:CE/FCC/RoHs
- Color:Black
- Widescreen:No

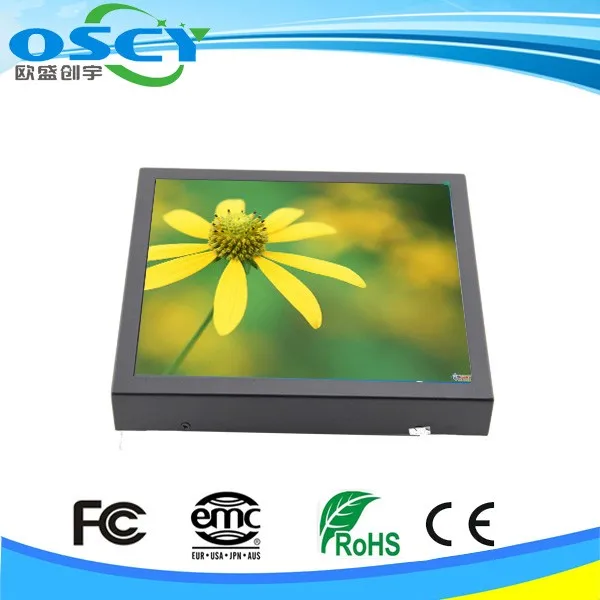

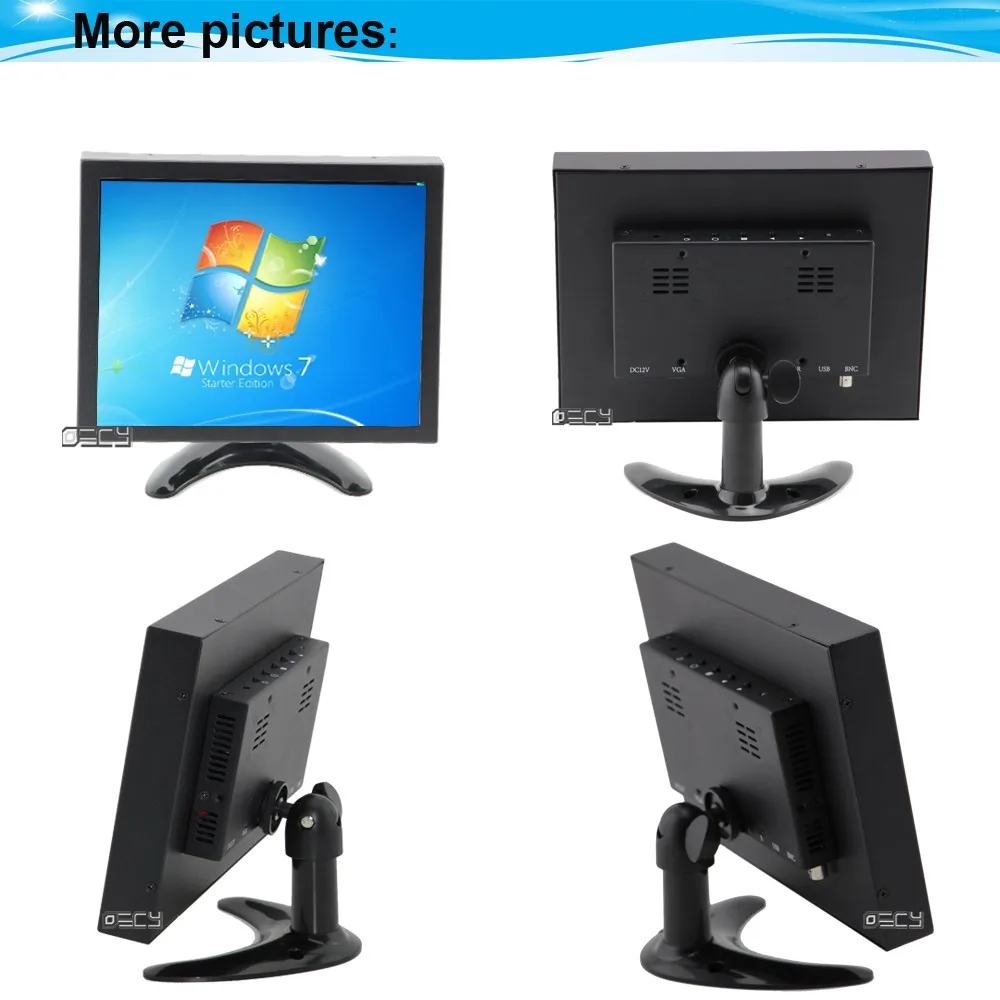

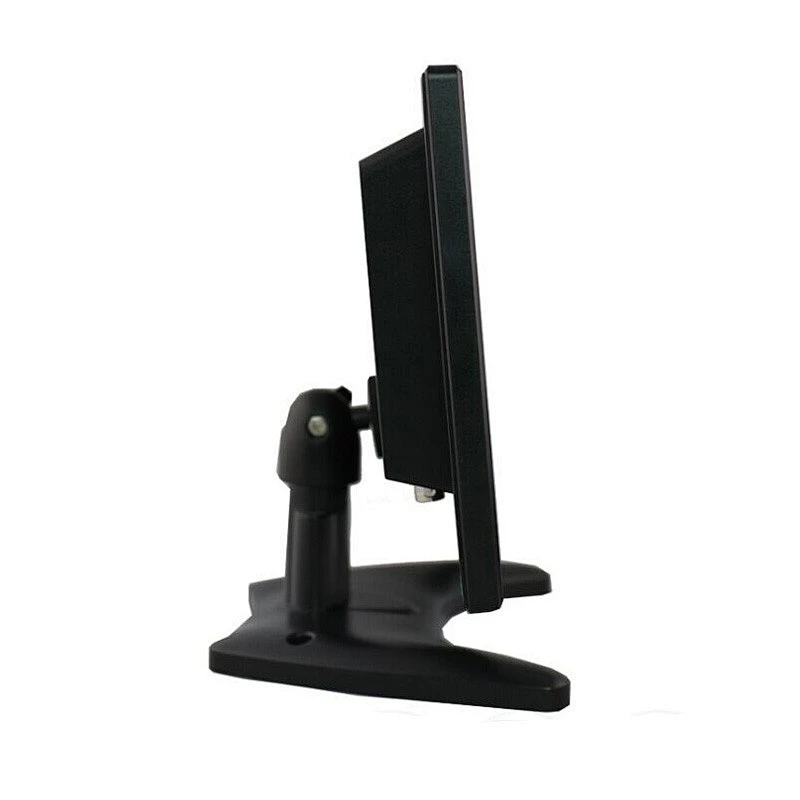

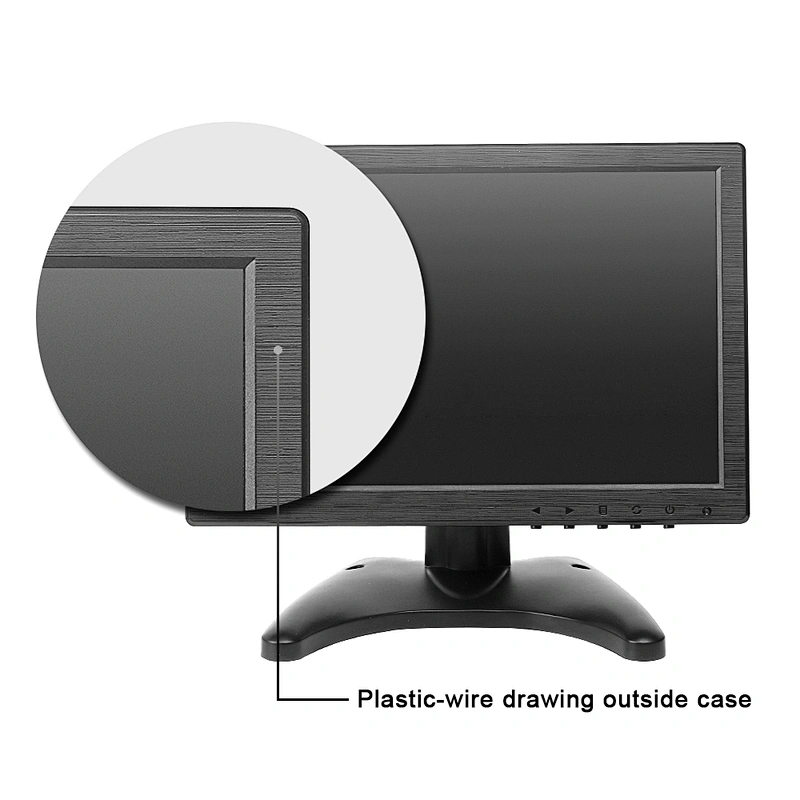

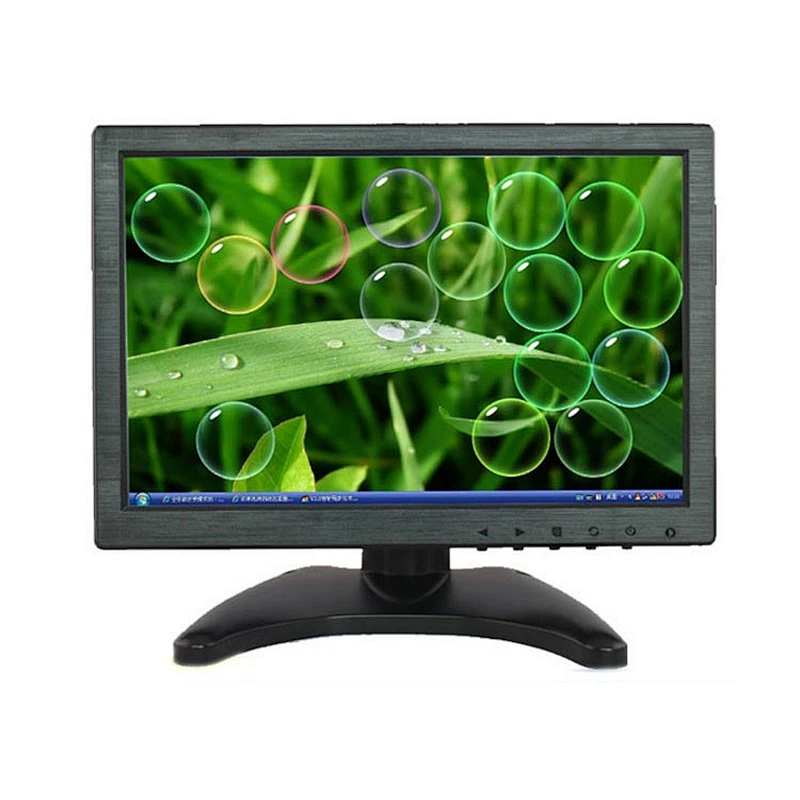

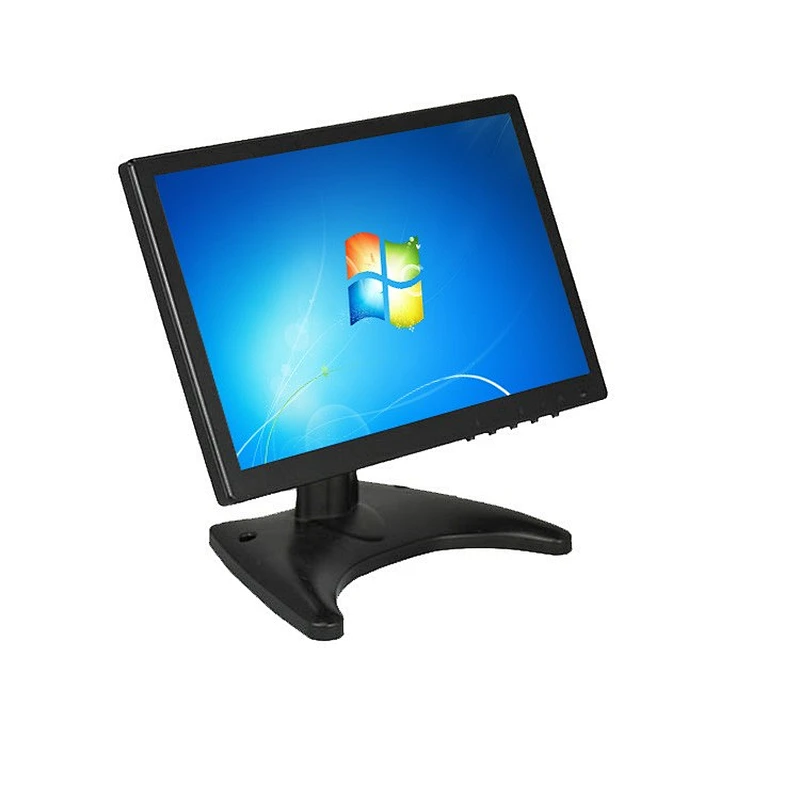

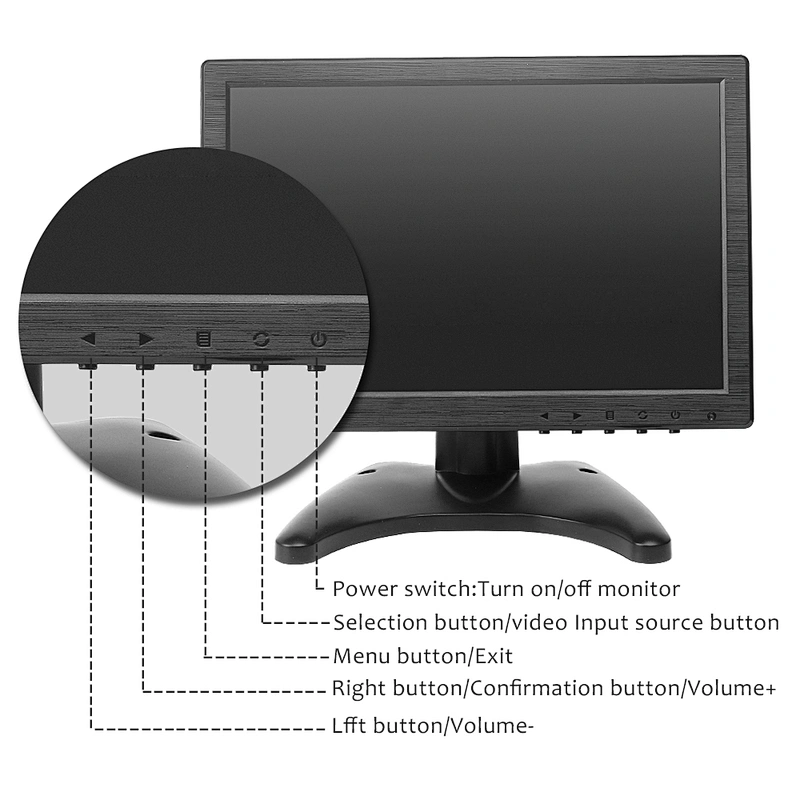

High Quality 10.1 inch 1280*800 hd lcd touch screen monitor
Product Description
| Name | 10.1 Inch Muilt-function Monitor |
| Model | OTM-1010 |
| Backlight | LED Backlight |
| LCD Panel | IPS panel |
| Display Type | 16:10 Ratio 10.1″Active Matrix TFT LCD |
| Active Display Area | 217(W) X 135(H) mm |
| Monitor dimension | 245mm x 166mm x 35mm |
| BrightnessBrightness | 400 cd/m2 |
| 400 cd/m2 | 1280*800 |
| Contrast Ratio Typically | 600:1 |
| Viewing Angle | Full Viewing Angle |

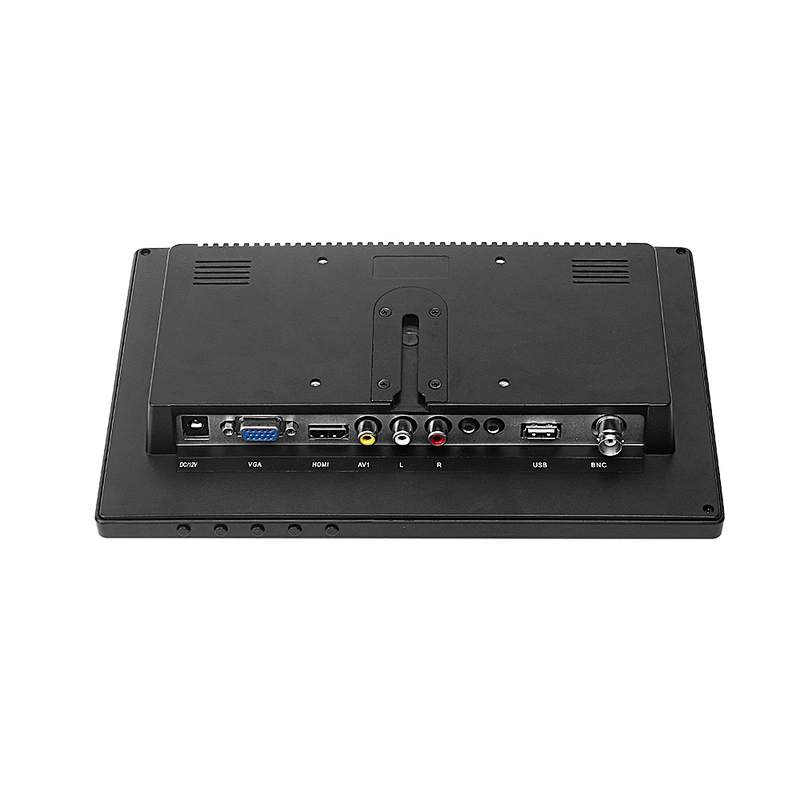

| Input Video Format | VGA/HD/AV/BNC/USB TOUCH |
| Colors | 16.7 million |
| Backlight Lamp life Hrs | 50,000 |
| Sychronization Range | 30-80 KHz horizontal, 55-75 Hz Vertical |
| OSD Languages | 8 Languages |
| Power Supply | DC12V 1A |
| Power Consumption | <20 W Typ |
| Temperature Range | Operating:0℃-50℃, Storage:-20℃-80℃ |
| Humidity Non Condensing | Operating:10%-90%, Storage 5%-90%Company Information |
Company Information
SHENZHEN OSCAN TECHNOLOGYCO.,LTD is a high tech ompany with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
