Delivery:
FOB
  • Products Status:Stock
  • Type:Resistive
  • Place of Origin:CN;GUA
  • Screen Size:10"
  • Interface Type:HD/VGA/BNC/AV/USB
  • Resolution:800*600(1024*768 is optional)
  • Brand Name:OEM/ODM
  • Product name:10 inch lcd monitor
  • Application:Desktop
  • Brightness:300cd/m2
  • Option input:HD/USB/AV
  • Ratio display:4:3
  • Contrast Ratio:400:1
  • Power supply:12V DC
  • Certificates:CE/FCC/RoHs
  • Color:Black
  • Widescreen:No

High Resolution 10 inch Marine Display 1080p LCD Headrest Monitor

Description






Panel size

10 inch TFT-LCD

Visual size

161*120mm

Standard Resolution

800*600

Scale

4*3

Number of Colors

16.7M

Brightness

LED panel:300cd/m2

Response time

8ms

View angle

Horizontal:160°

Vertical:130°

Contrase ratio

500/1

Video input format

(analog) RGB

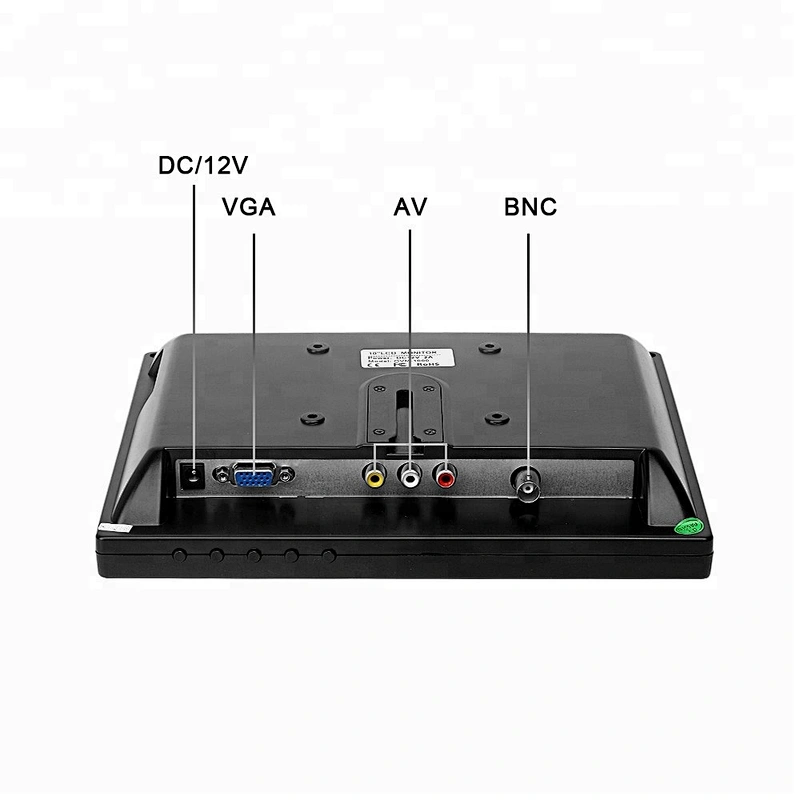

Connector

VGA (D-sub)

Frequency

30~80KHz/60~75Hz

Power supply

External Power Supply:100 to 240V AC

(DC 12V)

Net weight

1.5 Kgs/pcs

Gross weight

2.0 Kgs/pcs

Power consumption

Max 18W

Setup (optional)

1) provide wall brackets for wall-mounting,

VESA 75mm

2) provide base to support the monitor

OSD  control

AUTO,+,POWER,-,MENU

brightness,contrast ratio,auto adjustment,phase position,clock,

Languages,function,Install,reset

each minit box size

191*161*38MM

package size

10PCS in a carton

Features

simple, speedy,flexible ,artistic appearance and low radiation

Warranty

1 year
