- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900
- Model No:AIO-1500
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
- Memory:2 GB (4GB is optional)
- Hard disk:32G SSD (64G SSD or 500GB is optional)
- USB port:5*USB( 3*2.0,1*3.0), 6 *USB ports is optional
- Brand Name:OEM/ODM
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch( Taiwan Brand)

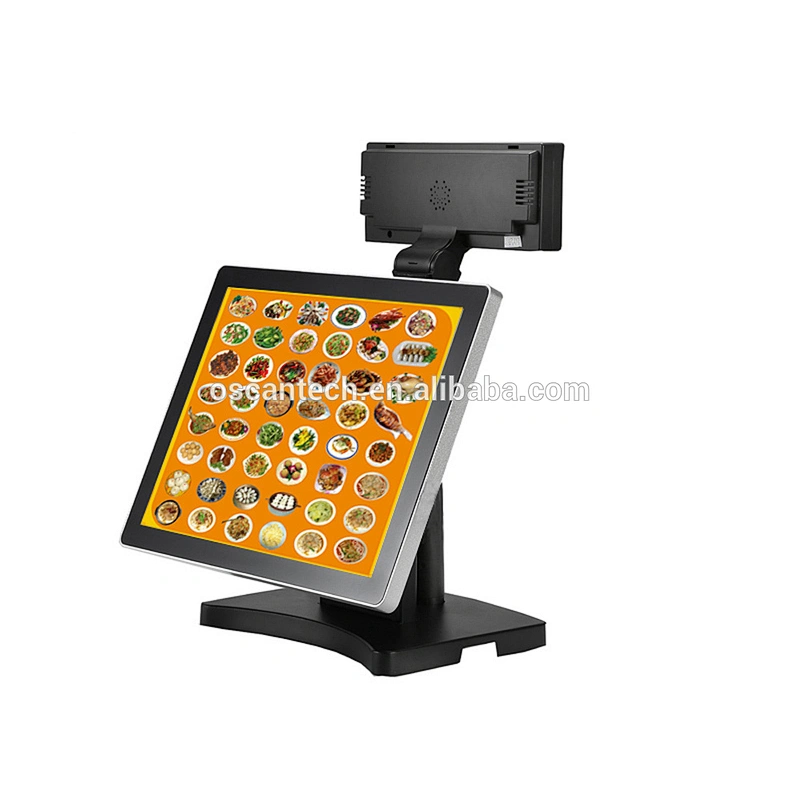

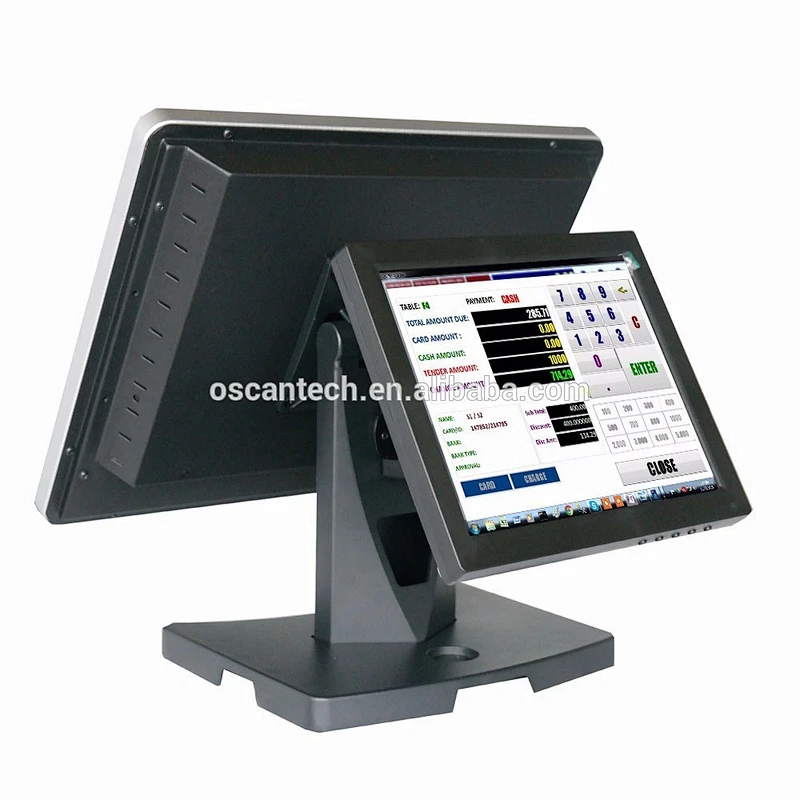

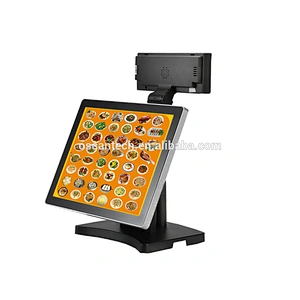

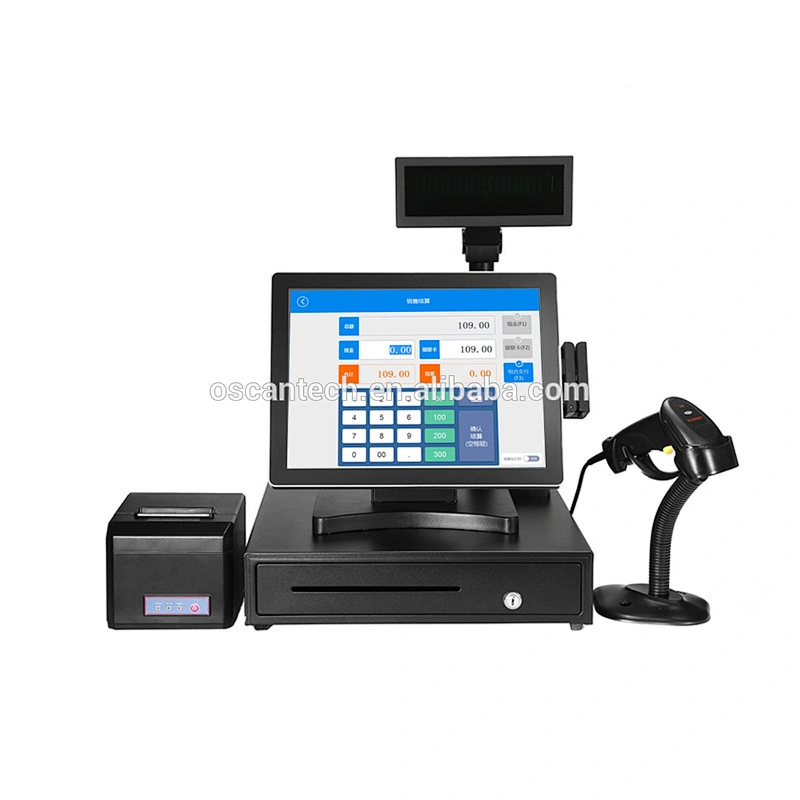

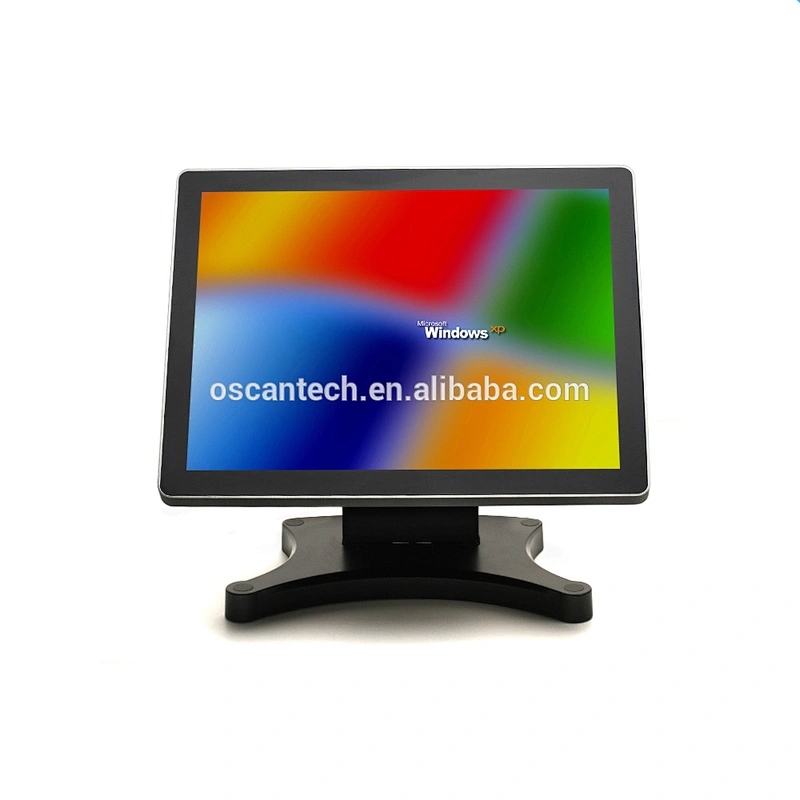

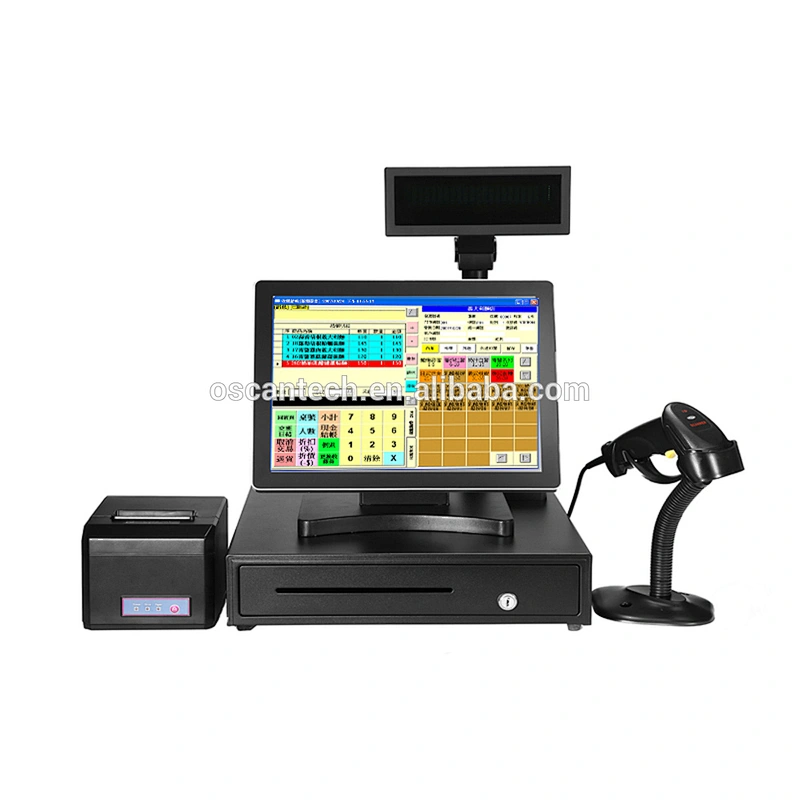

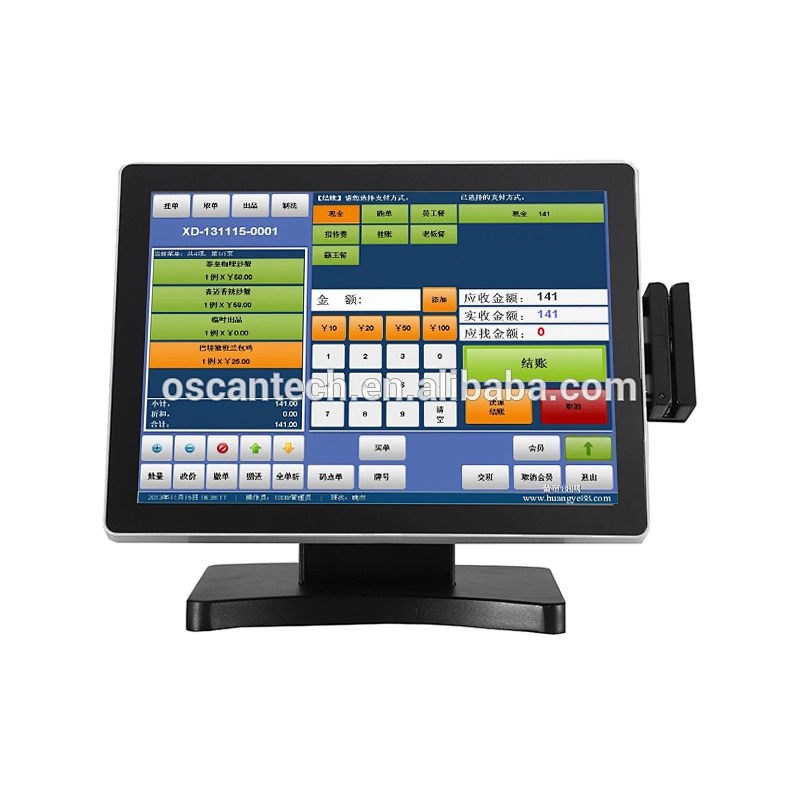

Hot 15'' pos hardware/retail pos system/windows pos
15 inch all in one touch screen POS terminal | ||||||
Display Type | 15” Touch screen POS | |||||
Main board | Baytrial mother board | |||||
CPU | Intel® Celeron®J1900, Four-core, clock speed 1.99G，TDP 10W / I3 /I5 is optional | |||||
Memory | 2GB ( 4GB or 8GB is optional) | |||||
Hard disk | 32G SSD (64G SSD 128G SSD or 500GB is optional) | |||||
Touch Panel | 5-wire Touch Panel / capacitance touch is optional | |||||
LCD panel size | 15 inch BRAND NEW TFT LCD | |||||
Optional support | Wifi MSR card reader Ibutton removeable hardisk | |||||
Resolution | 1024*768 | |||||
DC+HD+VGA+COM+6xUSB+LAN | ||||||
DC+HD+VGA+2xCOM+4xUSB+LAN | ||||||
DC+HD+VGA+3xCOM+4xUSB+LAN | ||||||
DC+HD+VGA+1xCOM+4xUSB+RJ11+LAN | ||||||
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] | |||||
Other Parts | USB: 1 * Rear I/O(USB3.0/USB2.0) + 3 * Rear I/O(USB2.0) + 2 * Header(USB2.0) + 1 * Header/Mini PCI-E(USB2.0) | |||||
Specification | 8 * GPIO | |||||
1 * Parallel Pin Header | ||||||
1 * PS/2 Pin Header | ||||||
2* Mini PCI-E | ||||||
1 * SIM Card Slot | ||||||
1 * Front Audio | ||||||
1 * 12VDC_OUTPower Output Connector | ||||||
2 * 12VDC_INPower Input Connector | ||||||
Temperature | Storage: -20~75℃ Operating: 0~60℃ | |||||
BIOS | AMI UEFI BIOS | |||||
Factor | Mini-ITX(170mm * 170mm) | |||||
1. Processor, Intel celeron J1900 I3 or I5 professor is optional
2.Standard with 5 wire resistive touch screen /Capacitance touch
3.Standard with 2G memory, 4G/8G is optional
4.Standard with 32G SSD, 64G SSD/128G SSD or 500GB HDD is optional
6. Mitsubishi fully new LED panel
7. Brushed Aluminum housing
8. WIFI built-in is optional
9. Professional licensed windows 7/ windows 10 OS / Android OS optional
Ture-flat screen POS
Ibutton
Title goes here.
15 17"touch screen monitor
15"all in one touch POS system
12"TFT LCD PC monitor
SHENZHEN OSCAN TECHNOLOGYCO.,LTD is a high tech ompany with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
Company Adderss: Room 1102, Jiahui Business Center, No. 8-11, Xinwei Village, Shuidou, Donghuan 2nd Road, Longhua New District,shenzhen,China
Hot 15'' pos hardware/retail pos system/windows pos
Hot 15'' pos hardware/retail pos system/windows pos
Hot 15'' pos hardware/retail pos system/windows pos
Packing
2 pcs per carton
individual box for each pcs
Delivery
Mass order will be deliveried within 10 days or 1 month , details will according to your order
It's flexible no matter if you have forwarder in China or not , we can ship for you , or we can ship the product to your ship agent .
Why choosing us?
We are holding"Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.
What' s your company goal?
We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.
Your satisfaction is our ultimate goal.
How we control quality?
Each part of products is strictly inspected according to quality system cercification before production.
