- products status:Stock
- interface type:usb
- max paper size:79.5±0.5mm
- black print speed:230mm/s
- color print speed:230mm/s
- max. resolution:203dpi
- brand name:OSCY
- place of origin:Guangdong, China
- warranty(year):1-Year
- after-sales service:Call Center and on-line Technical Support
- software development kit (sdk):Yes
- accessory specification:Standard with USB cable
- Item name:Receipt printer
- Printing method:Direct thermal
- Roll paper:80mm
- Command:Compatible with ESC/POS
- Auto cutter:Full/Partial(optional)
- Power supply:DC 24V-2.5A
- Column capacity:576 dots/line 512 dots/line
- Printing Method:Thermal Line Printing
- Gross weight:1.52kg
- Style:Black and white

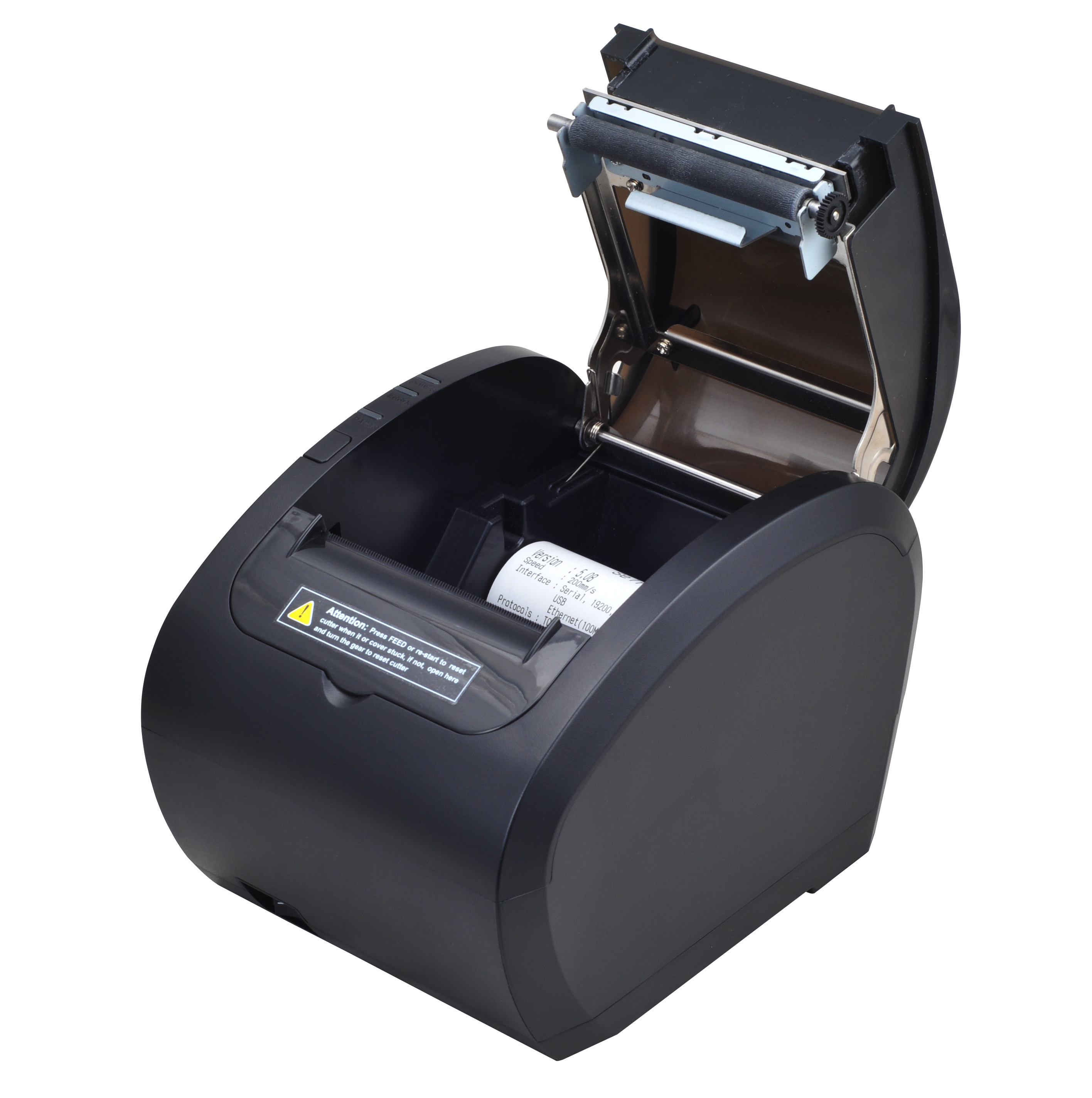

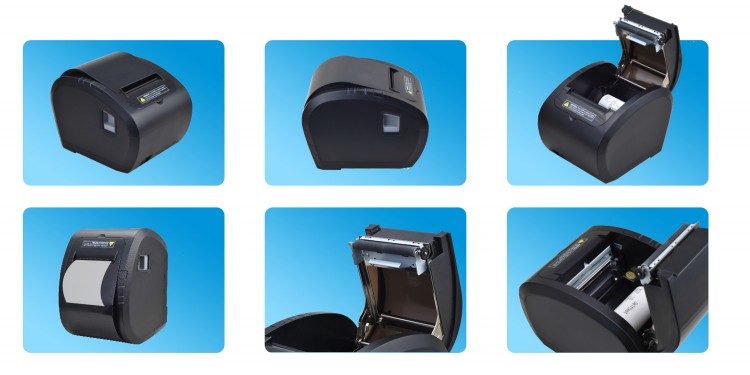

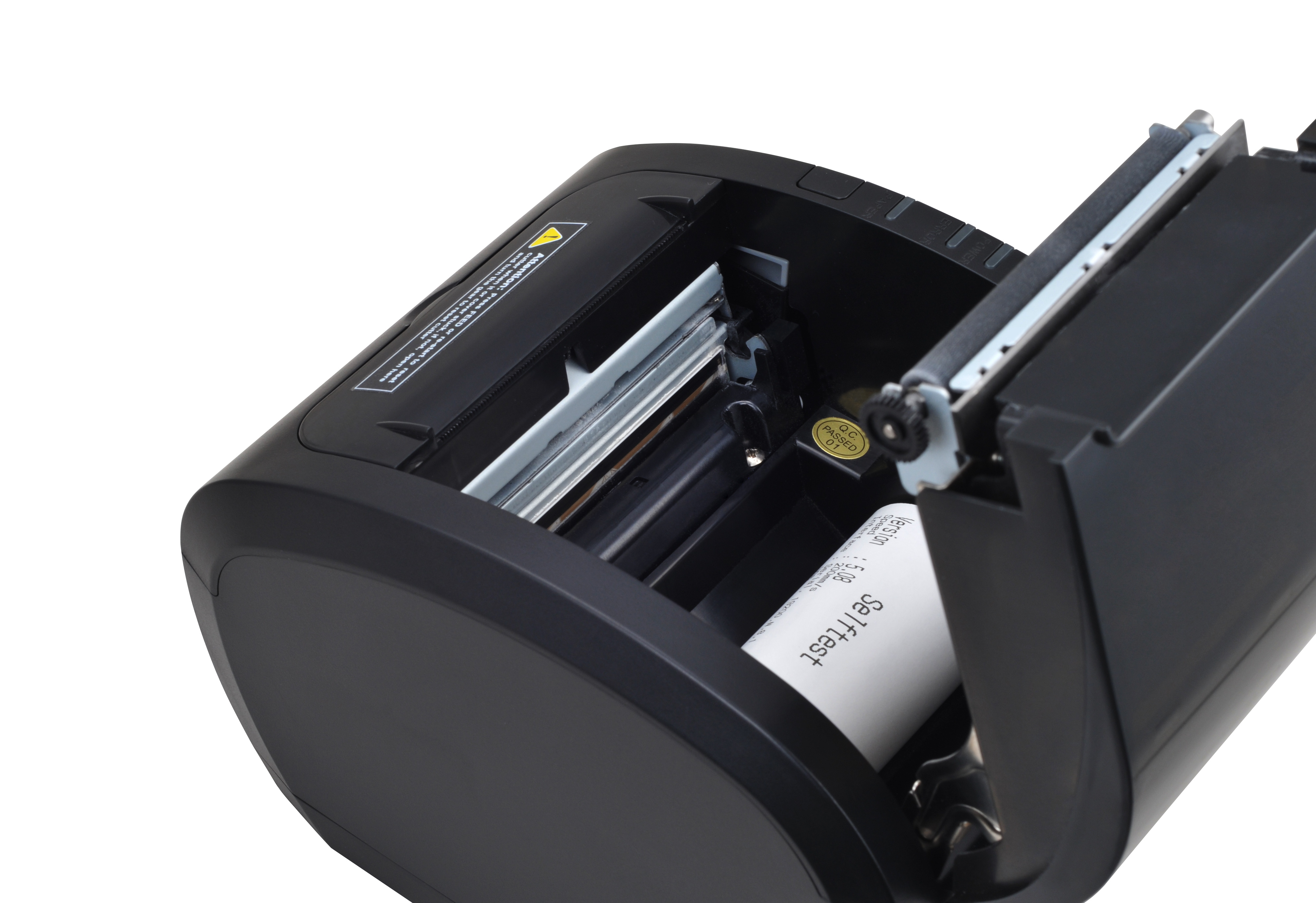

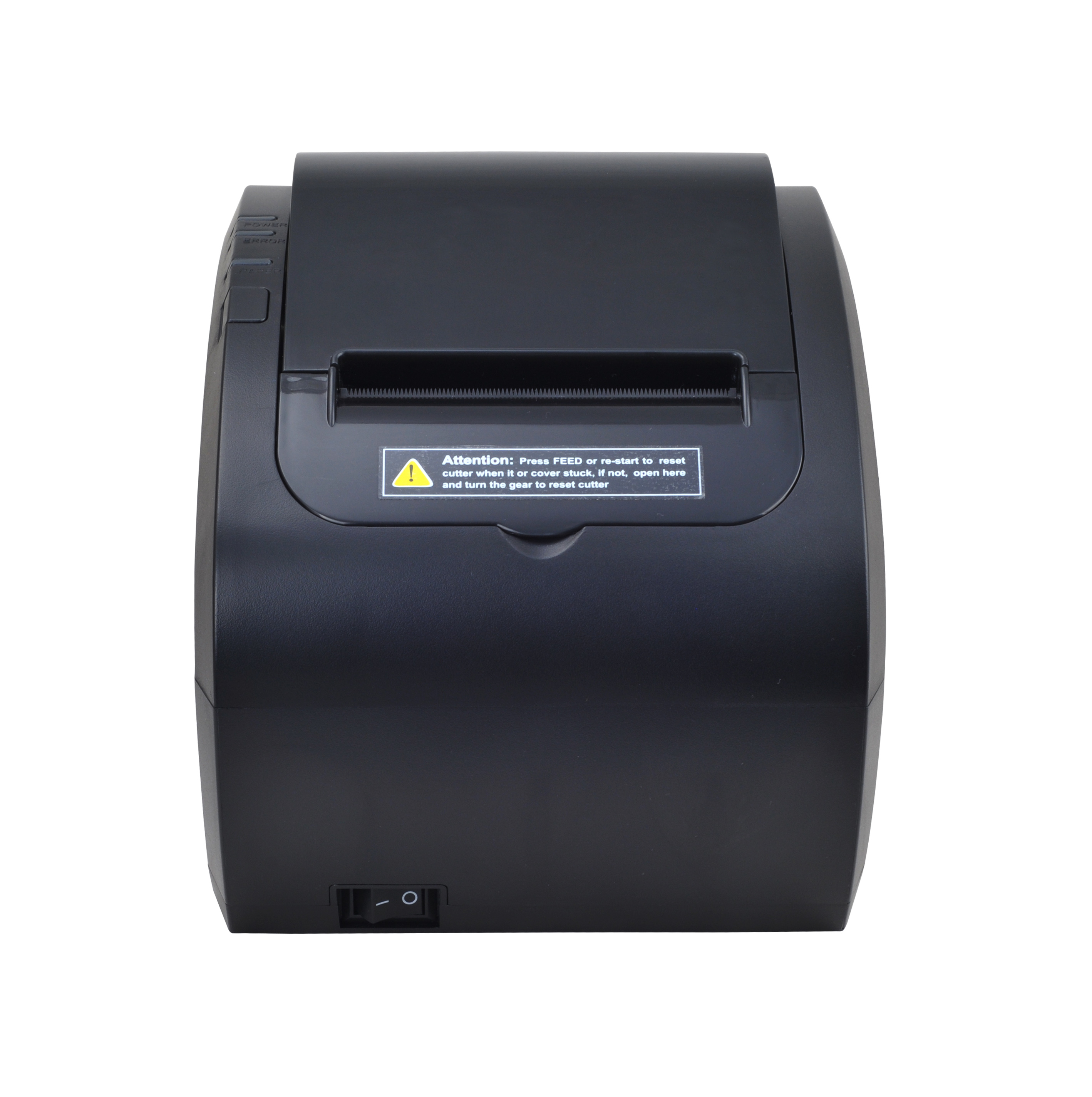

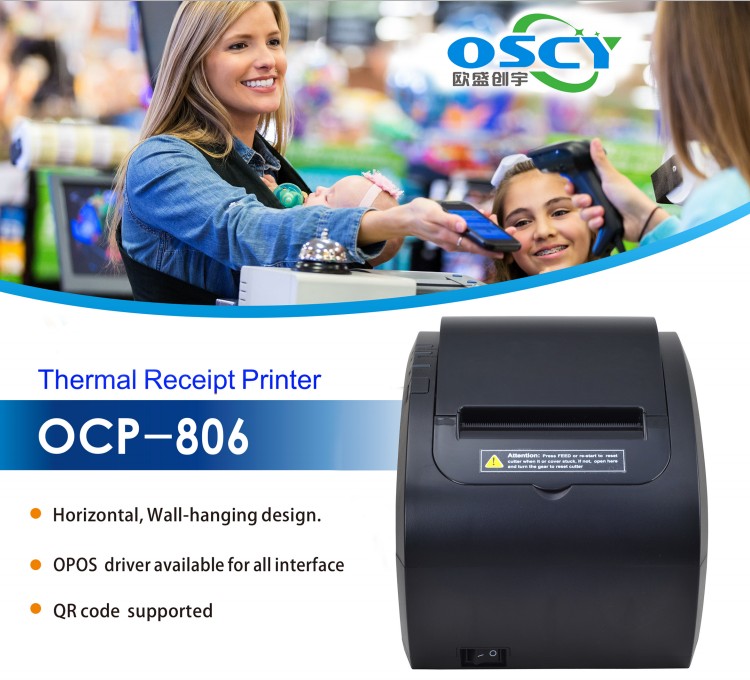

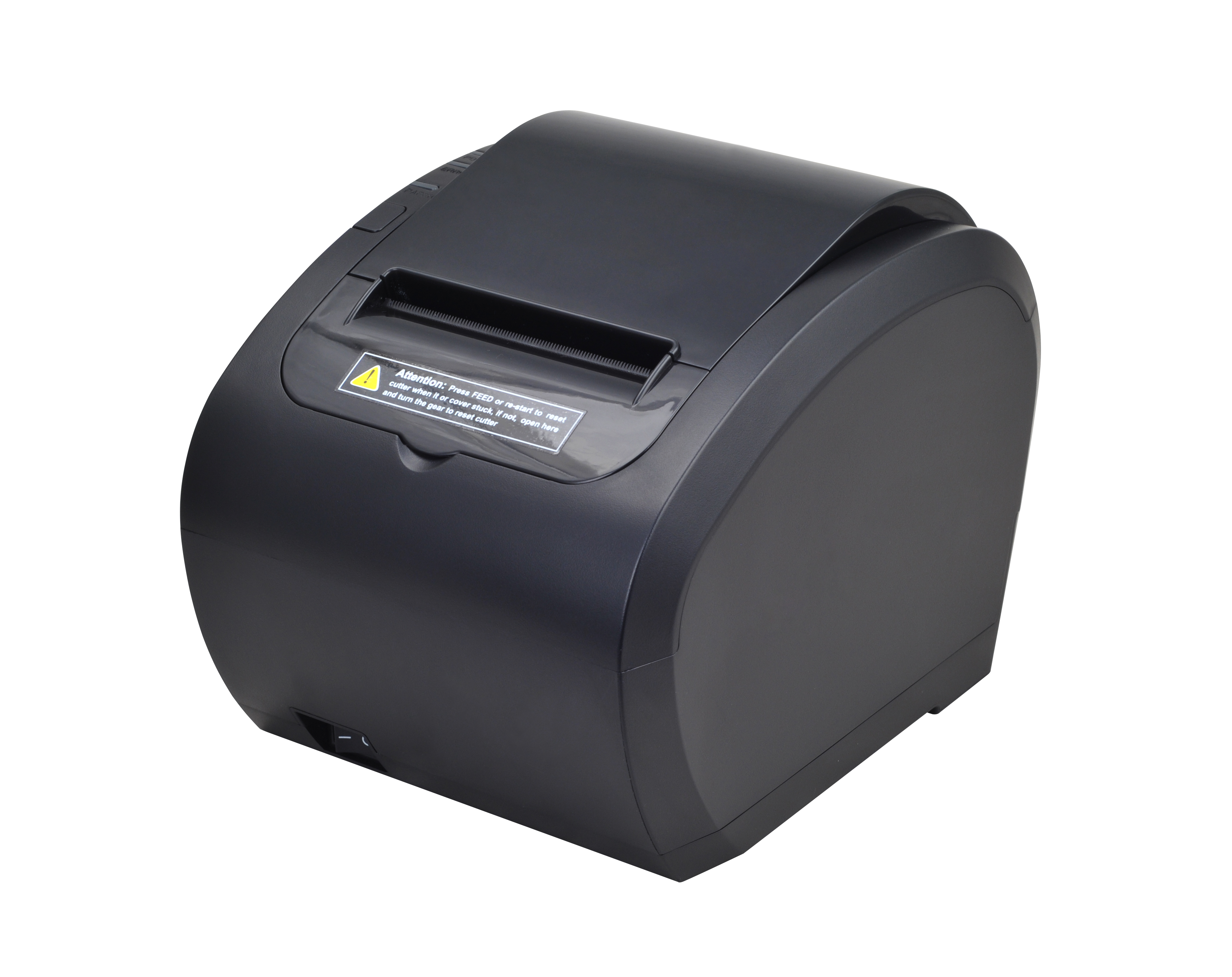

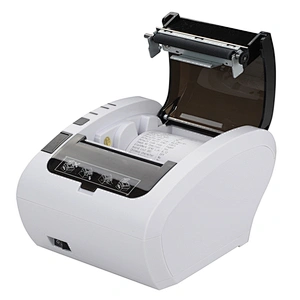

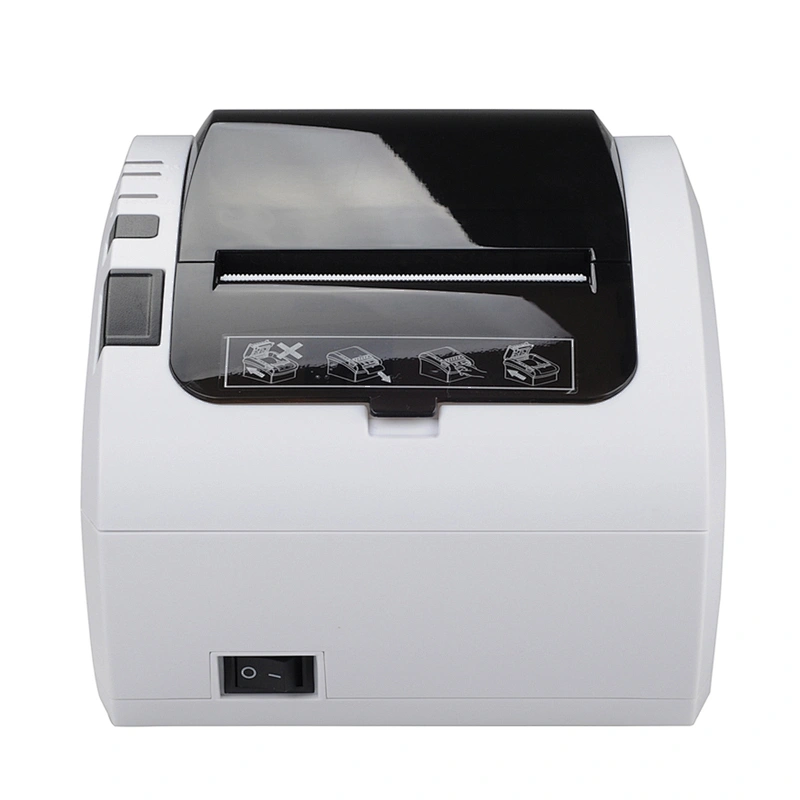

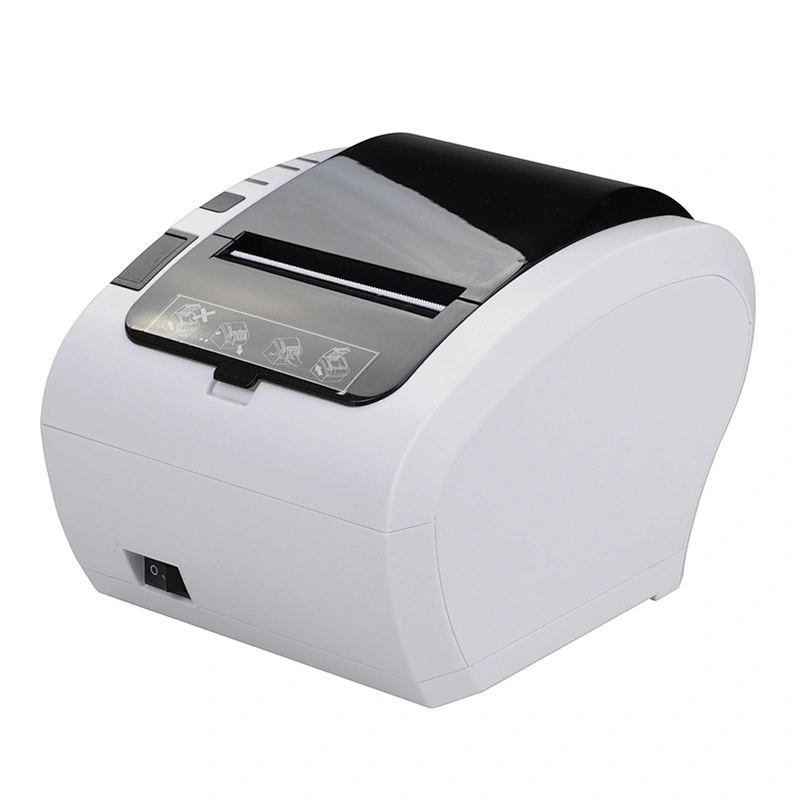

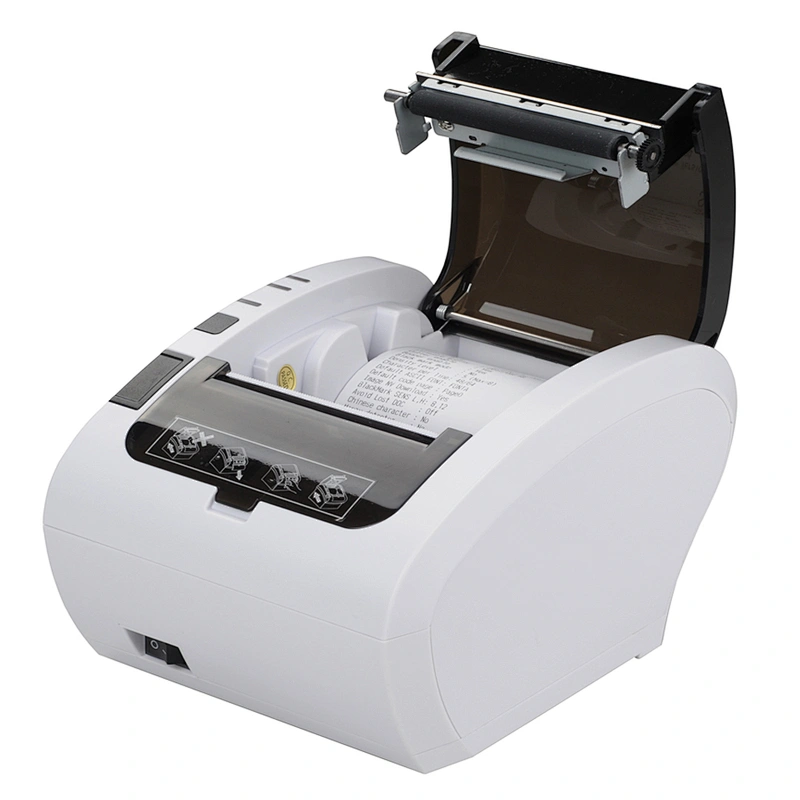

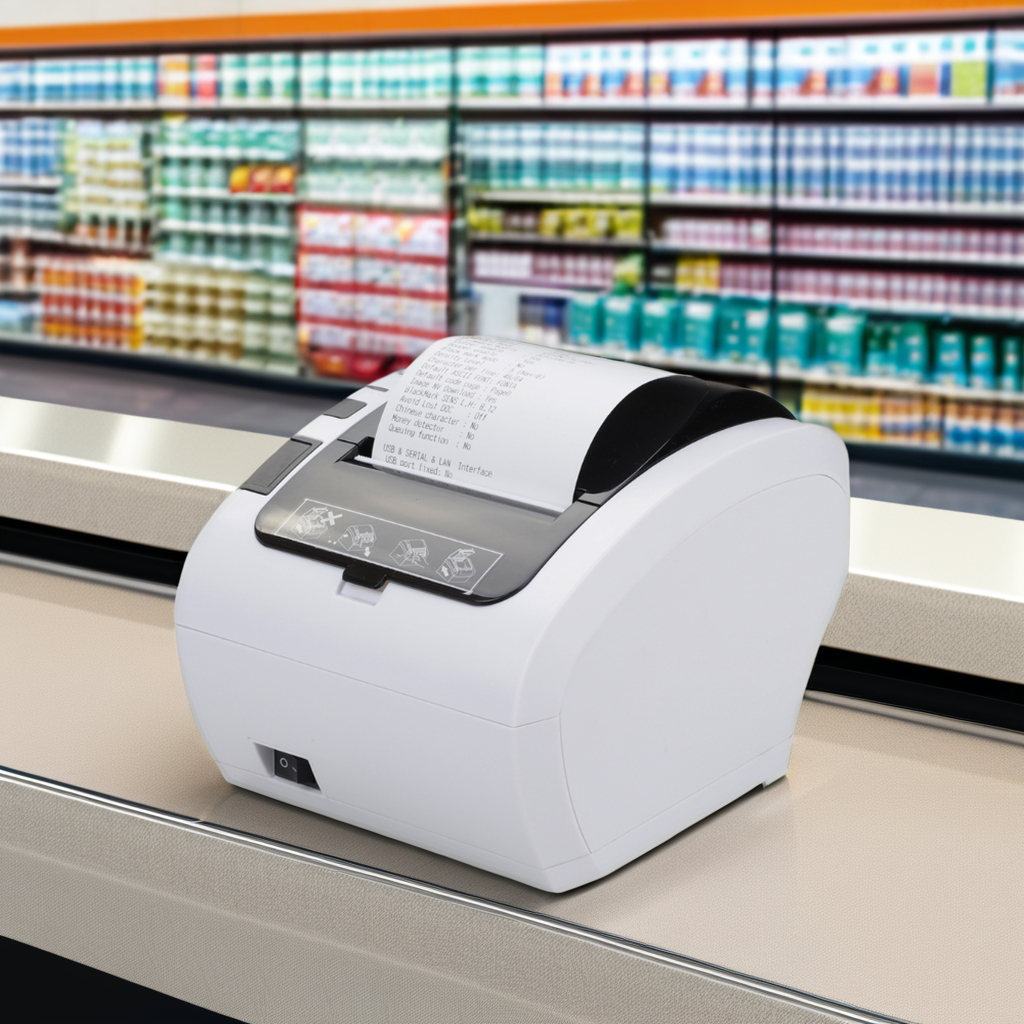

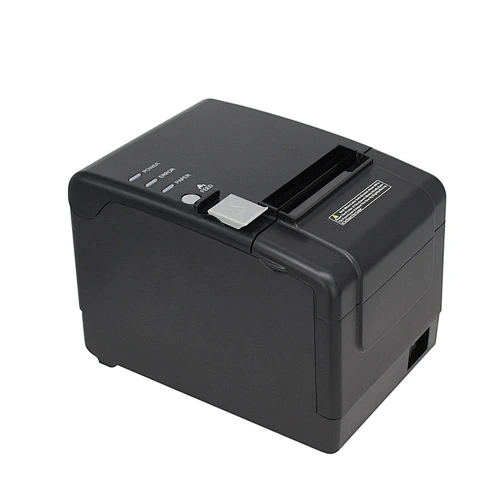

80mm thermal Thermal Receipt Printer
High speed download printing mode, Auto-cutting Thermal receipt Printer
Printing method | Direct thermal |
Printing speed | 200mm/s |
Paper width | 79.5±0.5mm |
Roll paper | 80mm |
Paper thickness | 0.06~0.08mm |
Column capacity | 576 dots/line 512 dots/line |
Line space | 3.75mm(changeable using commands) |

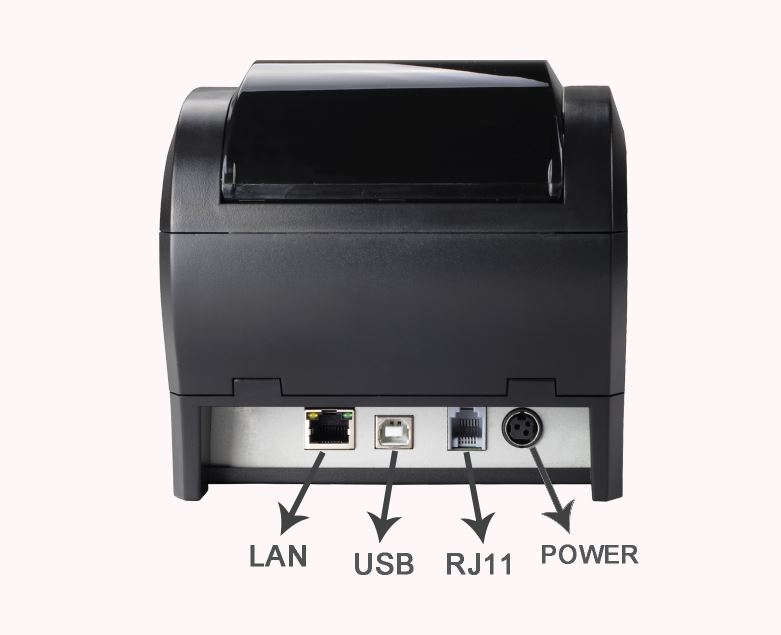

Interface | USB/RS232/LAN USB+WIFI USB+LAN+RS232+WIFI USB+RJ45 +RS232+BT |
Bar code | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128 |
Code page | PC347(Standard Europe), Katakana, PC850(Multilingual),P C860(Portuguese), PC863(Canadian-French), PC865(Nordic),West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, IranⅡ, Latvian, Arabic, PT151(1251) |
Auto cutter | Full/Partial(optional) |
Power supply | DC 24V-2.5A |
Cash drawer control | DC 24V-1A |
Reliability | Printing head life: 100km Auto cutter life: 1 million cuts |
Working environment | Temperature (0~45 Degree C), humidity (10~80%) |
Storage environment | Temperature (-10~60 Degree C), humidity (10~90%) |
Drivers | Win 9X/Win 2000/Win XP/Win 7/Win 8/Win 8.1/Linux |
Command | Compatible with ESC/POS |
Gross weight | 1.52kg |
Dimension | 200x140x140mm(LXWXH) |
1. Printing image and characters with high speed, the best printing quality and reliable performances
2. Support GB18030 simplified Chinese, traditional Chinese, buyer’s language
3. Support print prompt and error alarm
4. Driving high speed download printing mode, support linux system
5. Compatible with EPSON ESC/POS and STAR
6. Power supply: DC 24V/1.5A (or 2.5A) 7.Only USB port:200mm/s printing speed
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.
Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements.
Such as package box design, monitors size, free logo printer, required specification(WIFI/BT/ Ibutton...etc)
Q3. What about minimum order quantity?
A: MOQ=1, since we have all materials in stock.
Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test.
Sample with faster lead time 1-3 days . The bulk production only need 5-7 days according to quantity and color request.
Q5. What’s your payment terms?
A: Bank transfer, Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period?
A: 1-2 Years.
Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment ;
2. we also accept the inspection by the third part you appointed;
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.
Q8.How do you make our business long-term and good
relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
