- Private Mold:Yes
- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:CMOS
- Colour Depth:32 Bit
- Interface Type:usb
- Max Paper Size:a4
- Optical Resolution:300,000-pixel lens
- Scan Speed:300scans/sec
- Brand Name:OSCY
- Place of Origin:Guangdong, China
- Warranty(Year):1-Year
- After-sales Service:Free spare parts, Call Center and on-line Technical Support
- Software development kit (SDK):Yes
- color:black, Black+Yellow
- Product name:dual-lamp configuration for supplement light
- Application:Store
- Interface:USB2.0
- Color:Black
- Dimension:156.2mm x 68mmx 109.2mm
- Weight:115.5g
- Scan Mode:Command Mode
- Decode Capabilities:1D + 2D + QR Code
- Material:ABS
- Resolution:4mil
Products Description
Specification

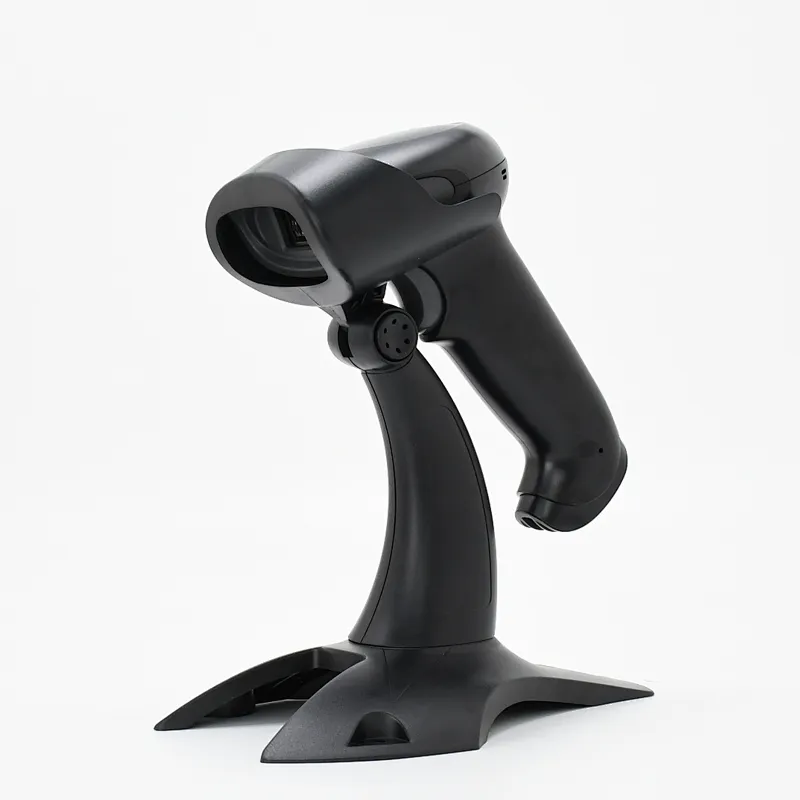

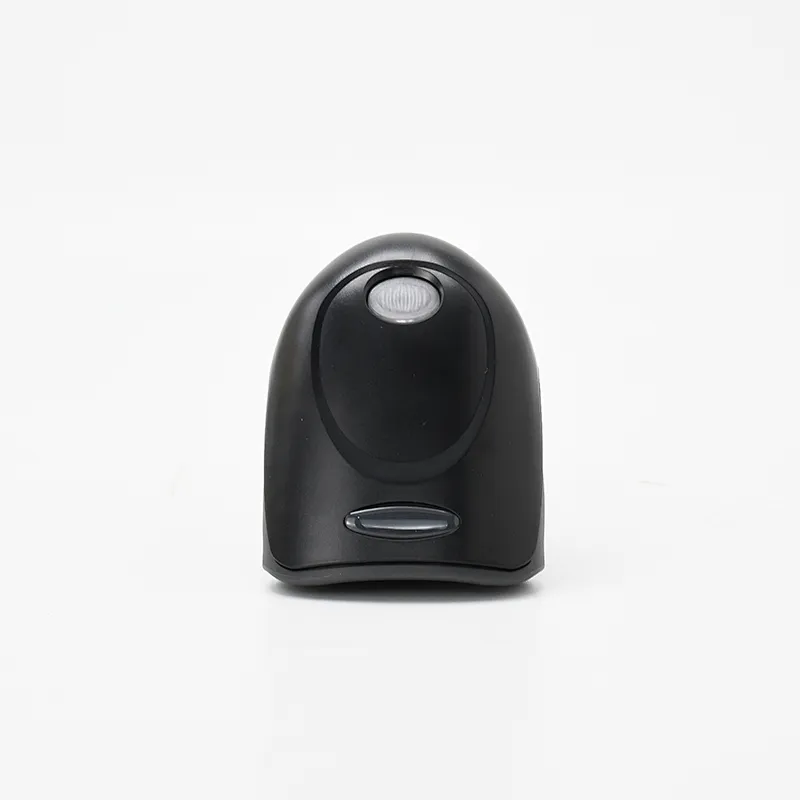

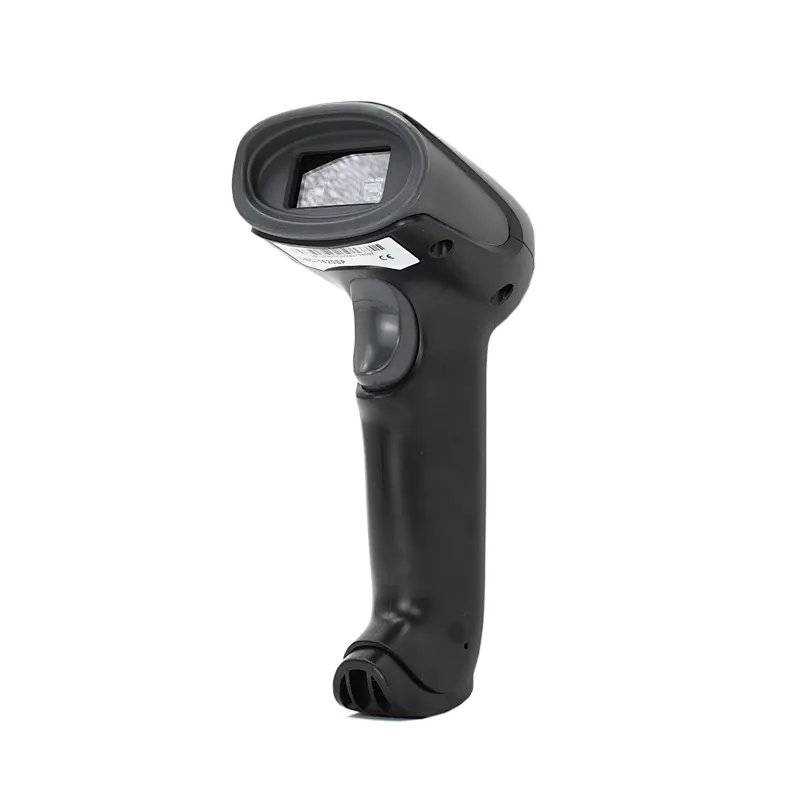

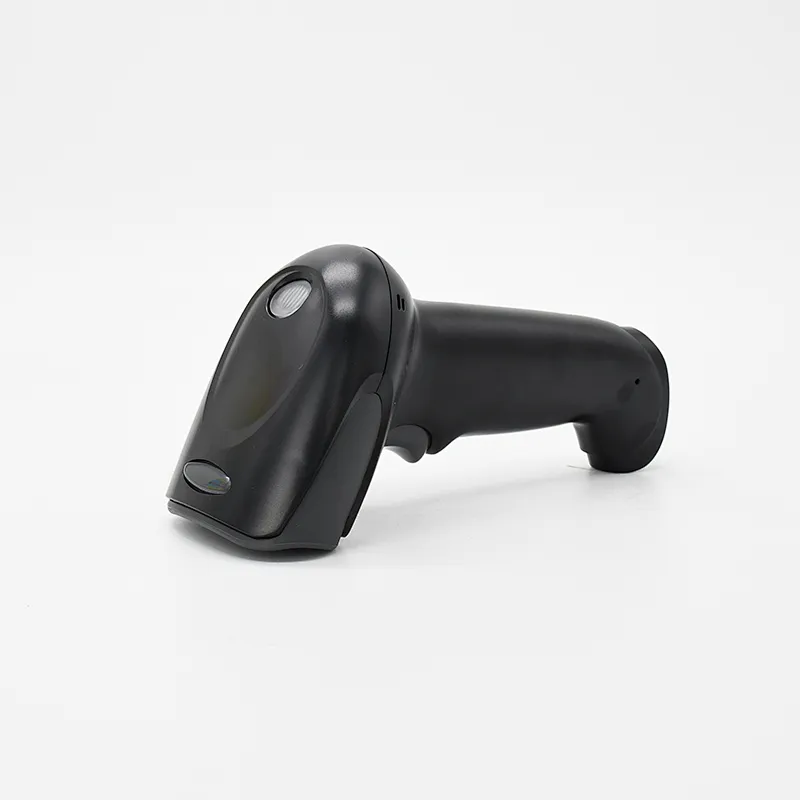

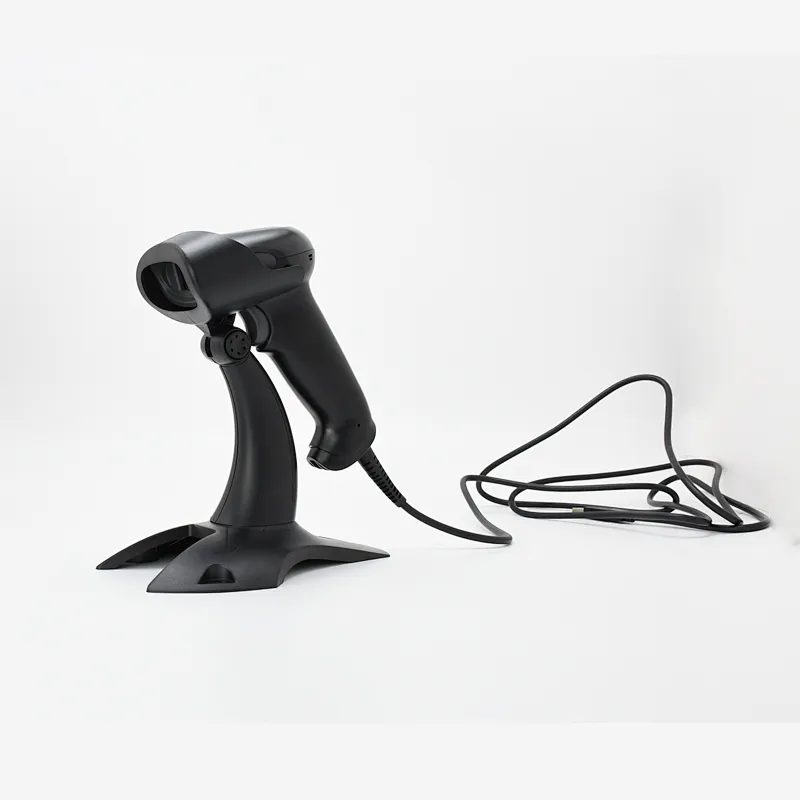

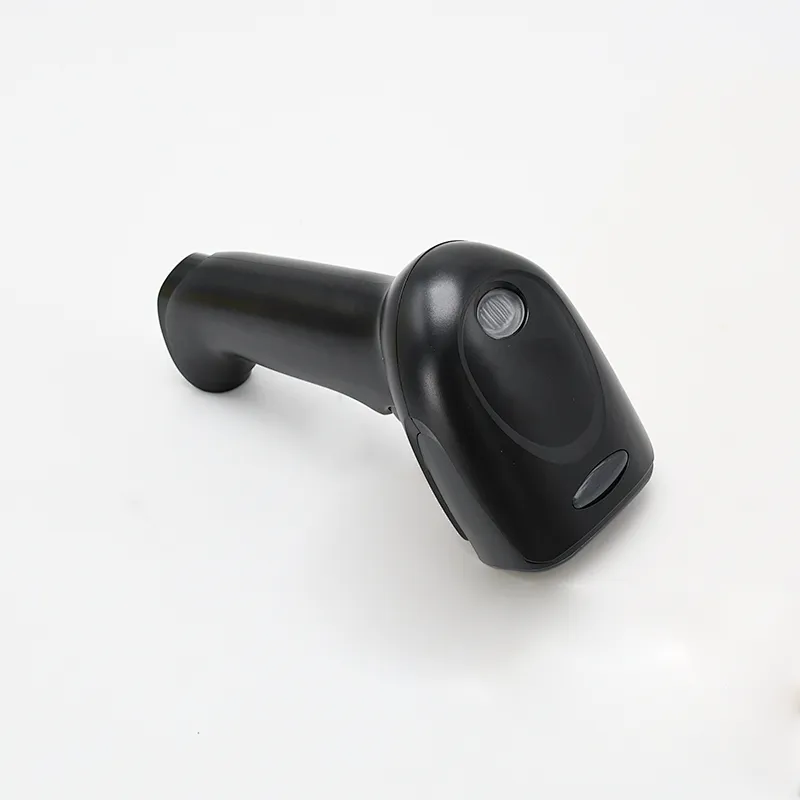

Wired 2D handheld Barcode Scanner QR code barcode scanner CMOS barcode reader OBC-1620SP
Features:
1.Invoicing function: support Alipay invoicing function, which is convenient .
2.Smoother Mobile phone payment barcode reading ability: support Alipay, WeChat payment functions .
3.Boot up quickly, Connect with USB ，Support ID card number OCR recognition.
4.Widely used in the scenes of major supermarkets, chain stores, tobacco, oil and gas, logistics and warehousing.
5.Configure a 300,000-pixel lens. 1.5m drop resistance.
6.Scan code gun has dual-lamp configuration for supplement light. At present, most of the market is single-lamp configuration, dual-lamp exposure effect is excellent, and the decoding effect is better for wrinkle code, color code, reflective code, film code, and stain code.
7.Using high-precision CMOS sensor, data transmission is fast and stable.
8.This model is used as the designated scanner for World Cup matches.
1.Invoicing function: support Alipay invoicing function, which is convenient .
2.Smoother Mobile phone payment barcode reading ability: support Alipay, WeChat payment functions .

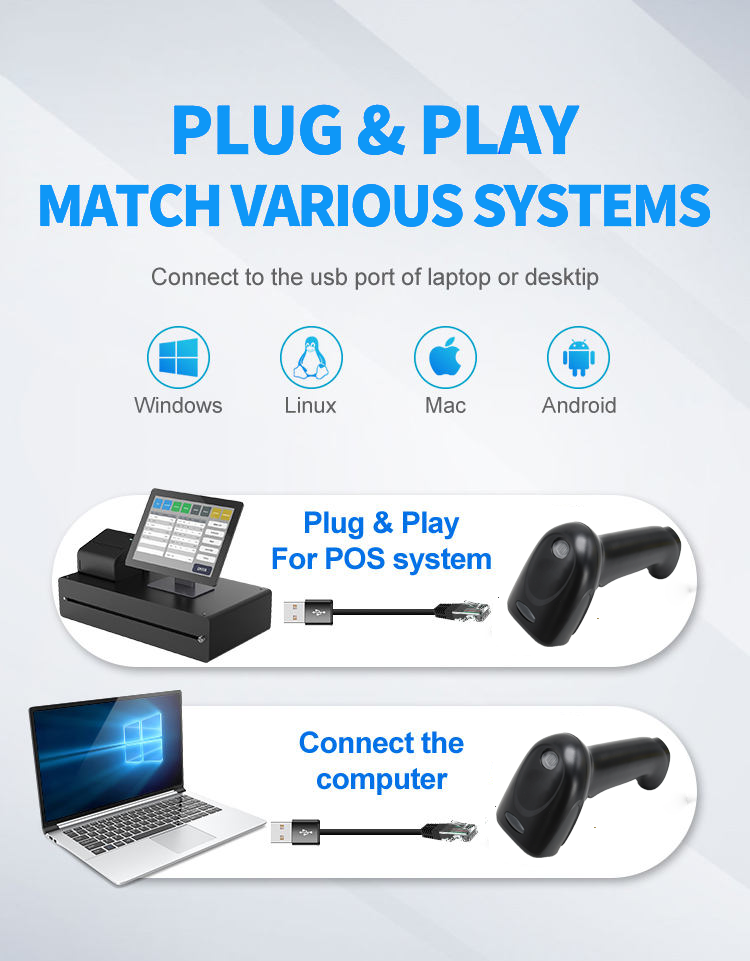

3.Boot up quickly, Connect with USB ，Support ID card number OCR recognition.
4.Widely used in the scenes of major supermarkets, chain stores, tobacco, oil and gas, logistics and warehousing.
5.Configure a 300,000-pixel lens. 1.5m drop resistance.
6.Scan code gun has dual-lamp configuration for supplement light. At present, most of the market is single-lamp configuration, dual-lamp exposure effect is excellent, and the decoding effect is better for wrinkle code, color code, reflective code, film code, and stain code.
7.Using high-precision CMOS sensor, data transmission is fast and stable.
8.This model is used as the designated scanner for World Cup matches.
Physical Characteristics | ||

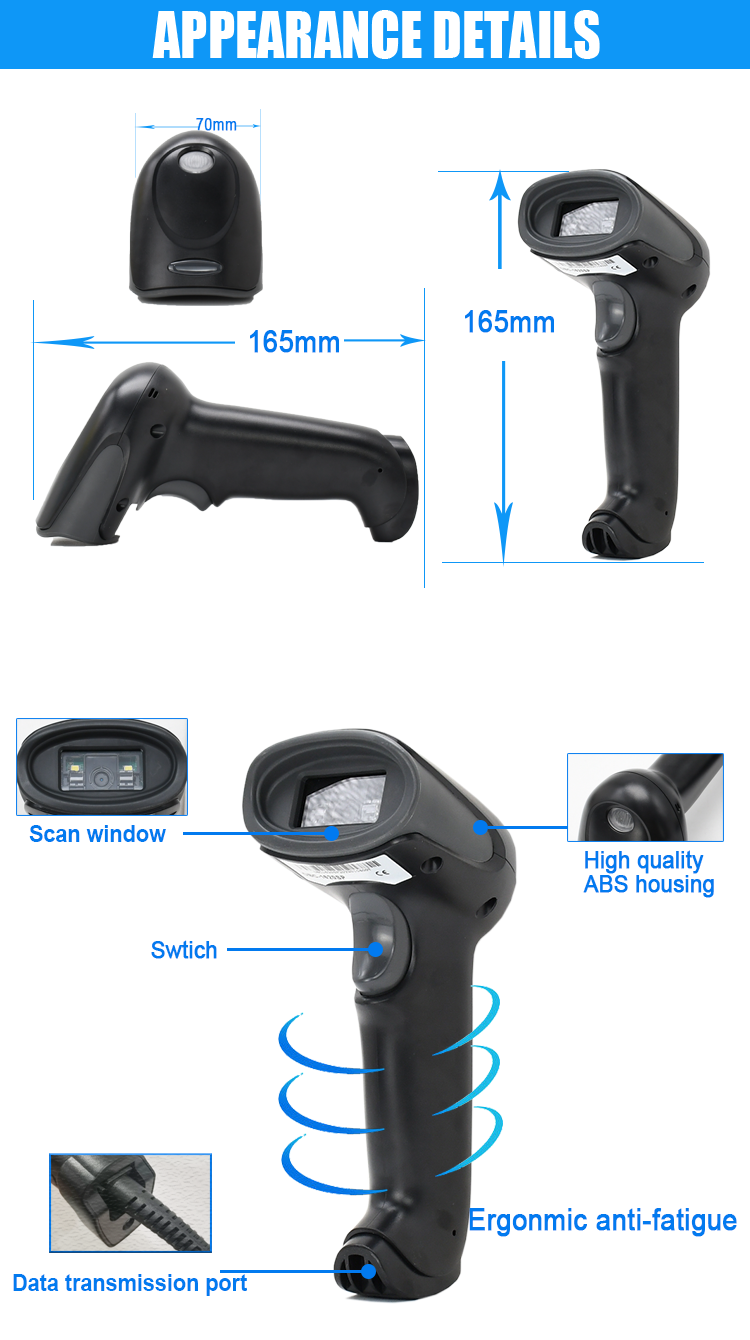

Dimensions | 156.2mm x 68mmx 109.2mm | |
Weight | 115.5g | |
Voltage | 5V | |
Starting Current | 112mA | |
Stand-by Current | 75.8mA | |
Work Current | 136mA | |
Performance Characteristics | ||
Image (Pixels) | 640 pixels (H)x480 pixels (V) | |
Light Source | (Aimer) Red color LED; (Illumination) White color | |
Field of View | 28°(Horizontal)，20°(Vertical) | |
Roll / Pitch / Yaw | 360°, ±65° , ±65° | |
Print Contrast | 20% minimum reflective difference | |
Supported | USB | |
Motion Tolerances | >0.4m/s | |
Symbology Decode Capability | ||
1-D | Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. | |
2-D | Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN. | |
Symbology by default | Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec | |
User Environment | ||
Operating Temperature | -20°C to 60°C | |
Storage Temperature | -30°C to 70°C | |
Humidity | 5% to 95% relative hum idity,non-condensing | |
Shock Specifications | Designed to withstand 1.2m(5’) drops | |
Ambient Light Immunity | 0-100,000 Lux. | |
Decode Ranges | ||
5 mil (code39) | 4-20cm | |
13 mil (code39) | 5-40cm | |
DM(15mil) | 3-20cm | |
QR(20mil) | 3-37cm | |

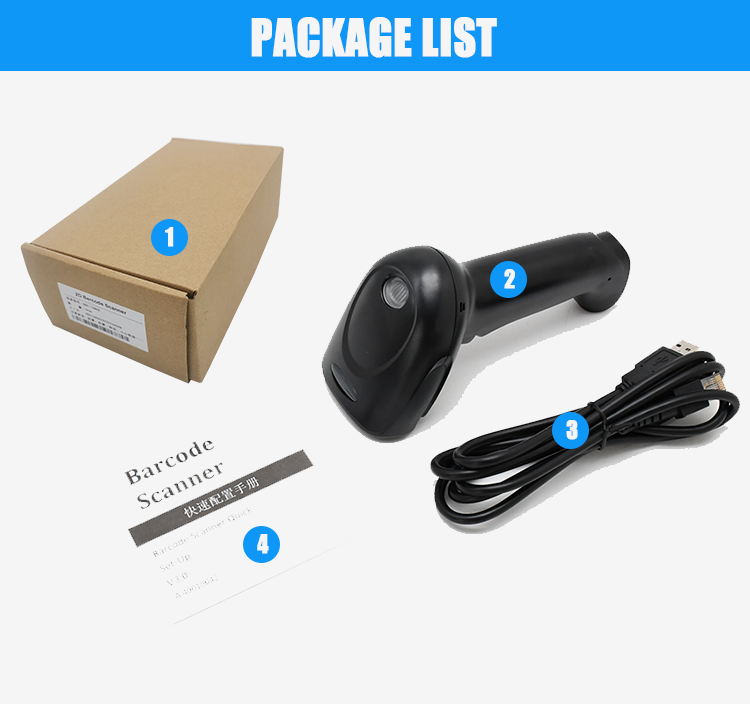

Delivery & Packing
Company Profile
Our Cerifications
Customer Feedback
Contact us
FAQ
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.
Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/BT/ Ibutton...etc)
Q3. What about minimum order quantity?
A: MOQ=1, since we have all materials in stock.
Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test. Sample with faster lead time 1-3 days. The bulk production only need 5-7 days according to quantity and color request.
Q5. What’s your payment terms?
A: Bank transfer,Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period?
A: 1-2 Years.
Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment .
2. we also accept the inspection by the third part you appointed.
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.
Q8.How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Send Message
Related Products

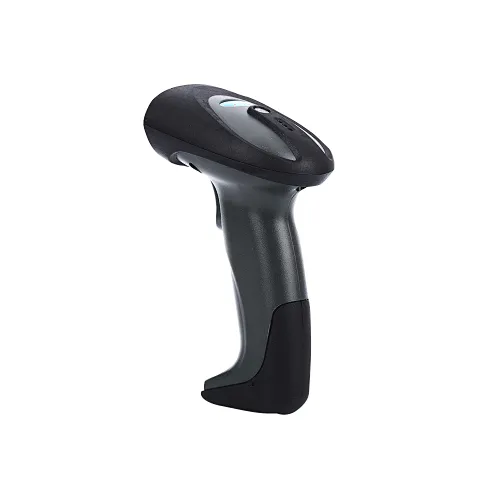

Model NO. OBC-208
