Contact : Kelly Zhang
Web: www.oscantech.com.cn
- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900
- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
Product Description
POS Specification:
Full Flat screen POS System with Metal case and body ( Dual screen POS Optional)
POS : Intel J1800, J1900, I3/i5, 2G/4G/8G RAM, 32GB/64GB SSD/500GB HDD
1) CPU: Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10
2) Fanless All in one Touchscreen POS Terminal, 5 wire resistive touch
3) New LED Mitsubishi Panel, Aluminum metal case, 5 wire resistive touch Baytrail motherboard.

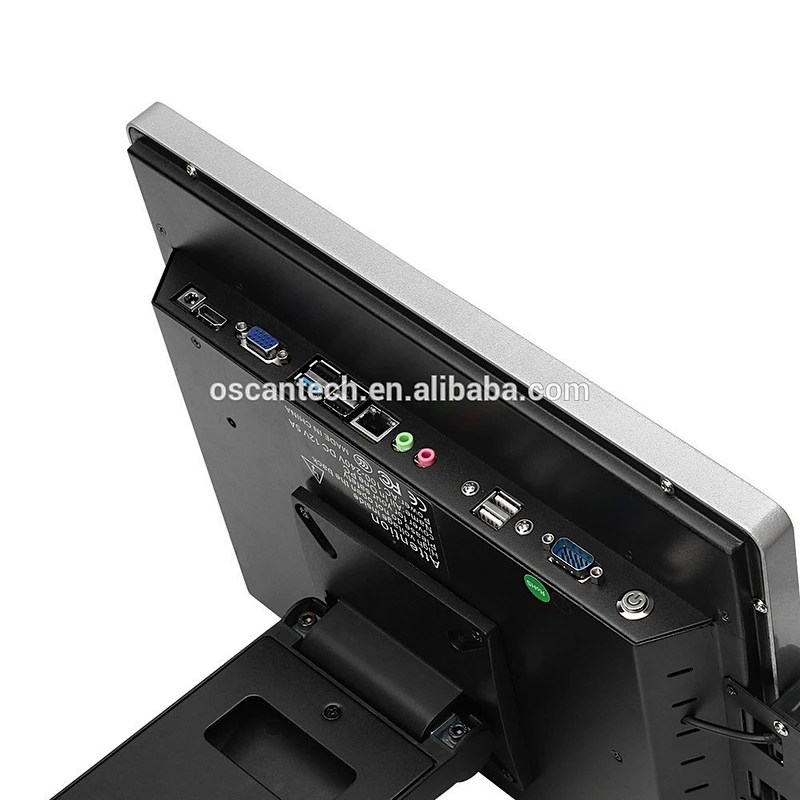

4) Interface: 1 VGA, 6USB, 3 COM, 1DC, 1LAN, 1Power Button
Model Name | AIO-1500 |
Display Type | 15” Touch screen POS |
Colour | Black |
Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1900, Four core, clock speed 2G HZ，TDP 10W (Core I3/ Core I5 can offer) |
Memory | 2GB ( 4GB,8GB optional) |
Hard disk | 32G SSD (64G SSD or 500GB is optional) |
Touch Panel | 5-wire Touch Panel |
LCD panel size | 15 inch BRAND NEW TFT LCD |
Resolution | 1024*768 |
Display | 1 * VGA/ 1 * Dual Channel 24-bit LVDS[2] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 1* RS232, |
Other Parts | 1* HD, USB: 1 * Rear I/O(USB3.0/USB2.0) + 3 * Rear I/O(USB2.0) + 2 * Header(USB2.0) + 1 * Header/Mini PCI-E(USB2.0) |
BIOS | AMI UEFI BIOS |
Factor | Mini-ITX(170mm * 170mm) |
Temperature | Storage: -20~75℃/ Operating: 0~60℃ |
Full Flat POS System
MSR Optional

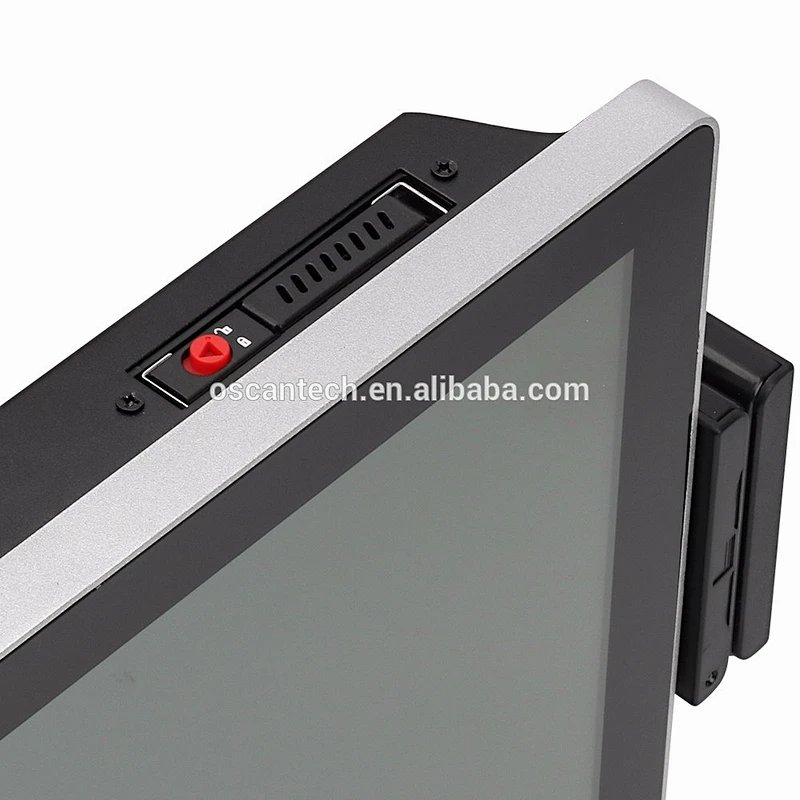

Dismountable HDD Design

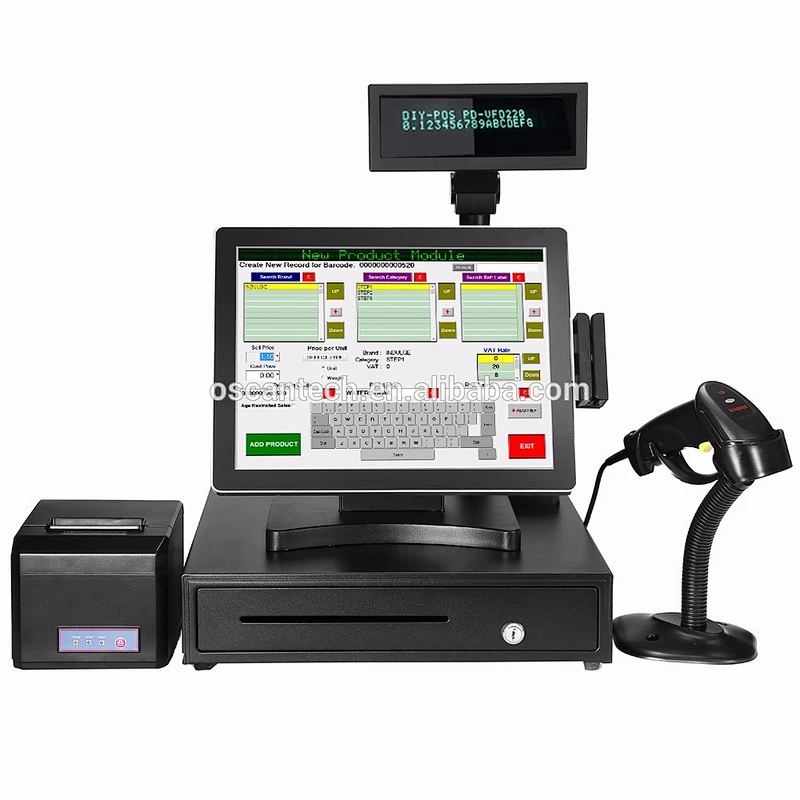

With Customer display
Not Flat screen POS System Optional
