- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Touch Screen Type:Capacitive Screen
- Brand Name:OSCY
- Operation System:windows
- CPU:Intel J1900/I5
- Hard Disk Capacity:32G/64G/128G/256G
- Name:all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:10 points capacitive touch
- CPU:Intel CeleronJ1900, 2.0GHZ Dual-core,
- Memory:2GB ( 4GB/8GB is optional)
- Hard disk:32G SSD (64G/128G/256G SSD or500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
Main Feature:
1.Fanless Quad core J1900 processor, True Flat screen All In One POS
2.Standard with Capacitive touch screen
3.Standard with 2G memory, 4G/8G is optional
4.Standard with 32G SSD, 64G/128G/256G SSD or 500GB HDD is optional
5.Low consumption
6.Long using life
7.Simple waterproof
Specification:
Model Name | OSCAN-1500 |
Main board | Bay trial mother board |
CPU | Intel® Celeron®J1900, Dual-core, clock speed 2.0GHz( i5 processor is optional) |
Memory | 2GB ( 4/8GB is optional) |
Hard disk | 32G SSD (64/128/256GB SSD, 500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 2* RS232, 4*RS232 optional |
USB port | 4*USB( 3*2.0,1*3.0), 5 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |
More questions please contact as follows:
Size:

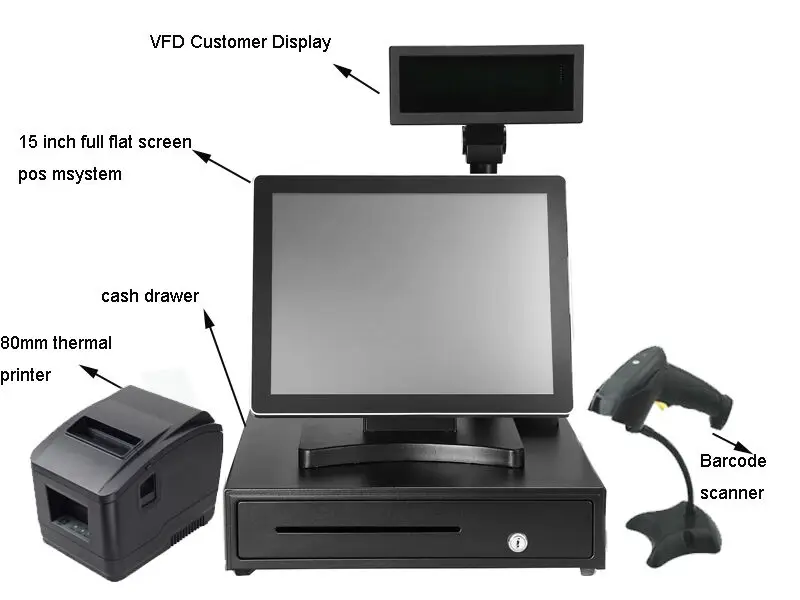

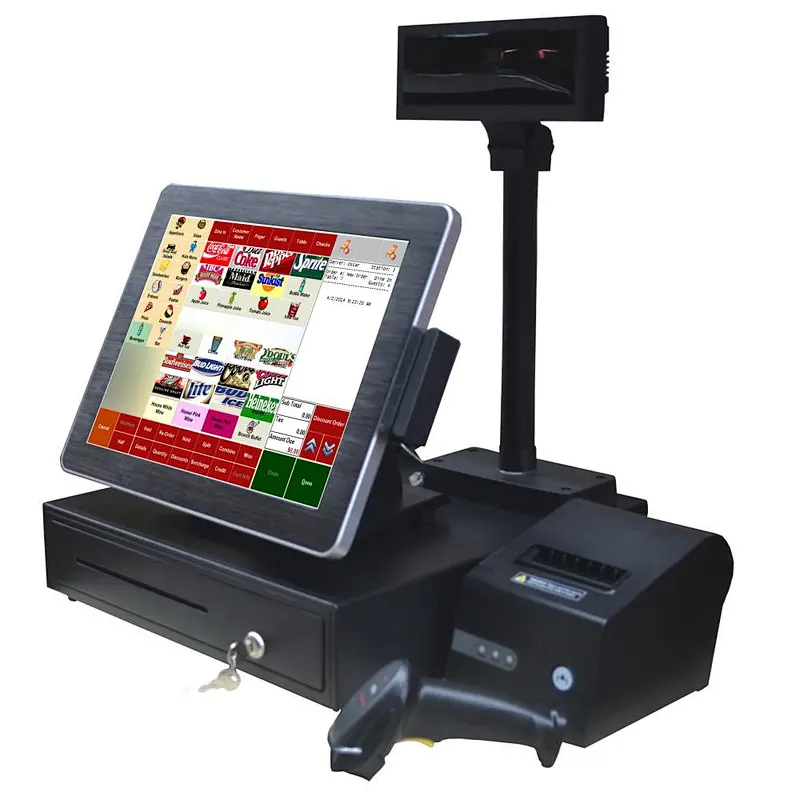

Whole set POS:
SHENZHEN OSCAN TECHNOLOGYCO.,LTDis a high tech ompany with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
