12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS
12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS

12, 15, 17inch Flat screen capacitive touch Complete Restaurant POS System, POS Hardware,EPOS

Price:
USD 375.00-375.00 / pieces
Delivery:
FOB
Minimum order quantity:
2 pieces
Supply Ability:
1000 pieces / Week
Country of Origin:
shenzhen/HK
  • Place of Origin:CN;GUA
  • After-sales Service Provided:Video technical support
  • After-sales Service Provided:Free spare parts
  • After-sales Service Provided:Field installation, commissioning and training
  • After-sales Service Provided:Online support
  • Warranty:1 YEAR
  • Touch Screen Type:Capacitive Screen
  • Brand Name:OSCY
  • Operation System:Windows
  • CPU:Intel J1900
  • Hard Disk Capacity:32G SSD
  • Key Feature1:Good looking True Falt
  • Key Feature2:Industrial grade LED panel
  • Key Feature3:10 points capacitive touch
  • CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
  • Memory:2GB ( 4GB is optional)
  • Hard disk:32G SSD (500GB is optional)
  • Storage:1* SATA 3Gbps+ 1 * mSATA[3]
  • COM:2* RS232, 4*RS232 optional
  • USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
  • Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps







Product Description



Main Feature:

1.Fanless dual core processor, Flat screen All In One POS

2.Standard with Capacitive touch screen

3.Standard with 2G memory, 4G,8G is optional

4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional

5.Low consumption

6.Long using life

Specification:

Model Name

OSCAN-1500

Main board

Bay trial mother board

CPU

Intel® Celeron®J1900, Dual-core, clock speed 2G,TDP 10

Memory

2GB ( 4/8GB is optional)

Hard disk

32G SSD (64/128GB SSD, 500GB is optional)

Storage

1* SATA 3Gbps+ 1 * mSATA[3]

Ethernet

1 * RealtekPCI-E NIC RTL8111E for 1000Mbps

Audio

Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier

COM

2* RS232, 4*RS232 optional

USB port

4*USB( 3*2.0,1*3.0), 5 USB ports is optional





Main board specification



2* Mini PCI-E

1 * SIM Card Slot

1 * Front Audio

1 * 12VDC_OUTPower Output Connector

2 * 12VDC_INPower Input Connector

Voltage

12V DV 5A

Storage Temperature

-20~75℃

Operating Temperature

0~60℃





More questions please contact as follows:













02_03

02_05







Size:

02_04

OSCAN-1506 1

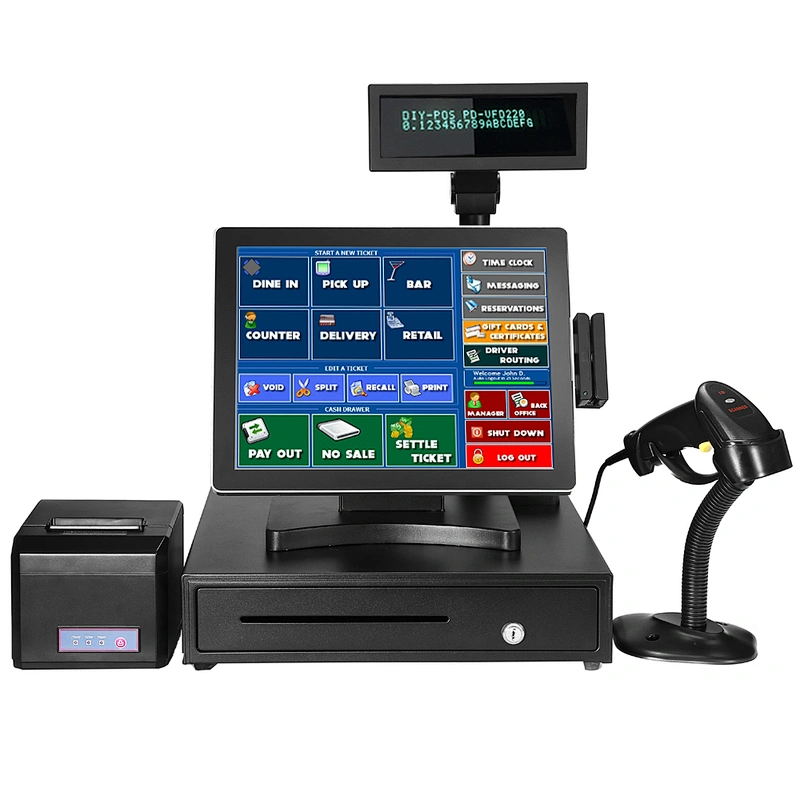

Whole set POS:










Company Information

 SHENZHEN OSCAN TECHNOLOGYCO.,LTD is a high tech ompany with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated  products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.





OSCAN-POS_09

FAQ



Why choosing us?

   We are holding" Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.

What' s your company goal?

    We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.

     Your satisfaction is our ultimate goal.



How we control quality?

   Each part of products is strictly inspected according to quality system cercification before production.





Contact us
