- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Touch Screen Type:Resistance Screen
- Place of Origin:CN;GUA
- Brand Name:OEM/ODM
- CPU:Intel J1900
- Hard Disk Capacity:32G SSD
- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
Product Description
12/15/17"All In One touch screen Capacitive windows/android pos terminal
Windows /Android Resistive, Capacitive All In One Touch screen pos system
Full Flat Windows POS System
POS Specification:
Full Flat screen POS System with Metal case and body ( Dual screen POS Optional)
POS : Intel J1800, J1900, I3/i5, 2G/4G/8G RAM, 32GB/64GB SSD/500GB HDD
Android 5.1.1 / 4.4
1) CPU: Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10
2) Fanless All in one Touchscreen POS Terminal, 5 wire resistive touch
3) New LED Mitsubishi Panel, Aluminum metal case, 5 wire resistive touch Baytrail motherboard.

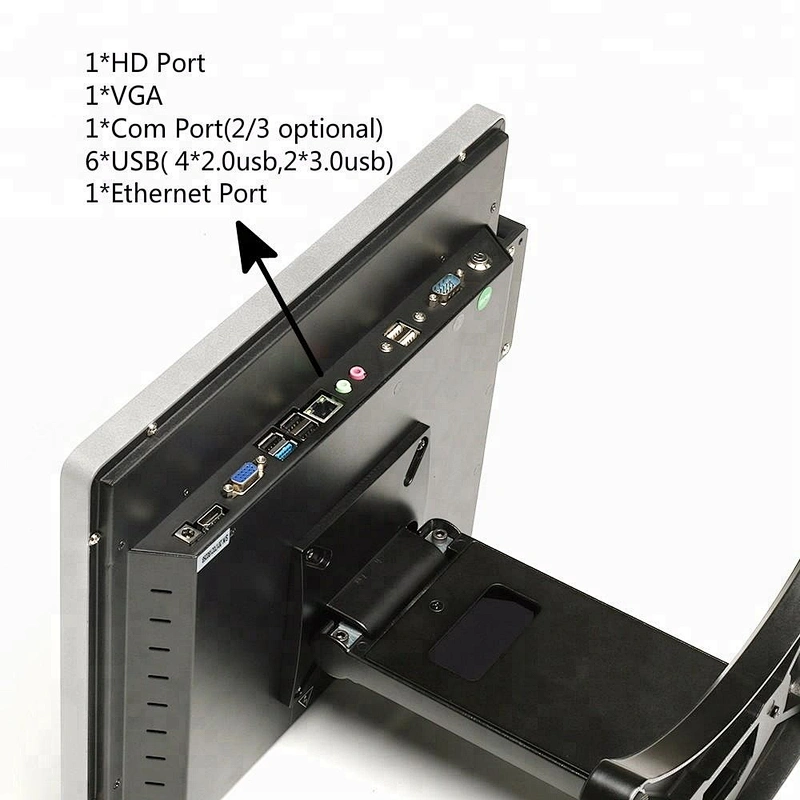

4) Interface: 1 VGA, 6USB, 3 COM, 1DC, 1LAN, 1Power Button
Model Name | OSCAN-1506 | |
Display Type | 15"Touch screen POS | |

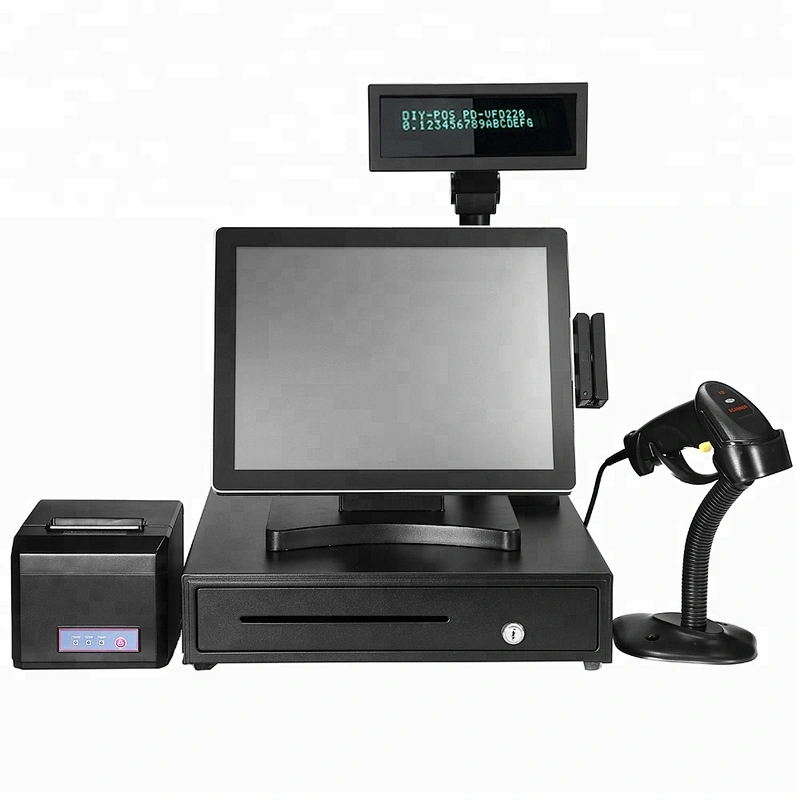

Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) | |
Motherboard part | ||
Main board | Baytrial mother board | |
CPU | Intel® Celeron®J1900, Four-core, clock speed 2G,TDP 10W (intel J1800/Core I3/ Core I5 can offer) | |
Memory | 2GB ( 4/8 GB is optional) | |
Hard disk | 32G SSD (64G/128GB SSD / 500GB is optional) | |
Touch Panel | 5-wire Touch Panel | |
Display part | ||
LCD panel size | 15 inch BRAND NEW TFT LCD | |
Resolution | 1024*768 | |
Interface | 1*VGA+1*COM+1*HD+1*LAN+6*USB+1DC+Aduio | |
BIOS | AMI UEFI BIOS | |
Factor | Mini-ITX(170mm * 170mm) | |
Temperature | Storage: -20~75℃, Operating: 0~60℃ | |
Main Board Specification | 8 * GPIO, 1 * Parallel Pin Header 1 * PS/2 Pin Header 2* Mini PCI-E 1 * SIM Card Slot 1 * Front Audio 1 * 12VDC_OUTPower Output Connector 2 * 12VDC_INPower Input Connector | |
Not Flat screen POS System Optional
