- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900
- Name:12inch touch screen all in one pos system
- Display:4:3 TFT 12"touch screen
- Touch panel:4 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:1* RS232, 1HD 1VGA
- USB port:4*USB( 3*2.0,1*3.0),
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps

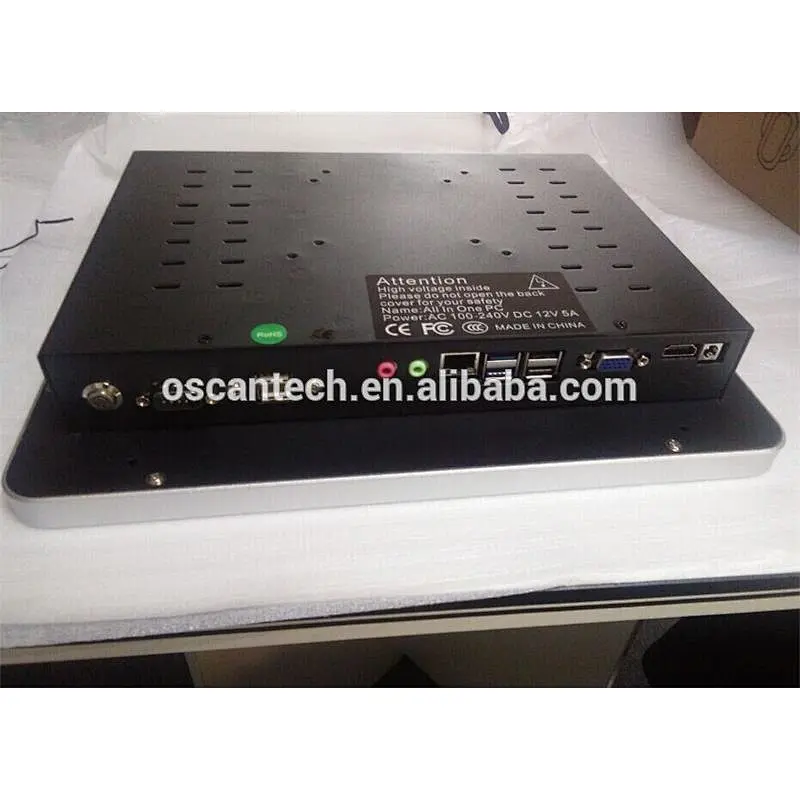

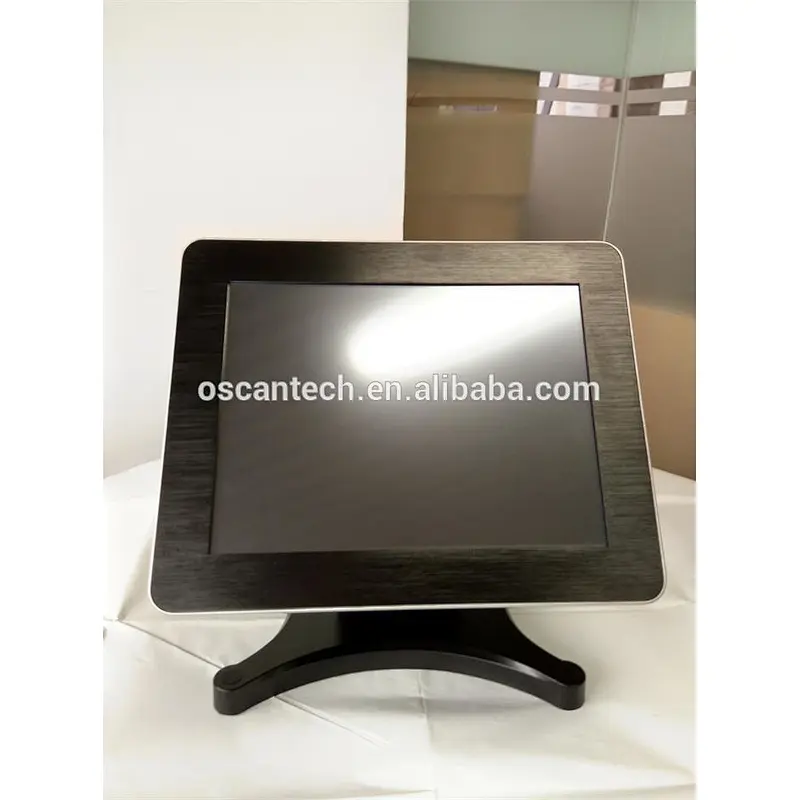

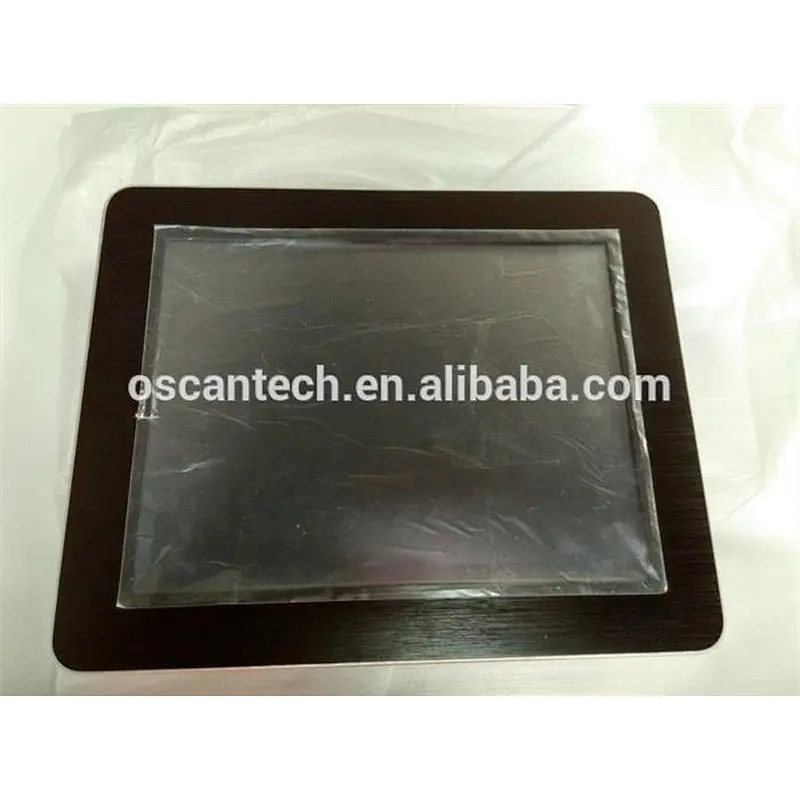

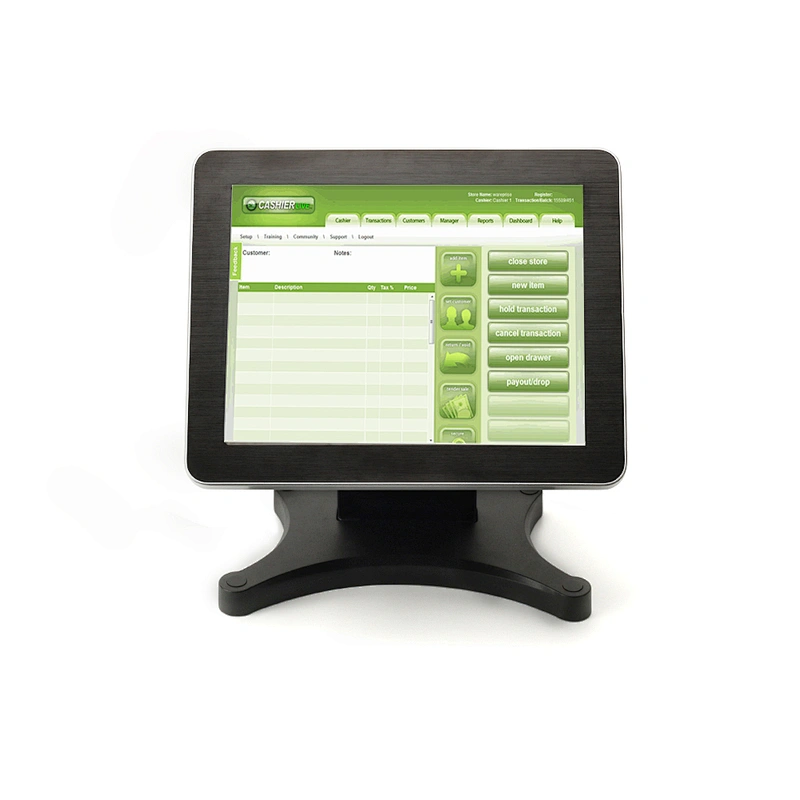

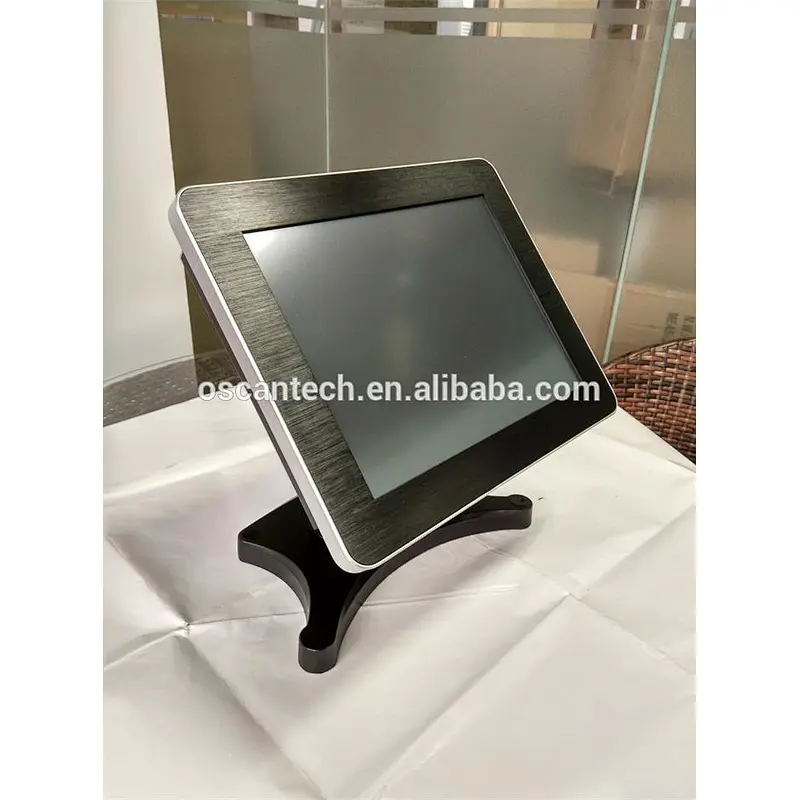

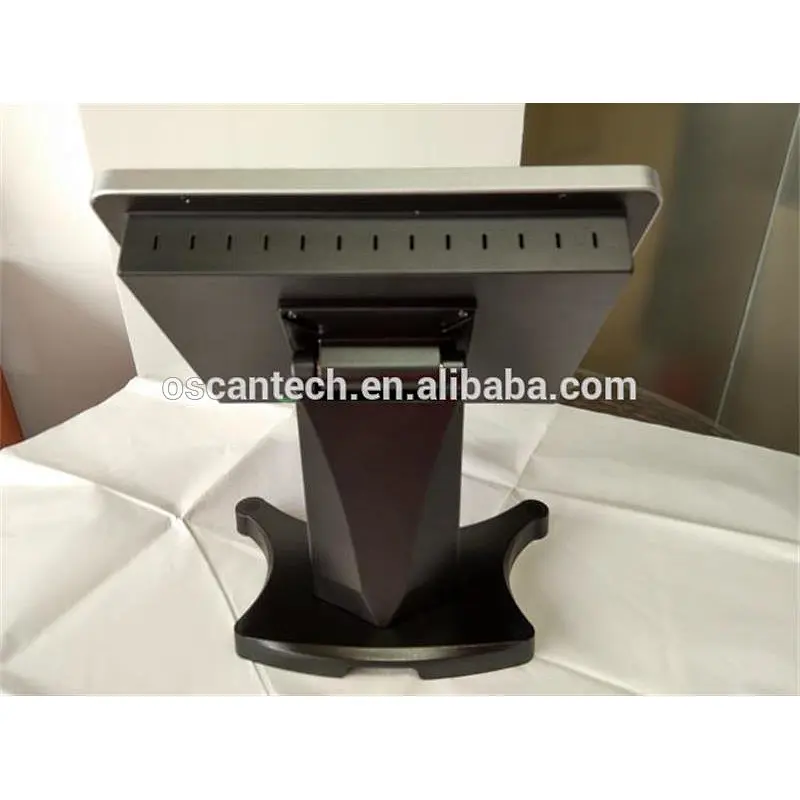

12inch 1024*768 All In One Touch Screen Pos Terminal With Card reader Windows &Android POS
* Intel J1800 Interface
Android POS
Samsung panel, 1024*768 resolution Windows7/8/10
Main Features:
2.Standard with 4 wire resistive touch screen
3.Standard with 2G memory, 4G/8G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5. Low comsuption
6. Long using life
7.Samsung LED panel
8. Brushed Aluminum housing
12inch Touch Screen POS System | ||
Main board | Baytrial mother board | |
CPU | Intel® Celeron®J1900, Four core, clock speed 2 G HZ，TDP 10W | |
Memory | 2GB ( 4GB/8GB is optional) | |
Hard disk | 32G SSD (64G SSD or 500GB is optional) | |
Touch Panel | 4-wire Touch Panel, Samsung Panel | |
Resolution | 1024*768 | |
Interface | HD+USB+RE232+LAN+POWER | |
Main Board Specification | 8 * GPIO | |
1 * Parallel Pin Header | ||
1 * Parallel Pin Header | ||
1 * SIM Card Slot | ||
1 * Front Audio | ||
1 * 12VDC_OUTPower Output Connector | ||
2 * 12VDC_INPower Input Connector | ||
Temperature | Storage: -20~75℃ Storage: -20~75℃ | |
BIOS | AMI UEFI BIOS | |
Factor | Mini-ITX(170mm * 170mm) | |
Other types POS: 15 inch /17 inch POS
15 inch Touchscreen Monitor
17 inch touchscreen Monitor
10.1 inch IPS Panel 1280*800 Monitor
SHENZHEN OSCAN ELECTRONICS CO.,LTD
is a high tech company with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitor and the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
Each piece in one standard cases; two cases in one big carton.
One Sample of couse can offering.
Concering the delivery: Air Express --DHL, UPS Fedex is the usual way for our factory to delivery the goods to our customers. Sea Shipping can be choosing according to our customer requirements.
Why choosing us?
We are holding"Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.
What' s your company goal?
We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.
Your satisfaction is our ultimate goal.
How we control quality?
Each part of products is strictly inspected according to quality system cercification before
