- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900

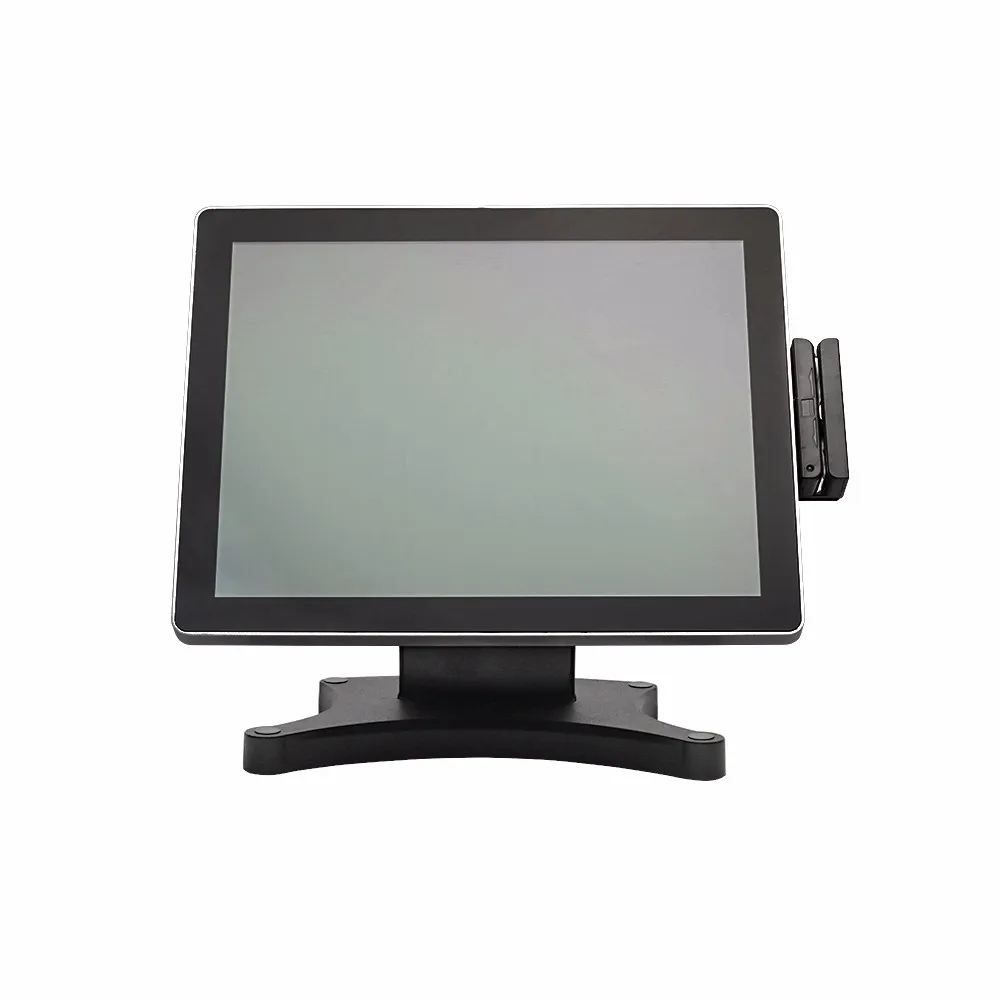

- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
POS Specification:
Full Flat screen POS System with Metal case and body ( Dual screen POS Optional)
POS : Intel J1800, J1900, I3/i5, 2G/4G/8G RAM, 32GB/64GB SSD/500GB HDD
1) CPU: Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10
2) Fanless All in one Touchscreen POS Terminal, 5 wire resistive touch
3) New LED Mitsubishi Panel, Aluminum metal case, 5 wire resistive touch Baytrail motherboard.

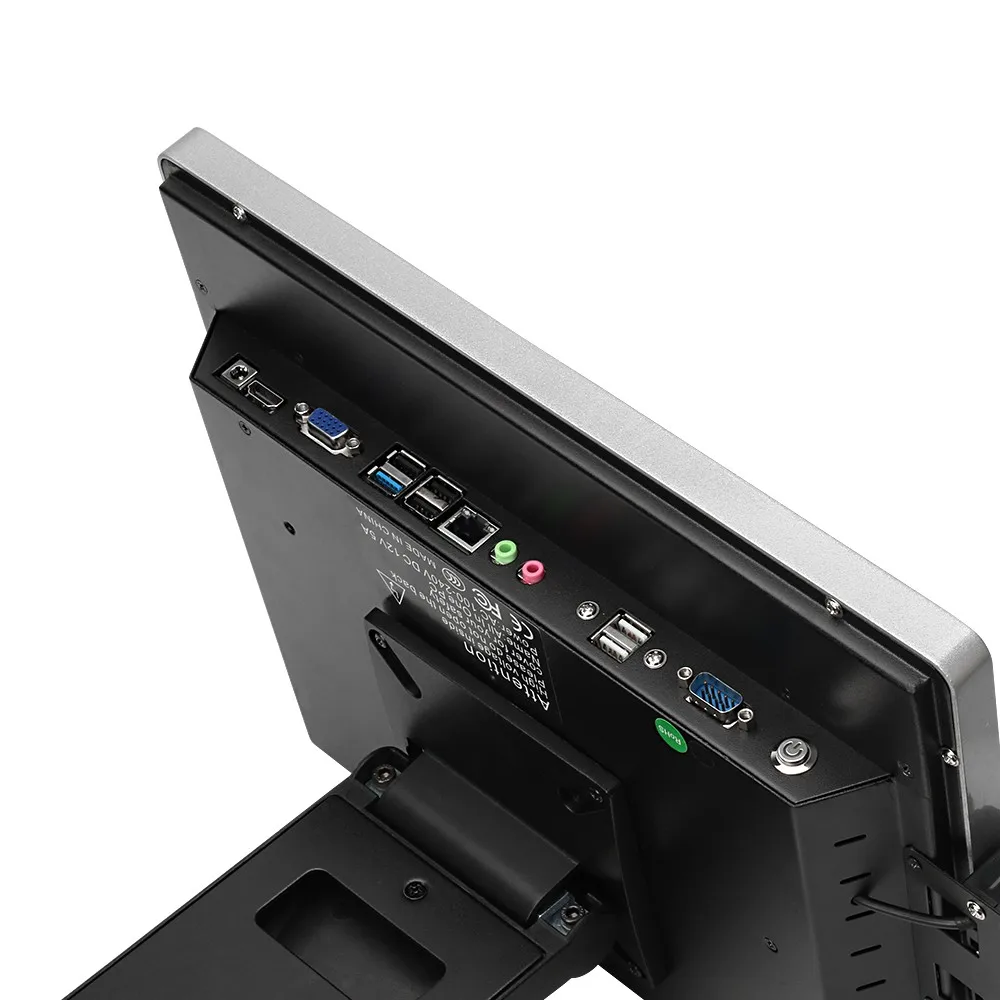

4) Interface: 1 VGA, 6USB, 3 COM, 1DC, 1LAN, 1Power Button
Model Name | AIO-1500 |
Display Type | 15” Touch screen POS |
Colour | Black |
Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1900, Four core, clock speed 2G HZ，TDP 10W (Core I3/ Core I5 can offer) |
Memory | 2GB ( 4GB,8GB optional) |
Hard disk | 32G SSD (64G SSD or 500GB is optional) |
Touch Panel | 5-wire Touch Panel |
LCD panel size | 15 inch BRAND NEW TFT LCD |
Resolution | 1024*768 |
Display | 1 * VGA / 1 * Dual Channel 24-bit LVDS[2] |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 1* RS232, |
Other Parts | 1* HD, USB: 1 * Rear I/O(USB3.0/USB2.0) + 3 * Rear I/O(USB2.0) + 2 * Header(USB2.0) + 1 * Header/Mini PCI-E(USB2.0) |
BIOS | AMI UEFI BIOS |
Temperature | Storage: -20~75℃ / Operating: 0~60℃ |
Factor | Mini-ITX(170mm * 170mm) |
Full Flat POS System
MSR Optional
Not Flat screen POS System Optional
15 inch Touchscreen Monitor
17 inch touchscreen Monitor
10.1 inch IPS Panel 1280*800 Monitor
SHENZHEN OSCAN TECHNOLOGYCO.,LTD
is a high tech company with R & D, production, management, sales and service together. We’re mainly engaged in POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HD Monitorand the retated products.According to the requirements from customers, we have sucessfully designed a variety of unique solutions to the supermarket, restaurant, retail and other related places.
1.Why choosing us?
We are holding"Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.
2. What' s your company goal?
We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.
Your satisfaction is our ultimate goal.
3.How we control quality?
Each part of products is strictly inspected according to quality system cercification before
Each piece in one standard cases;two cases in one big carton. One Sample can be packaged.
Concering the delivery: Air Express is the usual way for our factory to delivery the goods to our customers. Sea Shipping can be choosing according to our customer requirements.
