- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field maintenance and repair service
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900
- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps

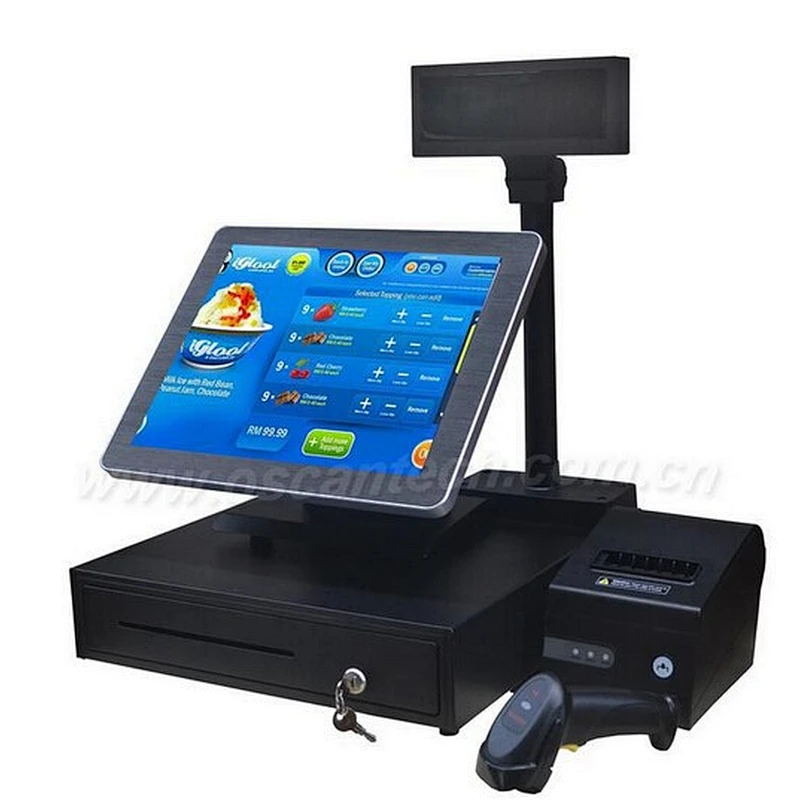

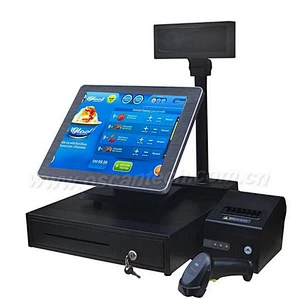

15 inch EPOS Terminals/ EPOS Till Systems and POS
Application:
Restaurant, Bar, Pub, nightclub, coffee shop, bakery, fast food, snack, barbershop, burger store, cafeterias, delivery, fine dining and pizzeria, and etc.
Main Feature:
1.Fanless dual core processor
2.Standard with 5 wire resistive touch screen
3.Standard with 2G memory, 4G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5.Low consumption 6.Long using life
Specification:
15 Inch All in one Touch screen POS terminal | |
Display | 4:3 TFT 15"touch screen |
Touch panel | 5 wire resistive touch |
Main board | Bay trial mother board |
CPU | Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10 |
Memory | 2GB ( 4GB is optional) |
Hard disk | 32G SSD (500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 2* RS232, 4*RS232 optional |
USB port | 4*USB( 3*2.0,1*3.0), 5 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |
Front: Aluminum Case
Back:
Side:
