- Place of Origin:Guangdong, China
- Brand Name:OSCY
- Function:SDK
- Product Name:Self-service Kiosk Machine
- Application:Indoor
- Optional parts:Card Reader IC
- Touch screen:Capacitive Touch 10 Point
- Installation:Floorstanding Stand
- Operating System:Windows 7/8/10/ Android
- Screen size:21.5 Inch/ODM
- Color:White
- Resolution:1920X1080
- Warranty:1 Year
Product Description

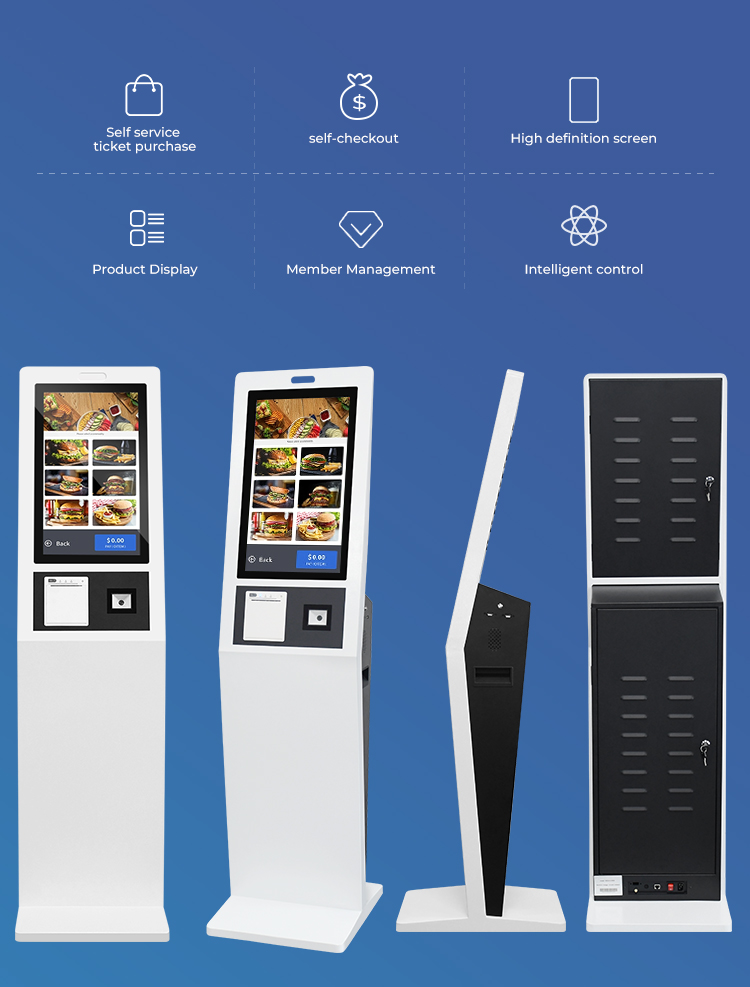

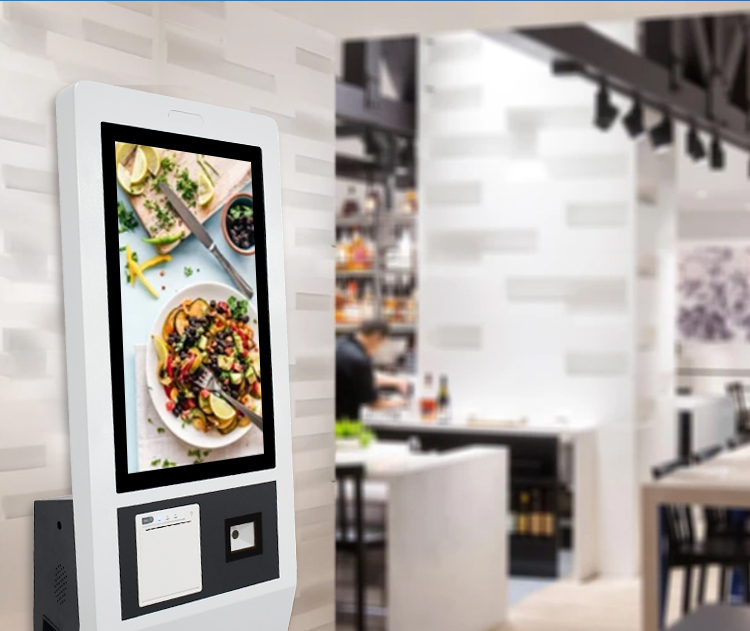

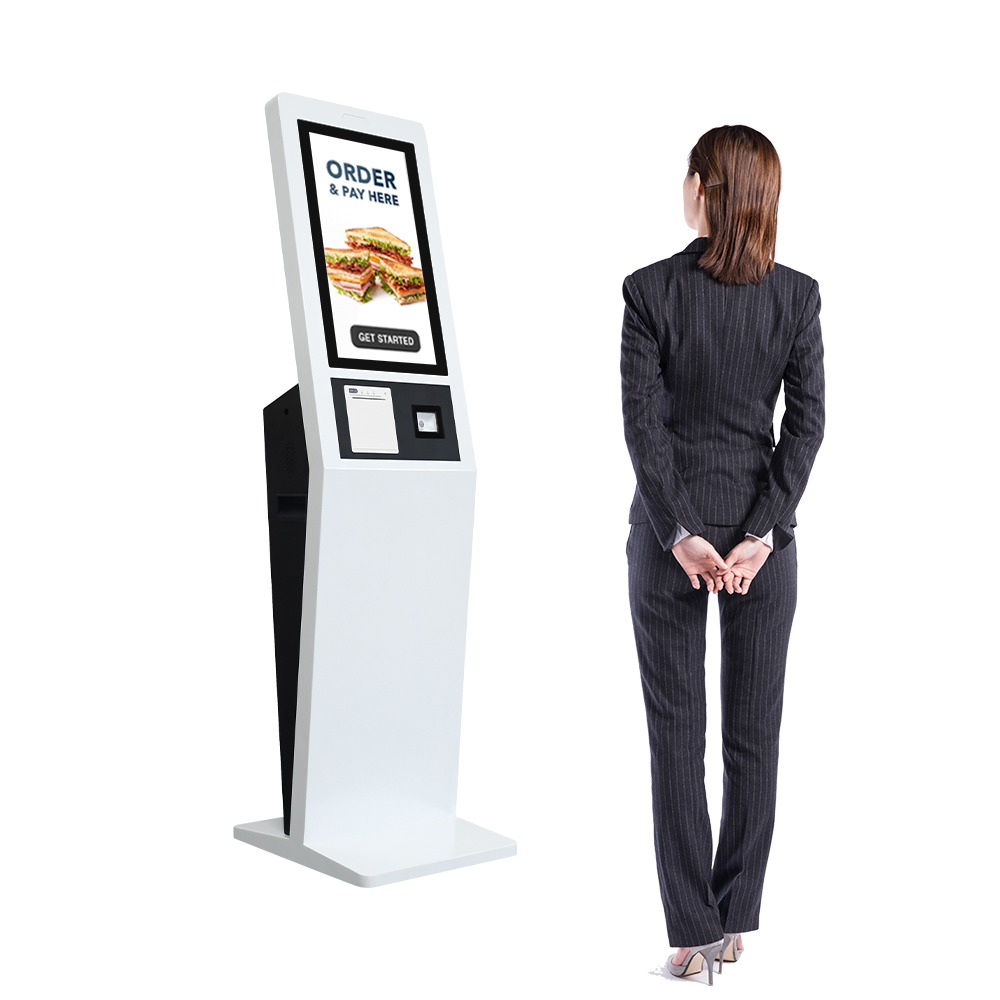

21.5 24 32 Inch Restaurant Automatic Touch Screen Unattended Self Ordering Self Service Payment Kiosk Machine Android /Win kiosk.
1. OSCAN-2150K 21.5 inch POS machine POS systems POS hardware.
1. OSCAN-2150K 21.5 inch POS machine POS systems POS hardware.

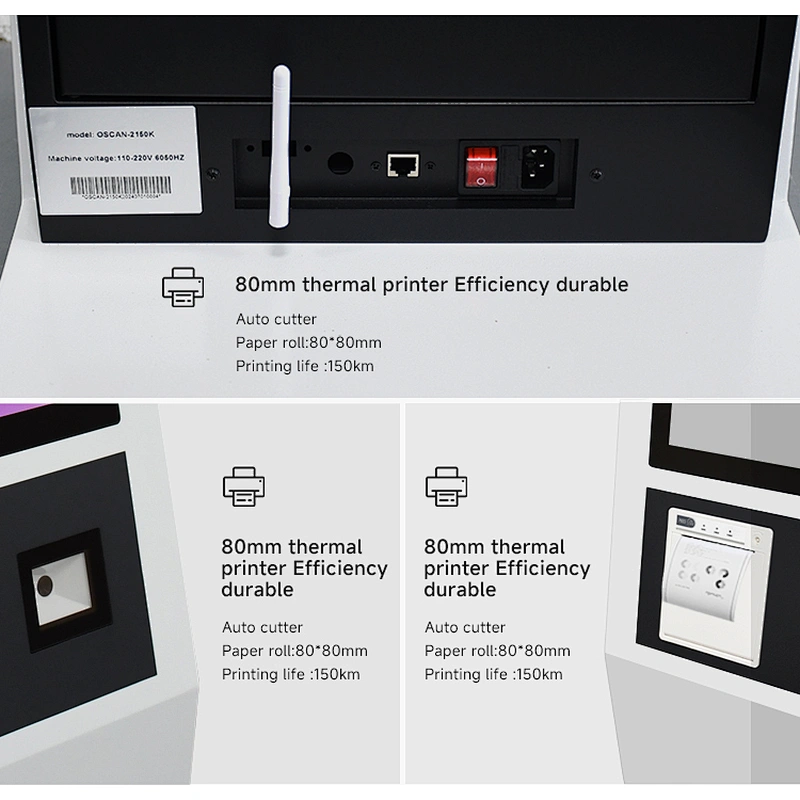

2. This product is equipped with 80mm thermal label printer and 2D scanner
3. 21.5"Payment kiosks LED TFT 1920*1080P Capactive touch screen wall-mounted cash register Self-service
Ordering kiosk hardware.
3. 21.5"Payment kiosks LED TFT 1920*1080P Capactive touch screen wall-mounted cash register Self-service
Ordering kiosk hardware.
4. A point of sale system can be used for personal store cash register, Self-service Ordering kiosk ,
Self-service kiosk. And so on.
Self-service kiosk. And so on.
5. OSCAN-2150K all in one cash register Pos machine systems. Optional:"MSR,WIFI,Speaker,RFID
(only read/ read+write)"Desktop/ Wall-mounted,USB and COM ports are optional.
(only read/ read+write)"Desktop/ Wall-mounted,USB and COM ports are optional.
6.This product supportsOEM/ODMcustomization.Delivery is fast and stable.Rapid production mold customization
7.After-sales service to solve some of your questions and practical problems
7.After-sales service to solve some of your questions and practical problems
Main Board | Android | Windows |
CPU | RK3288: Quad core 1.8GB RK3568: Quad-core Cortex-A55 up to 2.0GHz | J1900：: Quad core 2.0GHz J4125: Quad core 2.0GHz J6412：: Quad core 2.0GHz (support Core i3/ i5/ i7 CPU) |
OS support | RK3288: Android 9.0 RK3568: Android 11 | Windows 7/ 10/11, Linux |
Display | ||
Display | 21.5"LED TFT protrait | 21.5"LED TFT protrait |
Brightness | 250 nits | 250 nits |
Resolution | 1920*1080 | 1920*1080 |
Touch Screen | Capacitive touch screen | Capacitive touch screen |
RAM& Storage | ||
RAM | 2G | 4G/ 8G |
SSD | 16G | mSATA 64G/ 128G/ 256G SSD |
SATA Slot | No | 1 x mSATA Slot |
I/O Ports | ||
Serial | 1XCOM | |
USB | 2 x USB 2.0 2 x USB 3.0 (External), 2 x USB 2.0 (Internal, reserved for touch screen,MSR) | 2 x USB 2.0 2 x USB 3.0 (External), 2 x USB 2.0 (Internal, reserved for touch screen,MSR) |
LAN | 1 x RJ-45, Giga LAN, 100 Self-adaption | 1 x RJ-45, Giga LAN, 100 Self-adaption |
VGA | No | 1XVGA |
DC | 1 x +12V 5A | 1 x +12V 5A |
Audio Jack | 1 x Line Out, 1 x MIC In,1 x Internal Speaker | 1 x Line Out, 1 x MIC In,1 x Internal Speaker |
Wifi | IEEE802.11b/g | IEEE802.11b/g |

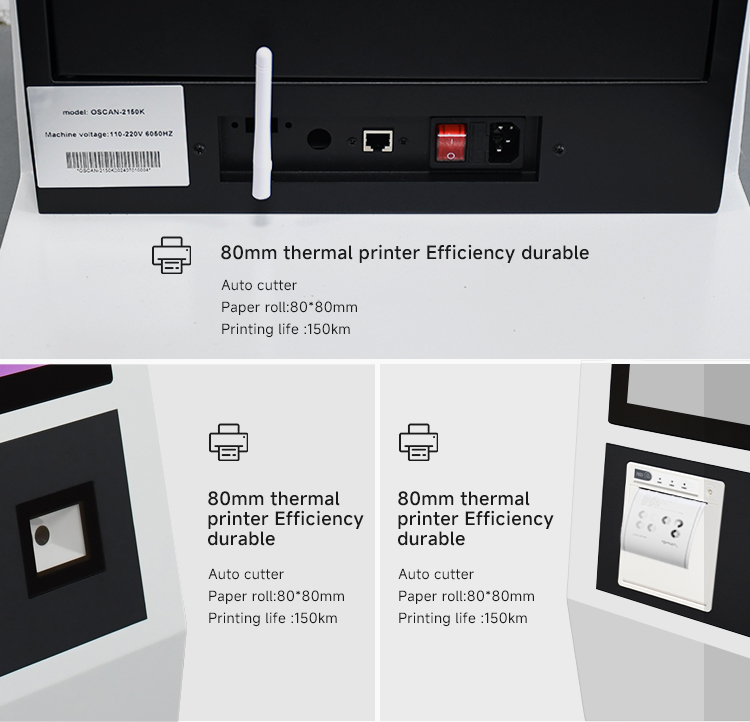

Printer | 80mm thermal receipt printer Printing Speed 150mm/s, Work Life 100 km, Cutter Life 1,000,000 times, Paper Roll: Max Diameter 80mm | 80mm thermal receipt printer Printing Speed 150mm/s, Work Life 100 km, Cutter Life 1,000,000 times, Paper Roll: Max Diameter 80mm |
Scanner | Support 1D+2D code | Support 1D+2D code |
Optional | MSR, Speaker, RFID (only read/ read+write) | MSR, Speaker, RFID (only read/ read+write) |
Packing | ||
Packing size | 1730*440*530mm | 1730*440*530mm |
Gross weight | 52KG | 52KG |

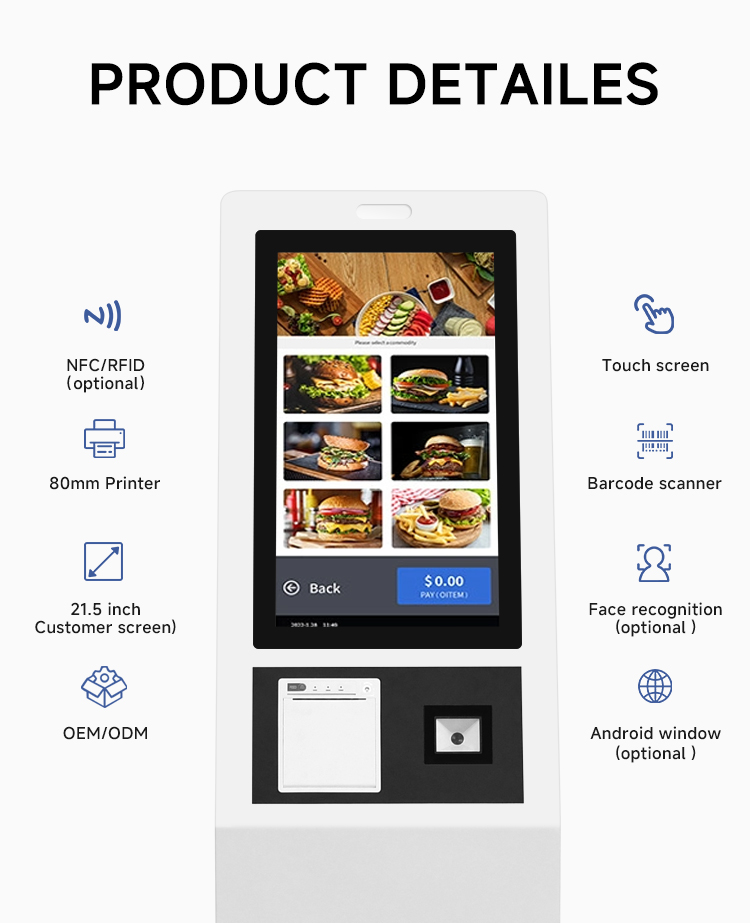

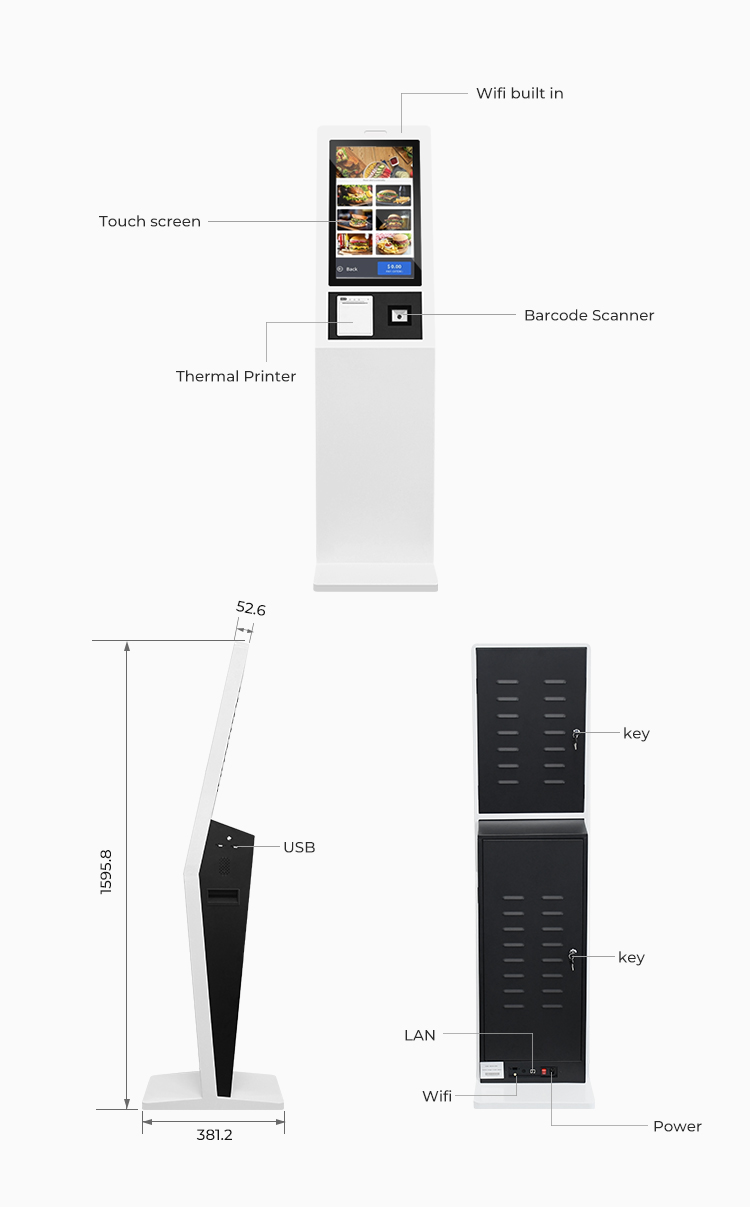

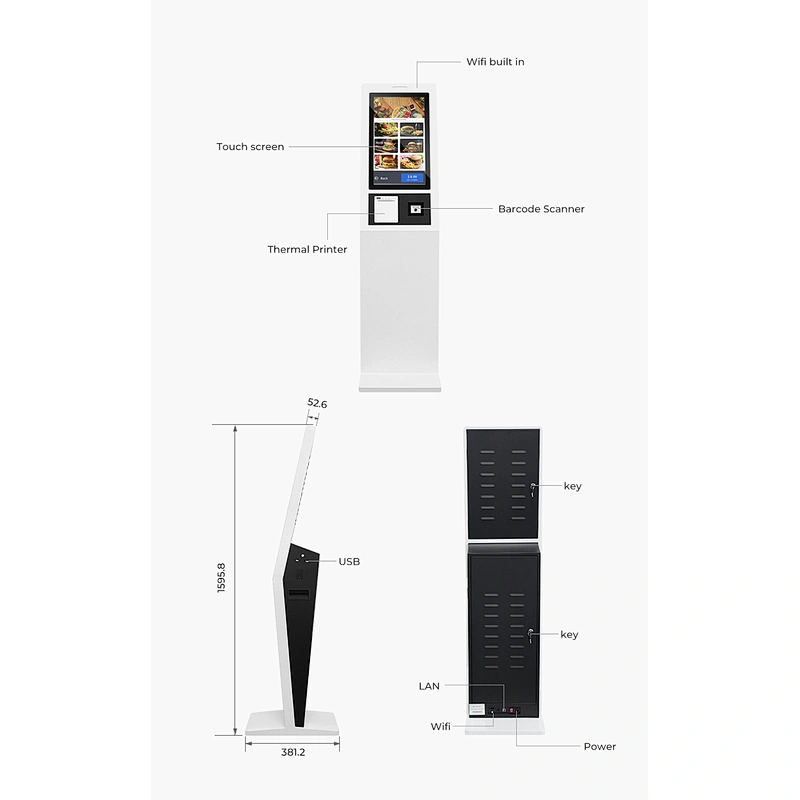

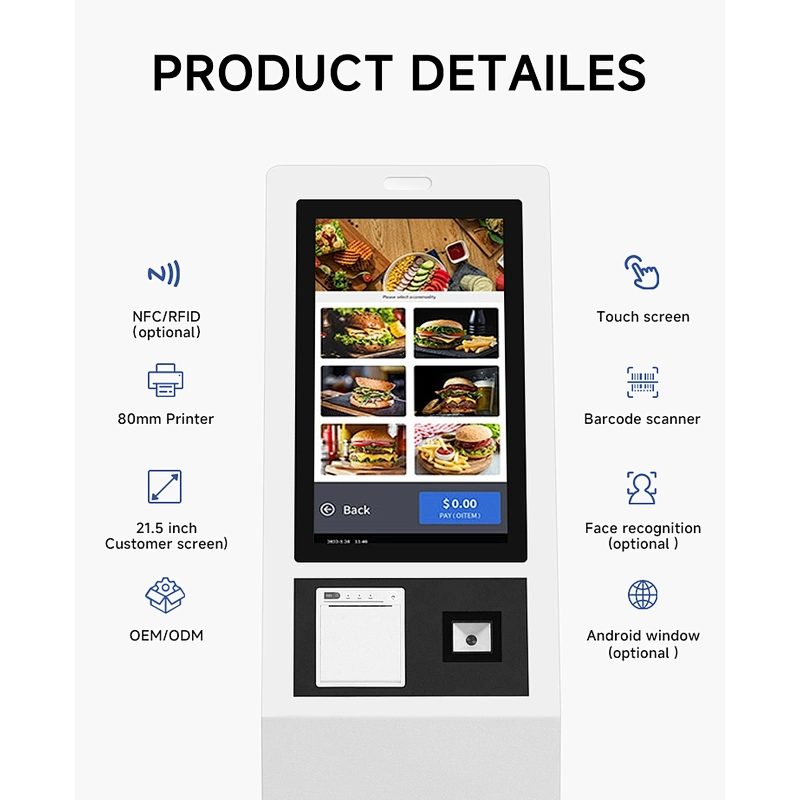

Details Images
Related Products
Packing&Shipping
Company Introduction
About Oscan

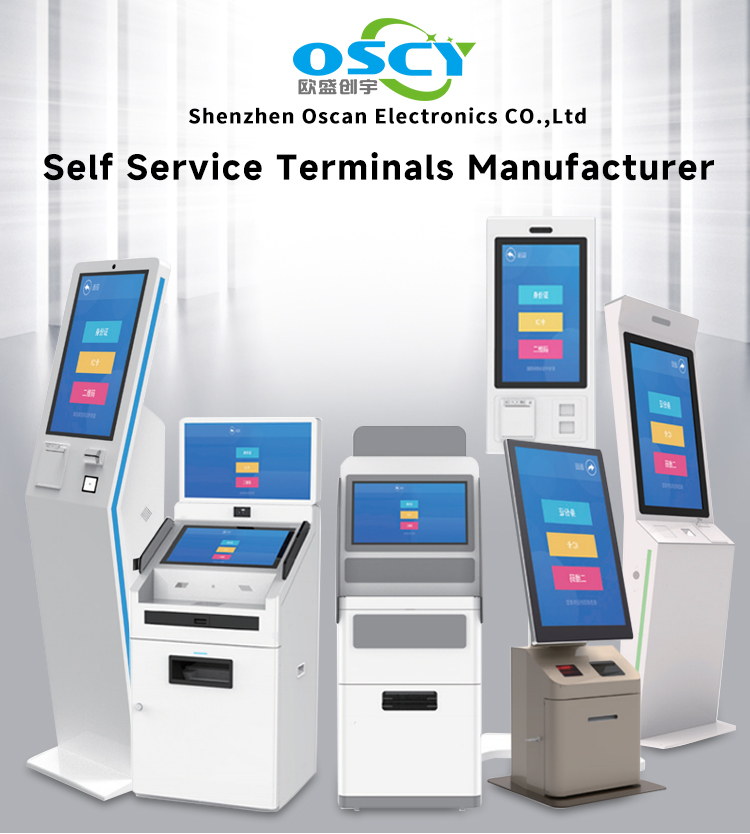

Shenzhen Oscan Electronics Co., Ltd. is a POS hardware and monitors design and manufacturer Since 2010, Oscan has been mainly engaged in the R&D and manufacturing of pos systems:
Purchasing and invoicing, inventory control, sales analysis, price setting, etc. are all carried out in a humanized manner on the windows or android platform. Oscan has its own design and support team to provide customers with uninterrupted service.
Now OSCAN has over 500+ customers in various fields around the world.
OSCAN has been developing new technologies to reach a higher level and meet the needs of the market. We have FCC, CE, RoHs and other EPR, IEC-62368 certificates.
Shenzhen Oscan Electronics Co., Ltd. is a POS hardware and monitors design and manufacturer Since 2010, Oscan has been mainly engaged in the R&D and manufacturing of pos systems:
12 inch 15 inch 17 inch POS system, touch POS computer, touch POS terminal, POS machine, cash register, touch screen, cash drawer, POS printer, barcode/label printer, POS thermal receipt printer, portable printer, DOT matrix printer, Kitchen receipt printers, barcode scanners, barcode readers, customer display screens, magnetic card readers, etc.
As well as monitor Solutions:
Touch screen monitor, lcd monitor, industrial monitor, open frame monitors, ect.
Purchasing and invoicing, inventory control, sales analysis, price setting, etc. are all carried out in a humanized manner on the windows or android platform. Oscan has its own design and support team to provide customers with uninterrupted service.
Now OSCAN has over 500+ customers in various fields around the world.
OSCAN has been developing new technologies to reach a higher level and meet the needs of the market. We have FCC, CE, RoHs and other EPR, IEC-62368 certificates.
