2D Wired Bar code Scanner with stand optional
- Private Mold:Yes
- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:CMOS
- Colour Depth:32 Bit
- Interface Type:usb
- Max Paper Size:a4
- Optical Resolution:640 pixels (H)x480 pixels (V)
- Brand Name:OSCY
- Place of Origin:Guangdong, China
- Warranty(Year):1-Year
- After-sales Service:Free spare parts, Call Center and on-line Technical Support
- Software development kit (SDK):NO
- Product name:2D Wired Barcode Scanner
- Application:Store
- Interface:USB2.0
- Color:Black
- Dimension:160mm x 64mmx 97mm
- Weight:140.5
- Scan Mode:Command Mode
- Decode Capabilities:1D + 2D + QR Code
- Material:ABS
- Resolution:4mil
Product Description
Physical Characteristics | ||
Dimensions: | 160mm x 64mmx 97mm | |
Weight: | 140.5g | |
Voltage: | 5±5%V | |
Starting Current: | 160mA | |
Stand-by Current: | 120mA | |
Work Current: | 330mA | |
Performance Characteristics | ||
Image (Pixels): | 640 pixels (H)x480 pixels (V) | |
Light Source: | (Aimer) Red color LED; (Illumination) White color LED | |
Roll / Pitch / Yaw: | 360°(Roll), ±65°(Skew) , ±65°(Pitch) | |
Print Contrast: | 20% minimum reflective difference | |
Interfaces Supported: | USB | |
Motion Tolerances: | >0.4m/s | |
Symbology Decode Capability | ||
1-D: | Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IAT A，Matrix 2 of 5，Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post | |
2-D: | Codeblock A,Codeblock F,PDF417,Micro PDF417,GS1 Composite Codes,TLC39,QR Code,Data Matrix,MaxiCode,Aztec,HANXIN | |
Minimum Resolution: | ≥4mil | |
User Environment | ||
Operating Temperature: | -20°C to 60°C | |
Storage Temperature: | -30°C to 70°C | |
Humidity: | 5% to 95% relative hum idity,non-condensing | |
Shock Specifications: | Designed to withstand 1.2m(5’) drops | |
Ambient Light Immunity: | 0-100,000 Lux. | |
Decode Ranges | ||
5 mil (code39) | 20mm-120mm | |
13 mil (code39) | 30mm-270mm | |
Performance may be impacted by bar code quality and environmental conditions | ||

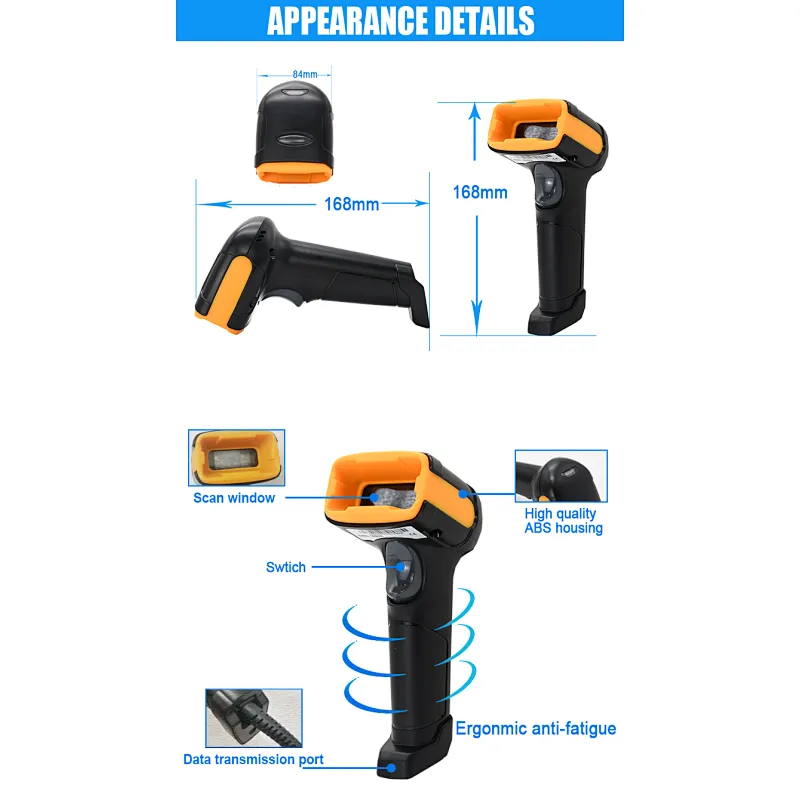

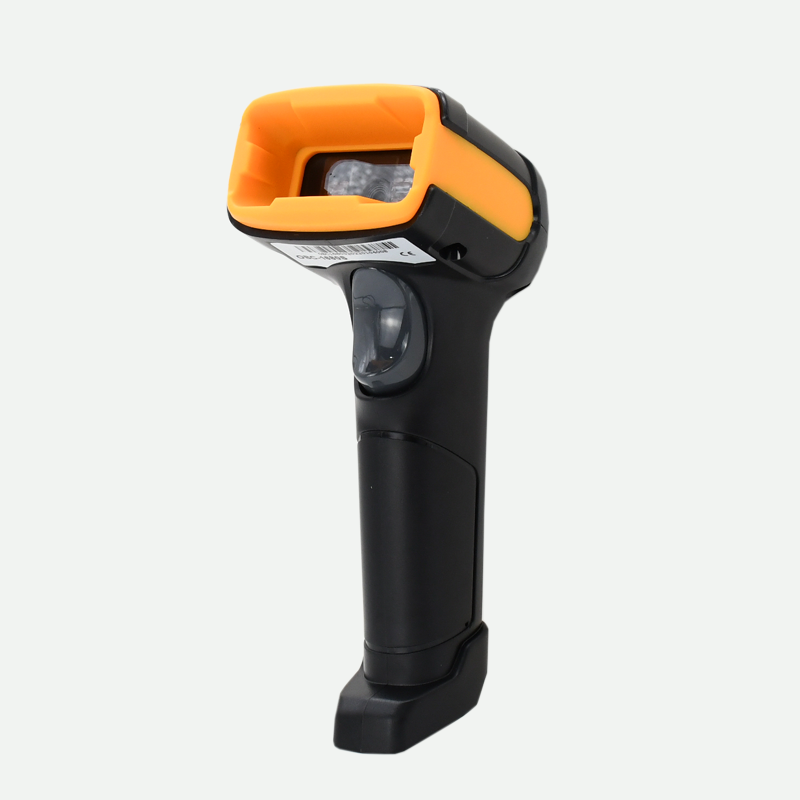

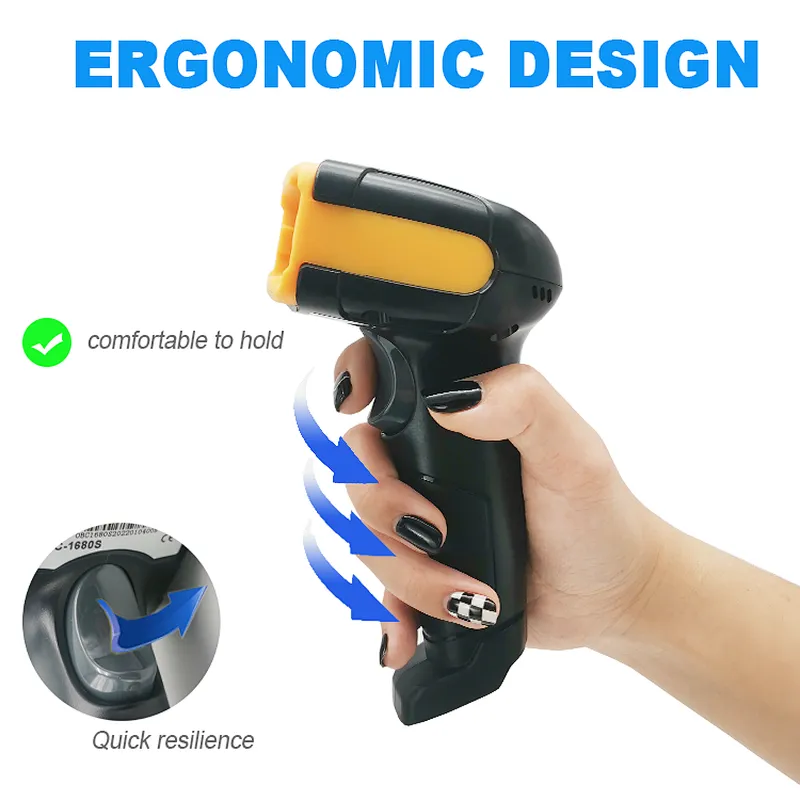

Detailed Images

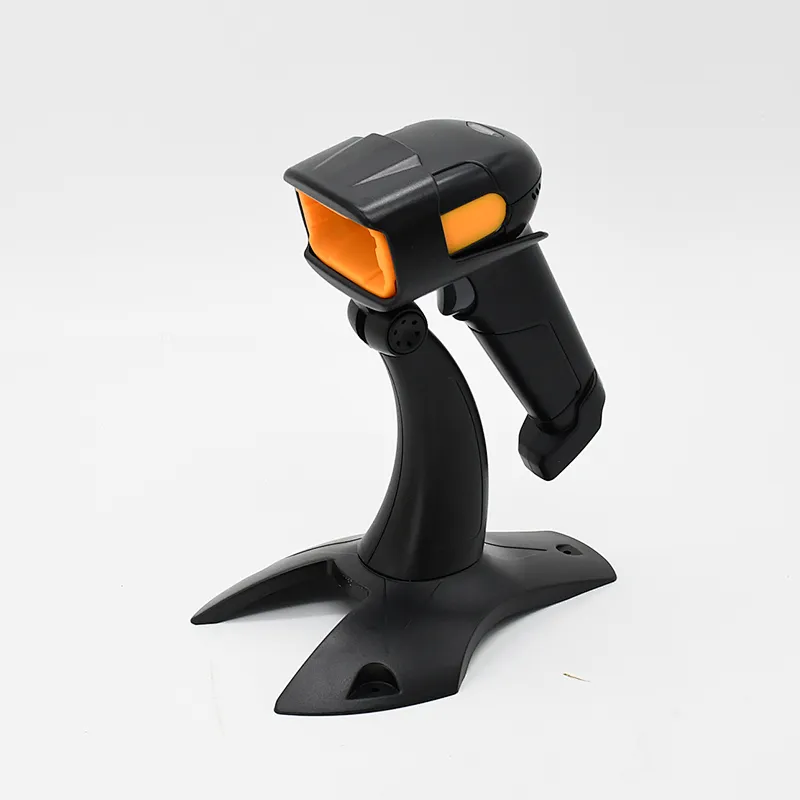

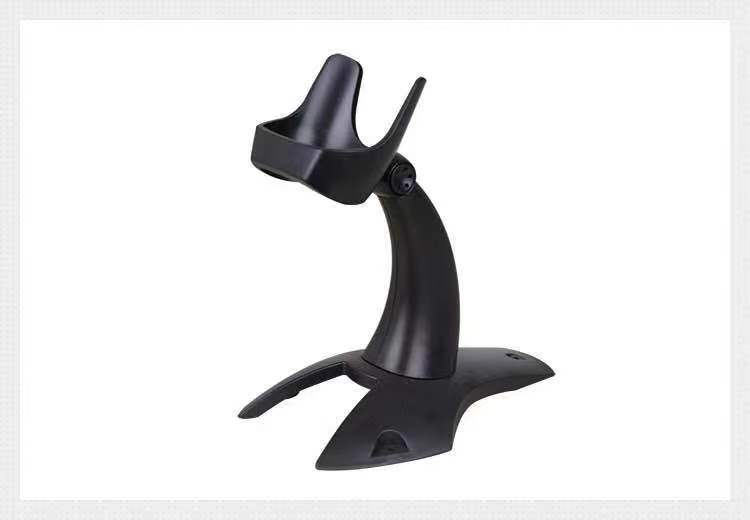

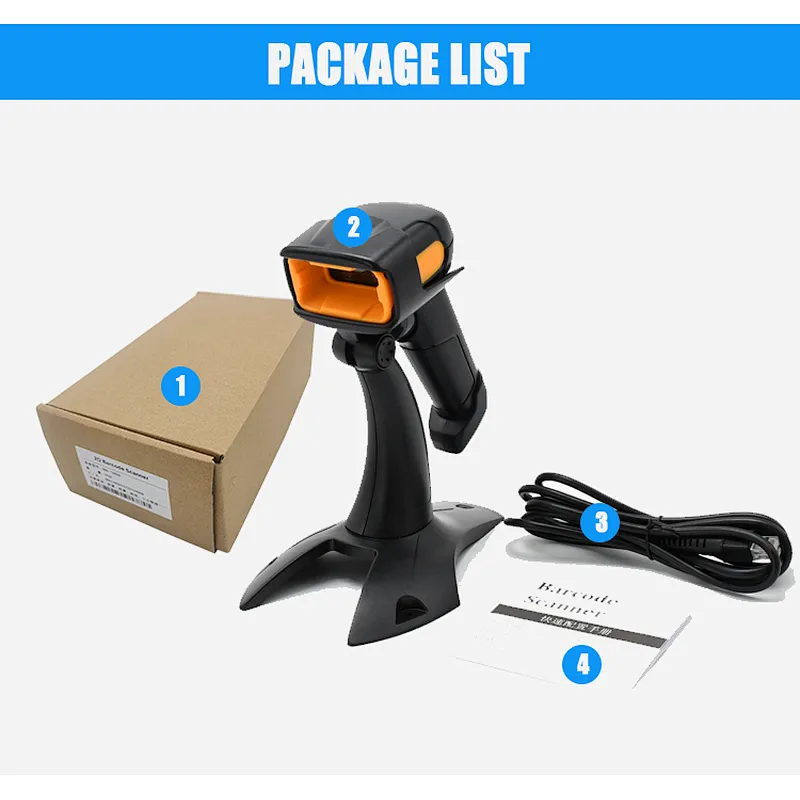

you can choose if you need the stand
