- After-sales Service Provided:Online support
- Warranty:1 YEAR
- CPU:J1900
- Name:15"touch screen pos, POS machine with customer display, pos system
- Display:4:3 TFT 15"touch screen pos
- Touch panel:5 wire resistive touch( Taiwan Brand)
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Resolution:1024x768
- Brightness:400cd/m2 brightness
- OS:window7 window 8
- Application:retalier,commercial,reacreation,etc
- Warranty:1 Year

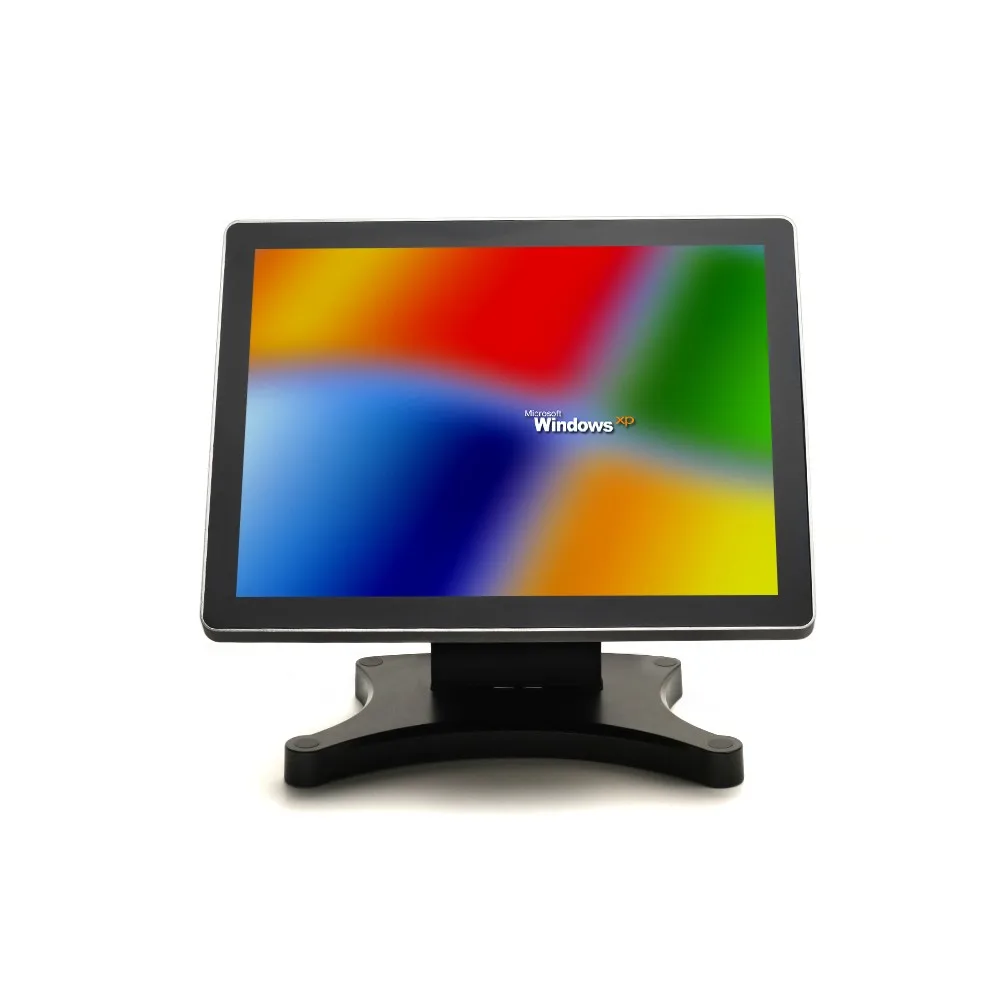

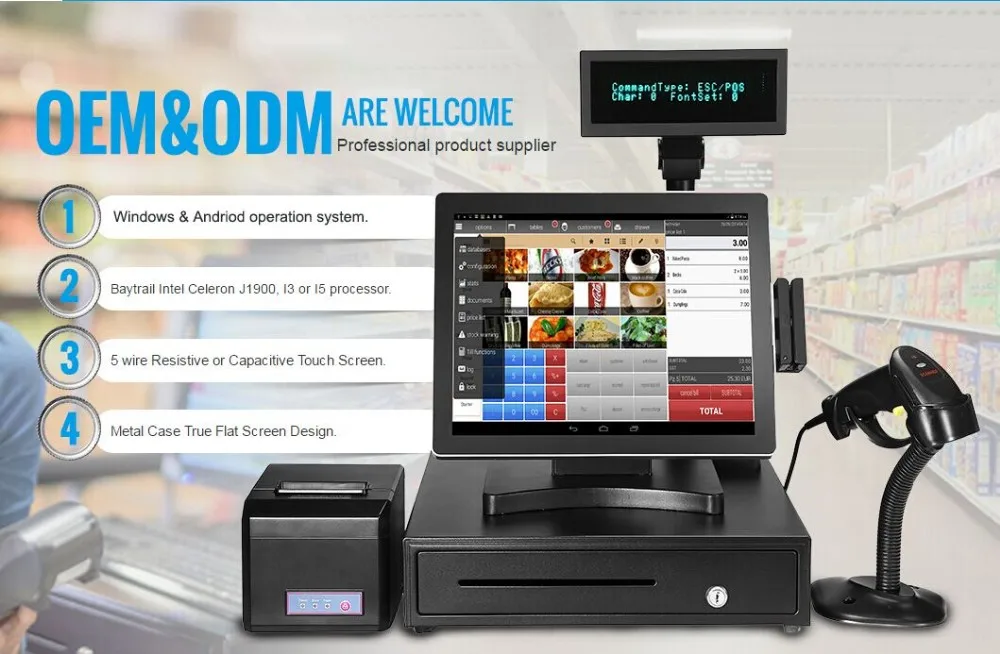

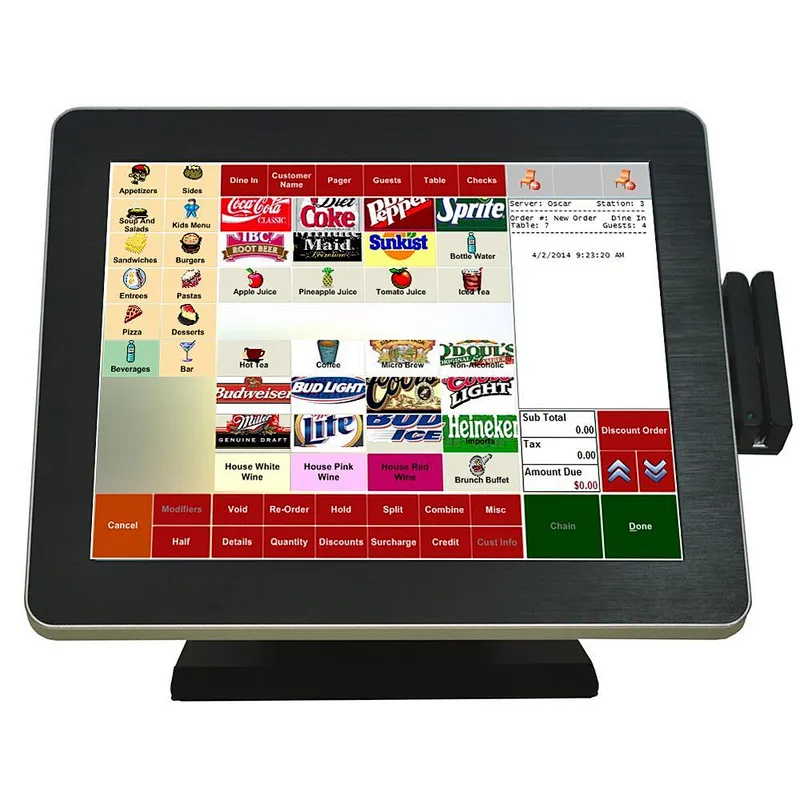

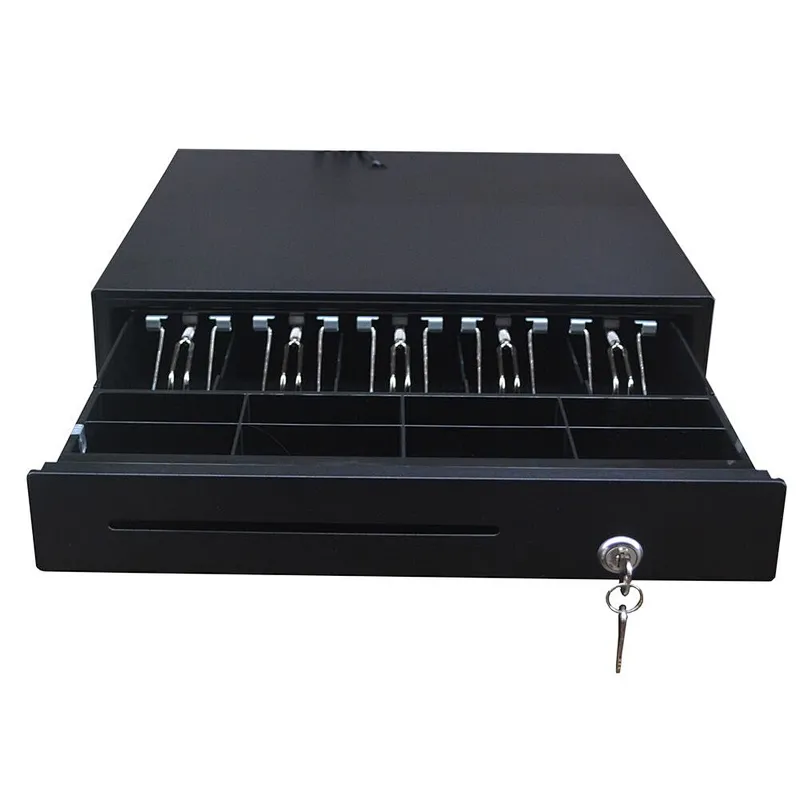

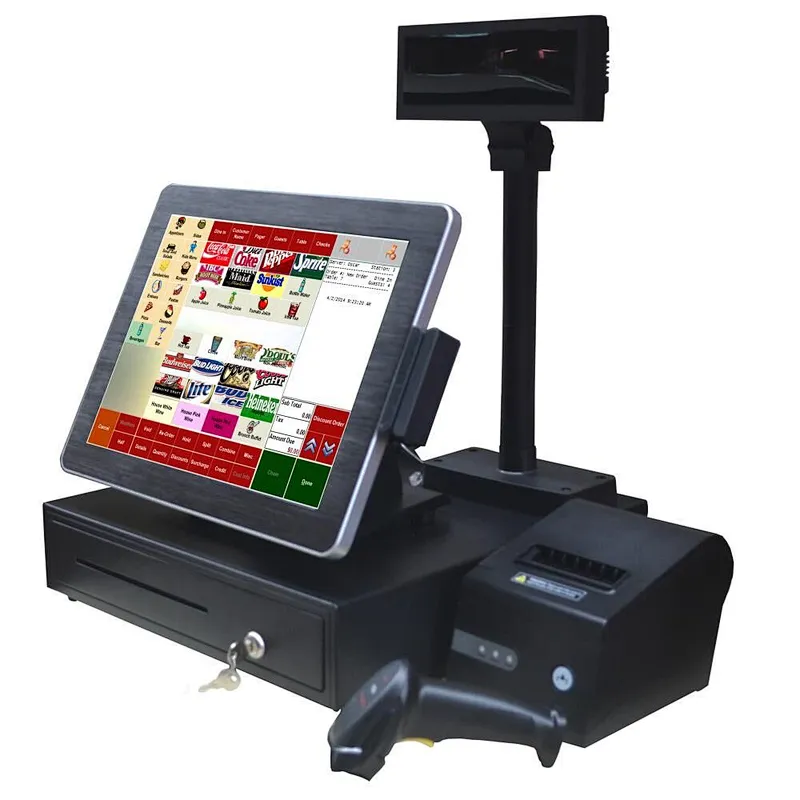

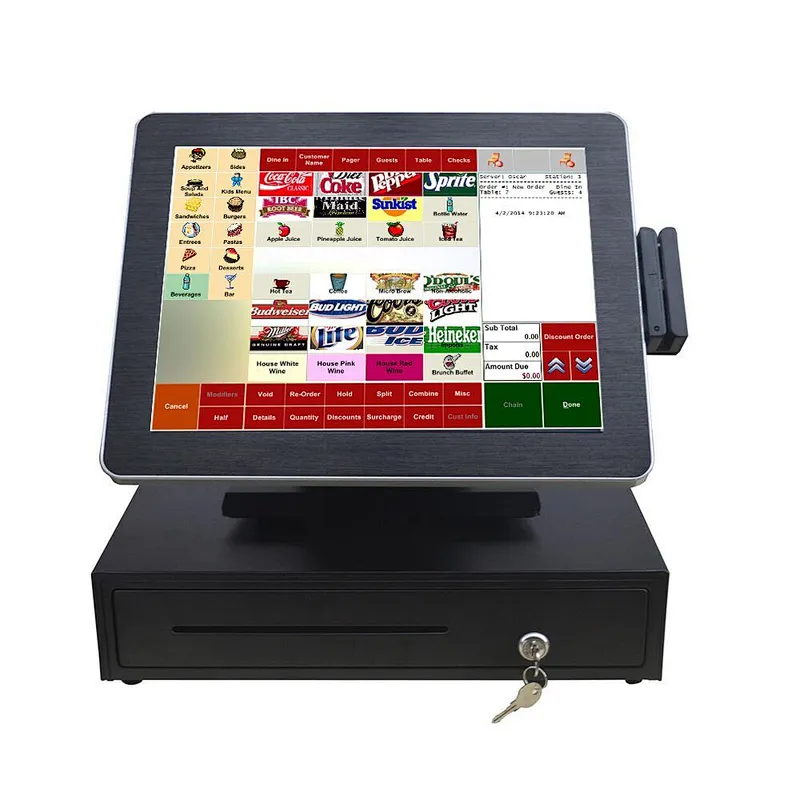

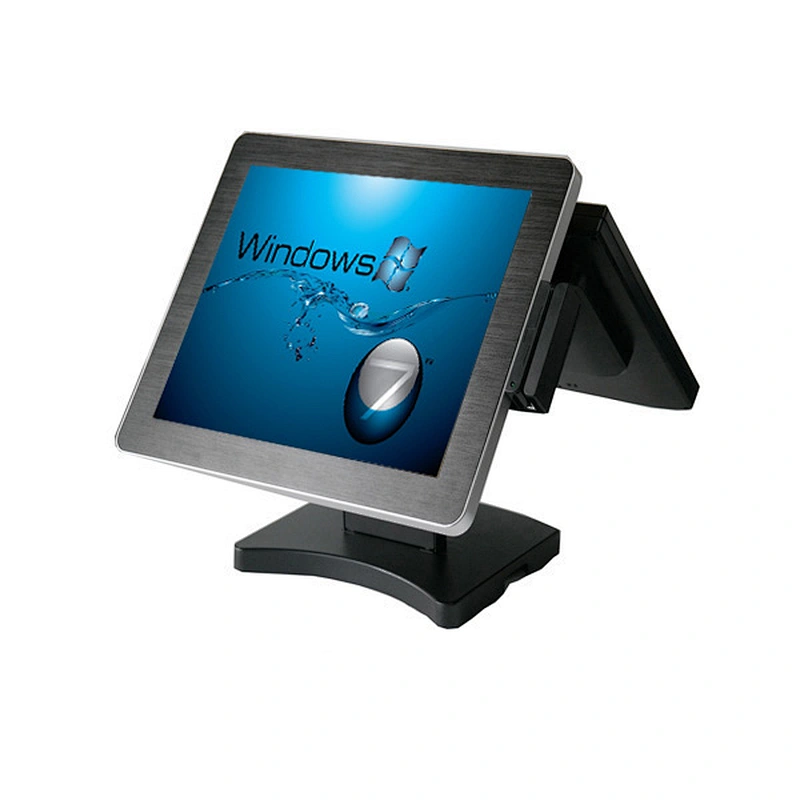

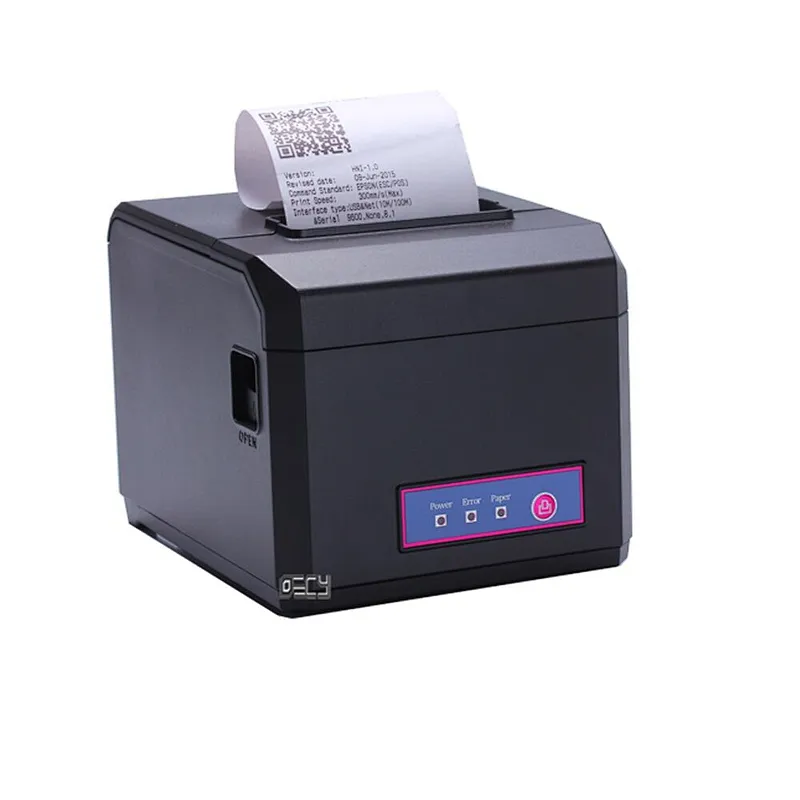

Complete pos system 15'' pos system with receipt printer
Product Description

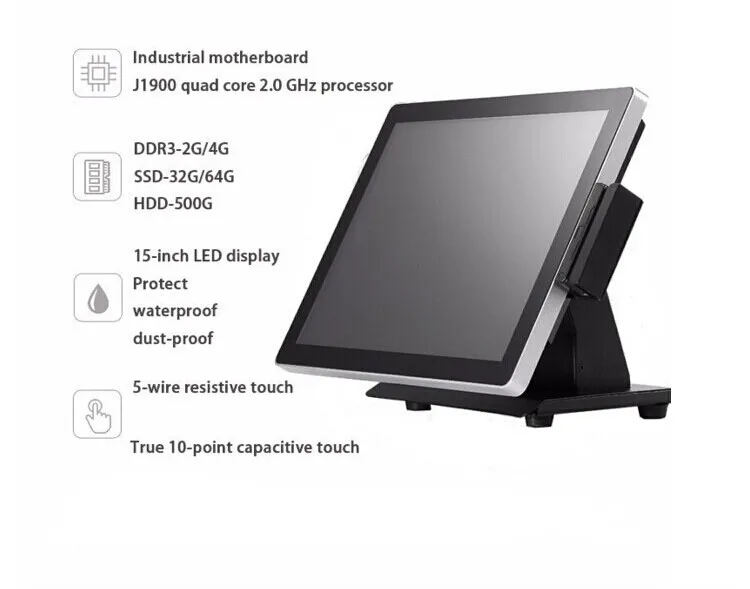

| Display | 4:3 TFT 15" touch screen |
| Touch panel | 5 wire resistive touch |
| Main board | Baytrial mother board |
| CPU | Intel® Celeron®J1800, Dual-core, clock speed 2.41GHz,TDP 10 |
| Memory | 2GB ( 4GB is optional) |
| Hard disk | 32G SSD (64G SSD or 500GB is optional) |
| Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
| Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
| Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |

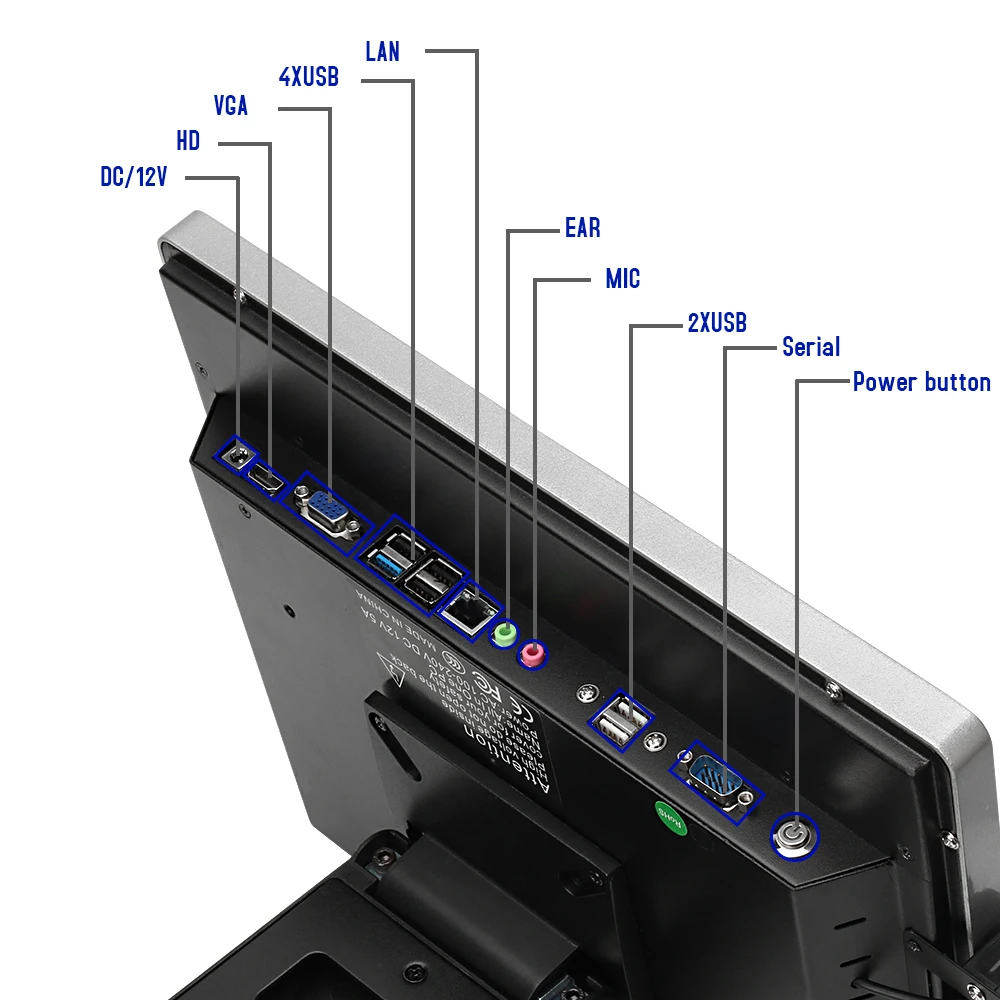

| COM | 3* RS232, 4*RS232 optional |
| USB port | 5*USB( 4*2.0,1*3.0), 6 *USB ports is optional |
Main board specification
| 2* Mini PCI-E 1 * SIM Card Slot 1 * Front Audio 2 * 12VDC_INPower Input Connector |
| Voltage | 12V DV 5A |
| Storage Temperature | -20~75℃ |
| Operating Temperature | 0~60℃ |

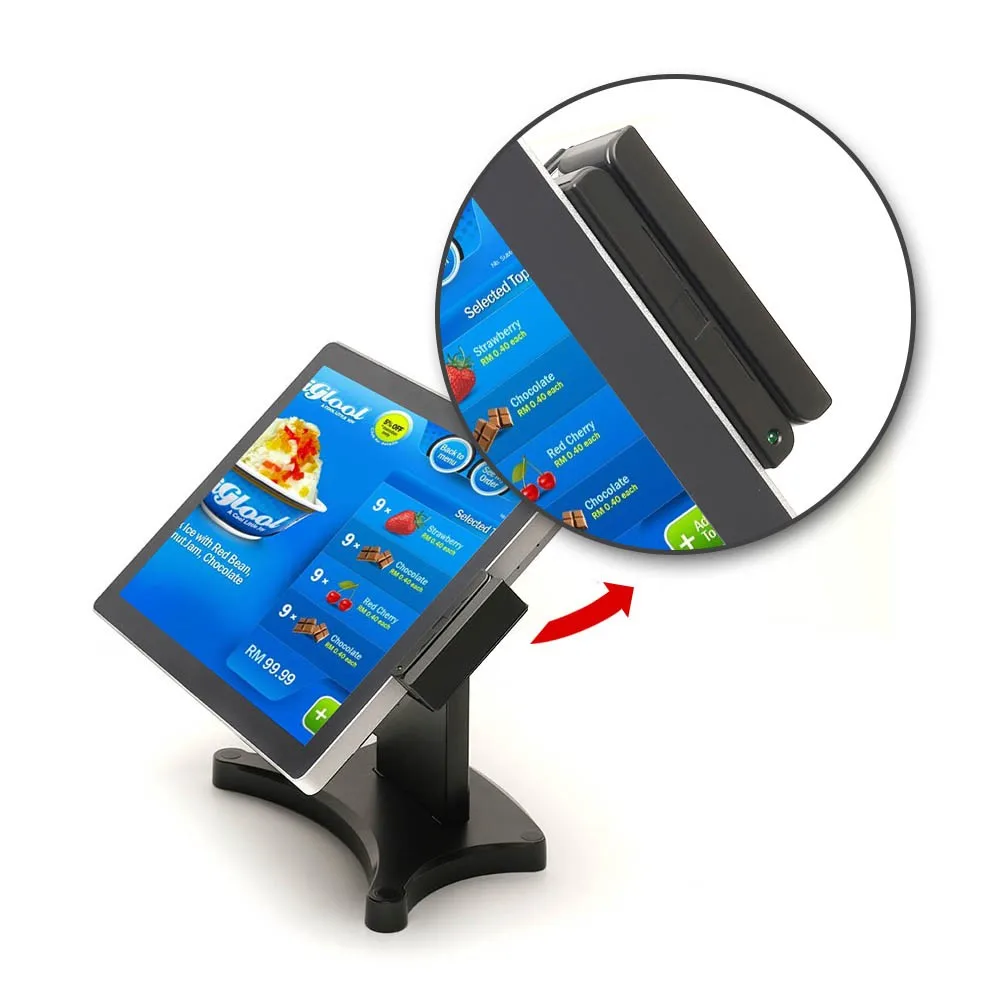

With Card Reader is optional
12 inch/15 inch/17 inch is optional

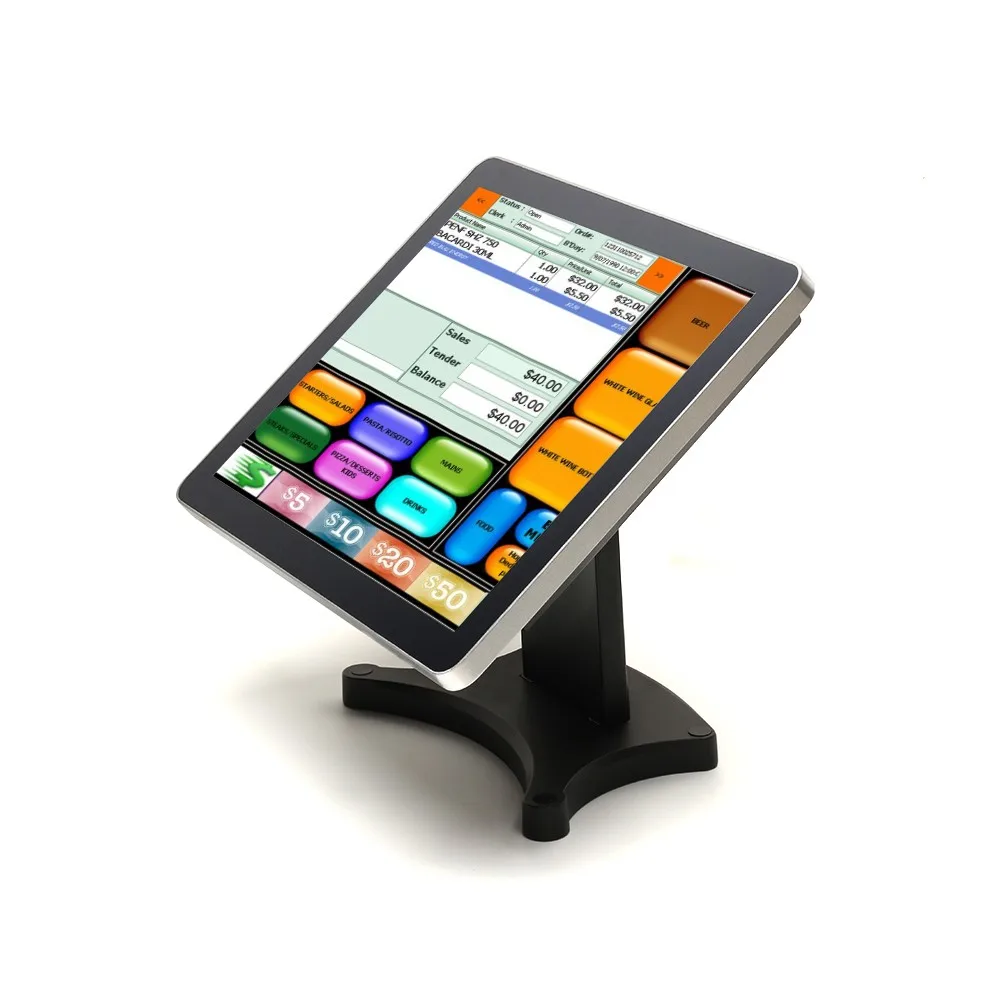

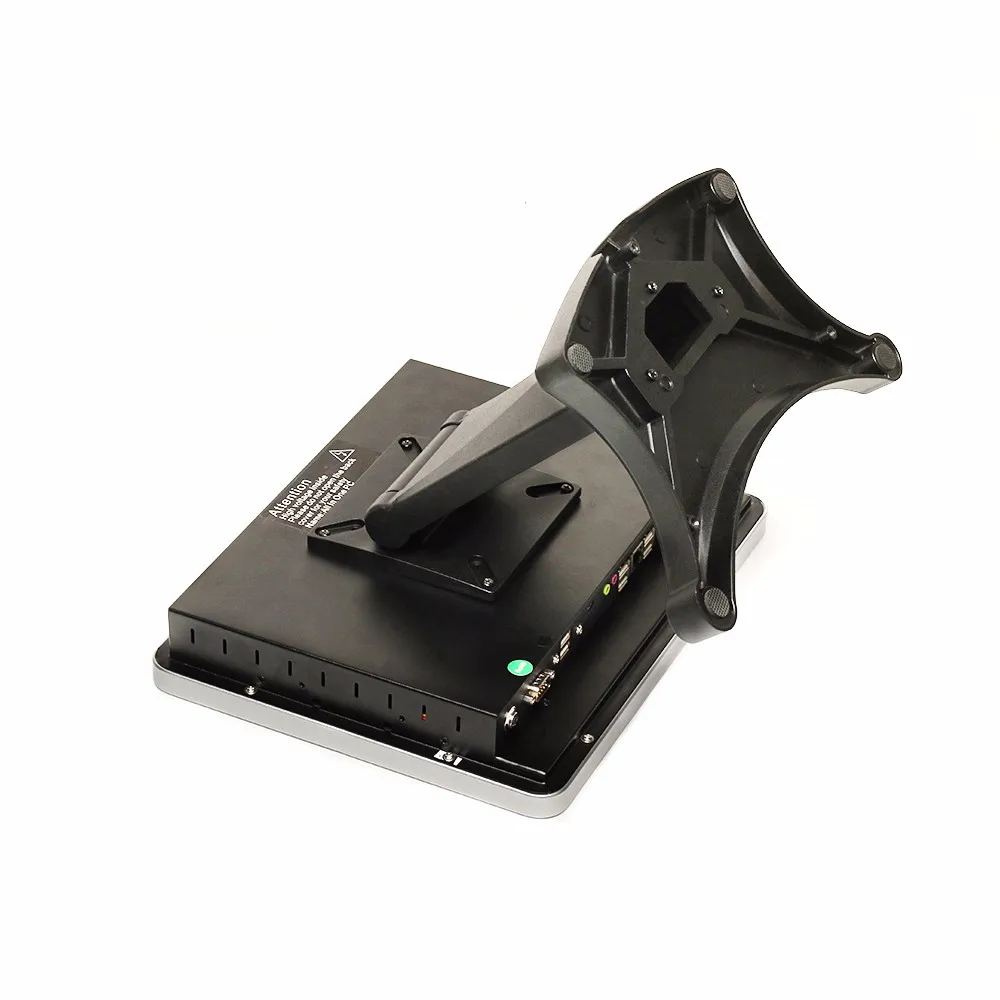

Real Picture without PS
