- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- Touch Screen Type:Capacitive Screen
- Warranty:1 year( 2 years optional)
- Brand Name:OSCY
- Operation System:windows 7/ 10/ Linux/POS ready
- CPU:Fanless Intel Celeron J1900,2.0GHz
- Hard Disk Capacity:32G SSD (64G/128G/256G SSD or 500GB is optional)
- CPU:Fanless Intel Celeron J1900,2.0GHz (i3/i5 optional)
- Touch Screen:10 Points Capacitive Touch Screen
- Type:True Flat Metal Case
- Memory:2 GB (4GB/8GB is optional)
- Hard disk:32G SSD (64G/128G/256G SSD or 500GB is optional)
- Multi COM ports optional:3 or 4 COM ports
- Product Name:Dual core J1800/J1900/I3/i5 15inch fanless point of sale POS
- Display:4:3 TFT 15"touch screen
- LED panel:Industrial Grade Mitsubishi or Sharp panel

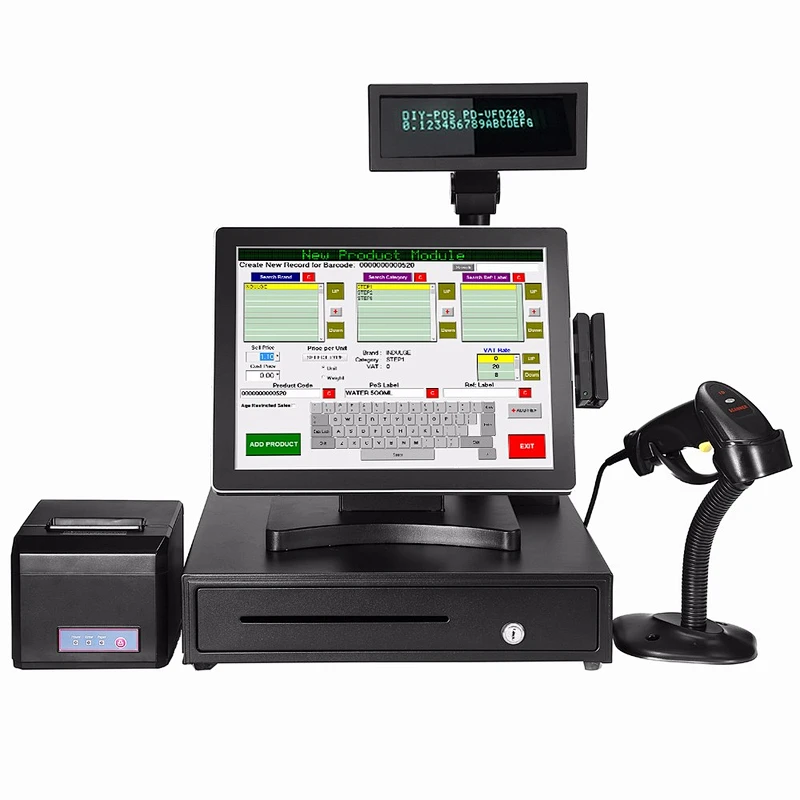

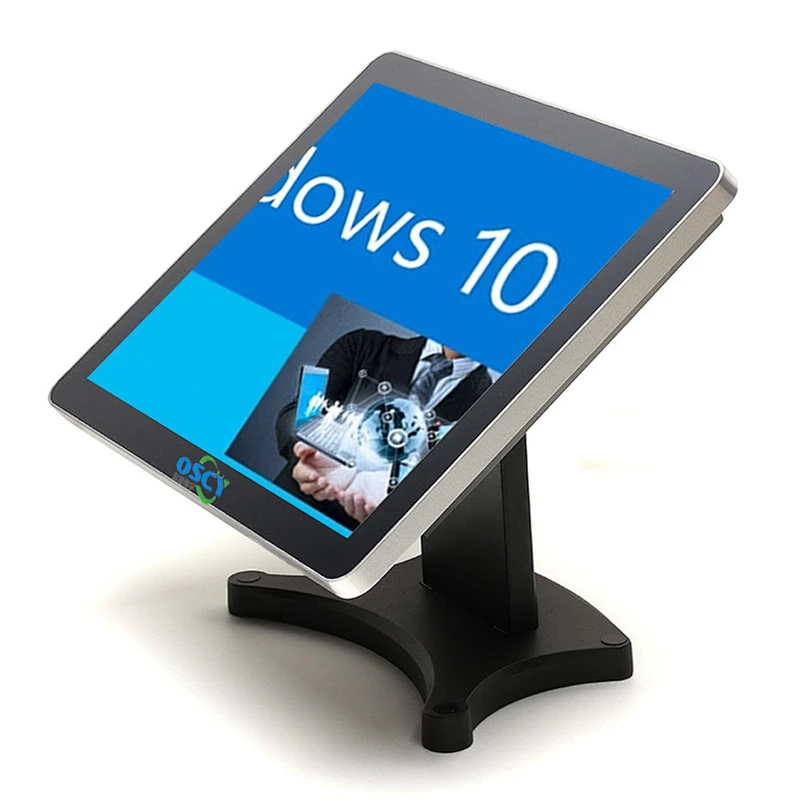

Fanless point of sale all in one POS
15 Inch All in one Touch screen POS terminal | |
Display | 4:3 TFT 15" touch screen |
Touch panel | 10 Points Capacitive Touch Screen |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1900, 2.0GHz (i3/ i5 is optional) |
Memory | 2GB ( 4GB/8GB is optional) |
Hard disk | 32G SSD (64G/128G/256G SSD or 500G HDD is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports1 * Amplifier |
COM | 3* RS232, 4*RS232 optional |
USB port | 5*USB( 3*2.0,1*3.0), 6 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |
