- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:Intel
- Product Name:Newest configuration cashier terminal pos software
- Size:15inch
- Color:black back and Silver frame
- Display:4:3 TFT 15"touch screen
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Touch panel:5 wire resistive touch
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- COM:3* RS232, 4*RS232 optional
- USB port:5*USB( 3*2.0,1*3.0)6 USB ports is optional

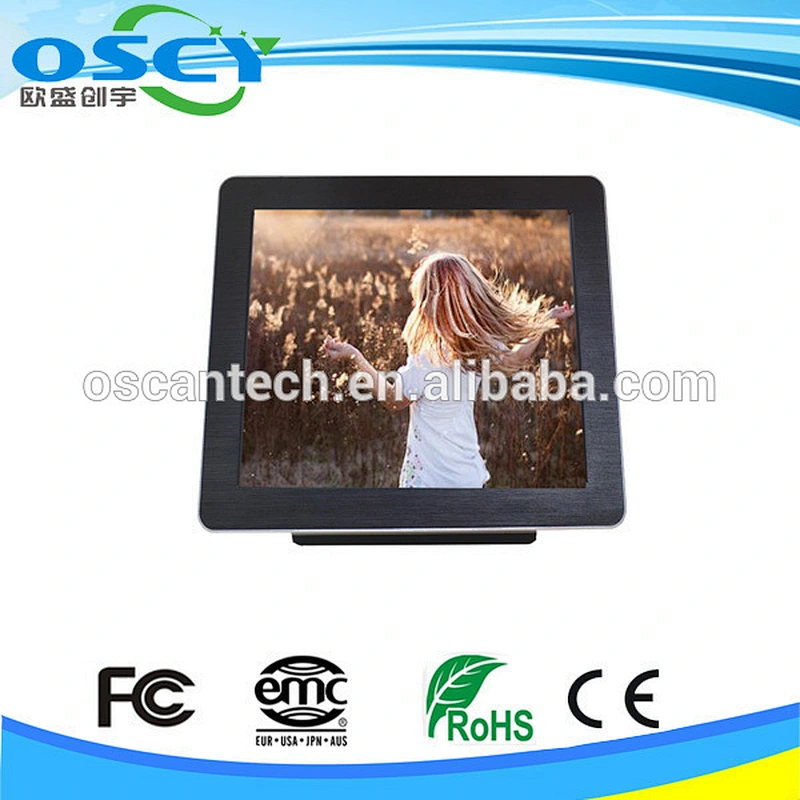

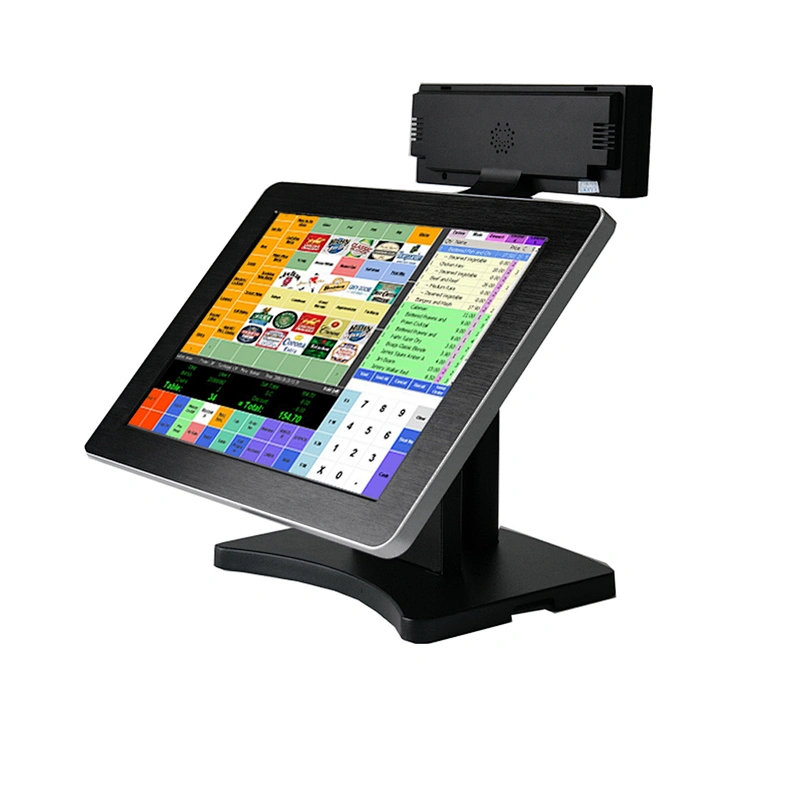

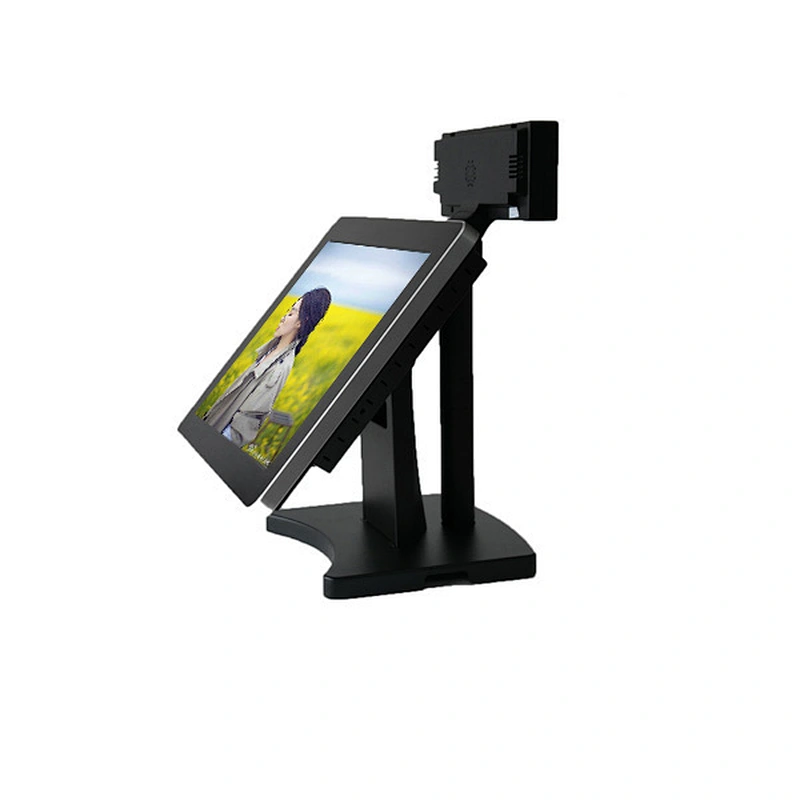

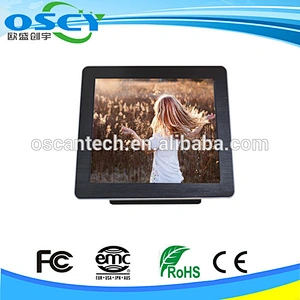

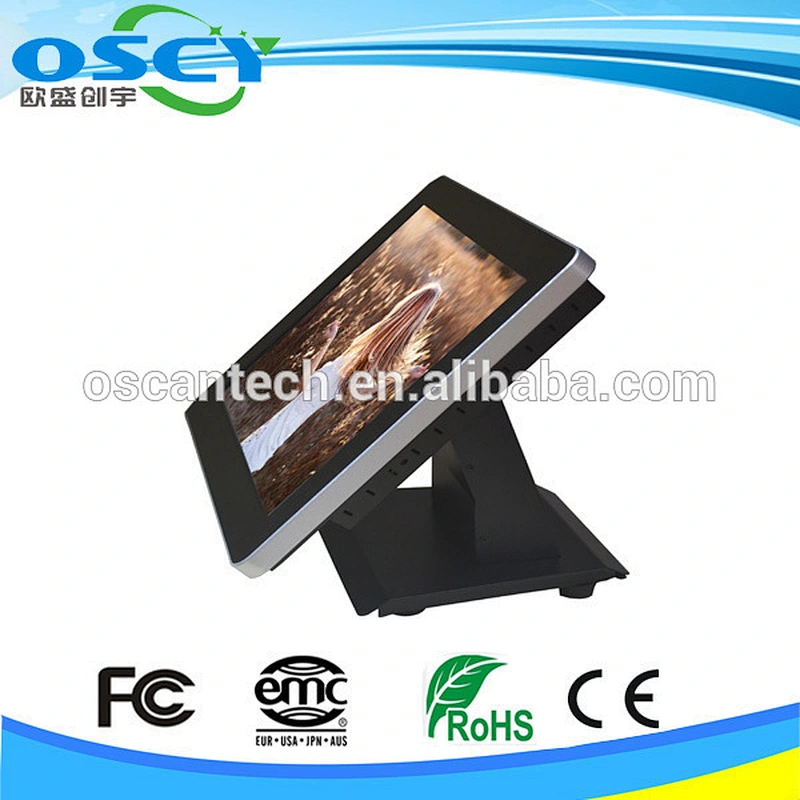

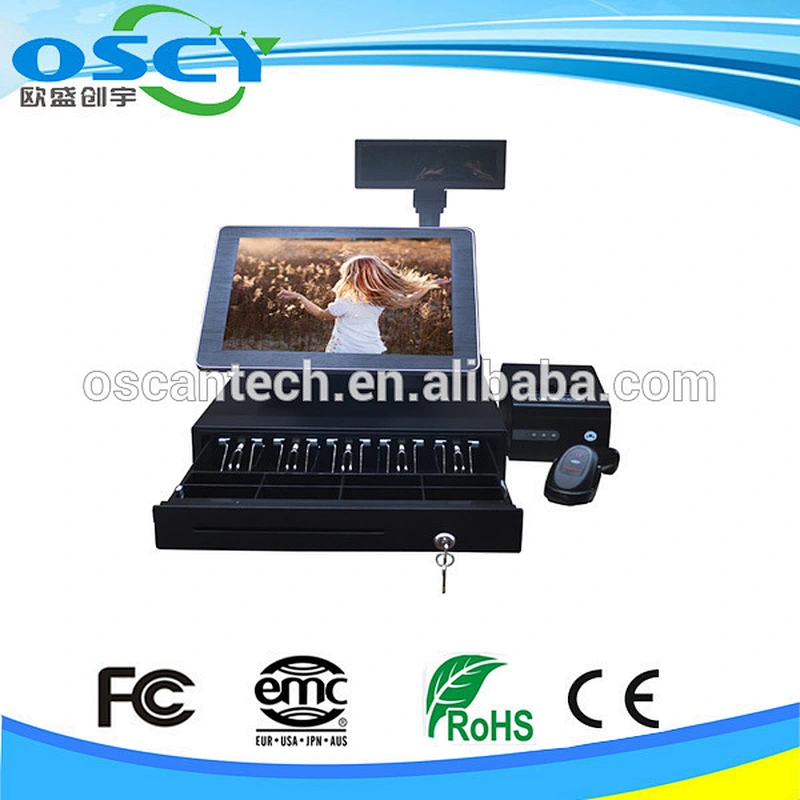

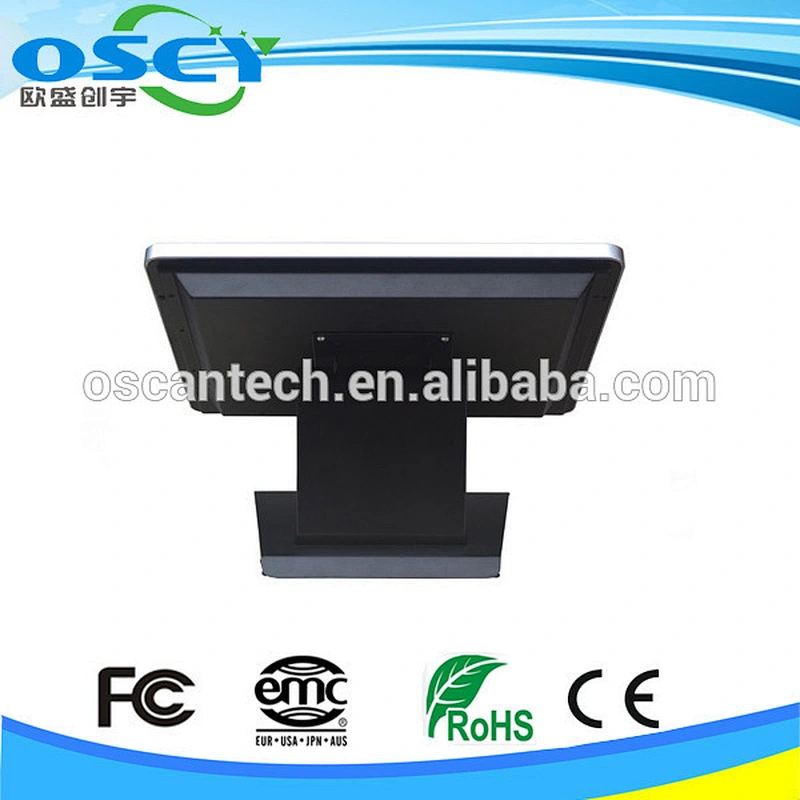

Newest configuration cashier terminal pos software
Main Feature:
1.Fanless dual core processor
2.Standard with 5 wire resistive touch screen
3.Standard with 2G memory, 4G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5.Low comsuption
6.Long using life
Specification:
15 Inch All in one Touch screen POS terminal | |
Display | 4:3 TFT 15" touch screen |
Touch panel | 5 wire resistive touch |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10 |
Memory | 2GB ( 4GB is optional) |
Hard disk | 32G SSD (500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
COM | 3* RS232, 4*RS232 optional |
USB port | 5*USB( 3*2.0,1*3.0), 6 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |
Interface:
--------------------------------------------------------------------------------------
1. Q:Why should I choose OSCAN?

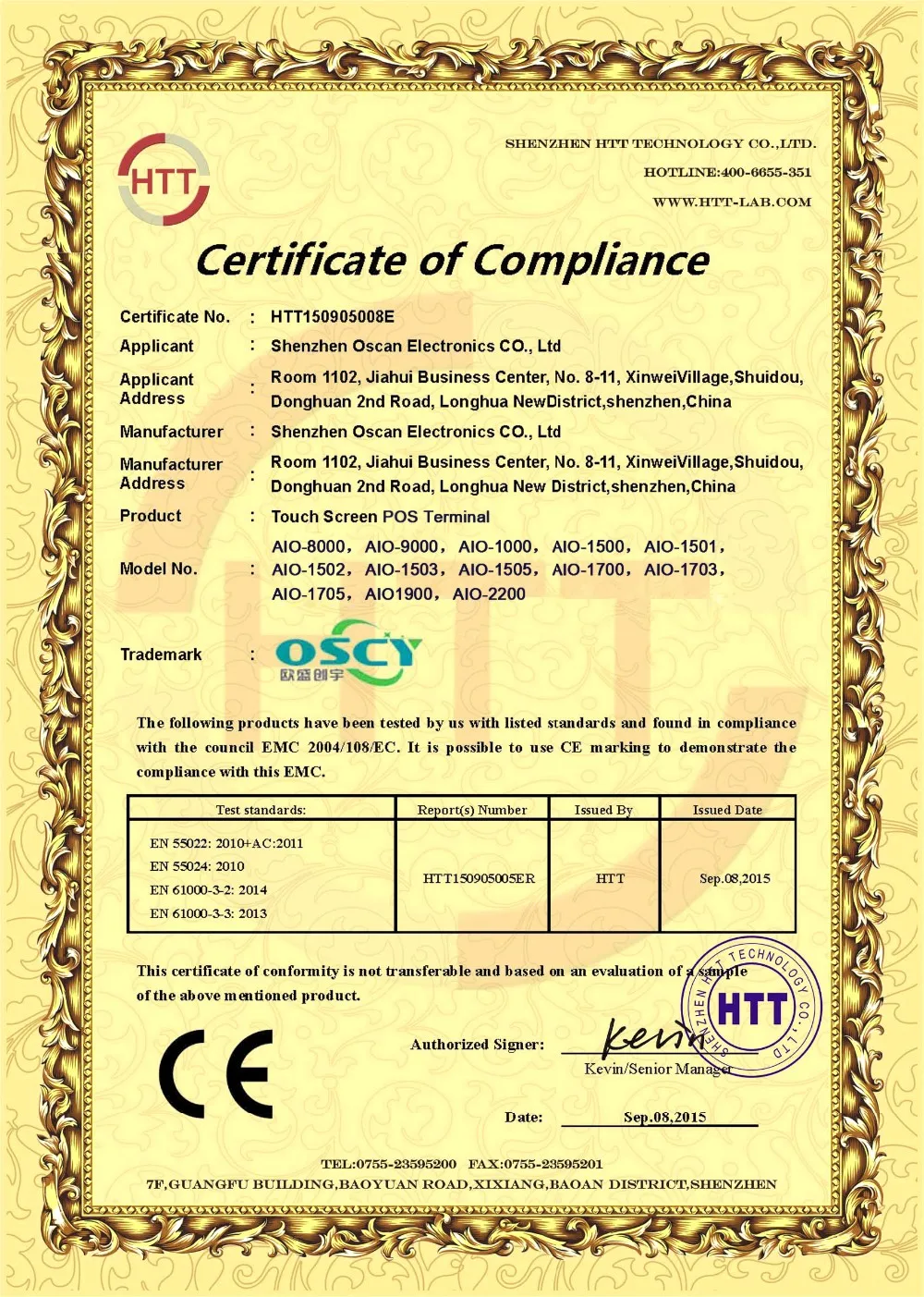

A: OSCAN is professional LCD Touch Monitor manufacturer with professional production and QC teams, we have skilled workers and advanced facility and offer the latest cuttingedge technology POS Terminal, Touch screen Monitor, POS peripherals, CCTV/VGA/HDMonitor and the retated products. We have CE,FCC,ISO9001 ,EMC and RoHS ect certification. We pride ourselves on not just earning your business, but earning your trust.
2.Q: How is the warranty and after-sales service?
A:We have one year guarantee, during the time, once you have any quality problem, we will repair for free . As to the after-sell service, you can contact us anytime
3.Q: May I get a sample?
A:Of course. We can provide the sample to you when you send the products details.
1.Size :such as 15inch , 17inch , 10inch ......
2.Touch pannel: 4 wire resistive or 5 wire resistive.
3.Socket types: Custom types are International Socket, UK Socket, US Socket, EURO Socket, Italy Socket, South Africa Socket, Switzerland Socket. ect.
4.Stand types: Full Metal standand Half Metal stand
Shipping
We delivery by lowest cost transportation, custom way is Air Express. If your quantity is enough we can use sea shipping . We always put you in the first place in our mind.
Payment Term:
T/T or westunion
Delivery Day:
sample: 5-7 working days after payment confirmed
20-50pcs:7-10 days
>100pcs: 10-15 days
Office Address:Room 1102, Jiahui Business Center, No. 8-11, Xinwei Village, Shuidou, Donghuan 2nd Road, Longhua New District,shenzhen,China
Contact us Serve for you 24 hours !
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
We pride ourselves on not just earning your business, but earning your trust.
OSCAN is yourright choice.
