- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field maintenance and repair service
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:J1900
- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps

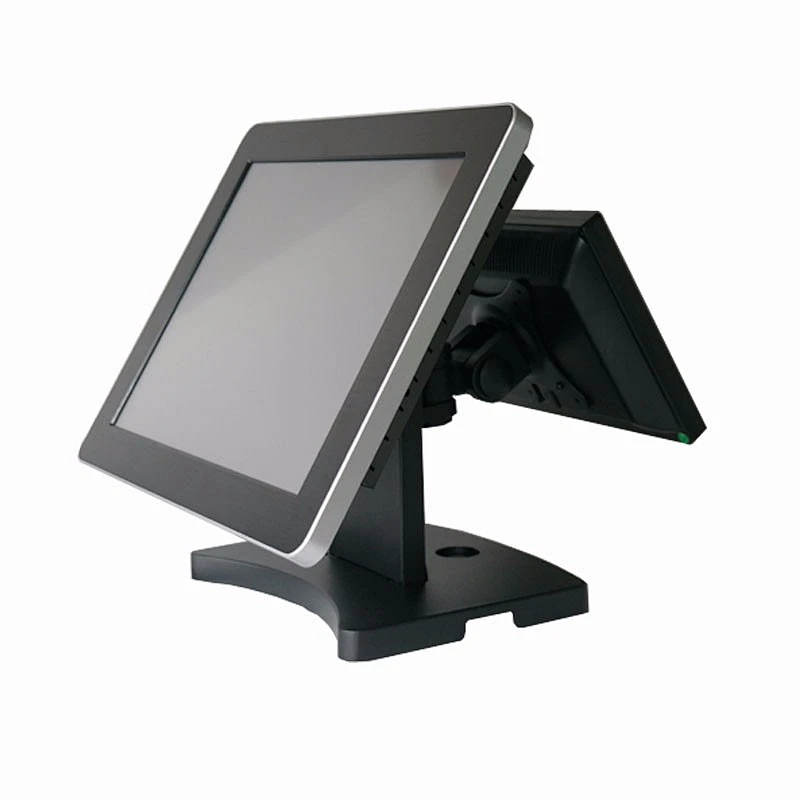

POS 15"display touch screen point of sale Terminal system

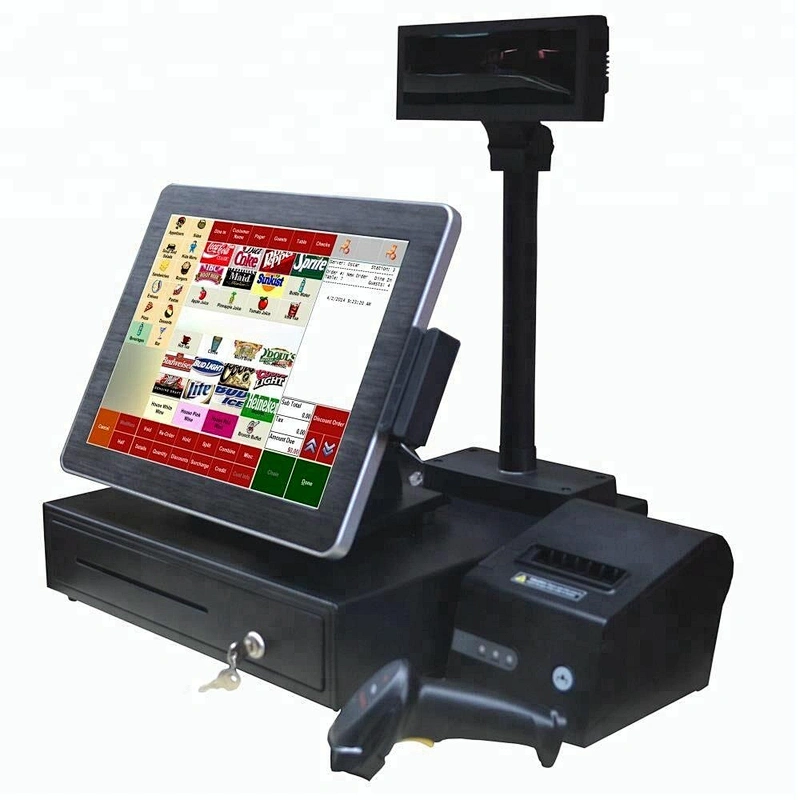

Application:
Restaurant, Bar, Pub, nightclub, coffee shop, bakery, fast food, snack, barbershop, burger store, cafeterias, delivery, fine dining and pizzeria, and etc.
Main Feature:
1.Fanless dual core processor
2.Standard with 5 wire resistive touch screen
3.Standard with 2G memory, 4G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5.Low consumption 6.Long using life
Specification:
15 Inch All in one Touch screen POS terminal | |
Display | 4:3 TFT 15"touch screen |
Touch panel | 5 wire resistive touch |
Main board | Bay trial mother board |
CPU | Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10 |
Memory | 2GB ( 4GB is optional) |
Hard disk | 32G SSD (500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 2* RS232, 4*RS232 optional |
USB port | 4*USB( 3*2.0,1*3.0), 5 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |

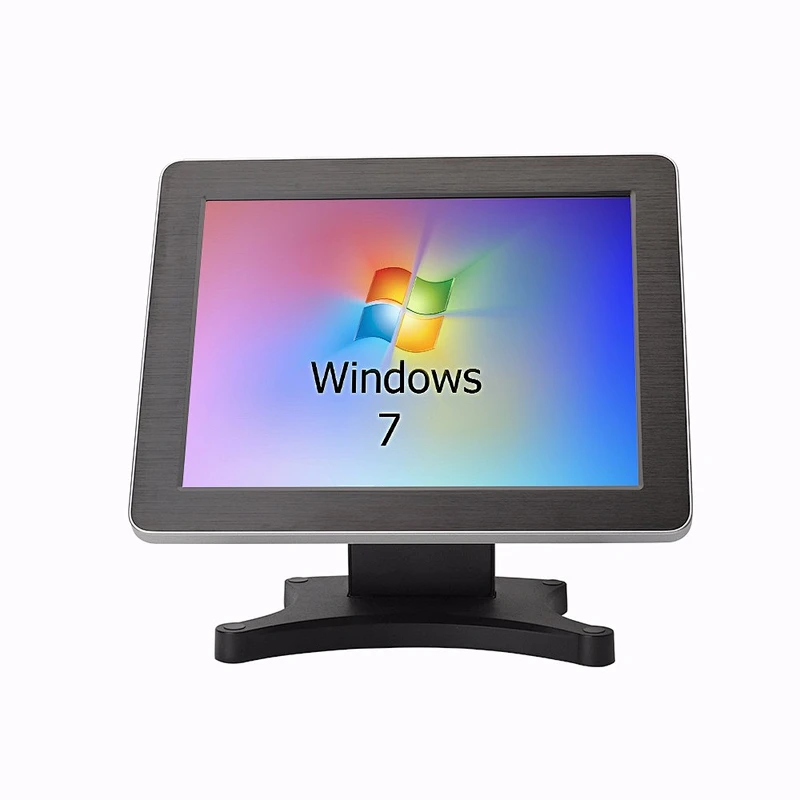

Front: Aluminum Case

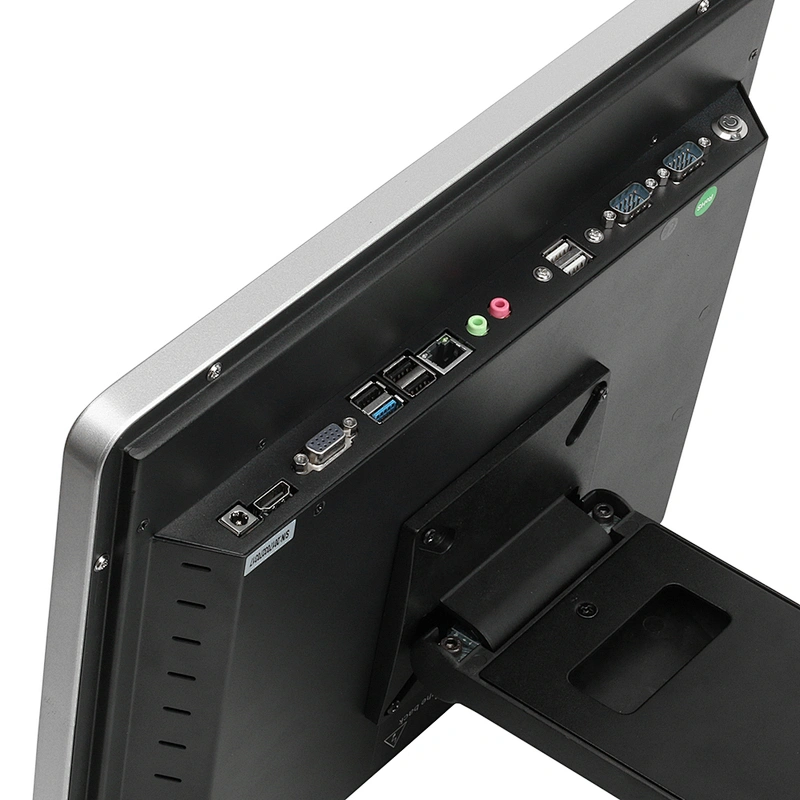

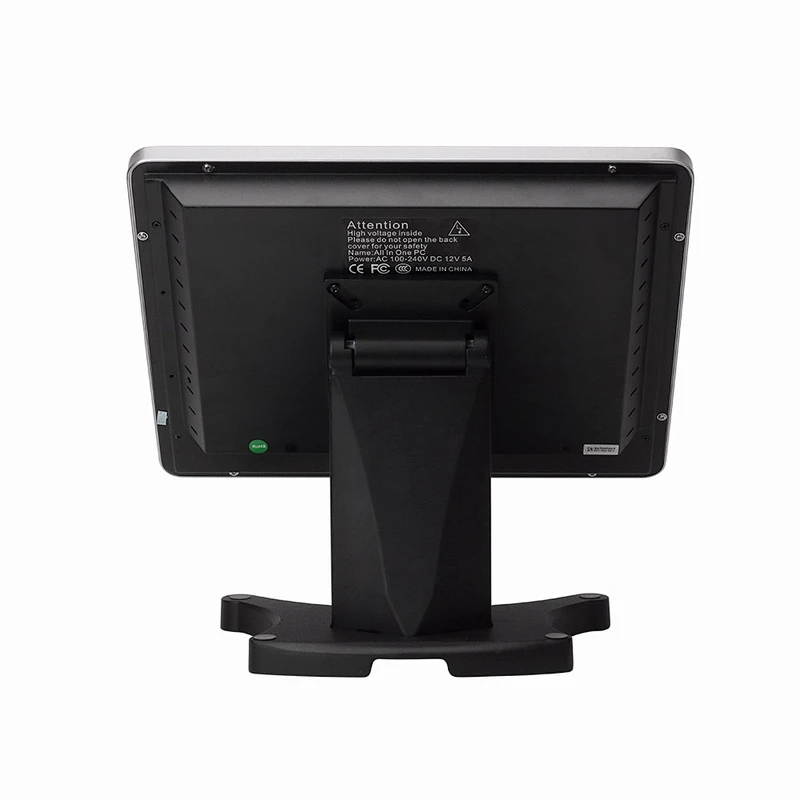

Back:

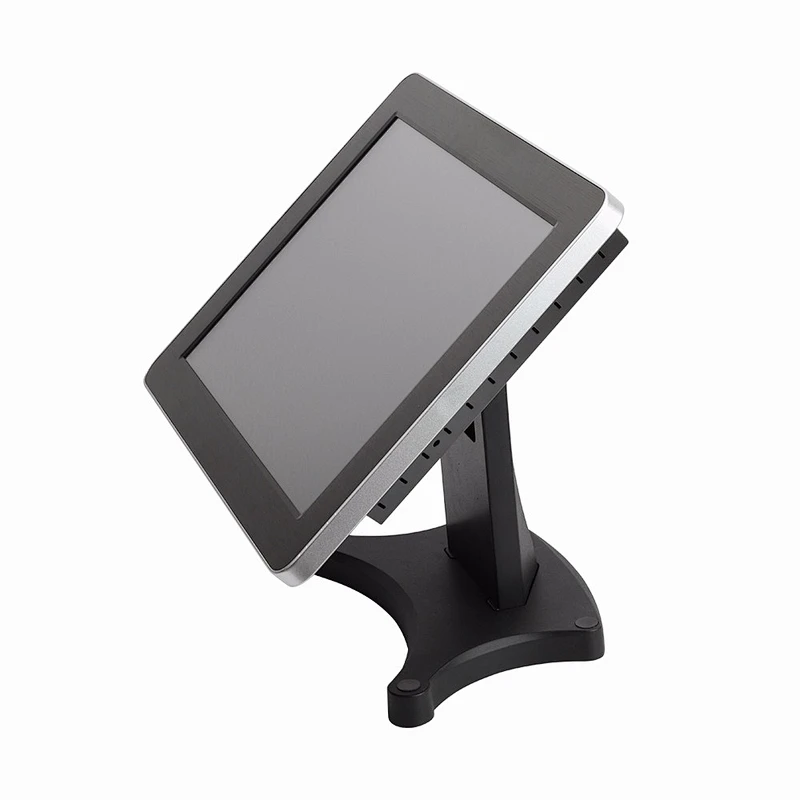

Side:
Why choosing us?
We are holding" Integrity,Innovation,Win together"as company's culture,with our own professional materials and production factories,our R&D,production,management,sales and service teams will try to supply the best quality and competitive price products to our esteemed customers.
What' s your company goal?
We provide ourselves on not just earning your business, but earning your trust.If you're looking for a processor with competitive rates, no long term commitments,no application or setup fee, OSCAN is your choice.
Your satisfaction is our ultimate goal.
How we control quality?
Each part of products is strictly inspected according to quality system cercification before production.
