- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OEM/ODM
- CPU:intel J1900
- Name:15inch touch screen all in one pos system
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- CPU:Intel CeleronJ1800, 2.41GHZ Dual-core,
- Memory:2GB ( 4GB is optional)
- Hard disk:32G SSD (500GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- COM:2* RS232, 4*RS232 optional
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
Product Description
1.Fanless dual core processor (Intel® Celeron®J1800/J1900/i3/i5, 2.41GHz)
2.Standard with Capacitive touch/5 wire resistive touch ( EEIT touch controller)
3. Fully new Mitsubishi Panel
4.Standard with 2G memory, 4G/8G is optional
5.Standard with 32G SSD, 64G/128G SSD or 500GB HDD is optional
6. Low comsuption
7. Long using life
8. Standard with 6* USB ports and 2* COM ports
Model Name | AIO-1500 |
Display Type | 15"Touch screen POS |

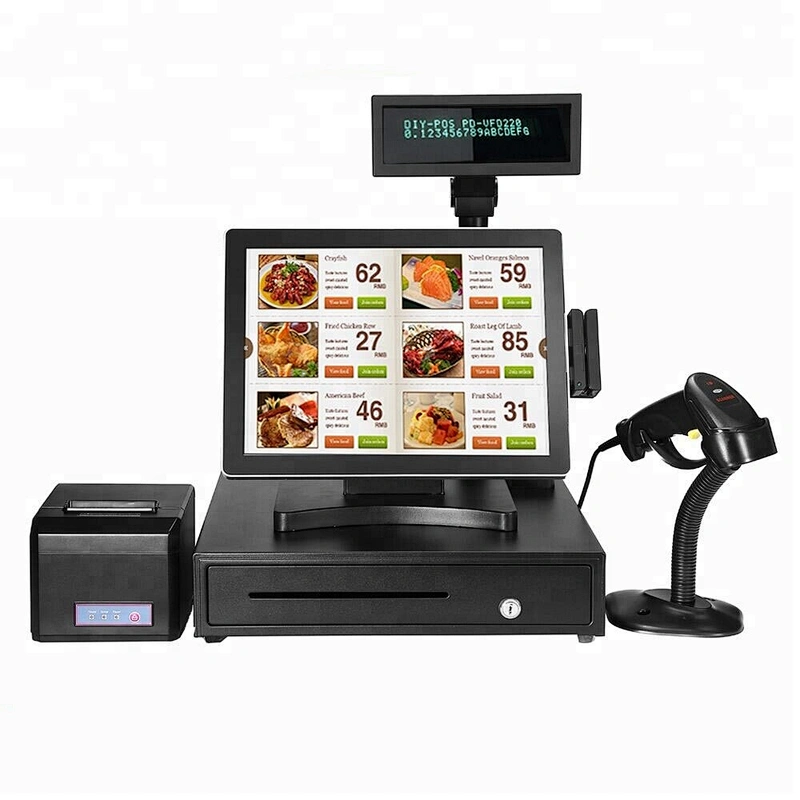

Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) |
Resolution | 1024*768 |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1900, Four core, clock speed 2G HZ,TDP 10W (Core I3/ Core I5 can offer) |
Memory | 2GB ( 4GB,8GB optional) |
Hard disk | 32G SSD (64G SSD or 500GB is optional) |
Touch Panel | Capacitive touch / 5 wire resistive touch |
LCD panel size | 15 inch BRAND NEW TFT LCD |

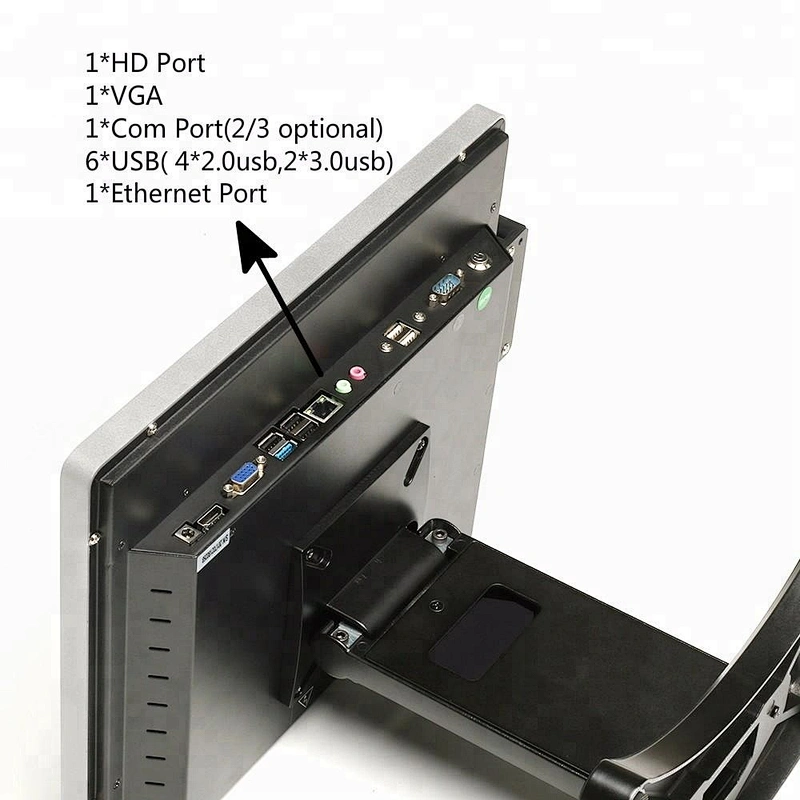

Interface | 1*power button+2*COM ports+1*HD+6*USB(5X2.0, 1X3.0)+1*VGA+1*DC input+1*LAN |
Brightness | 350cd/m2-450cd/m2(TYP.) |
Temperature | Storage: -20~75℃ ; Operating: 0~60℃ |
BIOS | AMI UEFI BIOS |
Voltage | 12V DC 5A |

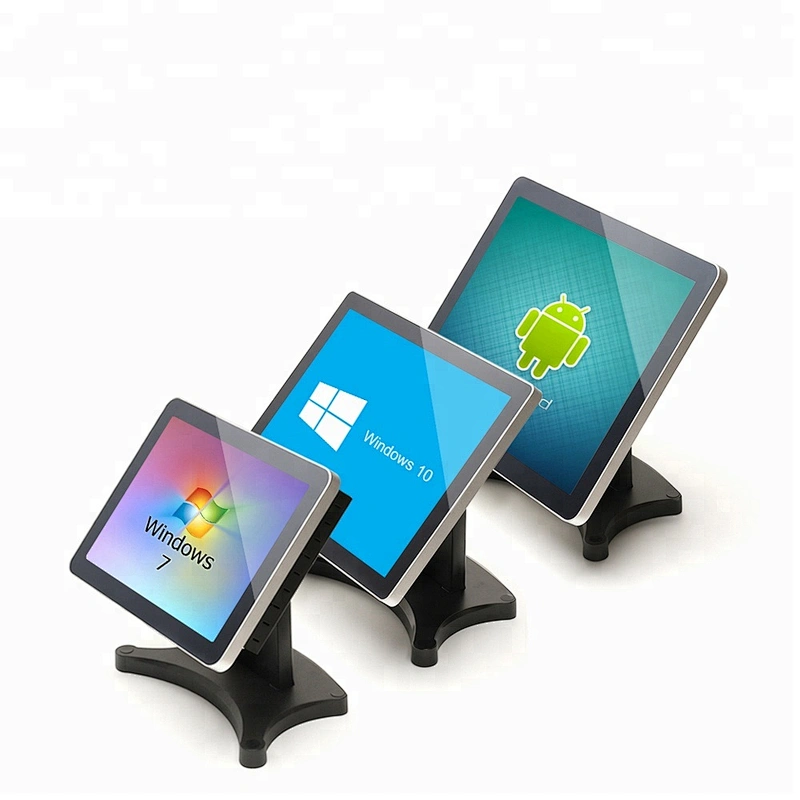

Operation System | Win7/win8/win10/Linux |
