Main Feature:
1.Fanless quad core processor
2.Standard with 5 wire resistive touch screen
3.Standard with 2G memory, 4G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5.Low comsuption
6.Long using life
Specification:

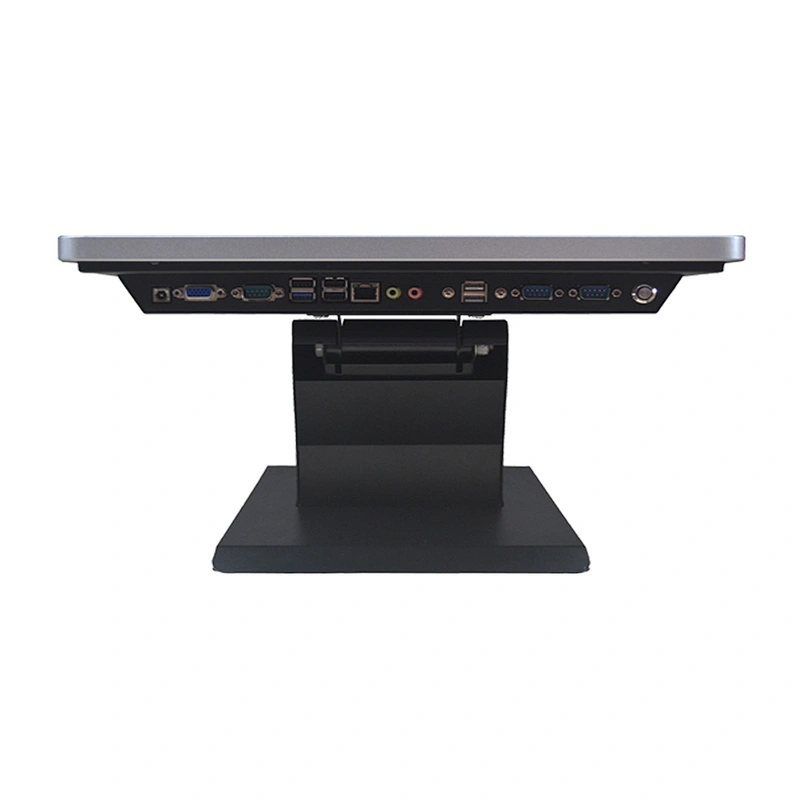

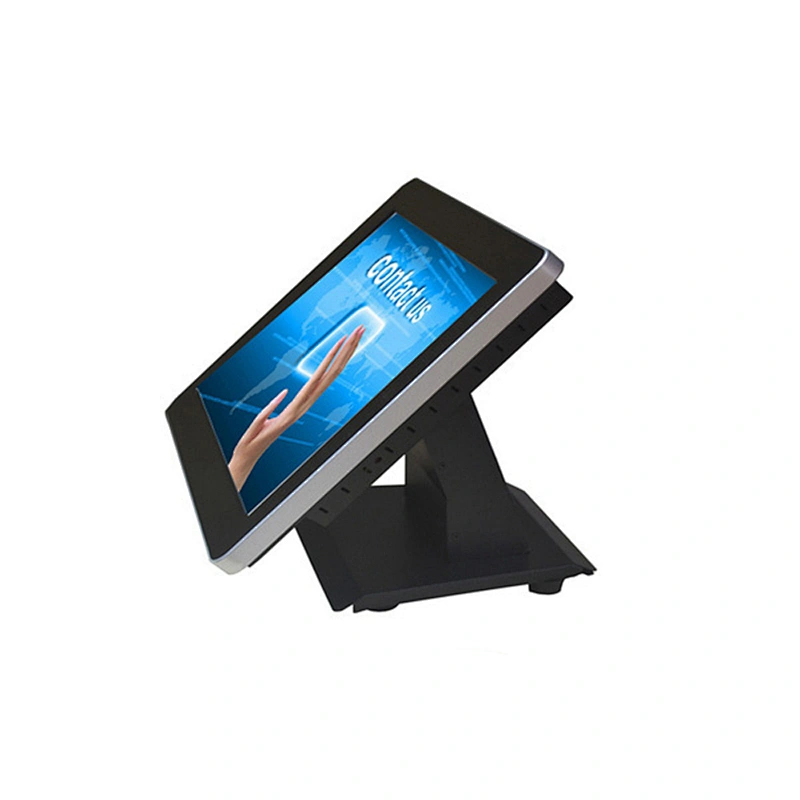

15 Inch All in one Touch screen POS terminal |
Display | 4:3 TFT 15" touch screen |
Touch panel | 5 wire resistive touch |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1900, quad-core, clock speed 1.99G,TDP 10 |
Memory | 2GB ( 4GB is optional) |
Hard disk | 32G SSD (500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 3* RS232, 4*RS232 optional |
USB port | 5*USB( 3*2.0,1*3.0), 6 USB ports is optional |
Main board specification | 2* Mini PCI-E |
1 * SIM Card Slot |
1 * Front Audio |
1 * 12VDC_OUTPower Output Connector |
2 * 12VDC_INPower Input Connector |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |






FAQ
We are Alibaba Assessed Gold Supplier.
Q1. What’s your products range?
-POS system and POS peripherals. Like printer , scanner , cash drawer , customer display , card reader ...ect
-Touch POS Monitors
- CCTV monitors
Q2. Are you a manufacturer?
Yes, our factory located in shenzhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM orders, like printing your logo on the preoducts . And our MOQ=1 pc , so you can take just 1 pc as a sample .
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . we have stock for each style. Sample is about 2 -3 day , Bulk production is 7-15 days . Accoring to your products , pos or monitors .
Q5. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping. And before we shipping the goods to you, we will send the testing picture and package pics to your confirmation .
