- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Brand Name:OSCY
- CPU:J1900
- Place of Origin:Shenzhen, China (Mainland)
- CPU:Intel Celeron J1800, Dual-core, clock speed 2.41G,TDP 10
- USB port:4*USB( 3*2.0,1*3.0), 5 USB ports is optional
- Brand:OEM/ODM
- Memory:2GB ( 4GB is optional)
- Storage:1* SATA 3Gbps+ 1 * mSATA[3]
- Ethernet:1 * RealtekPCI-E NIC RTL8111E for 1000Mbps
- Display:4:3 TFT 15"touch screen
- Touch panel:5 wire resistive touch
- Hard Disk:32G SSD (64G SSD or 500GB is optional)

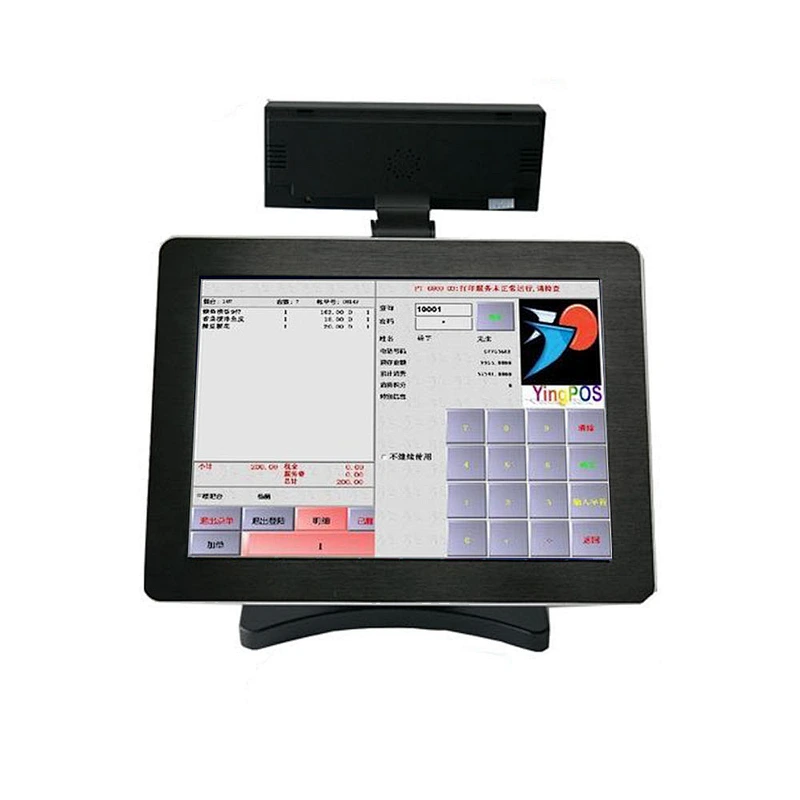

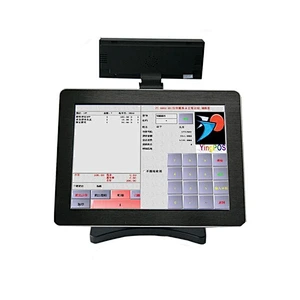

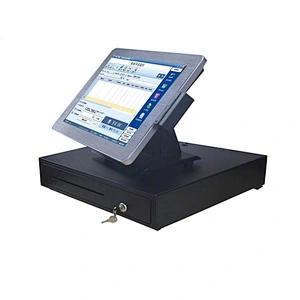

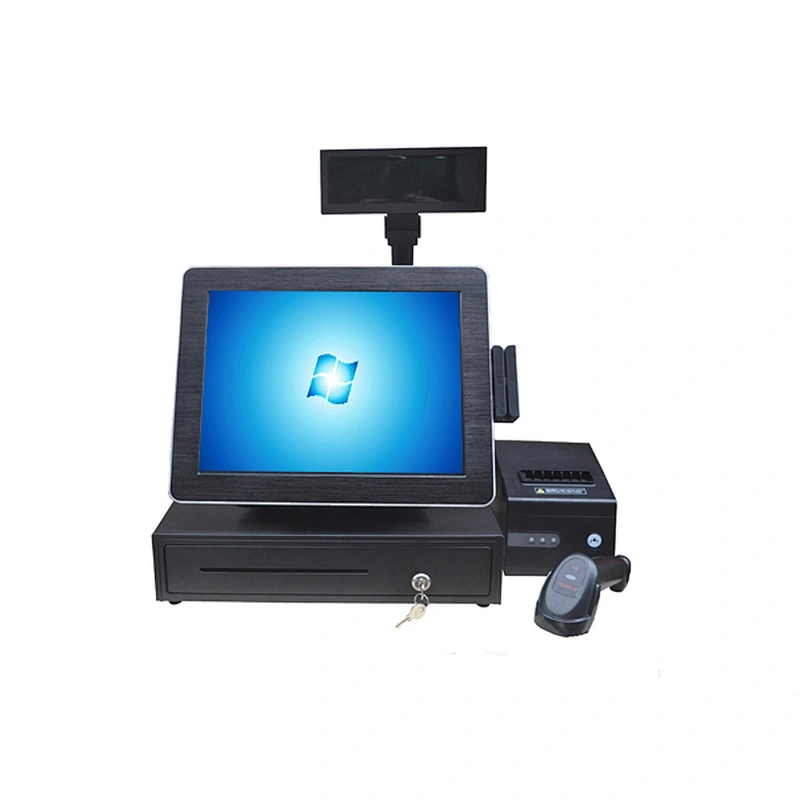

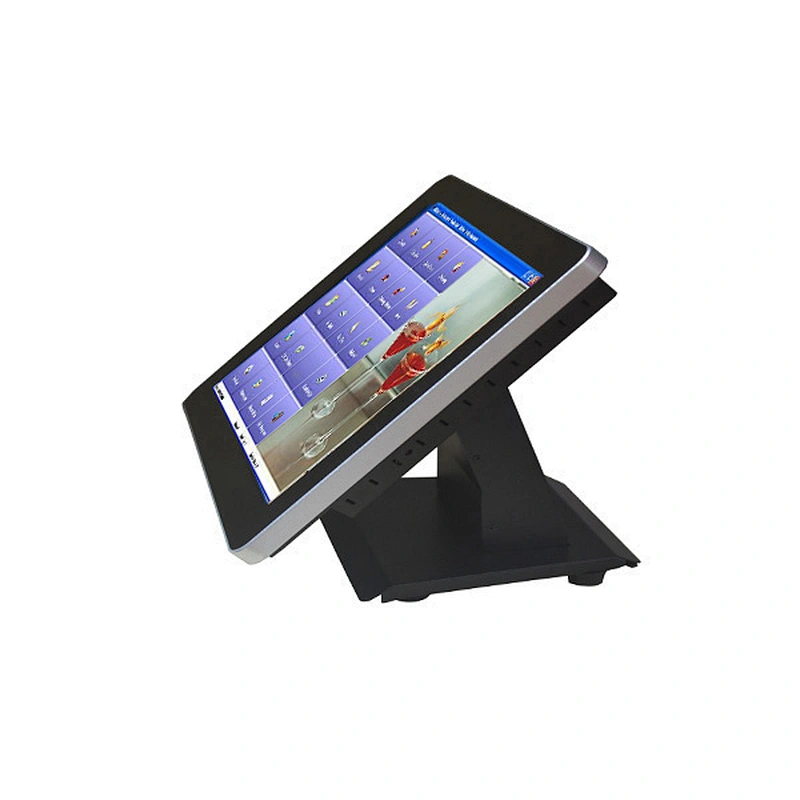

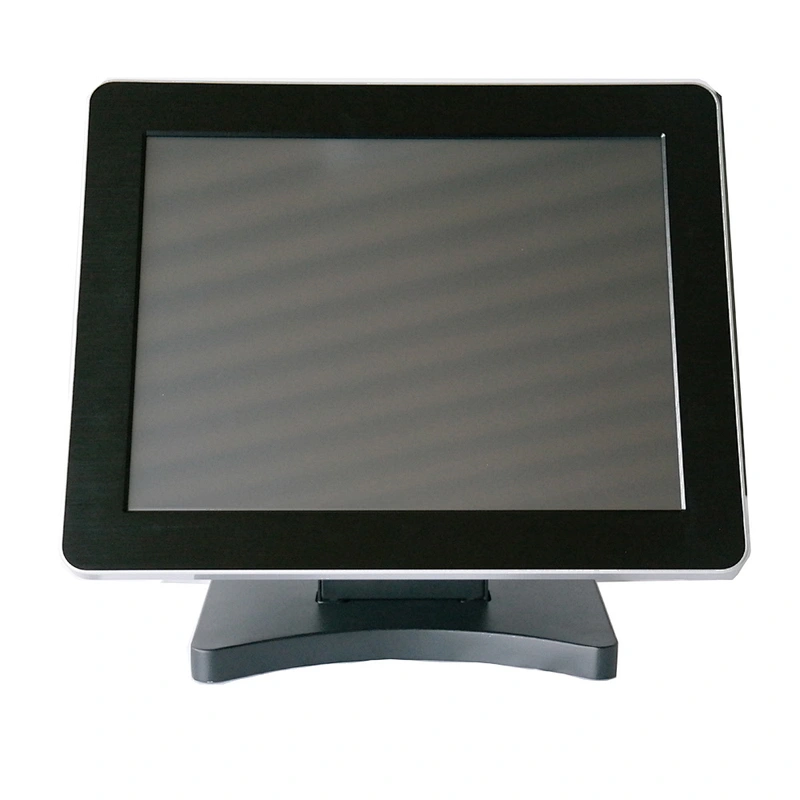

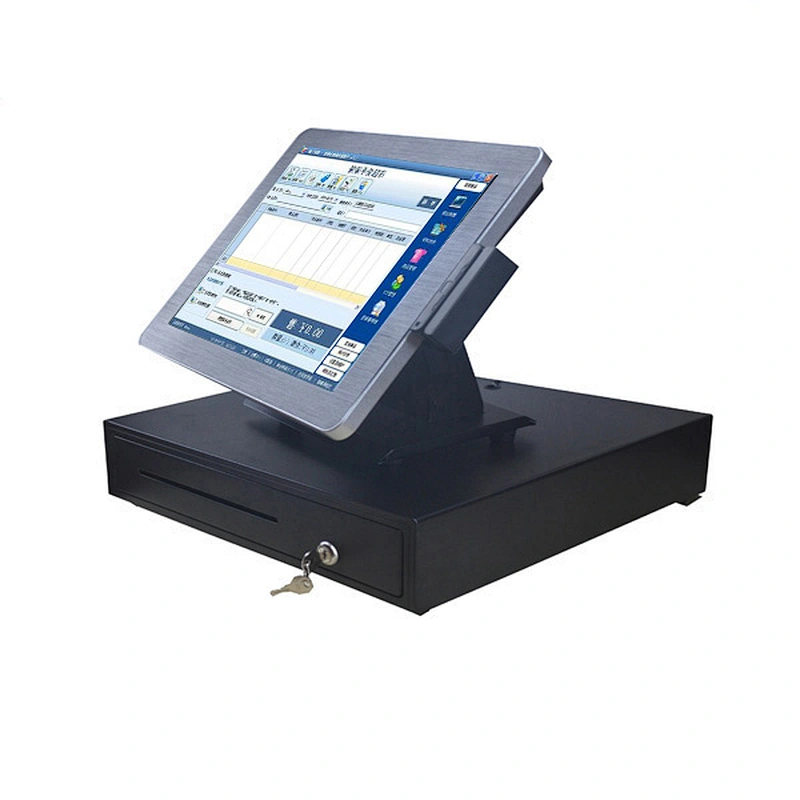

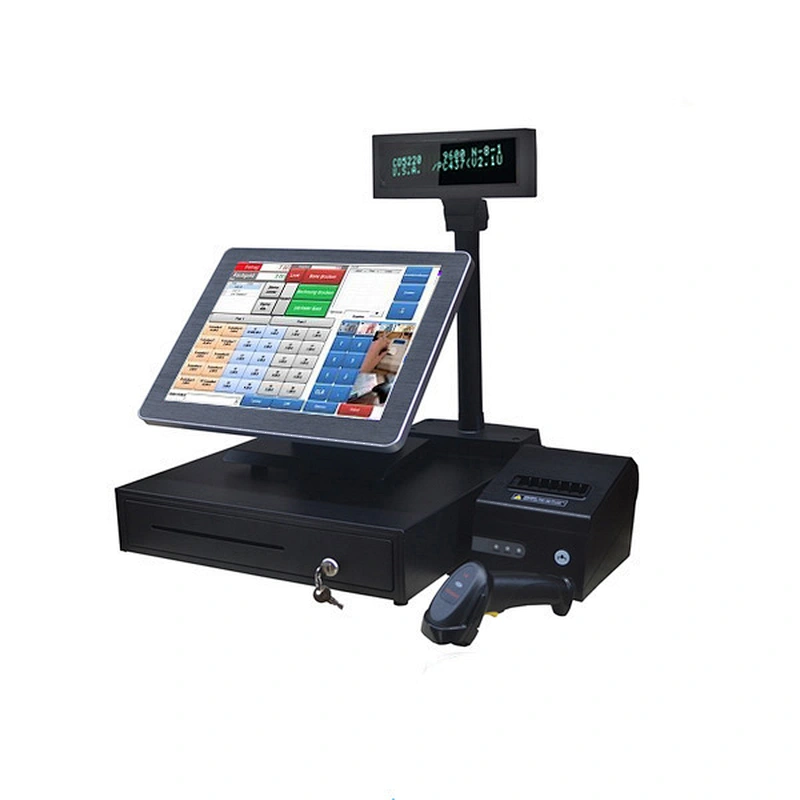

15 inch ALL IN ONE Touch screen POS terminal
Main Feature:
1.Fanless dual core processor
2.Standard with 5 wire resistive touch screen
3.Standard with 2G memory, 4G is optional
4.Standard with 32G SSD, 64G SSD or 500GB HDD is optional
5.Low consumption
6.Long using life
15 Inch All in one Touch screen POS terminal | |
Display | 4:3 TFT 15"touch screen |
Touch panel | 5 wire resistive touch |
Main board | Baytrial mother board |
CPU | Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10 |
Memory | 2GB ( 4GB is optional) |
Hard disk | 32G SSD (500GB is optional) |
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] |
Ethernet | 1 * RealtekPCI-E NIC RTL8111E for 1000Mbps |
Audio | Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports 1 * Amplifier |
COM | 2* RS232, 4*RS232 optional |
USB port | 4*USB( 3*2.0,1*3.0), 5 USB ports is optional |
Main board specification
| 2* Mini PCI-E |
1 * SIM Card Slot | |
1 * Front Audio | |
1 * 12VDC_OUTPower Output Connector | |
2 * 12VDC_INPower Input Connector | |
Voltage | 12V DV 5A |
Storage Temperature | -20~75℃ |
Operating Temperature | 0~60℃ |
| Company Name |
Shenzhen OSCAN ELECTRONICS CO.,LTD
|
| Property |
Factory
|
| Main Product |
1. ALL IN ONE POS terminal 2. POS Peripherals products 3. CCTV/VGA/HD Monitor 4. Touch Screen Monitor
|
| Profile |
Oscan is a factory which have 10 years experience at manufacture We hold "Integrity,Innovation,double-win" as our mission. We want not only be your supplier, but your long-relationship partner. If you're looking for a processor with competitive rates, we have mature experiences to product the high quality but low price products . Please choose us ,give a chance for you and me .
|
