- Place of Origin:CN;GUA
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- Warranty:1 YEAR
- Touch Screen Type:Capacitive Screen
- Brand Name:OSCY
- Operation System:windwows
- CPU:Intel celeron J1900
- Hard Disk Capacity:32G SSD
- Product Name:15 inch all in one capacitive touch screen POS system/POS/POS machine
- CPU:Intel Celeron J1900, Dual-core, clock speed 2.41G,TDP 10
- Touch panel:10 points capacitive touch
- LED Screen:Industrial leval LED screen
- Memory:2 GB (4GB/8GB is optional)
- Hard disk:32G SSD (64G SSD128G or 500GB is optional)
- USB port:5*USB( 3*2.0,1*3.0), 6 *USB ports is optional
- Brand Name:OSCY
- Display:4:3 TFT 15"touch screen
- Mian feature:True Flat
Product Description
15 inch all in one touch screen POS system/POS/POS machine
15 inch all in one touch screen POS terminal | ||||||
Display Type | 15"Touch screen POS | |||||
Main board | Baytrial mother board | |||||
CPU | Intel® Celeron®J1900, Four-core, clock speed 2.0GHz,TDP 10W / I3 /I5 is optional | |||||
Memory | 2GB ( 4GB or 8GB is optional) | |||||
Hard disk | 32G SSD (64G SSD 128G SSD 256G SSD or 500GB is optional) | |||||
Touch Panel | 10 points capacitance touch | |||||
LCD panel size | 15 inch BRAND NEW TFT LCD | |||||
Resolution | 1024*768 | |||||

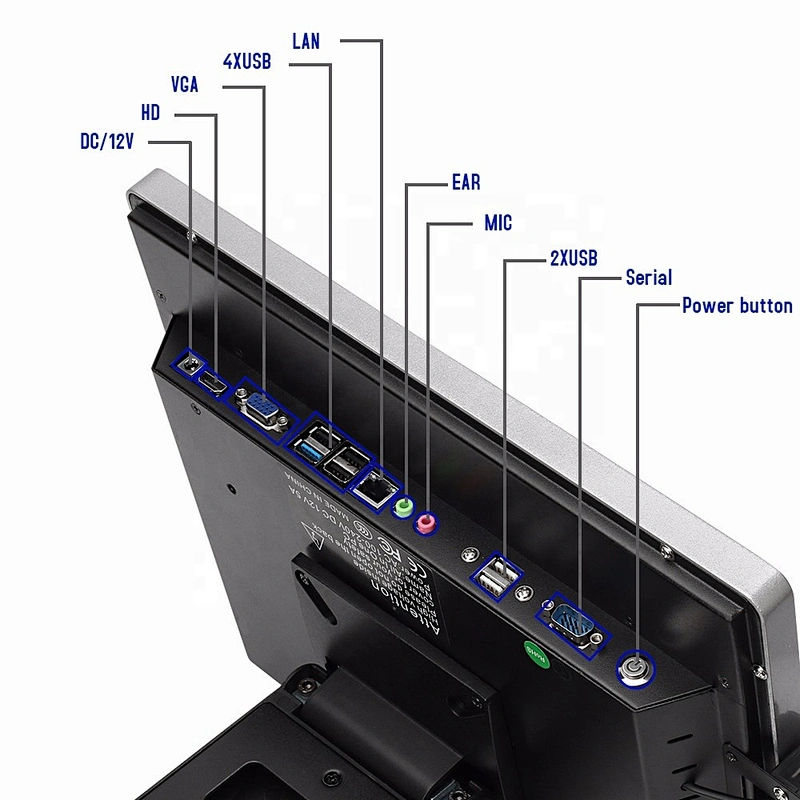

DC+HD+VGA+1xCOM+6xUSB+LAN | ||||||
DC+HD+VGA+2xCOM+4xUSB+LAN | ||||||
DC+HD+VGA+3xCOM+4xUSB+LAN | ||||||
DC+HD+VGA+1xCOM+4xUSB+RJ11+LAN | ||||||
Storage | 1* SATA 3Gbps+ 1 * mSATA[3] | |||||
Other Parts | USB: 1 * Rear I/O(USB3.0/USB2.0) + 3 * Rear I/O(USB2.0) + 2 * Header(USB2.0) + 1 * Header/Mini PCI-E(USB2.0) | |||||
Main Board Specification | 8 * GPIO | |||||
1 * Parallel Pin Header | ||||||
1 * PS/2 Pin Header | ||||||
2* Mini PCI-E | ||||||
1 * SIM Card Slot | ||||||
1 * Front Audio | ||||||
1 * 12VDC_OUTPower Output Connector | ||||||
2 * 12VDC_INPower Input Connector | ||||||
Temperature | Storage: -20~75℃ Operating: 0~60℃ | |||||
VESA Mounts | 75*75mm or 100*100mm | |||||
Certificates | CE or RoHS | |||||
Ture-flat screen is support too 12 15 17 inch
3 or 4 COM ports optional

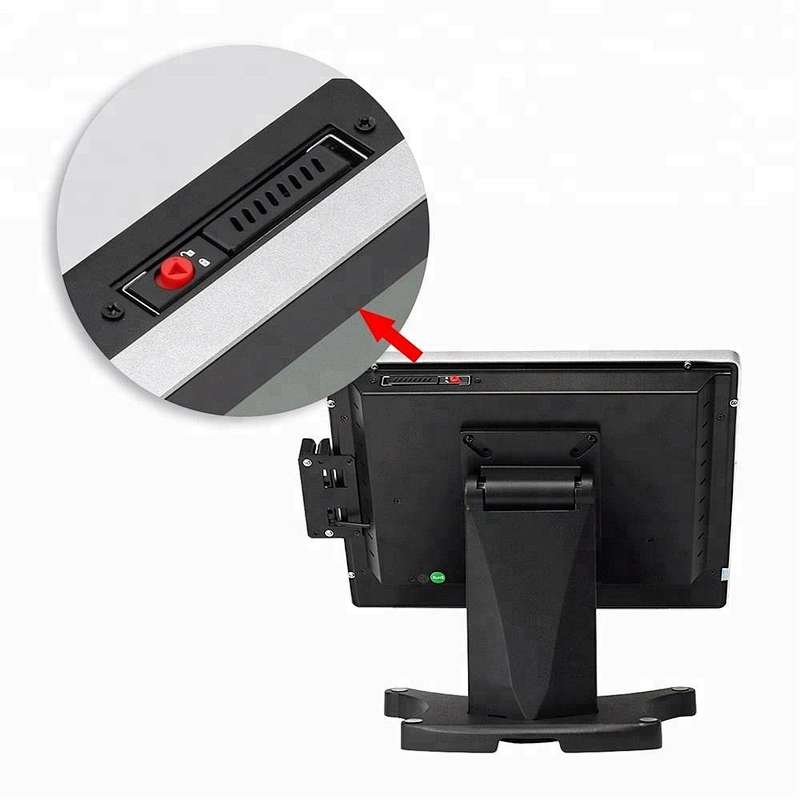

Removeable hardisk optional
ibutton:
Testing
Windows and Android OS both support
Our Company
Customer feedback
Packing & Delivery
Package
2 pcs per carton
individual box for each pcs
Carton weight : 13.5 KGs
Carton size : 53*40*44cm
Delivery
3-5 day for sample order
Mass order will be deliveried within 10 days or 1 month , details will according to your order
It's flexible no matter if you have forwarder in China or not , we can ship for you , or we can ship the product to your ship agent .
