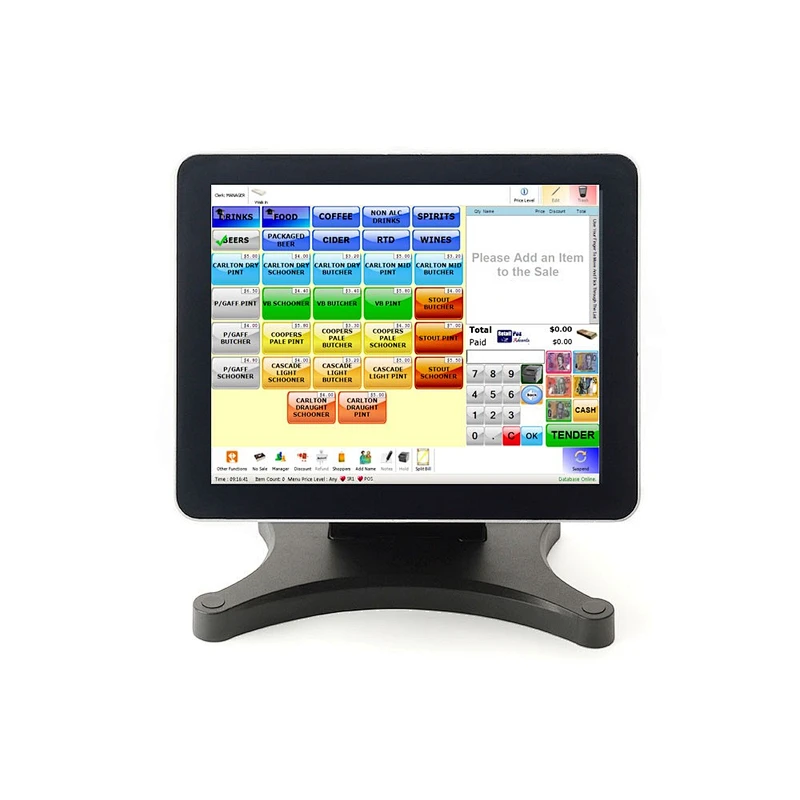

12 inch all in one touch screen POS terminal | | | |
Display Type | 4:3 Ratio 12"Active Matrix TFT LED | | |
Panel: | Samsung Panel | | |
Backlight | LED backlight | | |
Touch Panel: | 10 points capactive touch | | |
Main Board | Baytrial mother board | | |
CPU | Industrial grade Intel® Celeron®J1900, 2.0GHz (i3/i5 is optional) | | |
Memory | DDR3 2G (4G/8G is optional) | | |
Hard disk | 32G SSD /64G SSD/128G SSD /500G HDD | | |

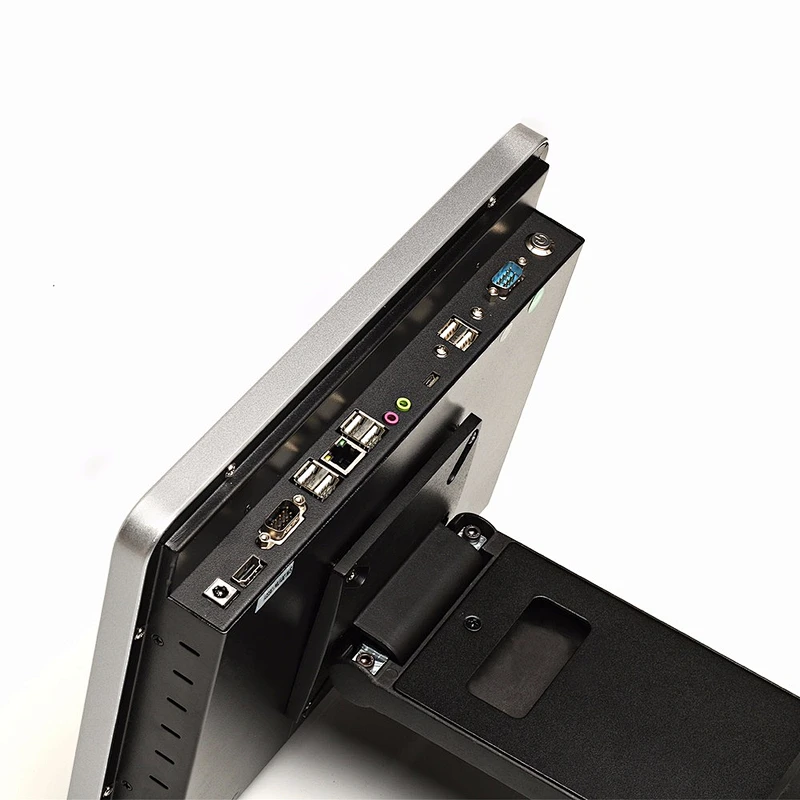

Input | HD+VGA+RS232+6USB+RJ45 2 rs232 or 3 RS232 is optional | | |
Ethernet | 1*RealtekPCI-E NIC RTL8111E for 1000Mbps | | |
Resolition | 1024*768 | | |
Brightness | 300cd/m2 | | |
| 2* Mini PCI-E | | |
| 1* SIM Card Slot | | |
| 1* Front Audio | | |
| 2* 12V DC _ OUT Power Output Connector | | |
| 2* 12V DC _ IN Power Input Connector | | |
Voltage | 12V DC 5A | | |
Operation System | Windows 7 8 10 / linux/POS ready / Android 4.4 /5.1/6.0 | | |
Storage Temperature | -20~75℃ | | |
Operate Temperature | 0~60℃ | | |
