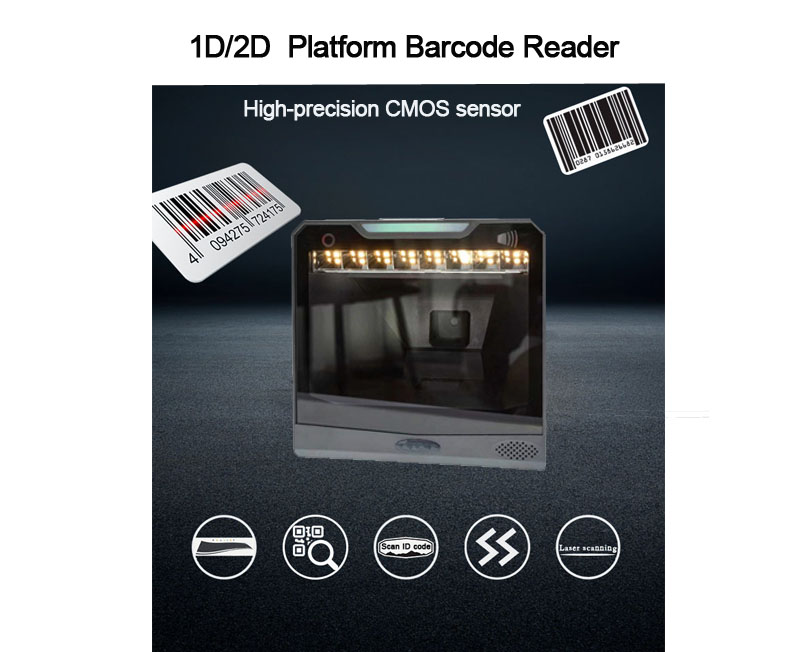

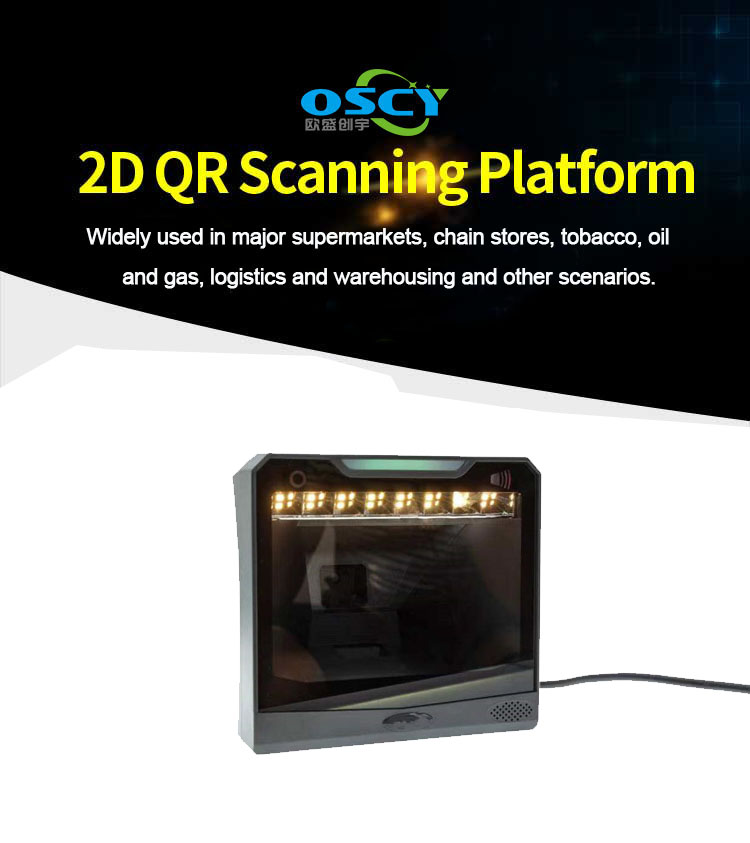

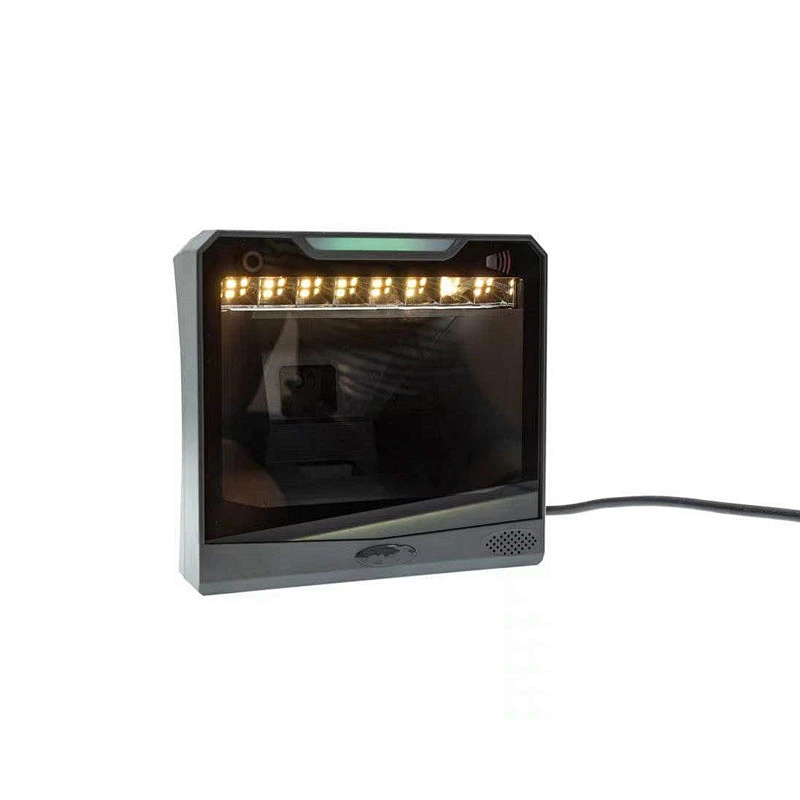

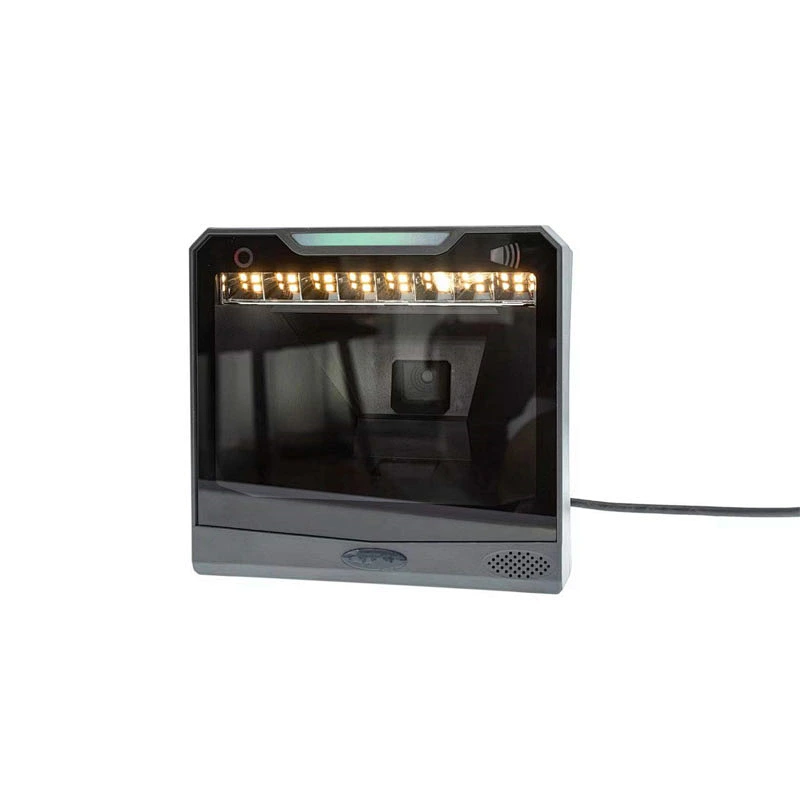

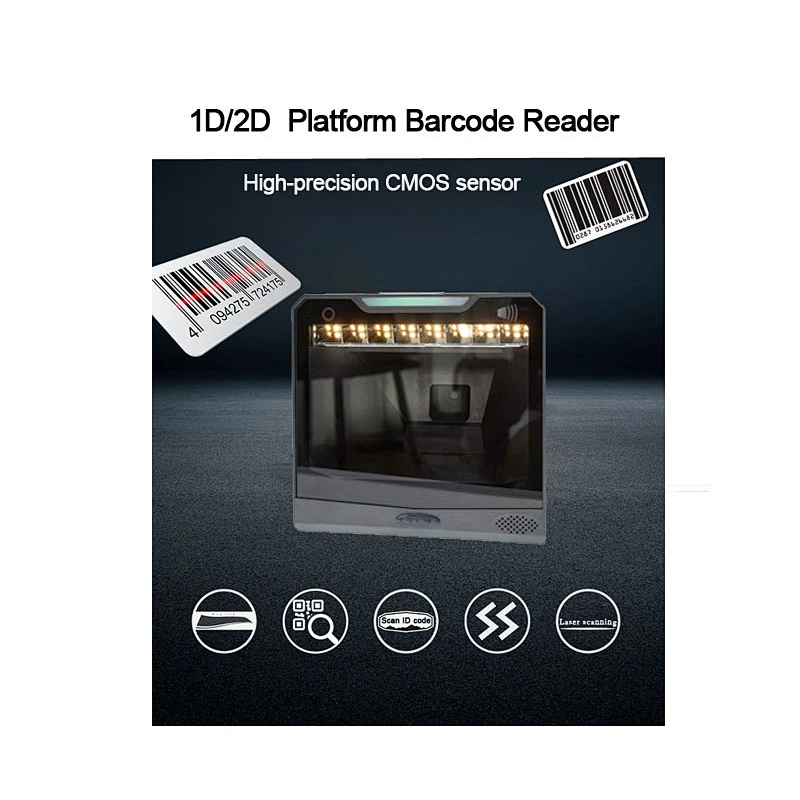

Fashion design 2D QR scanning platform fast scan barcode scanner

Fashion design 2D QR scanning platform fast scan barcode scanner

Model NO.: OBC-4600S
Minimum order quantity: 1 piece

Quantity:

Product Description

Private Mold:Yes
Products Status:Stock
Type:Barcode Scanner
Scan Element Type:CMOS
Colour Depth:32 Bit
Interface Type:usb
Max Paper Size:a4
Optical Resolution:1280 pixels (H)x 1024 pixels (V)
Scan Speed:camera speed up to 120 frames per second
Brand Name:OSCY
Place of Origin:Guangdong, China
Warranty(Year):1-Year
After-sales Service:Others, Repair, Free spare parts, Onsite Training and Inspection
Software development kit (SDK):Yes
Product Name:2d barcode scanner pdf417
Lighting source:Warm Yellow LED
Resolution:4mil
Interface:USB
Size:151mm x 142mm x84mm
Weight:437g
Voltage:5V
Scan type:1D/2D/QR
Image Sensor:COMS
Symbologies:1D/2D/PDF417/QR CODE

Physical Characteristics
Dimensions:151mm x 142mm x84mm
Weight:437g
Voltage:5V
Stand-by Current:220mA
Performance Characteristics
Image (Pixels):1280 pixels (H)x 1024 pixels (V)
Light Source:Warm Yellow LED
Field of View:44°(H) , 34°(V)
Roll / Pitch / Yaw:360°, ±65° , ±65°
Starting Current:470mA
Work Current:456mA
Print Contrast:20% minimum reflective difference
Interfaces Supported:USB
Motion Tolerances:>0.4m/s

Symbology Decode Capability
1-D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,

UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post
2-D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.

User Environment
Operating Temperature:-20°C to 60°C Storage Temperature:-30°C to 70°C
Humidity:5% to 95% relative hum idity,non-condensing
Shock Specifications:8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes(withstand a 70cm tipping test)
Ambient Light Immunity:0-100,000 Lux.

Decode Ranges
Code39(4mil):0mm-70mm
Code39(5mil):0mm-100mm
Code39(13mil):0mm-240mm

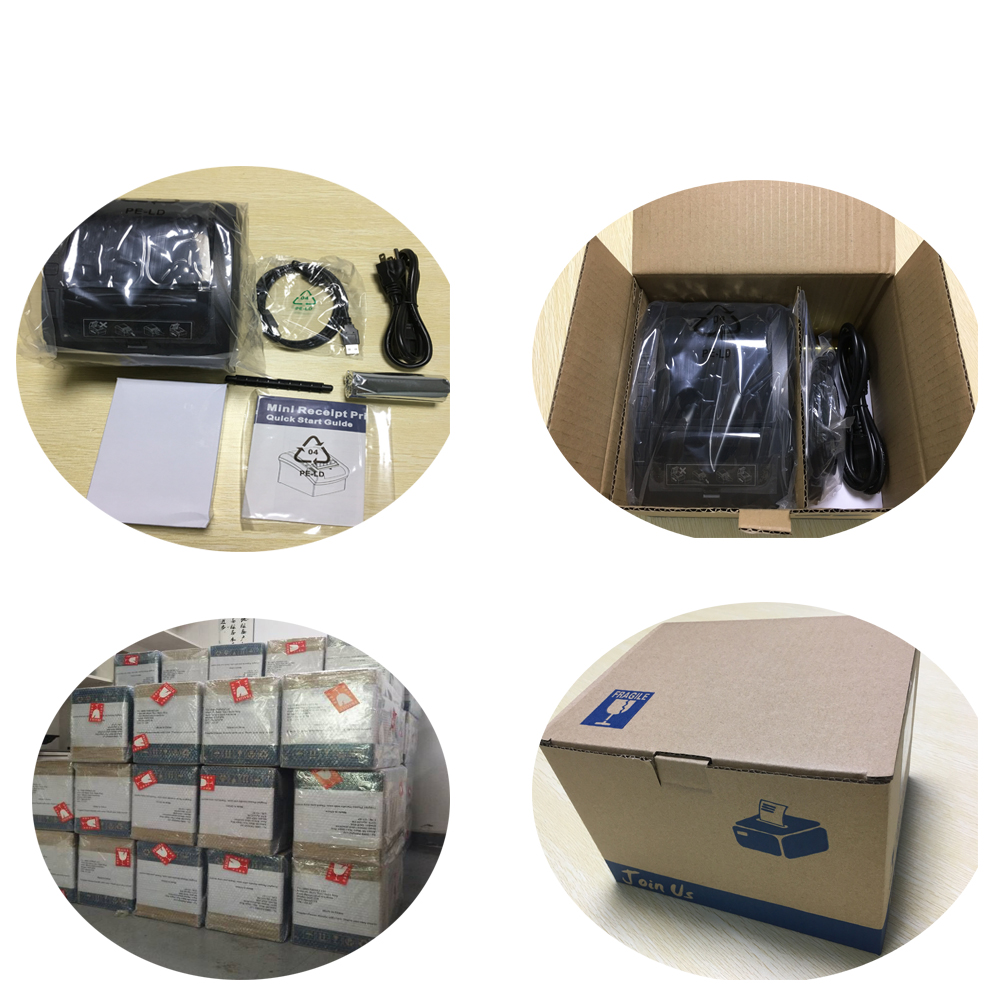

* Standard List: Desktop Scanner*1, Cable *1,Manual *1, Box *1.

* Single Package Size: 183*120*83mm
* Single Gross Weight: 0.45kg
* 30pcs/CTN Carton Size: 438*380*380mm
* 30pcs/CTN Carton G.W.: 15Kg, N.W:13.5Kg

Q1.Are you a manufacturer?
A: Yes,we are a verified manufacturerof POS system and touch screen monitor and pos peripherals.

Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements.
Such as package box design, monitors size, logo printer, required specification(WIFI/BT/

Ibutton...etc)

Q3. What about minimum order quantity?
A:MOQ=1, since we have all materials in stock.

Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test.
Sample with faster lead time 1-3 days . The bulk production only need 5-7 days according to quantity

and color request.

Q5. What’s your payment terms?
A: Bank transfer, Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect

Credit card .

Q6. How long is the warranty period?
A: 1-2 Years.

Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment ;
2. we also accept the inspection by the third part you appointed;
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.

Q8.How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.
