- Private Mold:Yes
- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:CMOS
- Colour Depth:32 Bit
- Interface Type:usb
- Max Paper Size:a4
- Optical Resolution:640 pixels (H)x480 pixels (V)
- Brand Name:OSCY
- Place of Origin:Guangdong, China
- Warranty(Year):1-Year
- After-sales Service:Free spare parts, Call Center and on-line Technical Support
- Software development kit (SDK):NO
- color:Black+Yellow
- Product name:2D Wired Barcode Scanner
- Application:Store
- Interface:USB2.0
- Color:Black+Yellow
- Dimension:160mm x 64mmx 97mm
- Weight:140.5
- Scan Mode:Command Mode
- Decode Capabilities:1D + 2D + QR Code
- Material:ABS
- Resolution:4mil
Products Description

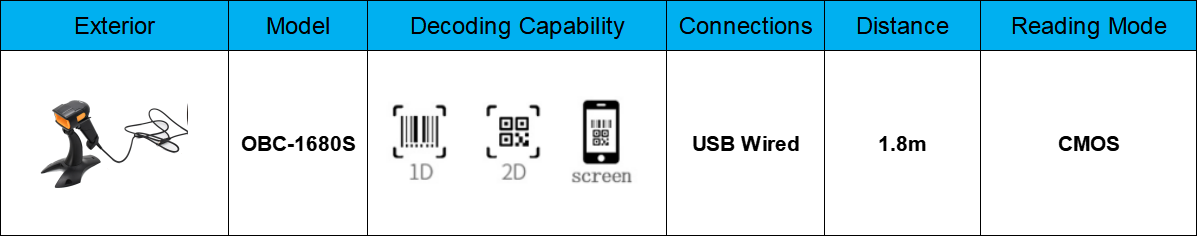

Specification

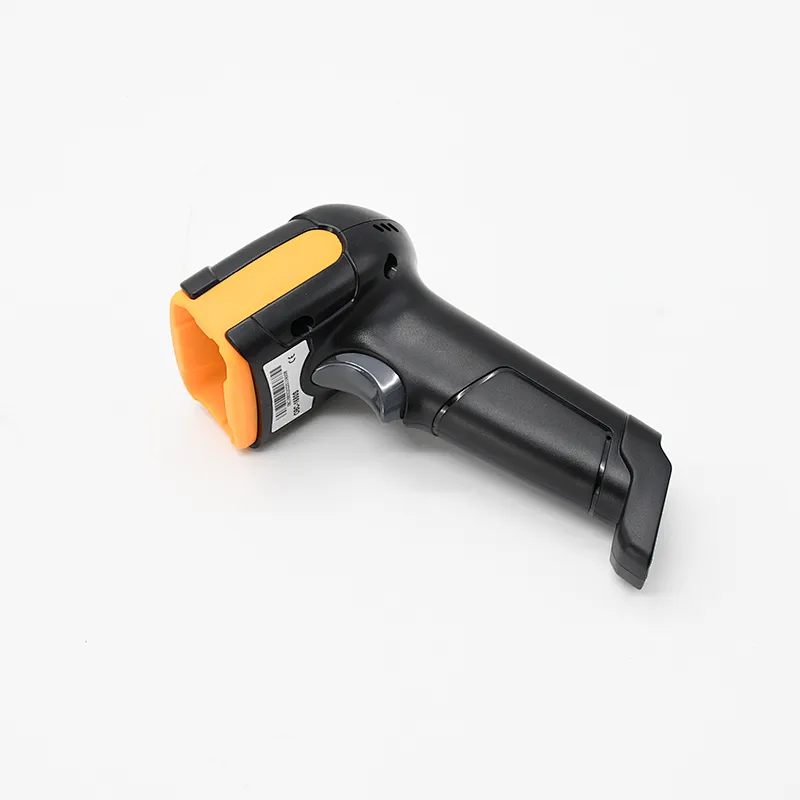

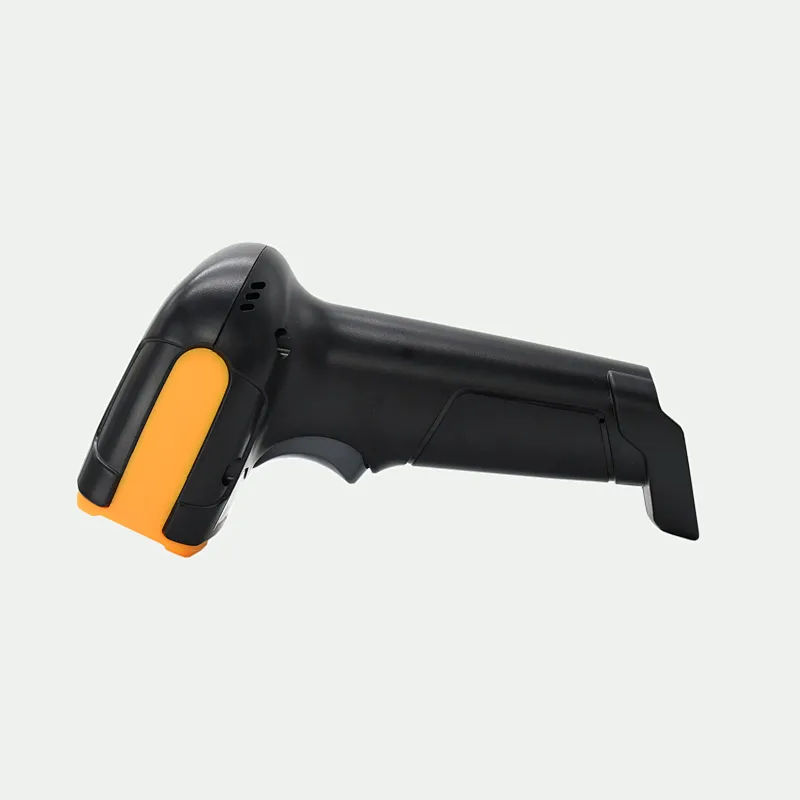

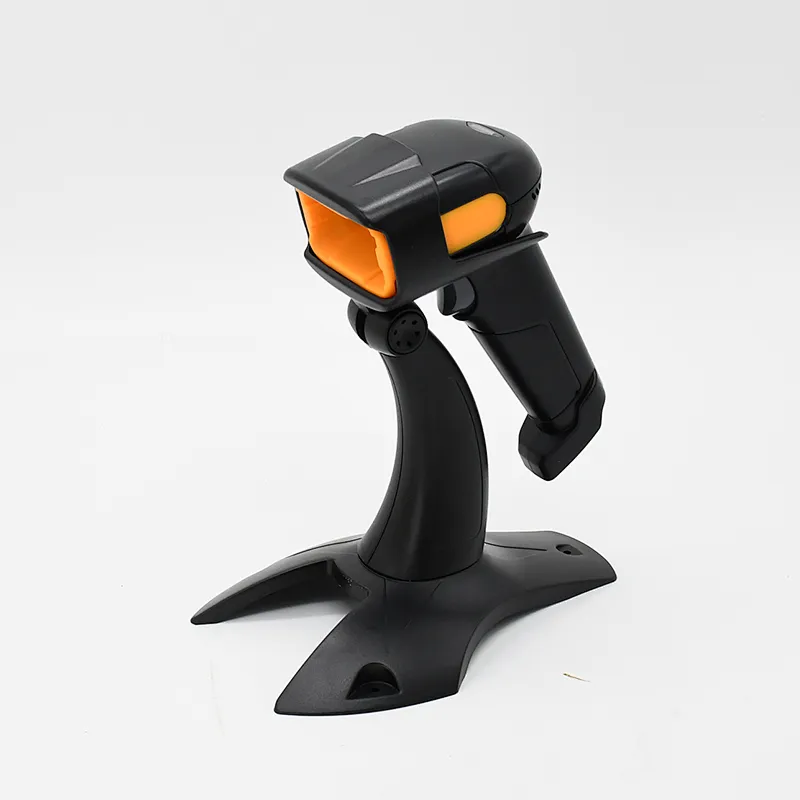

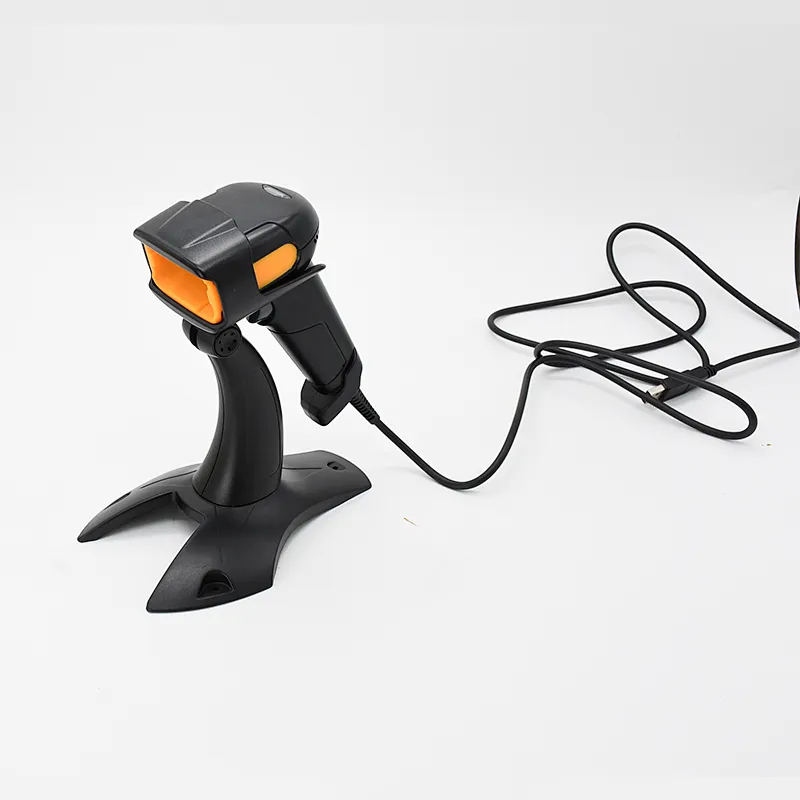

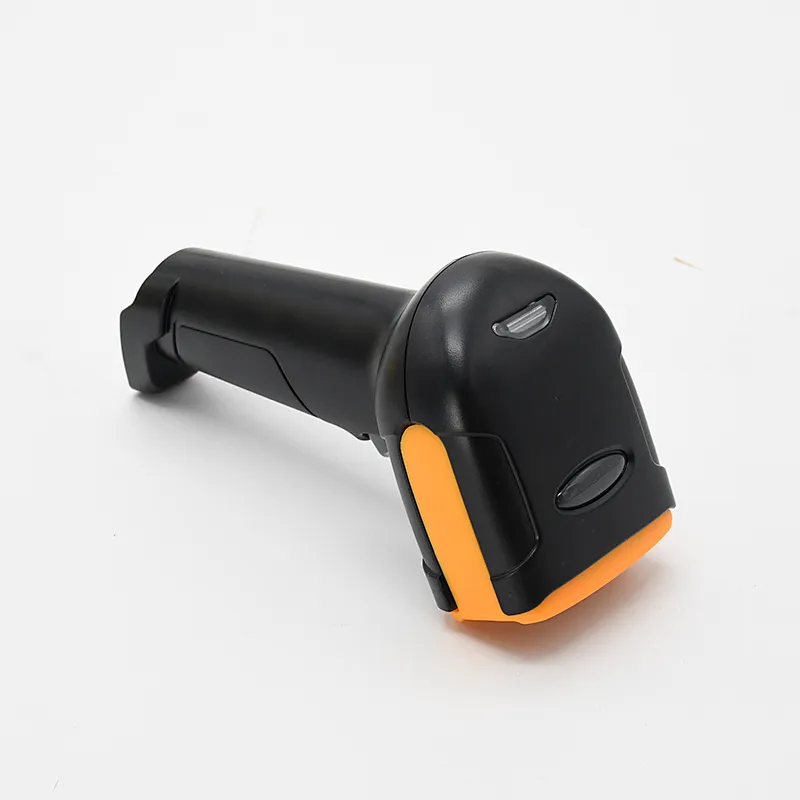

Fast Scanner Barcode QR Code Scanner 1d 2d Qr Code Usb Wired Handheld Bar Code Reader
Features:
1.Easy for E-pay barcode reading.
1.Easy for E-pay barcode reading.
2.Much more smoothly to read the screen barcode either 1D and 2D. Support Alipay and Wechat.

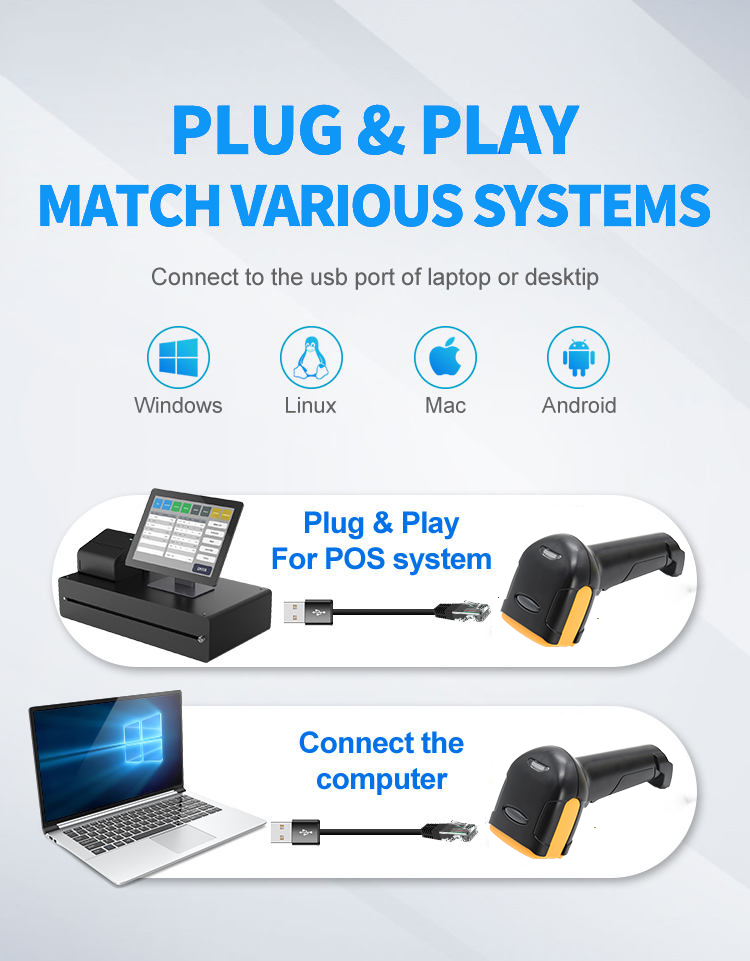

3.Short power up, hot-plug
4.Widely used in the areas of retail, hospital, logistics, and manufacture…
5.Support full code system, 1.5m anti-drop, key life more than 100w times.

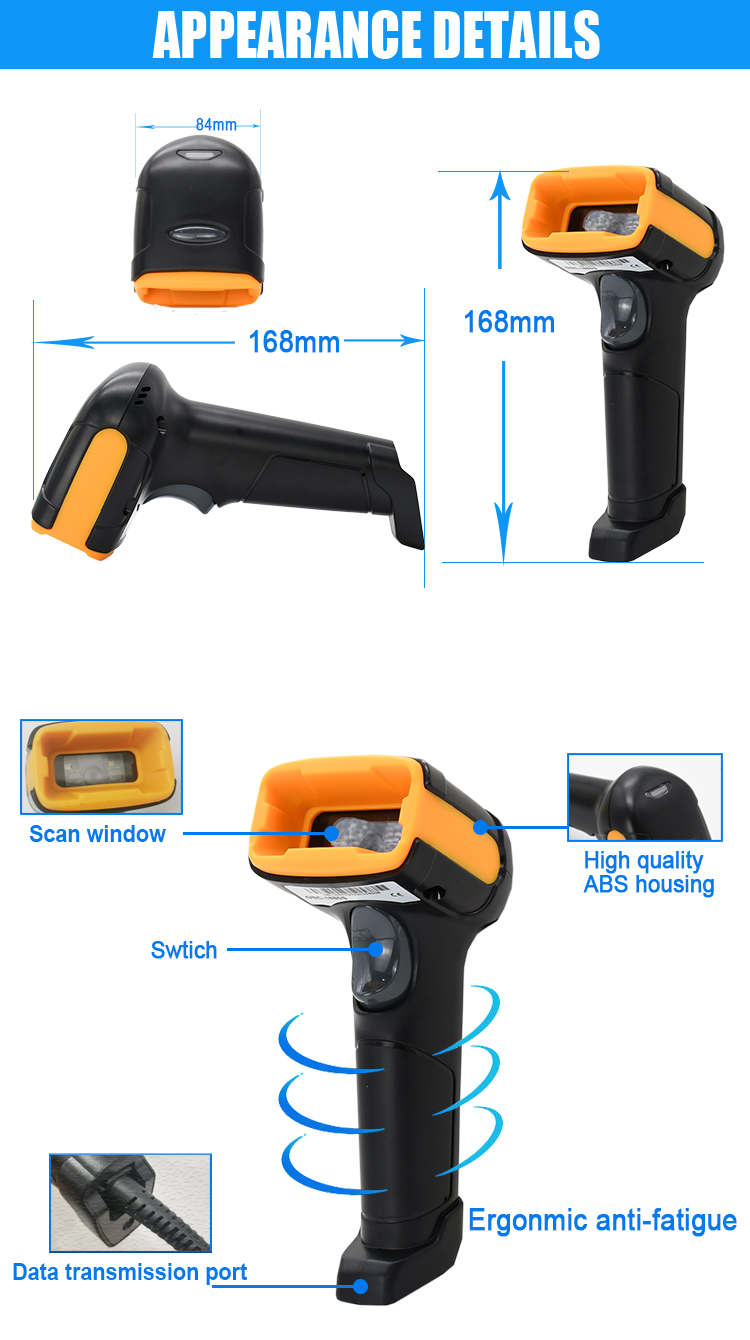

Physical Characteristics | ||
Dimensions | 160mm x 64mmx 97mm | |
Weight | 140.5g | |
Voltage | 5±5%V | |
Starting Current | 160mA | |
Stand-by Current | 120mA | |
Work Current | 330mA | |
Performance Characteristics | ||
Image (Pixels) | 640 pixels (H)x480 pixels (V) | |
Light Source | (Aimer) Red color LED; (Illumination) White color | |
Roll / Pitch / Yaw | 360°(Roll), ±65°(Skew) , ±65°(Pitch) | |
Print Contrast | 20% minimum reflective difference | |
Interfaces Supported | USB | |
Motion Tolerances | >0.4m/s | |
Symbology Decode Capability | ||
1-D | Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IATA，Matrix 2 of 5，Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended | |
2-D | Codeblock A,Codeblock F,PDF417,Micro PDF417,GS1 Composite Codes,TLC39,QR Code,Data Matrix,MaxiCode,Aztec,HANXIN | |
Minimum Resolution | ≥4mil | |
User Environment | ||
Operating Temperature | -20°C to 60°C | |
Storage Temperature | -30°C to 70°C | |
Humidity | 5% to 95% relative hum idity,non-condensing | |
Shock Specifications | Designed to withstand 1.2m(5’) drops | |
Ambient Light Immunity | 0-100,000 Lux. | |
Decode Ranges | ||
5 mil (code39) | 20mm-120mm | |
13 mil (code39) | 30mm-270mm | |

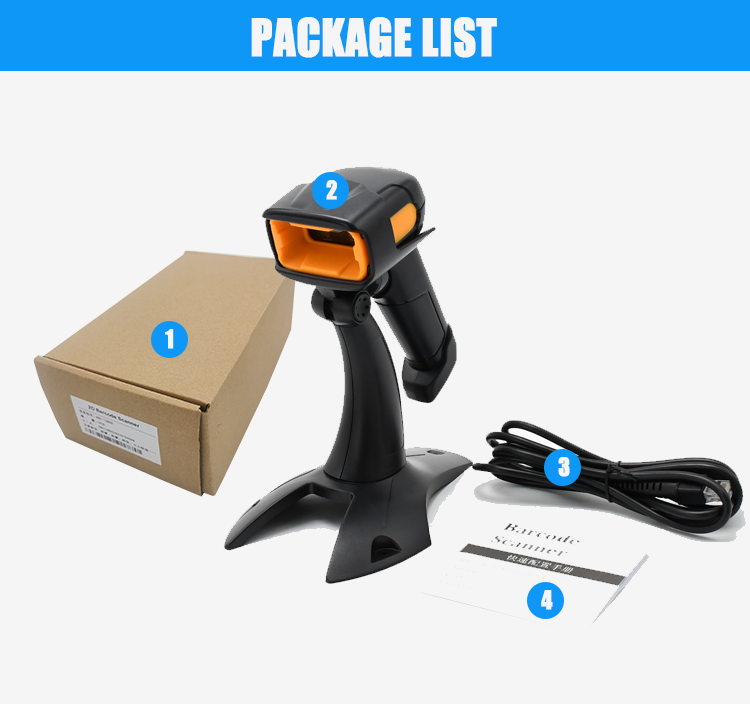

Delivery & Packing
Company Profile
Our Cerifications
Customer Feedback
Contact us
FAQ
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.
Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/BT/ Ibutton...etc)
Q3. What about minimum order quantity?
A: MOQ=1, since we have all materials in stock.
Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test. Sample with faster lead time 1-3 days. The bulk production only need 5-7 days according to quantity and color request.
Q5. What’s your payment terms?
A: Bank transfer,Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period?
A: 1-2 Years.
Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment .
2. we also accept the inspection by the third part you appointed.
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.
Q8.How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
