- Private Mold:Yes
- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:CMOS
- Colour Depth:32 Bit
- Interface Type:usb
- Max Paper Size:a4
- Optical Resolution:30 million pixels
- Scan Speed:120line /sec
- Brand Name:OSCY
- Place of Origin:China
- Warranty(Year):1-Year
- After-sales Service:Free spare parts, Call Center and on-line Technical Support
- Software development kit (SDK):Yes
- color:Black
- Product name:2D Wired Barcode Scanner
- Application:Store
- Interface:USB2.0
- Color:Black
- Dimension:140.20mm x 84mm x 90.10mm
- Weight:249g
- Scan Mode:Command Mode
- Decode Capabilities:1D + 2D + QR Code
- Material:ABS
- Resolution:≥4mil
Product Description
Specification

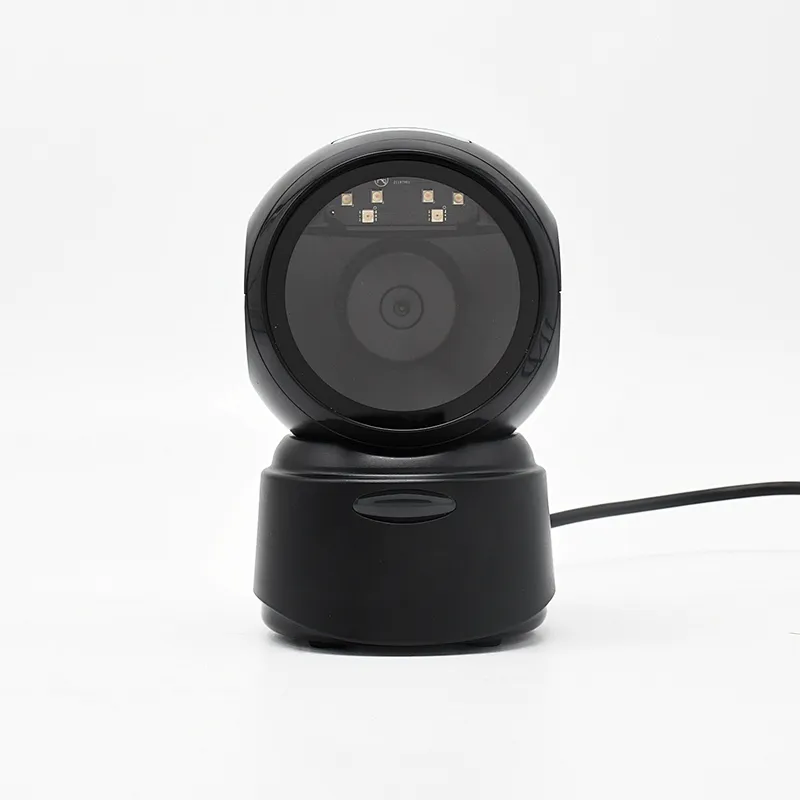

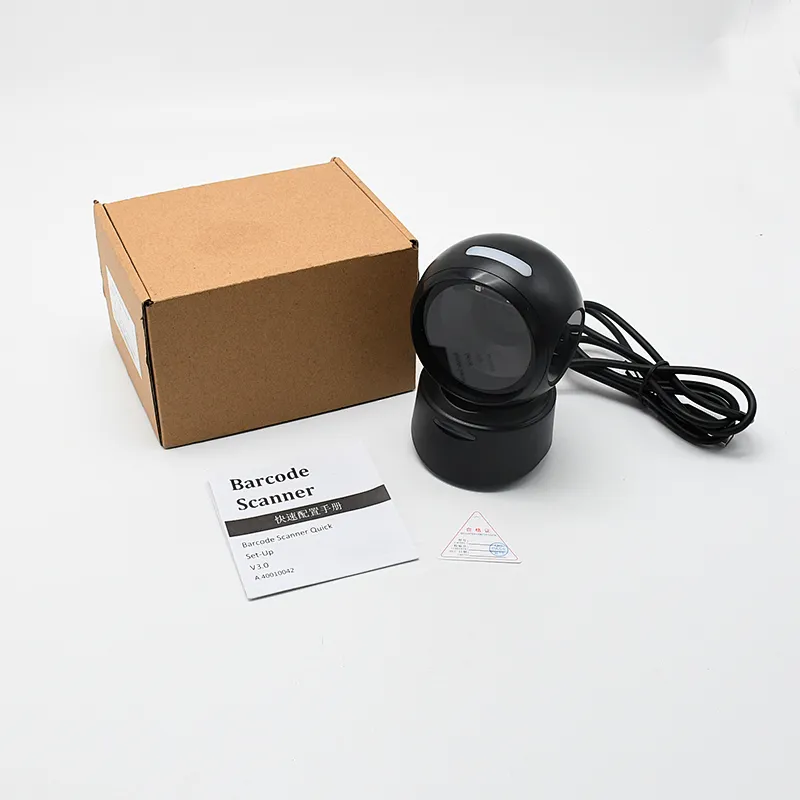

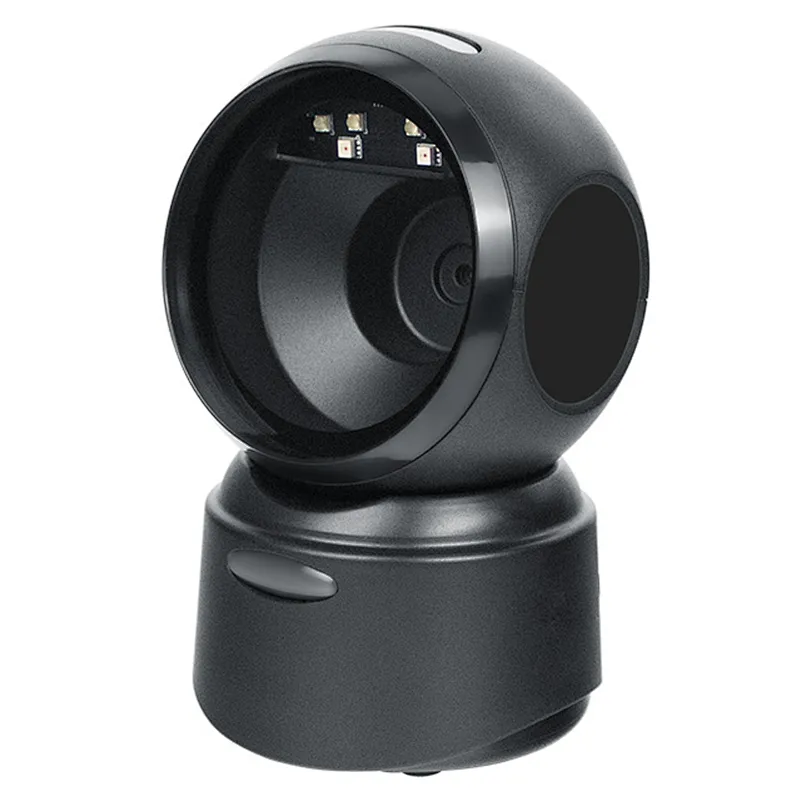

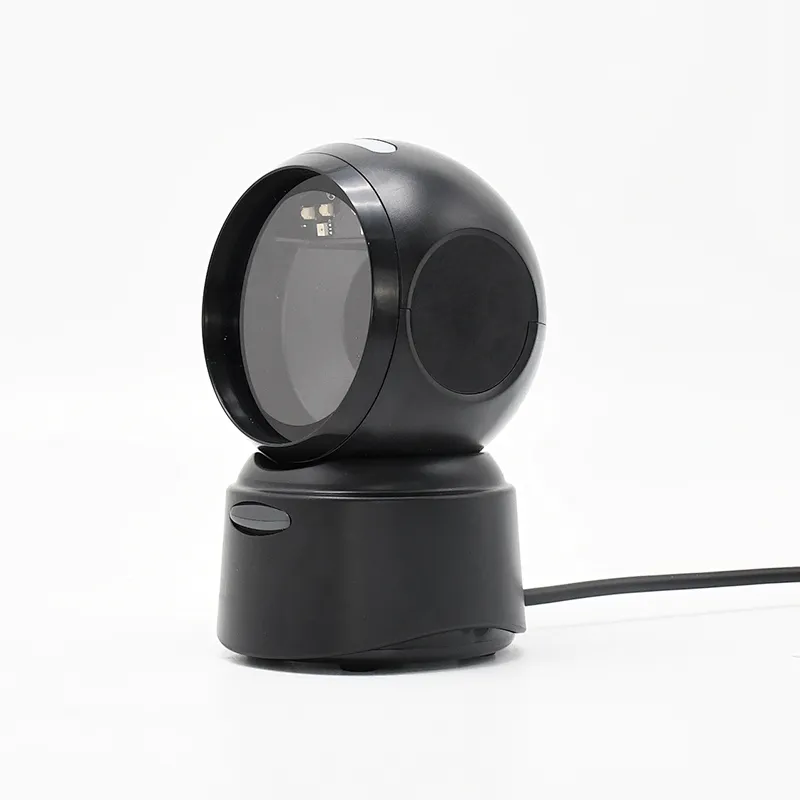

Syble Industrial 2D Barcode Scanner Desktop Reader Omnidirectional Scanning Machine
Features:

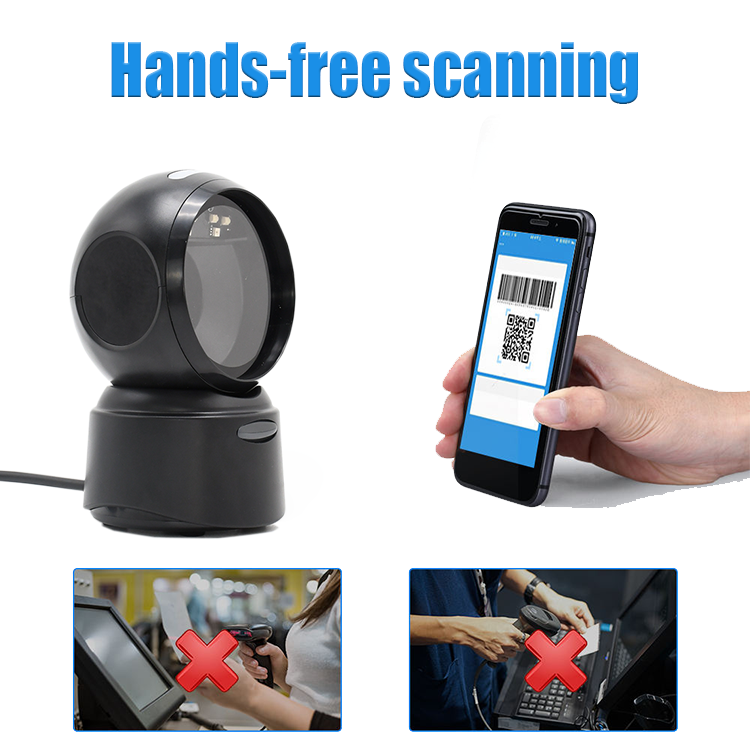

1. Can directly interpret barcodes on mobile phones and computer screens.
2. Equipped with a 300,000-pixel global exposure lens, the king of small platforms in the industry.
3. In a normal light environment, the induction mode can be turned on, and the light can be turned off.
4. Using high-precision CMOS sensor, data transmission is fast and stable.
5. Decoding background camera speed up to 120 frames per second.
6. The free fall barcode can be quickly interpreted.
7. It can quickly interpret fold codes, color codes, reflective codes, laminated codes, stain codes, and low-contrast bar codes.
Physical Characteristics | ||
Dimensions | 140.20mm x 84mm x 90.10mm | |
Weight | 249g | |
Voltage | 5V | |
Starting Current | 315mA | |
Stand-by Current | 235mA | |
Work Current | 320mA | |
Performance Characteristics | ||
Image (Pixels) | CMOS 640 pixels (H) x 480 pixels (V) | |
Light Source | (Aimer) Blue color LED; (Illumination) Red color LED | |
Field of View | 39°(H) X29°(V) | |
Roll / Pitch / Yaw | 360°, ±65° , ±65° | |
Print Contrast | 20% minimum reflective difference | |
Interfaces Supported | USB | |
Resolution | ≥4mil | |
Symbology Decode Capability | ||
1-D | Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. | |
2-D | DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN. | |
Symbology by default: | Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec | |
User Environment | ||
Operating Temperature | -20°C to 60°C | |
Storage Temperature | -30°C to 70°C | |
Humidity | 5% to 95% relative hum idity,non-condensing | |
Shock Specifications | Designed to withstand 1.2m(5’) drops | |
Ambient Light Immunity | 0-100,000 Lux | |
Decode Ranges | ||
Code39(5mil) | 0-7cm | |
Code39(13mil | 0-17cm | |
QR(20mil) | 0-11cm | |
(QR 3*3) | 1-30cm | |

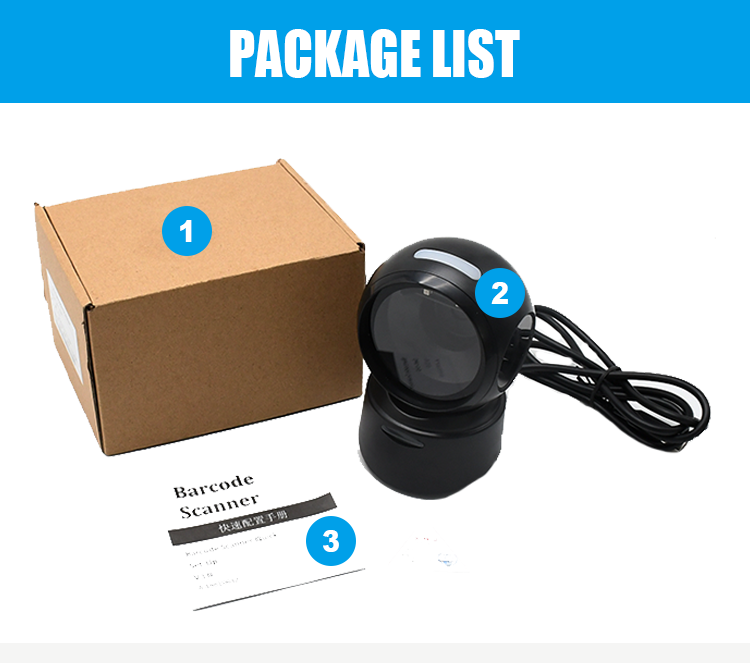

Packing & Delivery
High Quality USB desktop COMS sensor 1D 2D Barcode Scanner Automatic Flatbed QR Code Scanner
Company Profile
Certifications
Customer Feedback
Contact us
FAQ
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor. Q2. Can you make OEM/ODM/OBM? A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/BT/ Ibutton...etc) Q3. What about minimum order quantity? A: MOQ=1, since we have all materials in stock. Q4. Can i test the sample,and how about the lead time? A: Sure. You can buy the sample to test. Sample with faster lead time 1-3 days. The bulk production only need 5-7 days according to quantity and color request. Q5. What’s your payment terms? A: Bank transfer,Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period? A: 1-2 Years. Q7. What kind of inspection you can provide ? A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment . 2. we also accept the inspection by the third part you appointed. 3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification. Q8.How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
